QuickSwitch® Fiber Optic Network Switch, SC Duplex
QuickSwitch® 4192 Fiber Optic SC Duplex A/B/C/D/Off-Line Switch, with Remote, Rackmount

Fiber Optic SC Duplex A/B/C/D/Off-Line Switch, Remote, Rackmount, QuickSwitch 4192

Specifications:

PORT CONNECTORS: (5) SC Duplex Fiber Optic connectors on rear panel,
A, B, C, D, and COMMON.
FRONT PANEL CONTROLS: (5) pushbuttons allow switch selection A, B, C, D or Off-Line.
DISPLAY: (5) Front panel LED's display switch position and power status.
REMOTE: (1) DB9 female connector on rear panel accepts voltage excitation
remote control signals.
POWER: UL approved wall mount 120VAC, 60Hz power module supplies
12 VDC, 500 mA to the unit.
DIMENSIONS: Rackmount configuration 19" W x 3.5" H x 8" D. (48.3 x 8.9 x 20.3 cm)
WEIGHT: Approximately 5 lbs. (2.3 kg)

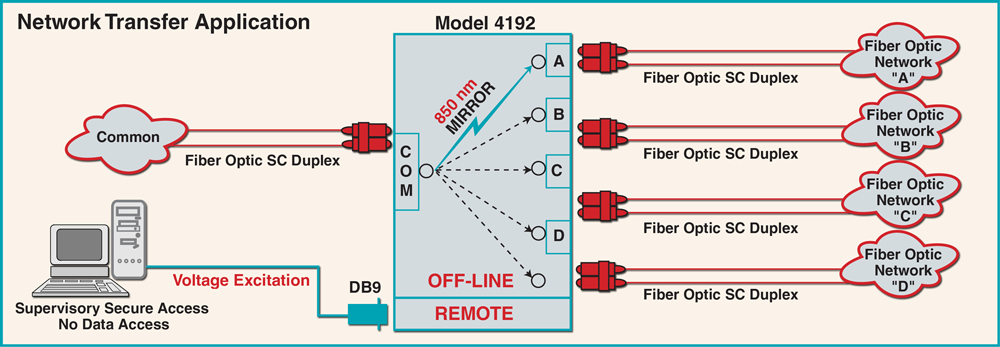

FIBER OPTIC SC DUPLEX A/B/C/D/OFFLINE APPLICATION: The SC Duplex 100BASE-FX Auto Fallback block diagram illustrates an external OFF-LINE position, as well as, the A, B, C, and D positions. A fiber optic device connected to the COMMON port has access to four fiber optic networks connected to the the A, B, C and D ports, or be completely disconnected from all output ports in the OFFLINE position. A workstation connected to the DB9 Remote port allows the user access to select positions A, B, C, D or OFFLINE remotely. Applying the appropriate voltage to the desginated pins of the DB9 REMOTE connector will cause the switch to change position.

Fiber Optic SC Duplex A/B/C/D/Off-Line Switch, Application Note, QuickSwitch 4192

QuickSwitch 4192 Features:

Access any one of four separate fiber optic networks from one computer.
Local control via five front panel pushbuttons, A/B/C/D, and OFF-LINE.
Front panel LED's display switch position and power status.
Remote Control via voltage excitation applied to designated pins
of the DB9/Female Remote port connector.
MEMS-based mirror/prism switch technology supports Gigabit data rates.
Bit-rate and data transparent.
Optical data throughput scalability.
All fiber ports are SC duplex, multimode, 62.5/125 micron and support a wavelength of 850 nm.
OFF-LINE switch position stops any and all data throughput for the unit.
If power is lost, the unit will automatically switch to the OFF-LINE position and decouple all fiber optic connection in and out of the unit.
When power is restored, the unit will automatically read the voltages on the Remote port
and look to the pushbutton activity to select its switch position.
Installs in standard 19" equipment rack.
Custom length, rigorously tested and certified, SC Duplex fiber optic cables available
for your switch installation.
Municipalities, schools, government: This product is on GSA Schedule!

The QuickSwitch® 4192 fiber optic network switch allows a fiber optic device connected to the SC duplex COMMON connector of the unit to access any of four fiber optic networks connected to the A, B, C or D ports, or to disconnect completely from all output ports. The switch position can be changed either by depressing the desired front panel A/B/C/D/Off-Line pushbuttons, or by a device connected to the Remote port. Applying appropriate voltage to designated pins of the Remote connector will cause the switch to change position.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.
