*WALL MOUNT* Catalog # 307190 - Model 7190 CAT5e Conference Room Network Isolation & Security Wall Switch

    RJ45 CAT5e Wallbox Online/Offline SwitchRJ45 CAT5e Wallbox Online/Offline Switch
Click image to enlarge
    • RJ45 CAT5e Wallbox Online/Offline Switch
    • RJ45 CAT5e Wallbox Online/Offline Switch
Base Price:
$476.00
Catalog No: 307190
Model No: 7190
Product Type:Switches: Copper
Positions:2, Offline
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Security:Offline Position
Compliance/Standards:Cat5e
Configuration:Wall Mount
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Wall Plate Network Switch, RJ45, Cat5e
LineSelect® Model 7190 Double Gang, Wallbox, RJ45, Cat5e Online/Offline Manual Switch

  • Allows quick disconnect from network when not in use, providing ultimate security.

  • Blocks out intruders.

  • An ideal Conference Room Network Isolation & Security Switch

SPECIFICATIONS:

  • PORT CONNECTORS: (2) RJ45 Cat5e female connectors color coded, A is blue and COMMON is red. They are located on bracket inside the wall box.
  • FRONT PANEL CONTROL: (1) Rotary Switch on front panel selects ONLINE or OFFLINE.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Double Gang Wall Box: 4.56" W x 4.5" H x 3.4" D. (11.6 x 11.4 x 8.6 cm)
  • WEIGHT: Approximately 0.7 lb. (0.3 kg).

DOUBLE GANG CAT5e ONLINE/OFFLINE APPLICATION:

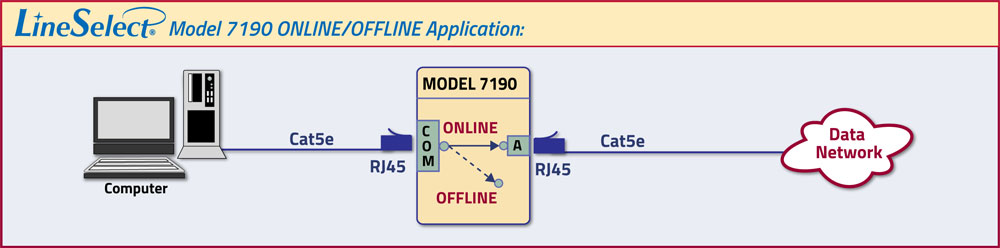

The drawing illustrates a Cat5e compliant online / offline wall plate switch. The COMMON device can be connected to Device A, alternatively the COMMON Device can be disconnected from Device A by simply selecting the offline position.

LineSelect® Model 7190 Double Gang, Wallbox, RJ45, Cat5e Online/Offline Network Switch

FEATURES:

  • Completely isolates the Common device from the data network when in OFFLINE position.
  • Online/Offline switch on faceplate.
  • Two RJ45, Cat 5e Ports on bracket inside box.
  • RJ45 cables must be run into box and bracket before installing in the wall.
  • Rated for 10/100/1000 Base-T networks (up to Cat5e).
  • High quality sealed switch with self-wiping precious metal contacts.
  • All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
  • Transparent to data speed and format.
  • Manual operation via front-panel rotary switch.
  • No external power required.
  • Custom length RJ45 cables available for your switch installation.
  • Lifetime warranty against manufacturing defects.
  • Municipalities, schools, government: This product is on GSA Schedule!
  • (GS-35F-0286V) Click here for GSA details.

The LineSelect® Model 7190 is a manually operated double gang wall box Online/Offline switch. When in ONLINE position, the switch connects the Computer to the Data Network.  When in OFFLINE position, the switch disconnects the Computer from the Data Network.  There are two RJ45 Cat5e ports on the bracket inside the wall box.  The RJ45 network cables must be run into the box and bracket before installing in the wall.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

LineSelect® Model 7190 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
