304349 - 4349 CellMite ProD High-Performance Data Acquisition & Sensor Monitoring Node

Click image to enlarge

Base Price:

$5,099.00

Catalog No:

304349

Model No:

4349

Display:

Excitation:

5VDC

Input Range:

19VDC-36VDC, std. 4.5VDC-9VDC

Ouput_Analog:

See Spec

Output_Serial_Data:

10/100Base-T Ethernet. Isolation: Optical

Storage:

750K Words of onboard memory

NOTE:

This product may have long delivery times. Please consult Sales for details.

Product Type:

CellMite®

Conversion Rate:

10,000/sec all channels

Qty

Add to Cart

NOTE: This product may have long delivery. Please consult Sales for details.

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

CellMite® ProD Ruggedized High Performance Embedded Data Acquisition and Sensor Monitoring Node

Powerful load cell electronics
Ideal for high traffic network applications. Has extended buffering.
Ideal for Commercial Off-the-Shelf (COTS) Application

The CellMite® ProD Model 4349 is a high performance data acquisition and sensor monitoring module from Electro Standards Laboratories that is suitable for embedded applications that require a ruggedized high speed analog and digital data acquisition unit that is accessible via an Ethernet network.

The Model 4349 creates both a low speed monitoring data stream and a high speed transient event data stream that are designed to measure and report both static and pulsed sensor events. Typical sensors can include load cells, temperature sensors, strain gages, general analog outputs, voltages, currents, pulse counting, and digital contacts. Complex systems can be monitored by using a multitude of CellMite® ProD Model 4349 boards as Ethernet monitoring nodes within an Ethernet network.

The CellMite® ProD features 11 channels of 12-bit analog inputs that can be sampled up to 10,000 samples/second. Digital data acquisition is also supported with 64-bits of simultaneously sampled digital inputs, 4-bits of isolated digital inputs, and 3 digital counter inputs that are also sampled at up to 10,000 samples/second. The high sampling rates make the Model 4349 perfect for recording important sensor data from transient applications such as pulsed power systems.

Direct PC or network communication is supported by a 10/100 BaseT Ethernet data channel with user selectable event and monitor data packet size in order to minimize network congestion. The communication channels are optically isolated in order to minimize system ground loops. For applications requiring on-board data storage, the CellMite® ProD features 750K Words of onboard memory that can be used to buffer transient event data. The CellMite® ProD features a wide input voltage range of 19VDC-36VDC, along with 3kVDC isolation. The CellMite® ProD is designed for ruggedized applications and is designed to operate from -40C to 85C.

Applications include:

High speed data logging
Recording pulsed sensor events
Multiple data stream monitoring
Multi-rate & mixed signal data recording
Recording transient data triggered by events

Specifications:

Analog Signal Inputs:

Analog Input: Very high impedance differential
Input Range: /- 10V
Resolution: 12-bits
Number of Channels: 11
Max. Sampling Rate: 10,000 samples/second, all channels

Digital Signal Inputs:

Input type: Logic, TTL, and HC compatible with hysteresis
Number of Channels: 64 bits, simultaneously sampled
Max Sampling Rate: 10,000 samples/second

Digital Counter Inputs:

Excitation: 5 VDC
Interface: Single ended TTL, compatible
Type: Pulse
Channels: 3
Resolution: 8-bits

Digital Isolated Inputs:

Type: Optically Isolated
Channels: 4

Digital Trigger Input:

Type: Digital trigger
Source: Any digital input

Input Power:

Range: 19VDC-36VDC, std, 4.5VDC-9VDC, Others
Power: 8.5W (Ex. 300 mA at 28 VDC)

Indicators:

Discrete: Dual LEDs

Mechanical:

Size: 7.5” x 5.5” x 1”
Mounting: 7 mounting holes
Signal Connectors: 2mm ribbon
Environment: Operating -40°C to 85°C

Communications Interface:

Interface Types: 10/100Base-T Ethernet with flow control
Isolation: Optical

Monitor Data Format (Continuous Monitoring):

Data Packet: Selectable to 20 bytes
Data Packet Rate: 0.1 Hz to 10 Hz
Data Stream Type: Data Push (continuous monitoring)
Data Content: User Specified Analog, Digital, Counter data

Event Data Format (Transient Event Monitoring):

Data Packet: Selectable to 20 bytes
Data Sample Rate: 10 Hz to 10,000 Hz
Transmit Packet Size: Selectable
Data Stream Type: Triggered Data Push / Data Pull
Data Content: User Specified Analog, Digital, Counter data
Buffered Data Storage: 750K Words

Ordering:

Model/Catalog No. 4349/304349

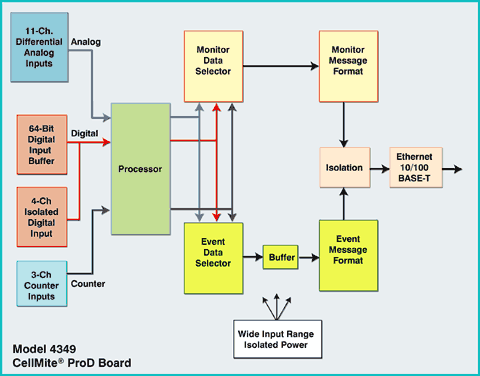

CellMite®ProD Model 4349 Board Block Diagram

CellMite ProD Board

CellMite® ProD Typical Application
