Overview

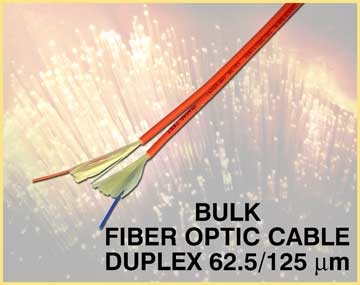

Bulk Fiber Optic Cable (Breakout Style) Multimode, 62.5/125 µm
Catalog # 260297 Custom Lengths, Plenum Applications (OFNP/FT6)
Features:
- Breakout design enables individual routing of fibers for termination and maintenance.
- Tight Buffered, simplex cords are stranded around a central member and encased in a flexible jacket.
- Multimode 62.5/125 micron fiber.
Specifications:
- Buffer Diameter: 900 µm
- Fiber Type: 62.5 µm core, 125 µm cladding
- Maximum Attenuation: 3.75 dB/km @ 850 nm, 1.5 dB/km @1300 nm.
- Minimum Bandwidth: 160 Hz-km @ 850 nm, 500 Hz @1300 nm.
Bulk Fiber Optic Cable (Breakout Style) is designed for voice, data, video, and imaging transmissions.
With breakout style of fanout style cables, the strands are packaged individually or in groups. This enables you to divide cables to serve user with individual strand lines and eliminates the need for patch panels.
All ESL products are available for export.
