301023 - SCUPS® Model 1023 Super Capacitor 24VDC Uninterruptible Power Supply

    SCUPS Model 1023, 24 VDCSCUPS Model 1024 Board, 24VDC
Click image to enlarge
    • SCUPS Model 1023, 24 VDC
    • SCUPS Model 1024 Board, 24VDC
Base Price:
Call for Price
Catalog No: 301023
Model No: 1023
Power Load:24VDC

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

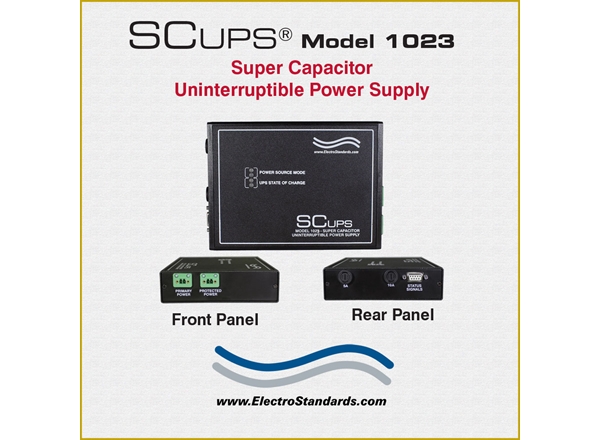

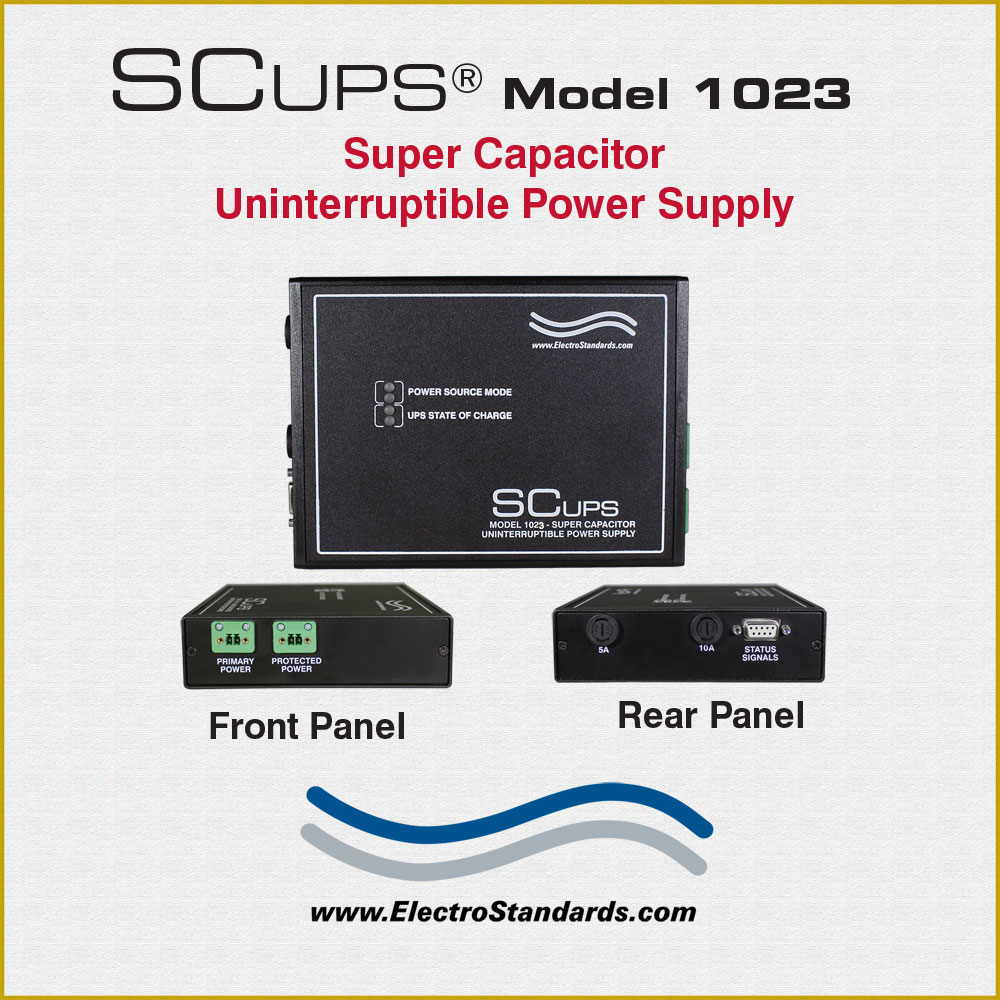

SCUPS® Model 1023 SuperCapacitor Uninterruptible Power Supply, Desktop Configuration

  • Provides critical power backup for remote locations that utilize computer-based monitoring and control systems.

  • Recognized for significant advantages over battery UPS systems.

  • Low Maintenance, Long Life Service, Wide Temperature Range

The SCUPS® Model 1023 SuperCapacitor based Uninterruptible Power Supply is designed to provide nominal 24VDC power when a unit's 24 VDC line power is interrupted. In addition, several digital signals are available to alert the host system that supplemental power is in use, and to provide a state of charge (SOC) indication. User applications can use digital signals to commence an orderly shutdown operation and can use the SOC signals to gauge the level of energy in the super capacitor.  Once Primary power is restored, the unit's super capacitor is recharged and becomes ready for the next power interruption event.

The use of the SuperCapacitor for energy storage provides a very low maintenance solution with extremely high cycle life and without the shelf-life concerns of the typical battery backup systems.

The SCUPS® is perfect for low power remote systems where primary power can be interrupted.  Typical applications include remote locations with intermittent grid power or renewable energy systems such as solar powered systems.

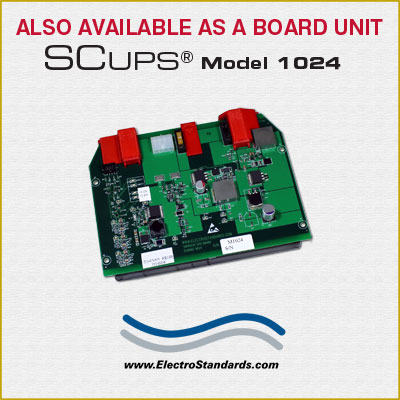

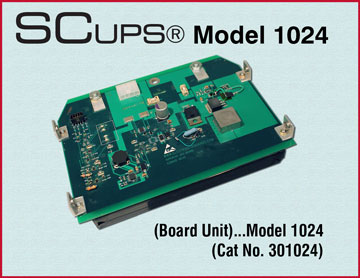

 The SCUPS® Model 1023 is also available as a board unit that can easily be integrated into user equipment. See Model 1024, Catalog Number 301024 below.

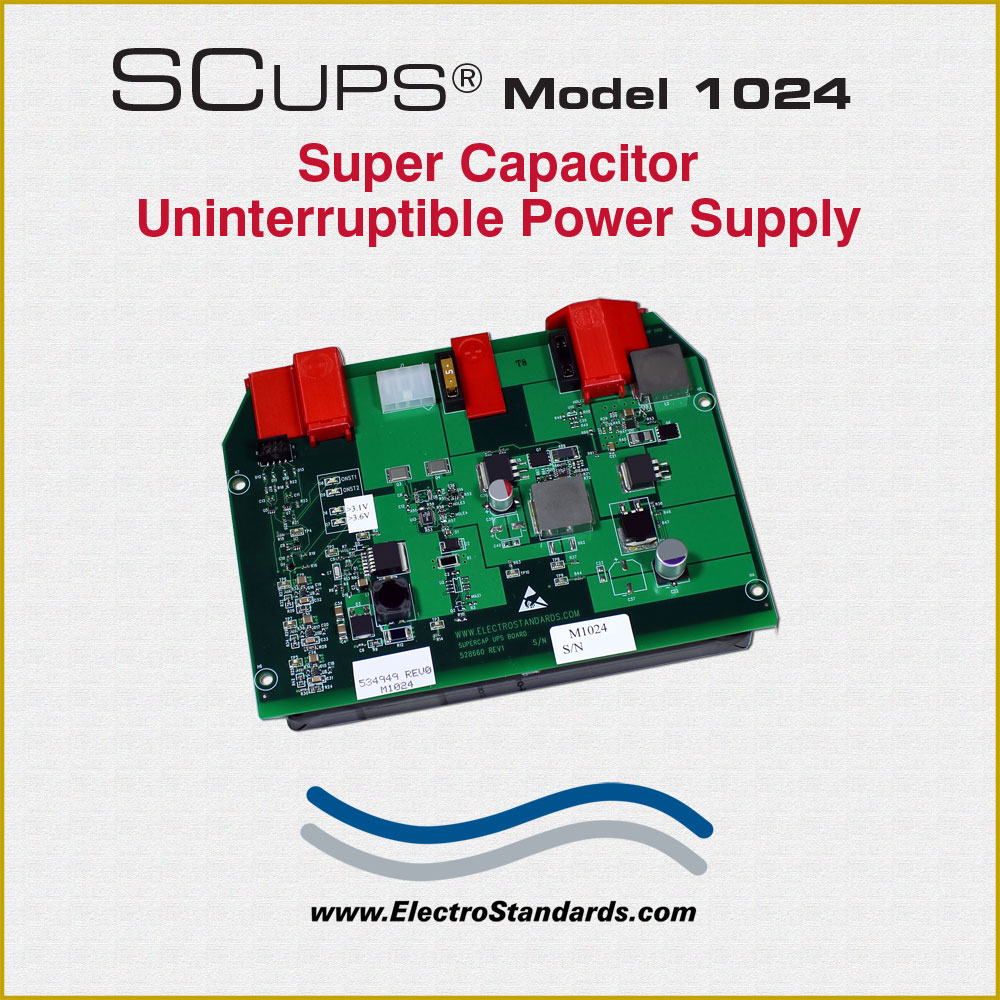

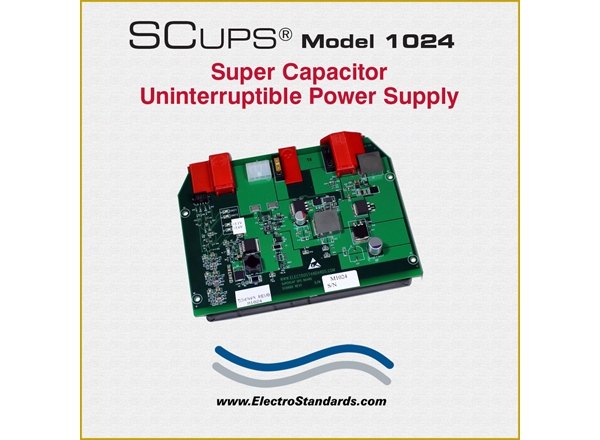

SCUPS® Model 1024 Uninterrupitble Power Supply, 24 VDC

SPECIFICATIONS:

  • Max Power to Load:
    • 24W, 24 VDC at 1A
  • Max Primary Load Voltage:
    • 24 VDC
  • Voltage during Hold up:
    • 23 VDC
  • Hold Up Time:
    • 7.7 minutes with 1A Load
    • 15.4 minutes with 0.5A Load
  • Full Recharge Time:
    • 102 minutes from full discharge to full charge
  • Min. Recharge Time:
    • 41 minutes from full discharge (nominal times at 22°C)
  • Energy Storage:
    • Lithium Ion Super Capacitor
  • Status Signals:
    • Digital: 2-State of Charge, Primary-ON, Backup-ON
  • Temperature:
    • -25°C to 65°C
  • Connectors:
    • Primary Power In: 2-Pin(M) Phoenix Connector
  • Protected Power Out:
    • 2-Pin(F) Phoenix Connector
  • Status:
    • DB9 (M) Connector
  • Dimensions:
    • 7.760" x 5.550" x 1.550" (includes SuperCapacitor)
  • Weight:
    • 1.8 lb. (includes SuperCapacitor)
  • Operation Manual Describes:
    • Power Connector, Activating the UPS, Deactivating the UPS, UPS System Operations, Adjusting UPS Output Voltage Level, Hardware Specifications, Performance Specifications, UPS Discharge Characteristics, UPS Charge Characteristics, UPS Circuit Board Description, Digital Signal Pin Out, Digital Output Component Specifications.

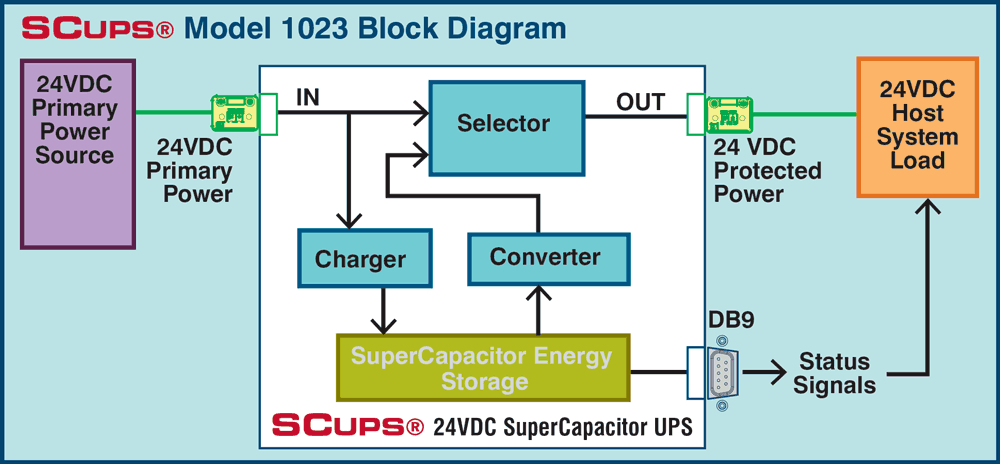

SCUPS Model 1023 Power Backup Application Diagram
