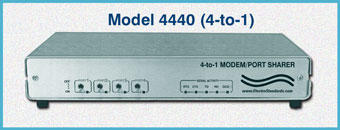

Catalog # 302050 - Model 4440 DB25 RS232 4-Way Switch

Click image to enlarge

Base Price:

$1,073.00

Catalog No:

302050

Model No:

4440

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

DB25 Switch Ports

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Configuration:

Desktop

Pins Switched:

1-8, 20

Local Control:

Toggle

Protocol:

ASCII

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, DB25
Model 4440 Remotely Controllable RS232 4-Way Switch

Model 4440 4-to-1 Modem Port Sharer, DB25 Toggle

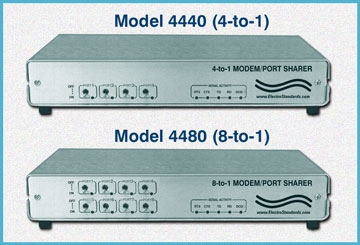

SPECIFICATIONS: Model 4440 (4-Way Switch) and Model 4480 (8-Way Switch)

DIMENSIONS:
- 13" W x 2" H x &" Desktop
- 19" W x 3.5" H x 7" Rackmount
SPEED: Transparent
POWER: 120 VAC, 60 Hz, .5 A
DISPLAY: (4/8) Port, (4) Key Signals, (1) Manual remote
CONTROLS: (4/8) toggle switches
INTERFACE: RS-232
CONNECTORS: (5/9) DB25 (F)
USER CHANNELS: 4/8
LEADS SUPPORTED: 1-8, 20

TYPICAL LOCAL APPLICATION: The drawing illlustrates LOCAL connections between the Model 4440 DB25 Toggle Switch and several devices such as a computer for control, Security Card Scanner as well as the Model 4215 data acquisition instrument.

Model 4440 typical local application.

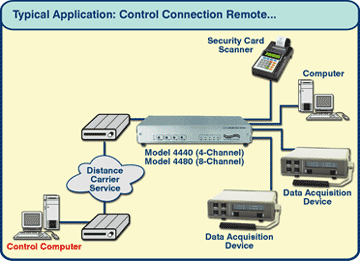

TYPICAL REMOTE APPLICATION: The drawing illlustrates REMOTE connections between the Model 4440 DB25 Toggle Switch and several devices such as a computer for control, Security Card Scanner as well as the Model 4215 data acquisition instrument.

Model 4440 typical remote application.

FEATURES:

The Model 4440 PathWay® Remotely controllable RS-232 network switch allows local or at-a-distance access to four devices.
Selectable trigger character allows the operator to choose a unique trigger character to establish communications.
Interactive menu allows the user to assign device labels, change switch position, or simply query the unit for switch status.
Lockout of front panel switching control for secure environment applications.
Remote control from device directly connected to common port or a distant device via modem connection.
Switch among connected devices via ASCII code protocol.
Front panel switching of sharer via front panel controls.
Key signal activity LEDs monitor signal activity.
Port status LEDs show connected port.
Custom operation available, call ESL.
No special software required.
For 8-port network switch, see Model 4480, Cat. No. 302060.
Available as a rackmount unit, call ESL.
Electro Standards manufactures a wide range of RS-232 switches.

These highly flexible remotely controllable RS-232 switches allow local or at-a-distance access to four devices (Model 4440) or eight devices (Model 4480). Selectable trigger character allows the operator to choose a unique trigger character to establish communications. Interactive menu allows the user to assign device labels, change switch position, or simply query the unit for switch status.

Front panel channel selection is as simple as flipping a switch. Lockout of front panel switching control is possible for secure environment applications.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our Copper Cable Assemblies webpage

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online Custom Product Request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided
