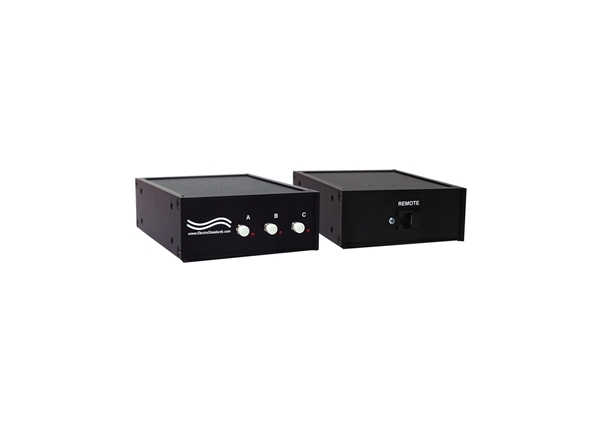

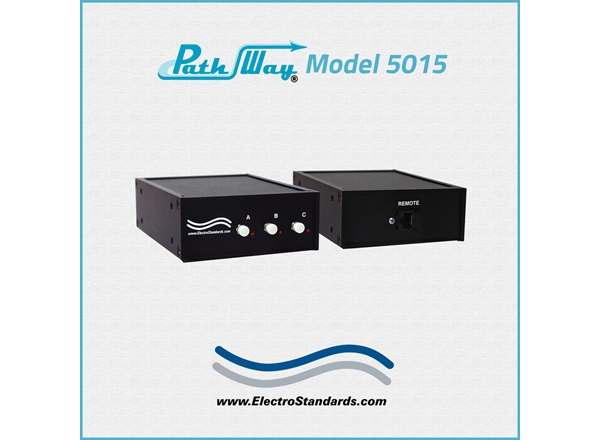

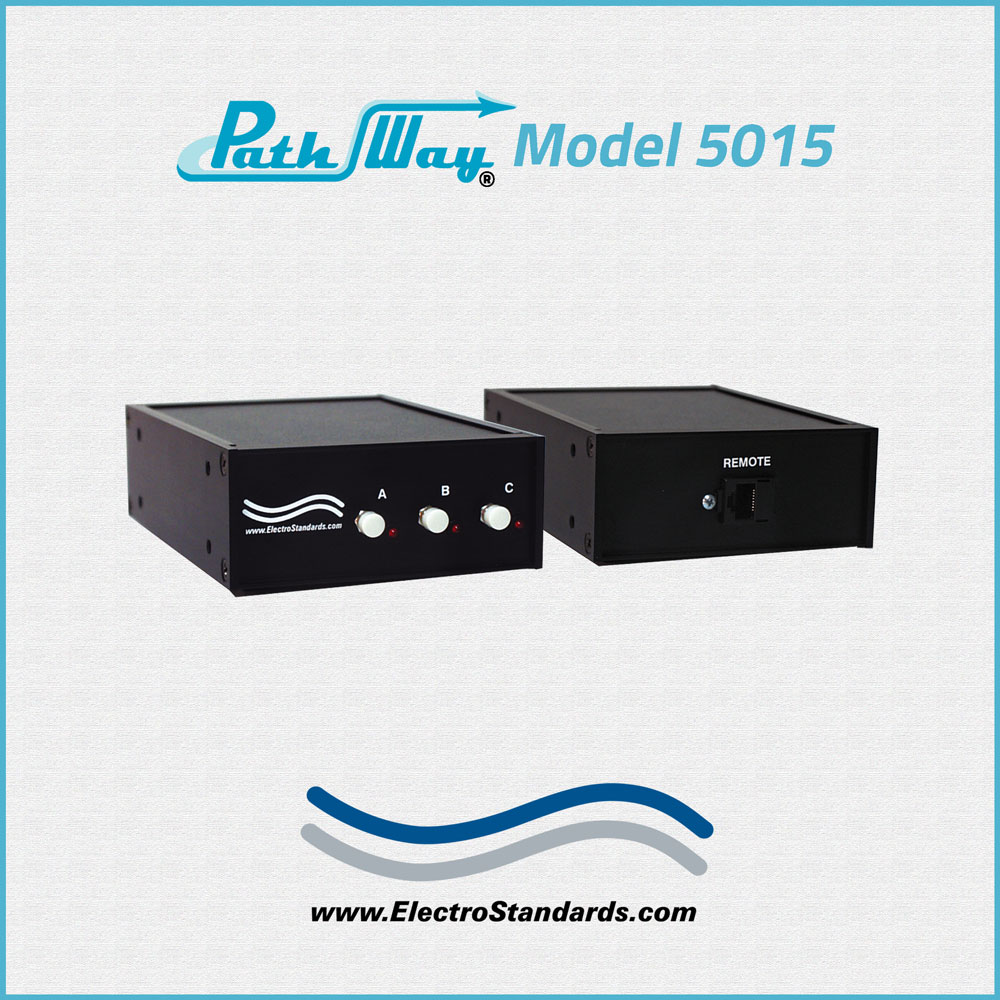

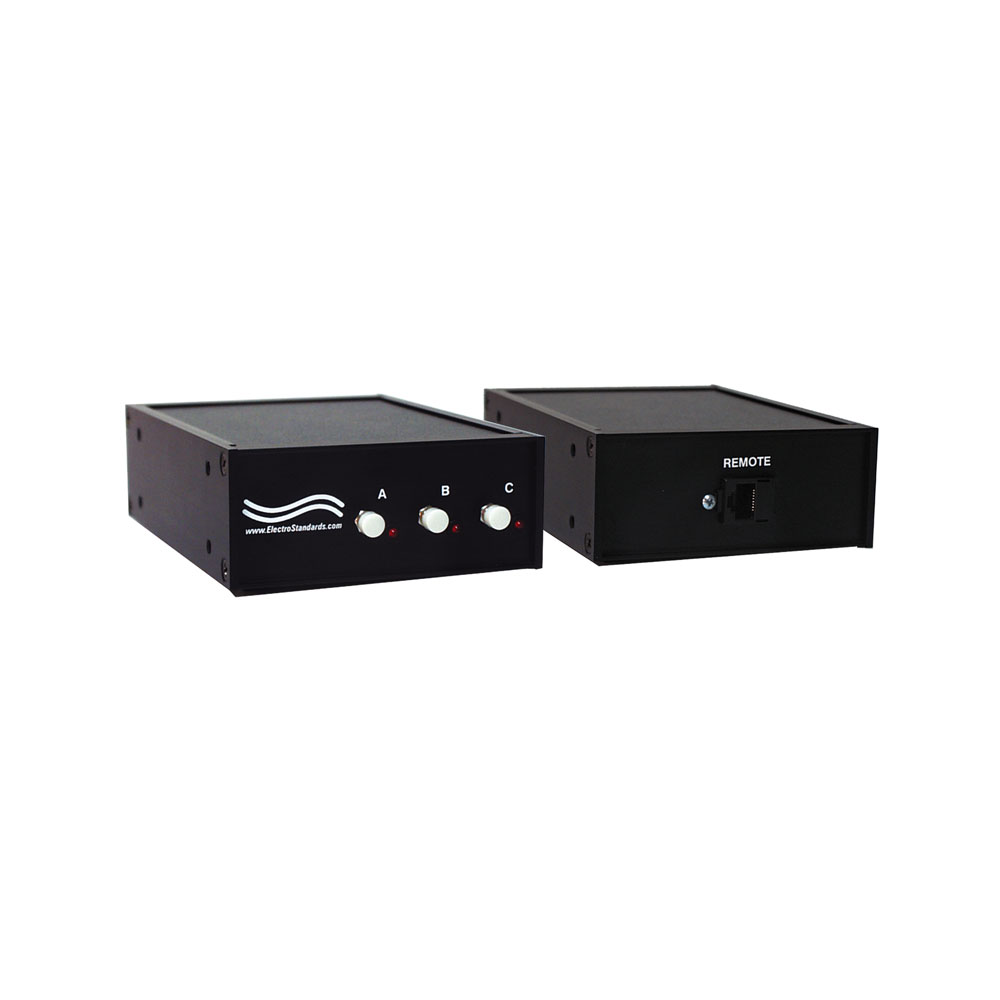

PathWay® Model 5015 Control Unit for Remotely Controllable Data Switches
-
Network configuration backup is quick and easy with this switch.
FEATURES:
- Desktop configuration.
- Control, 3 selector pushbuttons labeled A, B, & C.
- Display, three LEDs display switch state.
- Remote Control Port (output, contact closures) on rear panel, RJ45 (F) connector.
- Dimensions: 4.25" W x 1.75" H x 6.0" D. (10.8 x 4.4 x 15.2 cm)
- Weight: Approximately 0.5 lb. (0.23 kg)

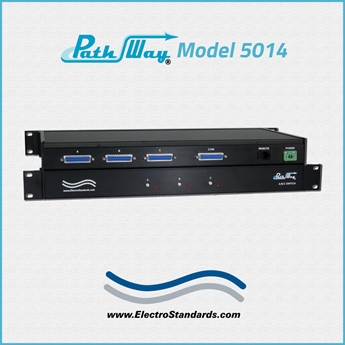

- Designed for use with the PathWay Model 5014 A/B/C Switch, Cat No 303014.
Remote Control RJ45 Pin/Signal List for the Models 5014 & 5015:
RJ45 Model 5014 Model 5015
Pin 1 GND LED Signal Return (Ground)
Pin 2 Remote SW-A Pushbutton Select A
Pin 3 Remote LED-A LED Display A
Pin 4 Remote LED-A Pushbutton Select B
Pin 5 Remote LED-B LED Display B
Pin 6 Remote SW-C Pushbutton Select C
Pin 7 Vcc LED Vcc (5V@4ma)
Pin 8 Remote LED-C LED Display C
