Overview

Network Media Converters

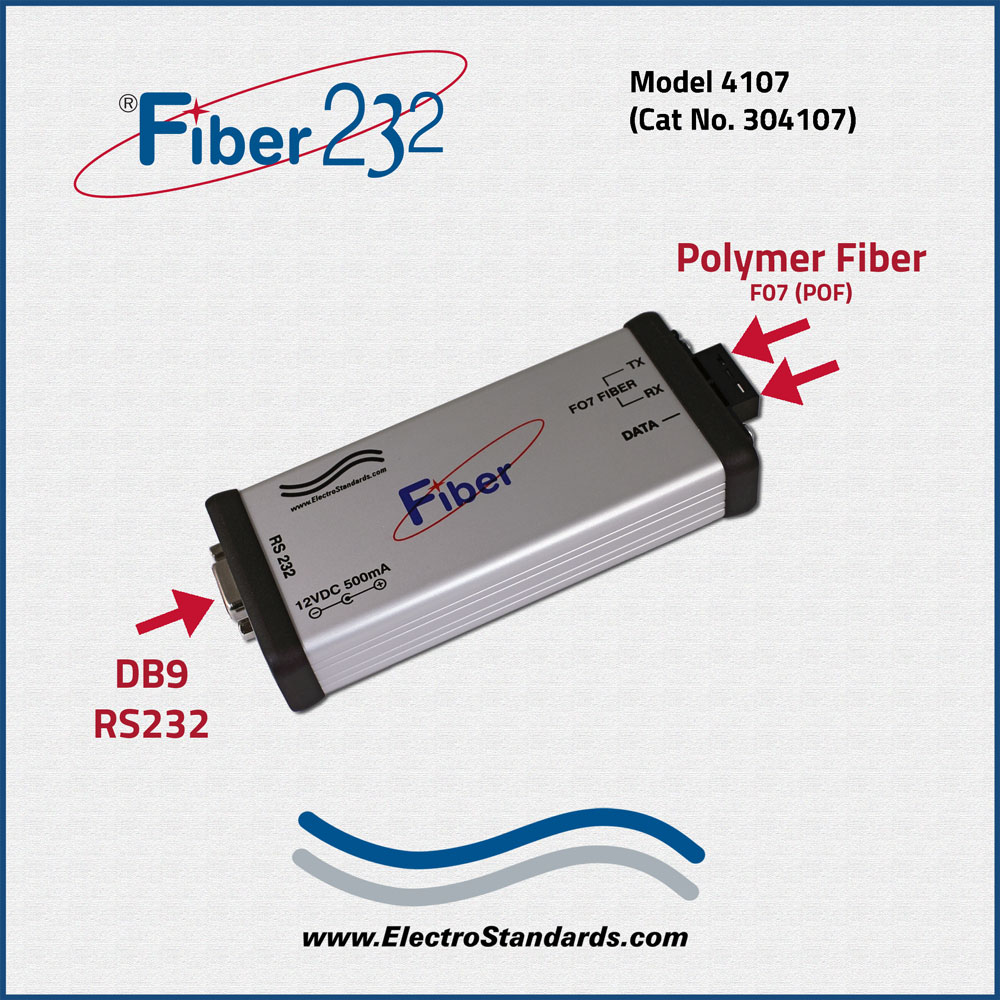

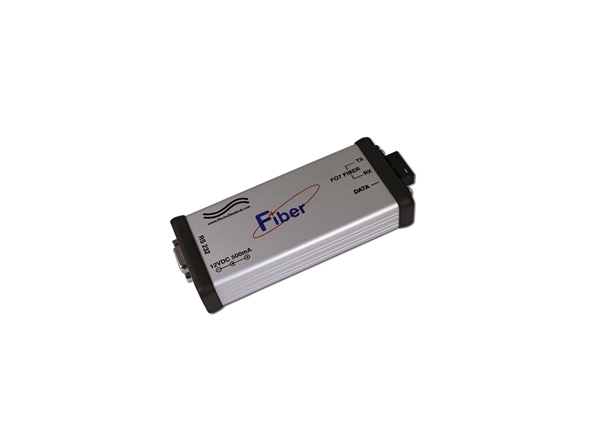

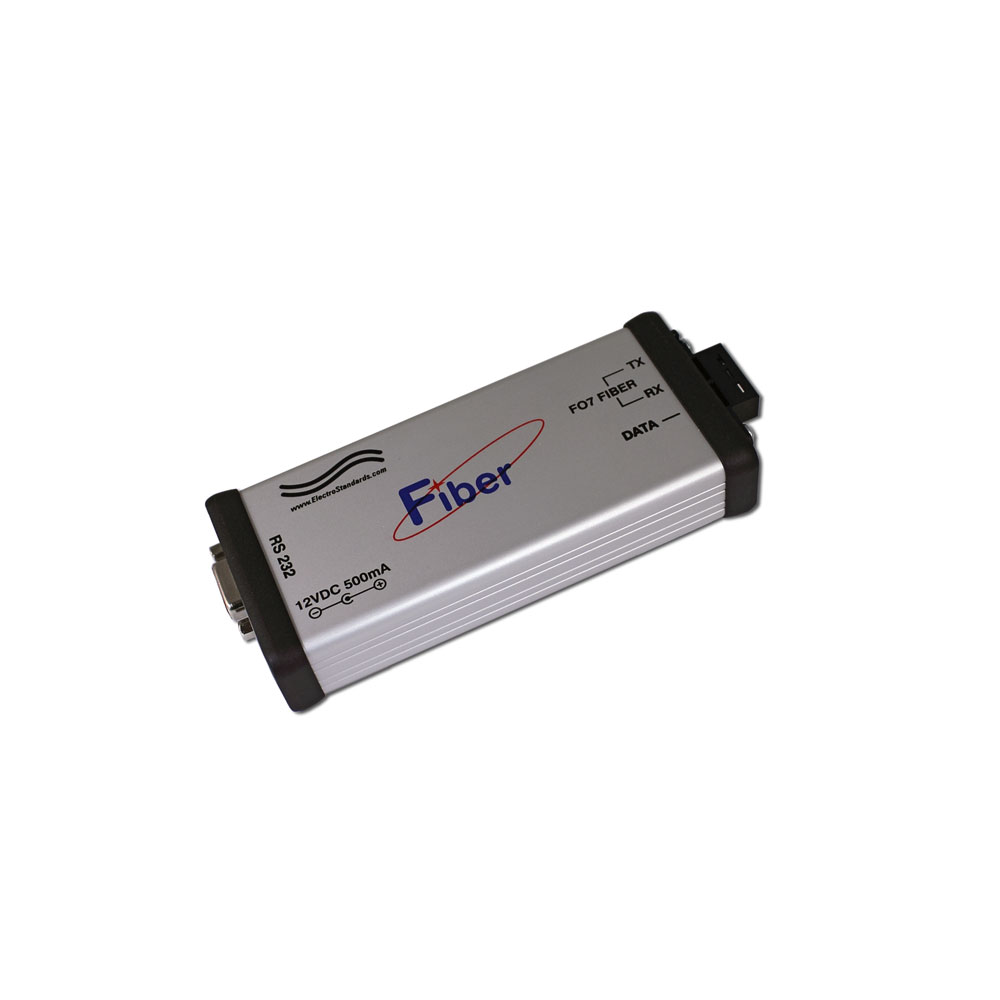

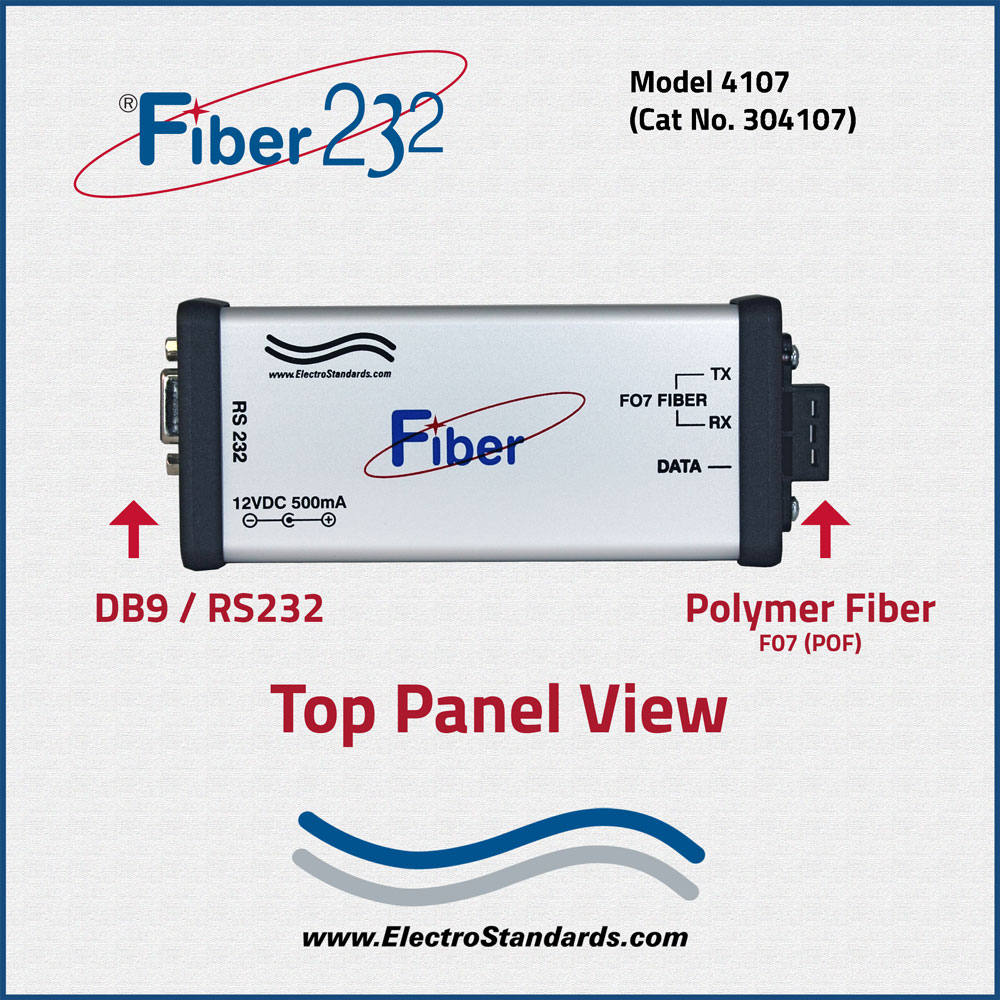

Fiber 232® Model 4107 F07 (POF) Fiber/RS232 Converter

  • Provides Electrical-to-Optical, Optical-to-Electrical Conversion.

  • Plastic Optical Fiber interface provides immunity to electromagnetic interferences and pulses common to industrial applications.

  • Totally eliminates ground loops and noise problems associated with high-voltage applications.

  • Ideal for providing isolation to sensitive test equipment/computers and used in conjunction with electrostatic test simulation devices.

F07 (POF) FIBER to RS232 DB9 CONVERSION APPLICATION:

The Model 4107 is connected from the DB9 RS232 to a computer or Sensitive Monitor Equipment (Protected Devices) and from the F07 (POF) connector to an Electrostatic Test Simulation Device (Electrical Interference Source) which provides galvanic isolation via copper-to-fiber media conversion.

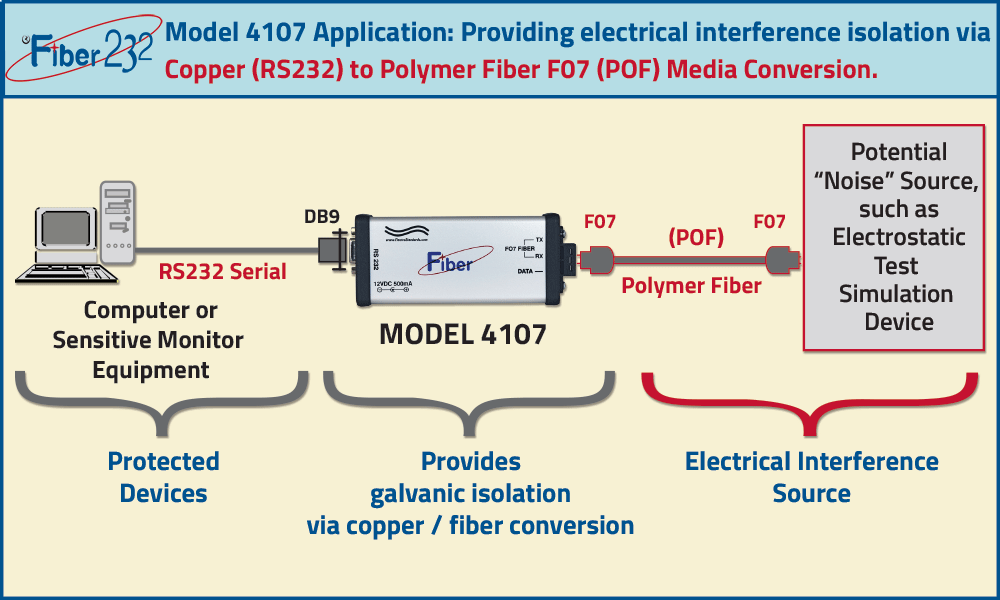

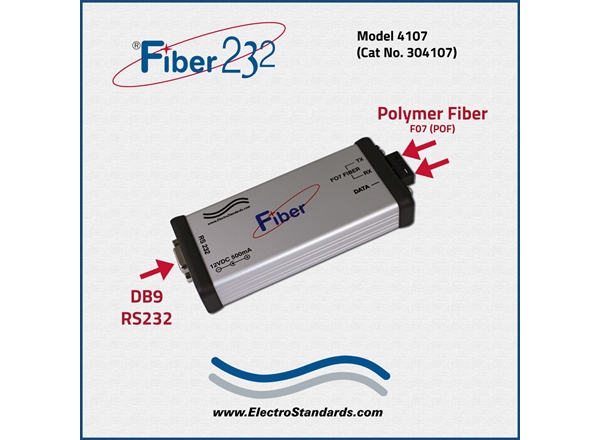

Model 4107 F07 (POF) Fiber/RS232 Interface Converter Application

Model 4107 Application:

The Model 4107 F07 (POF) Fiber/RS232 Converter is used to provide copper/fiber media conversion between an RS232 interface device and a plastic optical fiber (POF) interface device.  While the RS232 is versatile communication standard, conversion to a fiber optic communication standard allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields.  Additionally, the ports of the connected devices are protected from damage by potential differences (ground variations) that often exist between them.

SPECIFICATIONS:

  • Plastic Fiber: (POF)
    • Cable Type: 1 mm plastic optical filament
    • Wavelength: 660 nm (red).
    • Transmission Distance: 75 m (250 ft.) (POF).
    • Data Transfer Rate: Up to 1 Mbps.

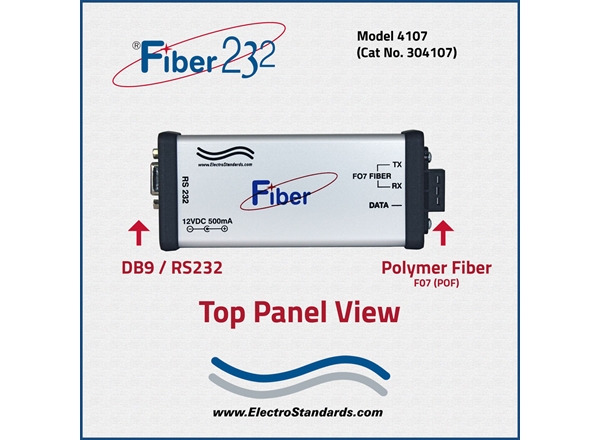

    • Optical Fiber Connector: F07 (POF) Full Duplex (TX, RX).
  • RS232 Serial Interface:
    • Transmission Distance: At 115.2Kbps, 100 meters using low capacitance cable.

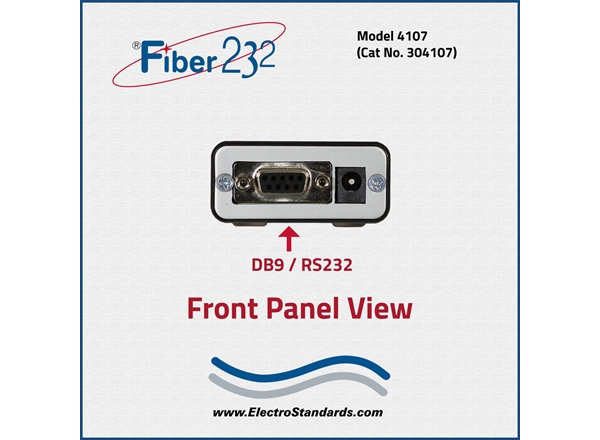

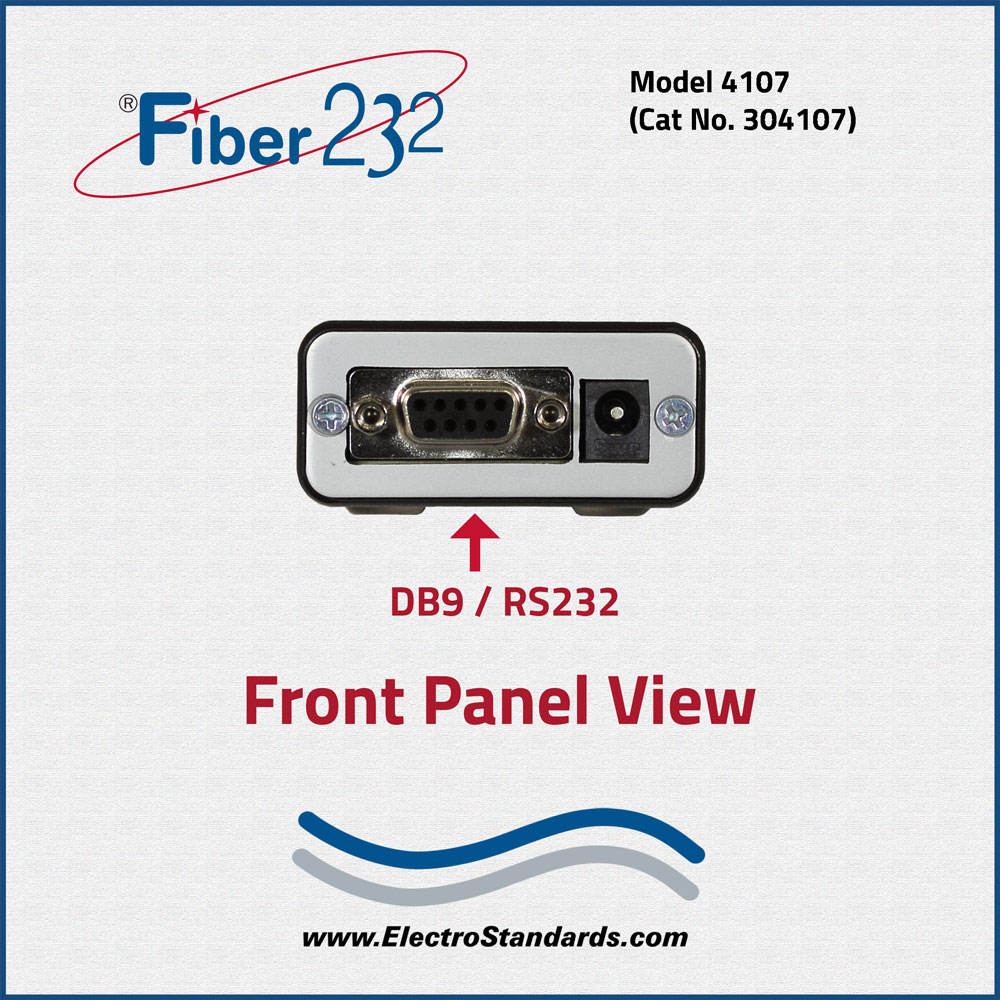

    • RS232 Connector: DB9 Female.
  • External Power Supply (included with Model 4107):
  • 100-240 VAC @ 50-60 Hz. UL Listed, RoHS, LPS (Cat No 529954)
  • Dimensions: 5.57" x 2.25" x 1.13" (141mm x 58mm x 29mm).
  • Weight: Approximately 0.5 LB. (226 grams).

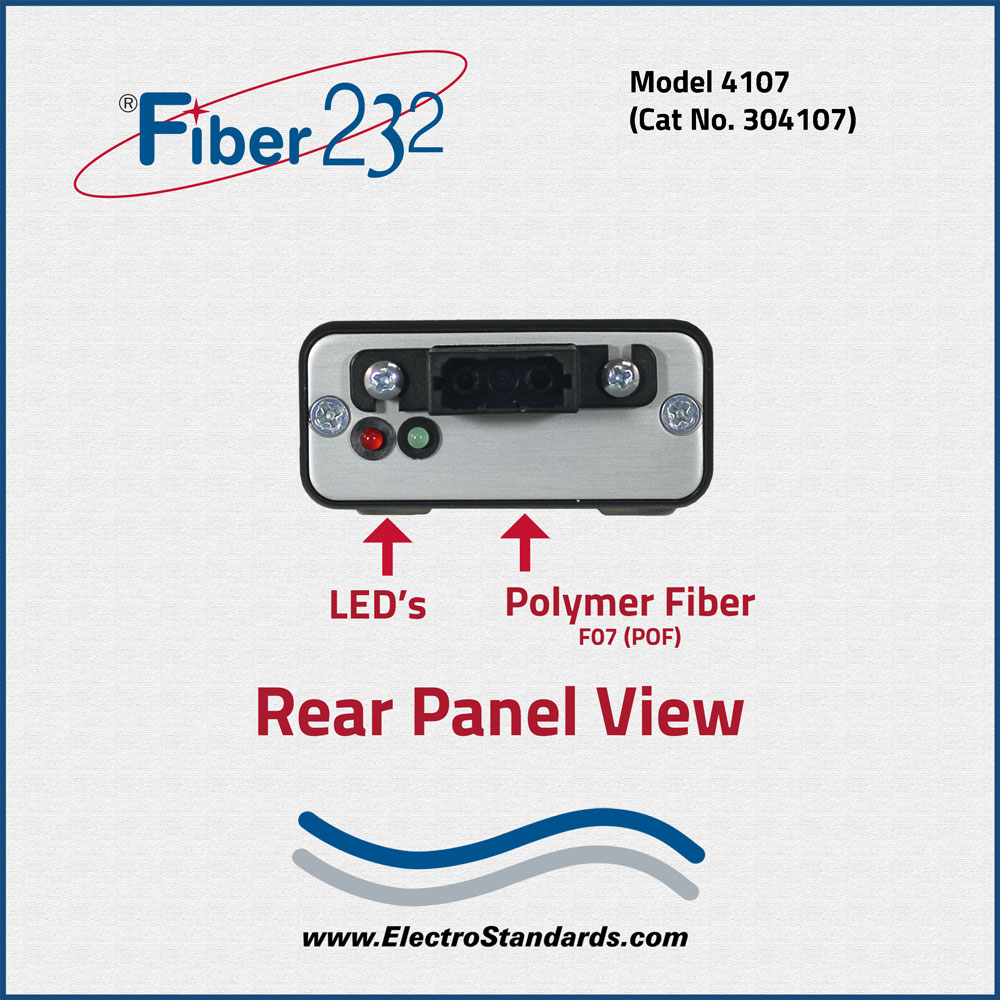

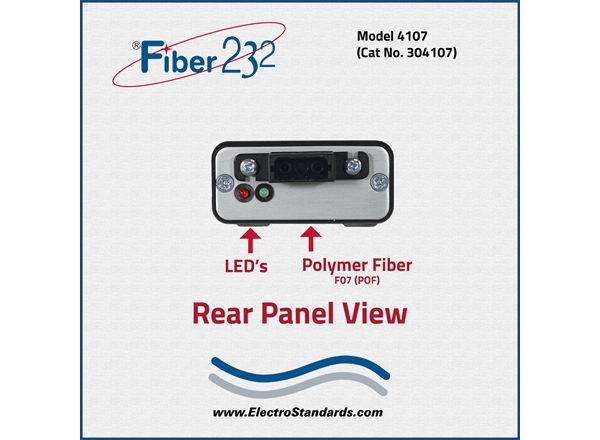

  • Status: Red LED indicates Fiber RX Data Activity, Green LED indicates Fiber TX Activity.

F07 POF Fiber / RS232® FEATURES:

  • Converts RS232 Serial Communication Interface to Fiber (POF) Interface.
  • RS232 copper connection via DB9 Connector.
  • Plastic Optical Fiber connection via F07 Fiber POF Connector.
  • Provides full galvanic isolation (no metal connection) between connected devices.
  • Full duplex connection between F07 fiber optic interface device and an RS232 interface device.
  • Allows interference-free fiber optical transfer of data to the device having an RS232 interface.
  • Data transfer rate up to 1Mbps.
  • Fiber connections via full duplex F07 connector.
  • Model 4107 is configurable for use as DCE or DTE.  It is factory configured as a DCE unless otherwise specified with order.  To reconfigure the unit to a different setting in the field, jumpers on board must be changed.
  • LED Status indicators display data transfer activity.
  • Provided with external wall mount power supply, UL Listed, RoHS, LPS.

RS232 Signals
Model 4107 DTE  Model 4107 DCE

Signal

Signal Direction

DB9 Pin#

  DB9 Pin#
 2  3  RXD  ← IN
 3  2  TXD  → OUT
 5  5  REF/GND

F07/F07 Plastic Core Cables
 LENGTH  CATALOG NUMBER
10 FEET 989546-010
 20 FEET 989546-020
Length in Feet 989546
To view more of Electro Standards' Media Converters, click here: Interface Converters.

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLES Webpage,  or our COPPER NETWORK CABLES Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
