Catalog # 304110 - Model 8652 DB25 6-Position Switch

    DB25 6-Position SwitchDB25 6-Position SwitchDB25 6-Position Switch
Click image to enlarge
    • DB25 6-Position Switch
    • DB25 6-Position Switch
    • DB25 6-Position Switch
Base Price:
$412.00
Catalog No: 304110
Model No: 8652
Product Type:Switches: Copper
Positions:6
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Configuration:Desktop
Pins Switched:Pins 1 - 25 switched
Local Control:Rotary Knob
Serial:X

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

DB25 Manual Network Switches, 6-Positions, Rotary Switches

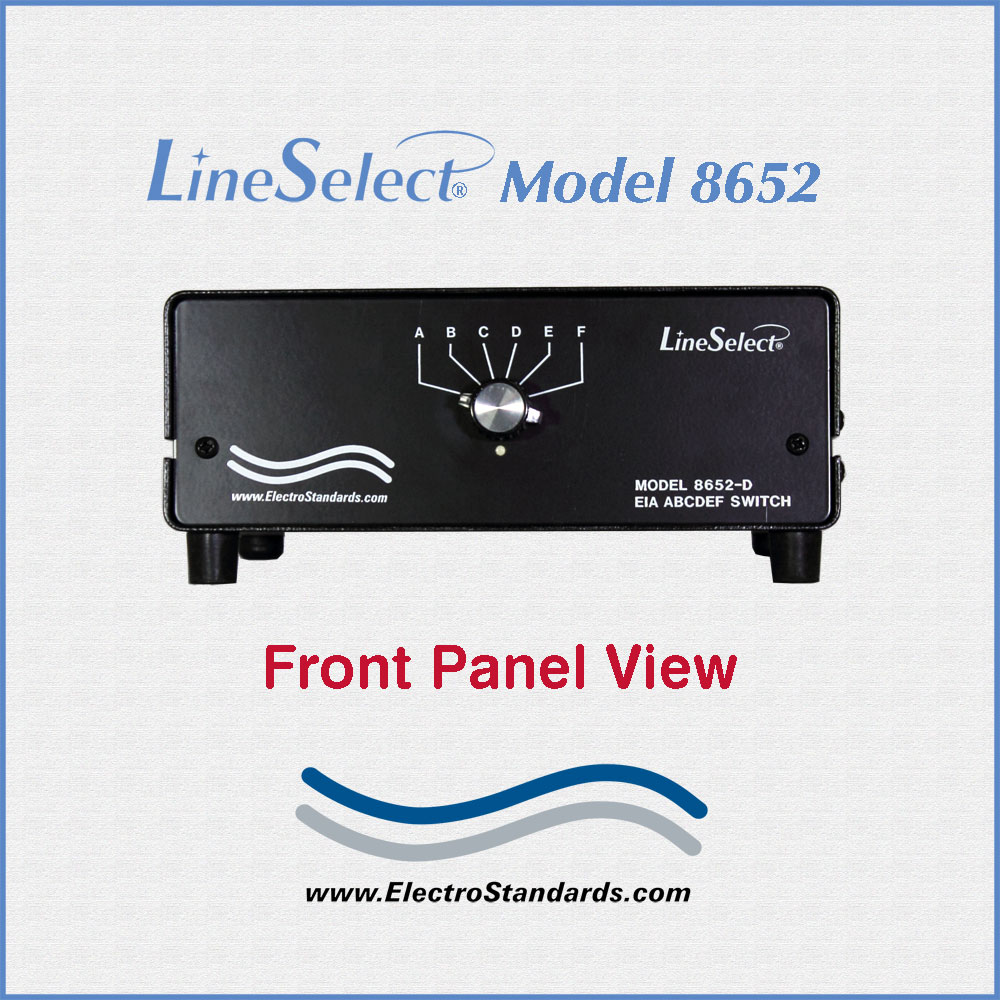

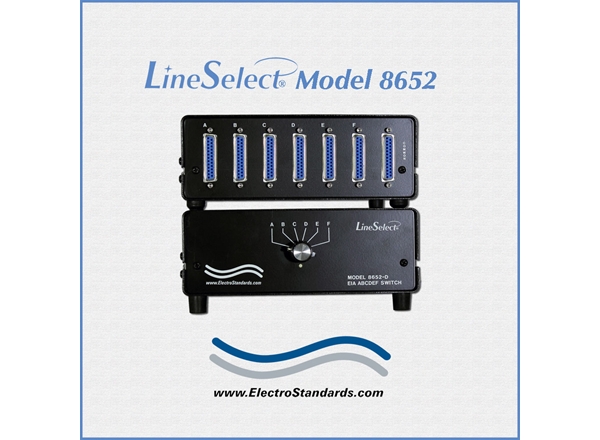

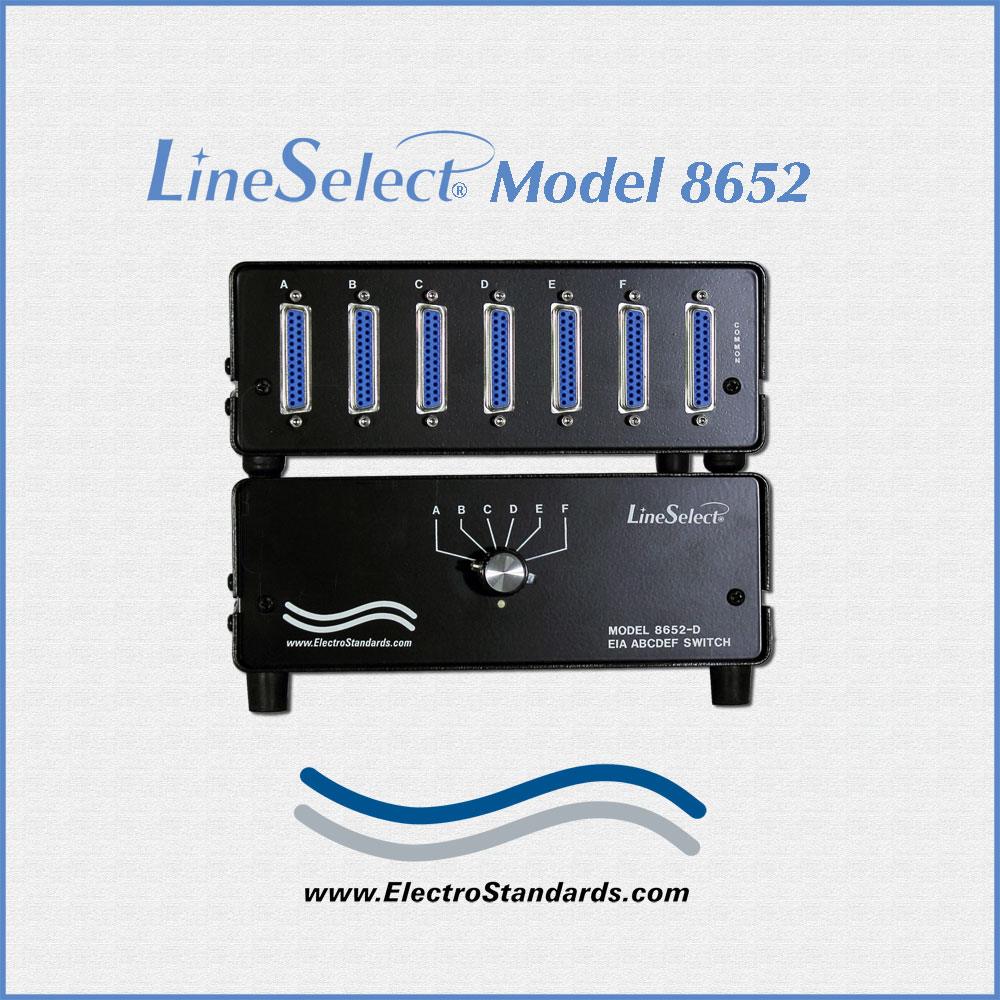

Model 8652 DB25 RS232 A/B/C/D/E/F Switch, Desktop, Manual Operation

  • Applicable to switching ANY RJ45 Interface Device.

  • Field Proven, Highly Reliable!

  • Switch between devices without having to disconnect cables.

SPECIFICATIONS:

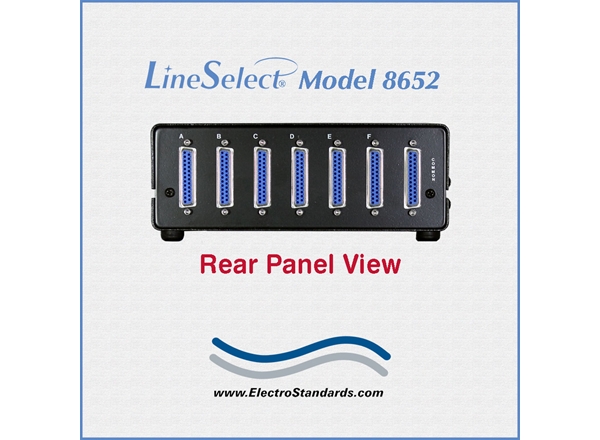

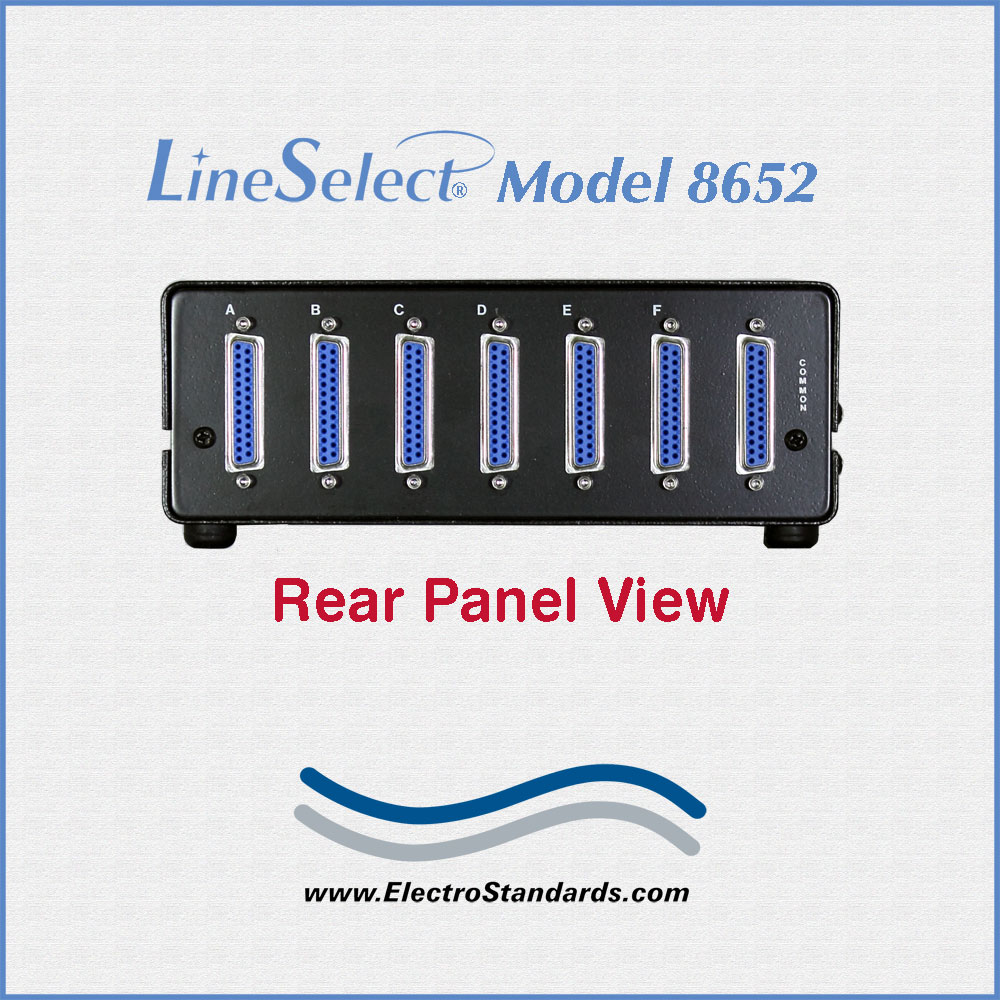

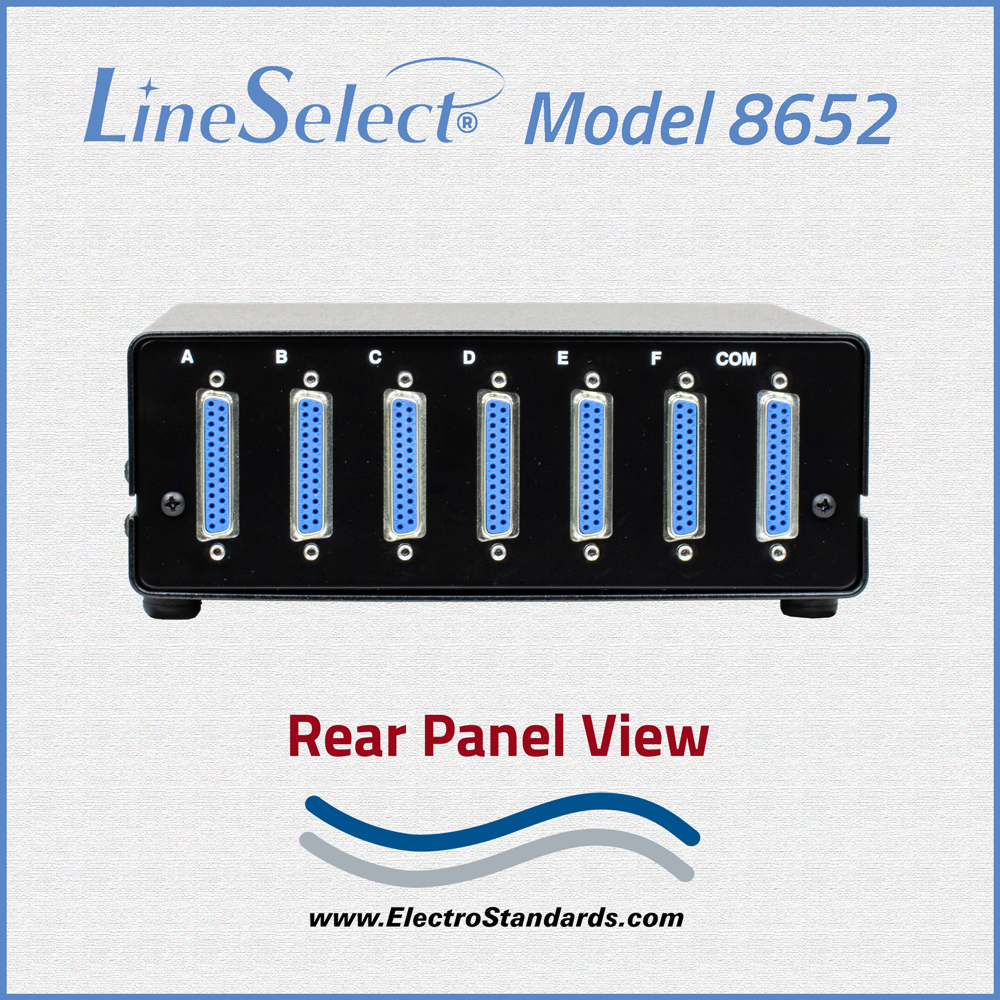

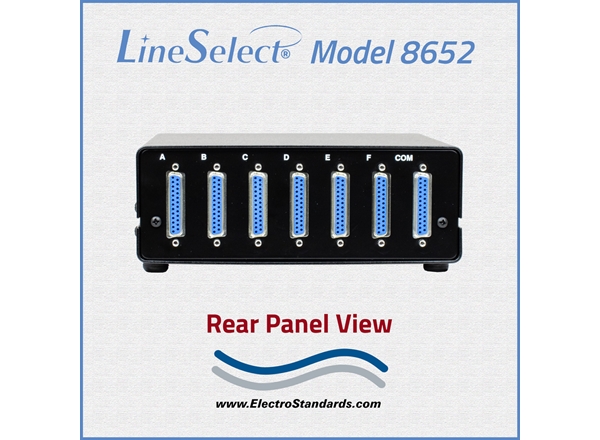

  • PORT CONNECTORS: (7) DB25 female connectors labeled A, B, C, D, E, F, and COM.

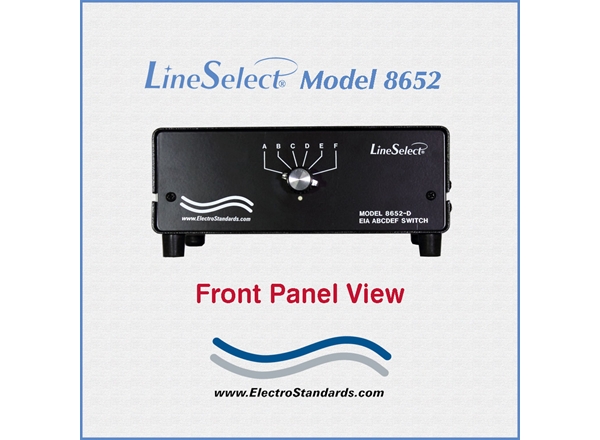

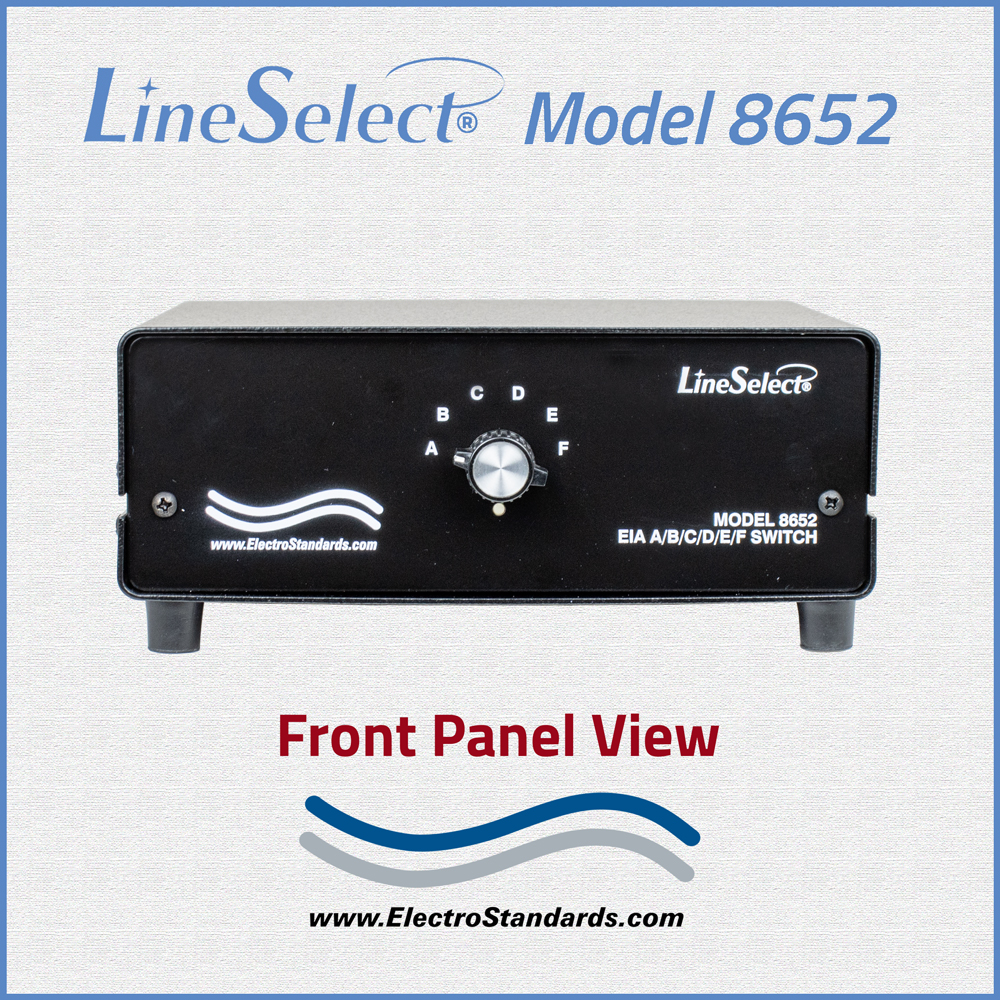

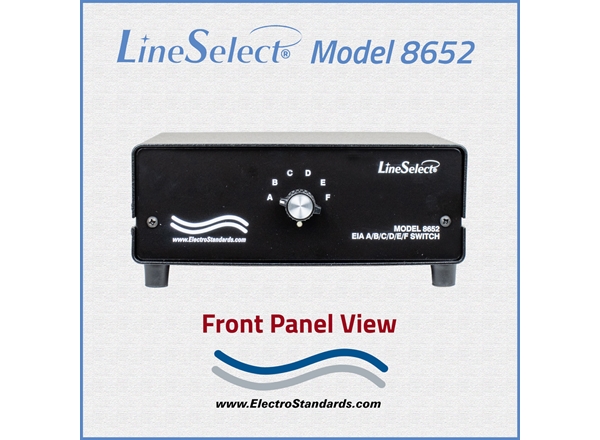

  • FRONT PANEL CONTROL: (1) Rotary switch on front panel selects A, B, C, D, E, or F.
  • POWER: No power required. Manually operated.
  • DESKTOP ENCLOSURE: 8.1"W x 3.47"H x 7.74"D. (20.6 x 8.9 x 19.7 cm)
  • WEIGHT: 2 lbs. (0.9 kg)

DB25 RS232 DB25 A/B/C/D/E/F APPLICATION:

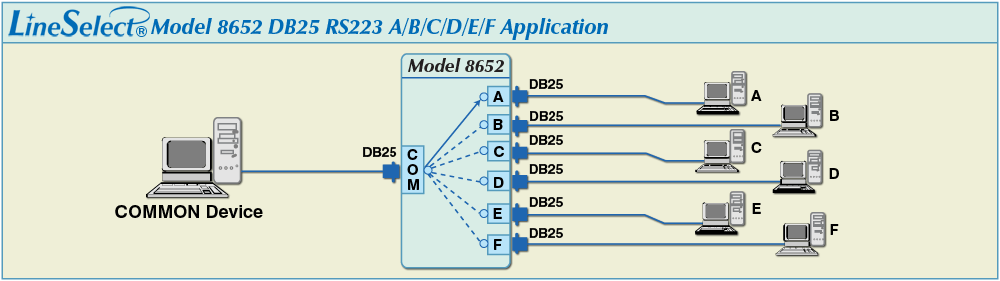

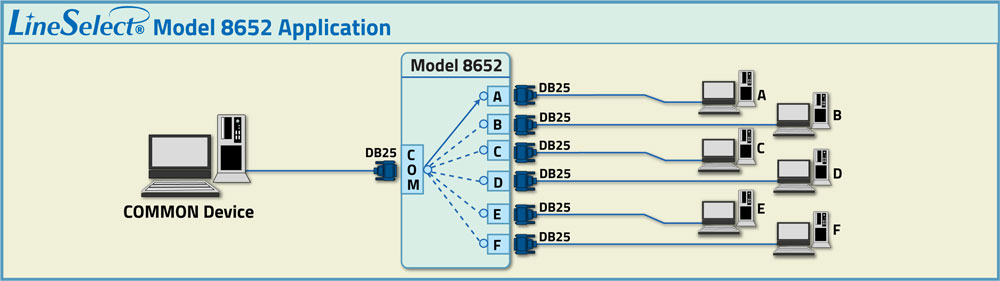

The drawing illustrates a DB25 RS232 six-position switch.  A single device is connected to the DB25 COMMON port.  The single device is sharing among six devices connected to the DB25 A, B, C, D, E and F ports. Connect between COMMON Device and any one of the six devices at a time connected to the A, B, C, D, E or F port.

LineSelect® Model 8652 DB25 RS232 A/B/C/D/E/F Switch Application

FEATURES:

  • Allows quick connection to any one of six devices from one COMMON device.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Transparent to data speed and format.
  • Manual operation via front-panel rotary switch.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables available for your switch installation.
  • All 25 pins of the DB25 interface are switched.
  • Improves computer network efficiency by allowing sharing of peripherals.
  • Lifetime guarantee against manufacturing defects.

The LineSelect® Model 8652 DB25 RS232 A/B/C/D/E/F Switch allows the user the capability of sharing a DB25 interface device connected to the COMMON port among six other devices connected to the A, B, C, D, E, and F ports. The LineSelect® Model 8652 is enclosed in a 2U, all metal black chassis designed to provide EMI/RFI shielding and be used as a desktop unit.
