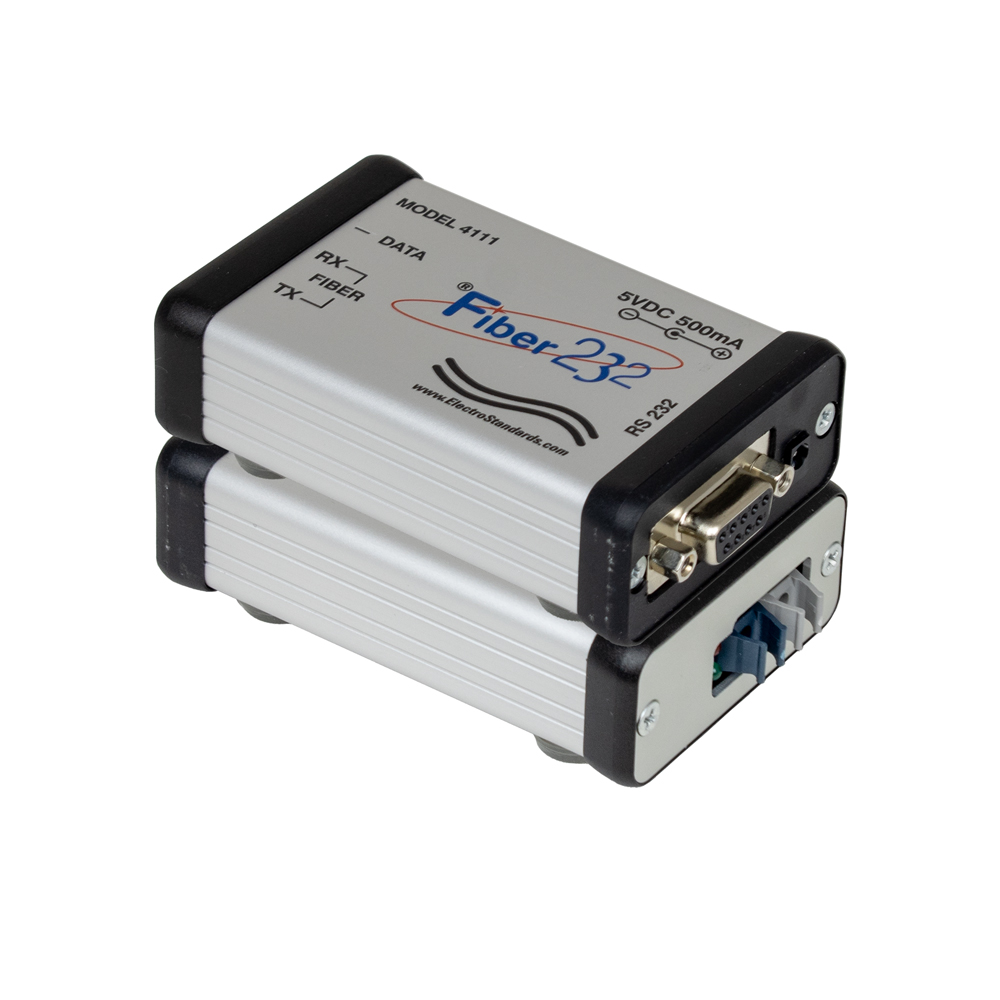

304111 Model 4111 POF to RS232 DB9 Port Converter, Compatible with HFBR-4516Z

    POF to Rs232 DB9 Port Converter, compatible with HFBR-4516ZPOF to Rs232 DB9 Port Converter, compatible with HFBR-4516ZPOF to Rs232 DB9 Port Converter, compatible with HFBR-4516ZPOF to Rs232 DB9 Port Converter, compatible with HFBR-4516ZPOF to Rs232 DB9 Port Converter, compatible with HFBR-4516Z
Click image to enlarge
    • POF to Rs232 DB9 Port Converter, compatible with HFBR-4516Z
    • POF to Rs232 DB9 Port Converter, compatible with HFBR-4516Z
    • POF to Rs232 DB9 Port Converter, compatible with HFBR-4516Z
    • POF to Rs232 DB9 Port Converter, compatible with HFBR-4516Z
    • POF to Rs232 DB9 Port Converter, compatible with HFBR-4516Z
Base Price:
$375.00
Catalog No: 304111
Model No: 4111
Fiber Transmission Distance:55 meters (180 ft.)
Product Type:Interface Converter
Converter Port Connector:DB9, Latching Mechanism for HFBR-45167Z Connector, POF, Plastic/Versatile Link
Configuration:Desktop
Wavelength Nano:660

  • Green and Red LED Status Lights Display Data Transfer Activity
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

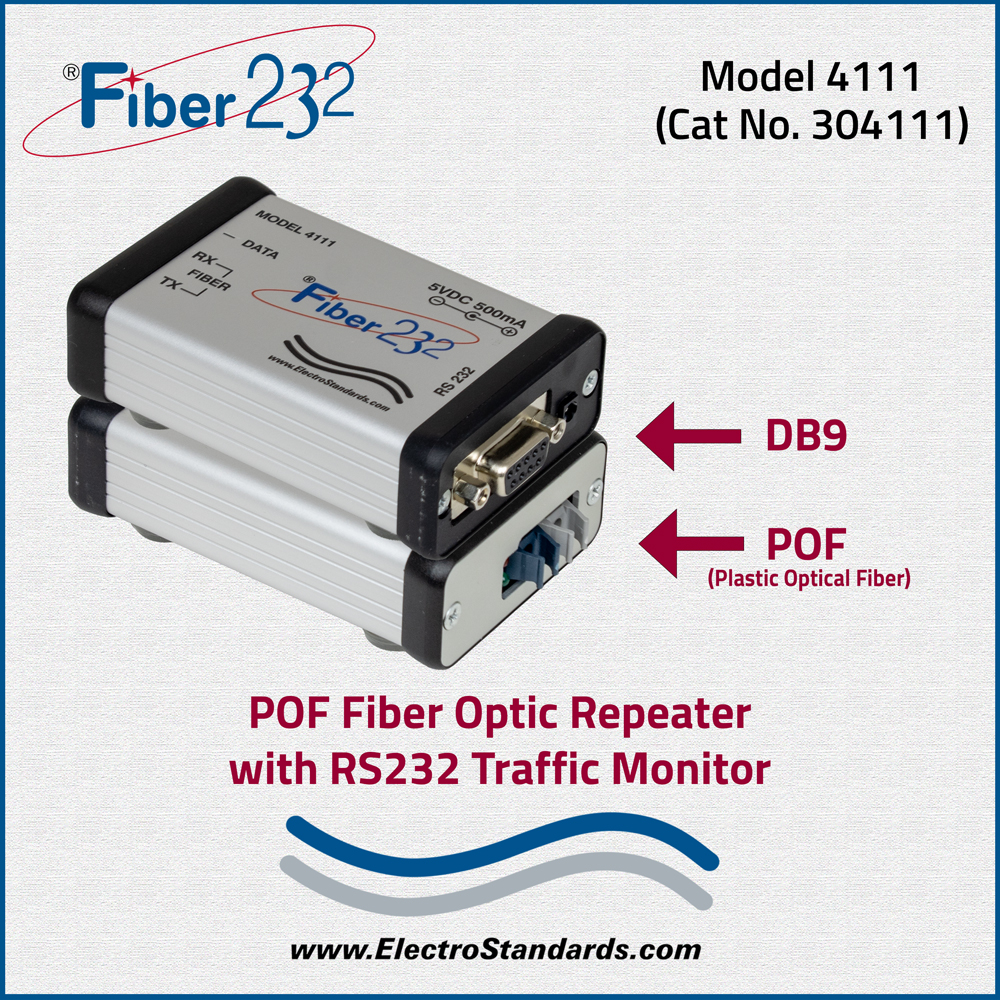

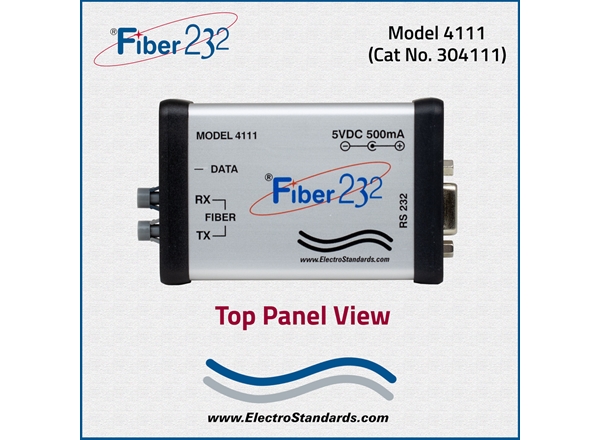

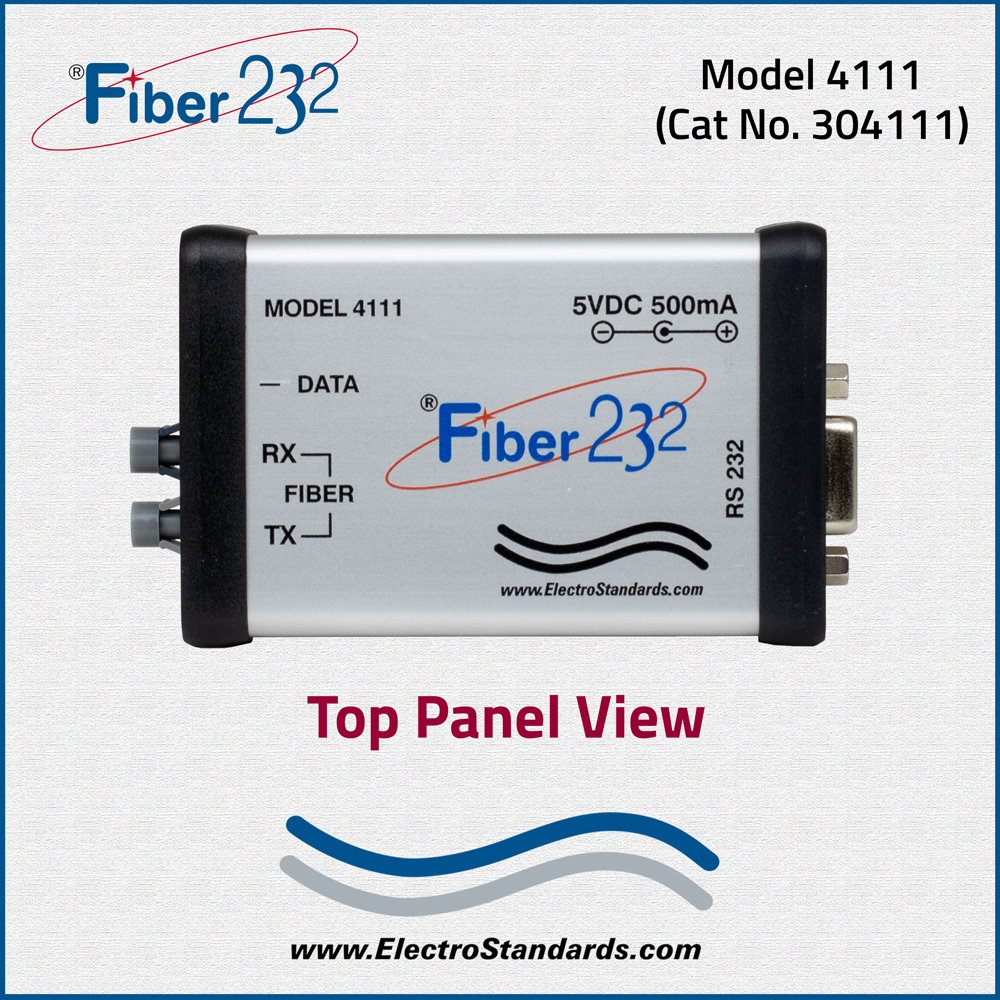

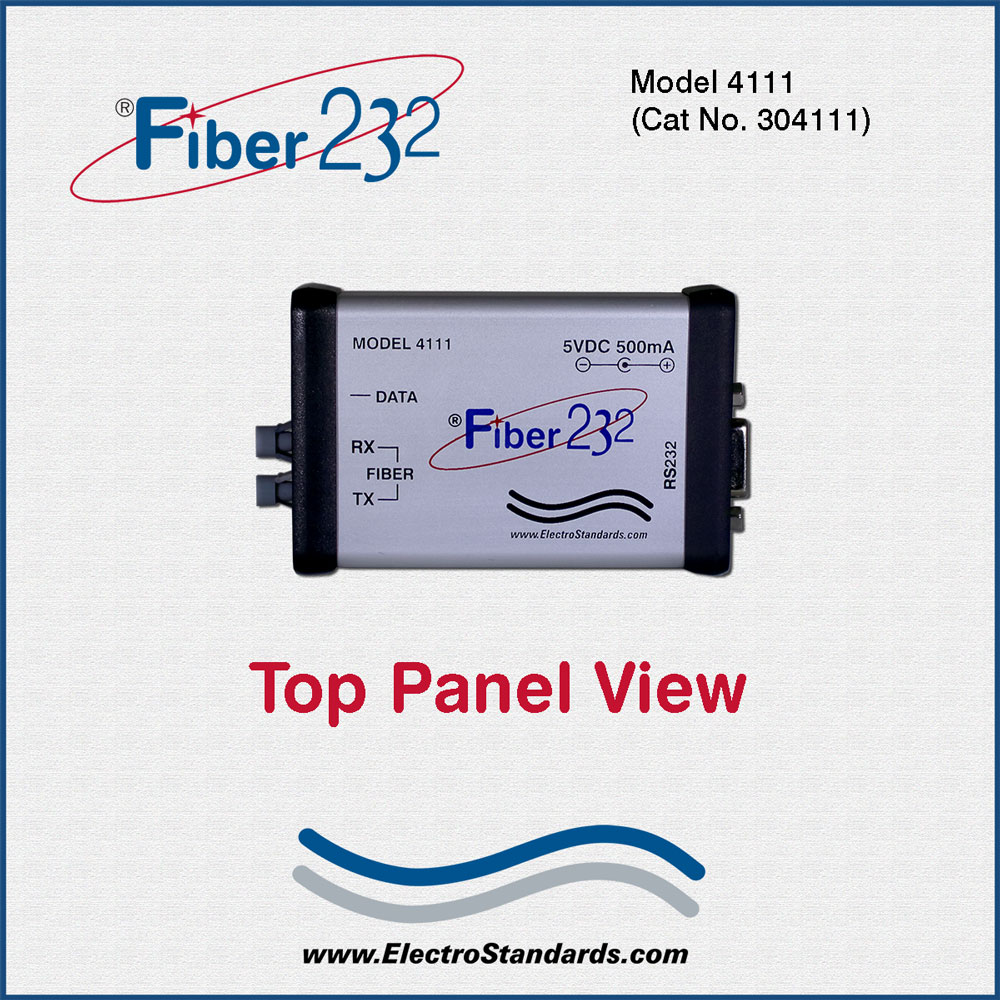

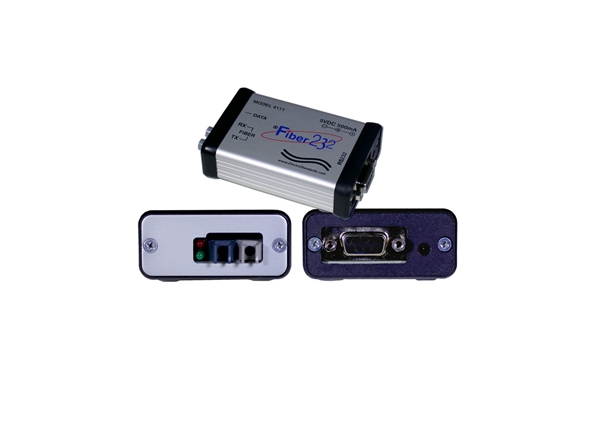

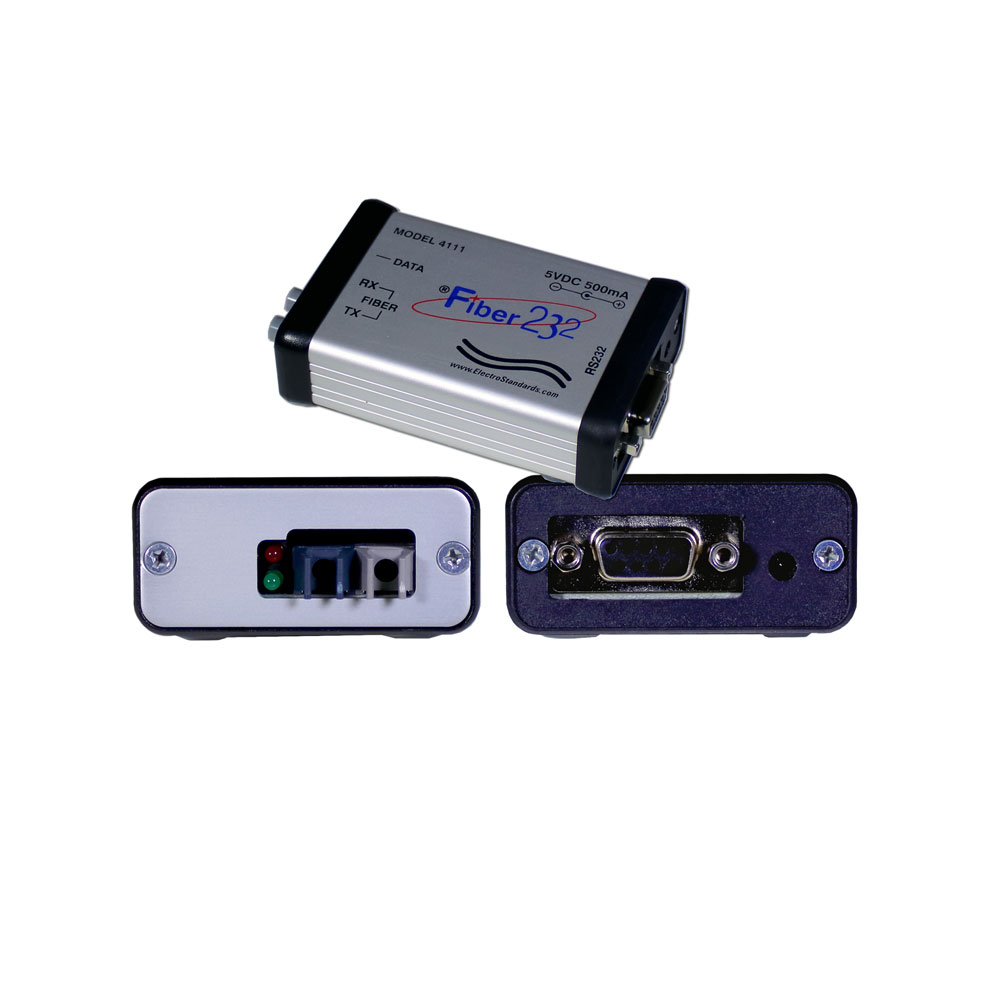

Fiber 232® Model 4111 (POF) Plastic Optical Fiber to RS232 DB9 Port Converter

  • Allow Connection of POF Plastic Fiber Optic Linked Terminals to RS232 Port of Controller

  • Provides Electrical-to-Optical, Optical-to-Electrical Conversion

  • Ideal for Casino Networks, or ANY Network Linking Terminals or Machinery to a Controller.

SPECIFICATIONS:

  • Data Transfer Rate: Up to 1 Mbps (enhanced RS232).
  • Fiber Transmission Distance: 55 meters (180 ft.) using extra low loss type plastic fiber cable.
  • RS232 Transmission Distance: 19.2 Kbps 500 feet using low capacitance cable.
  • Optical Fiber Connectors: HP/Agilent Versatile Link.

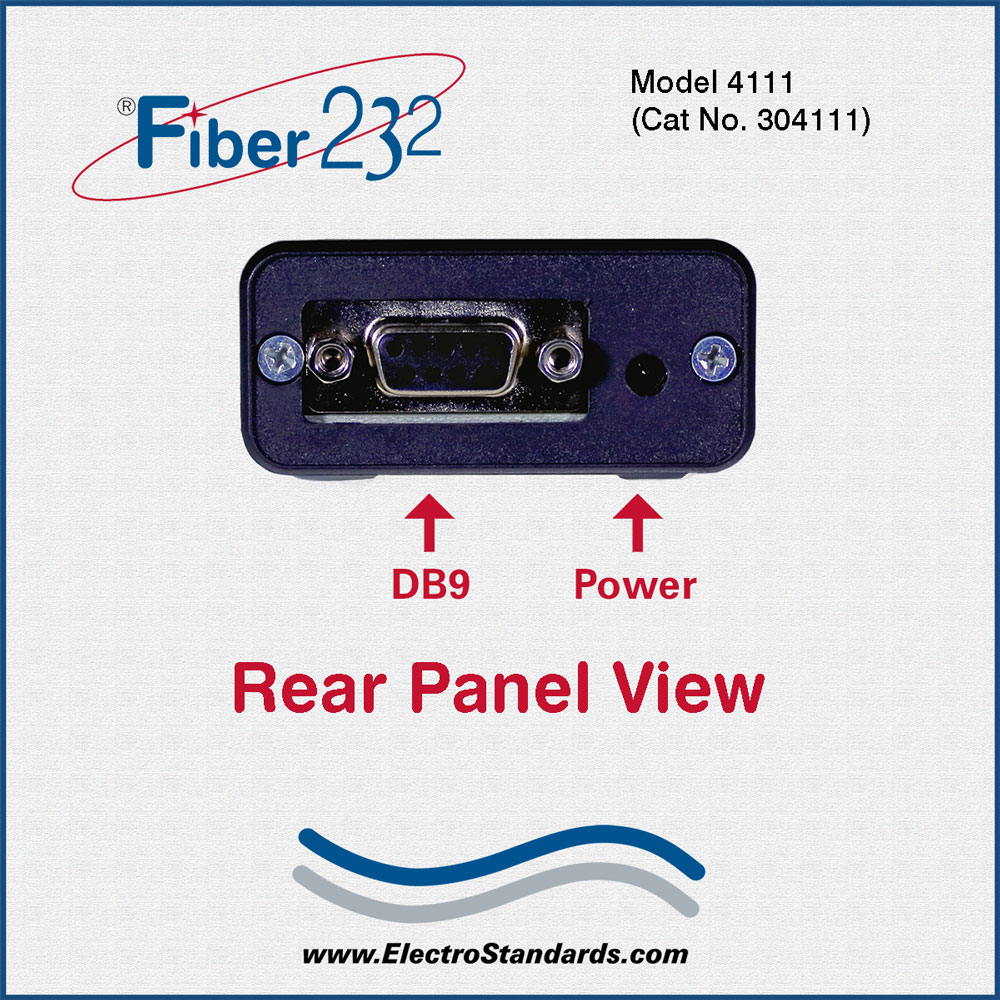

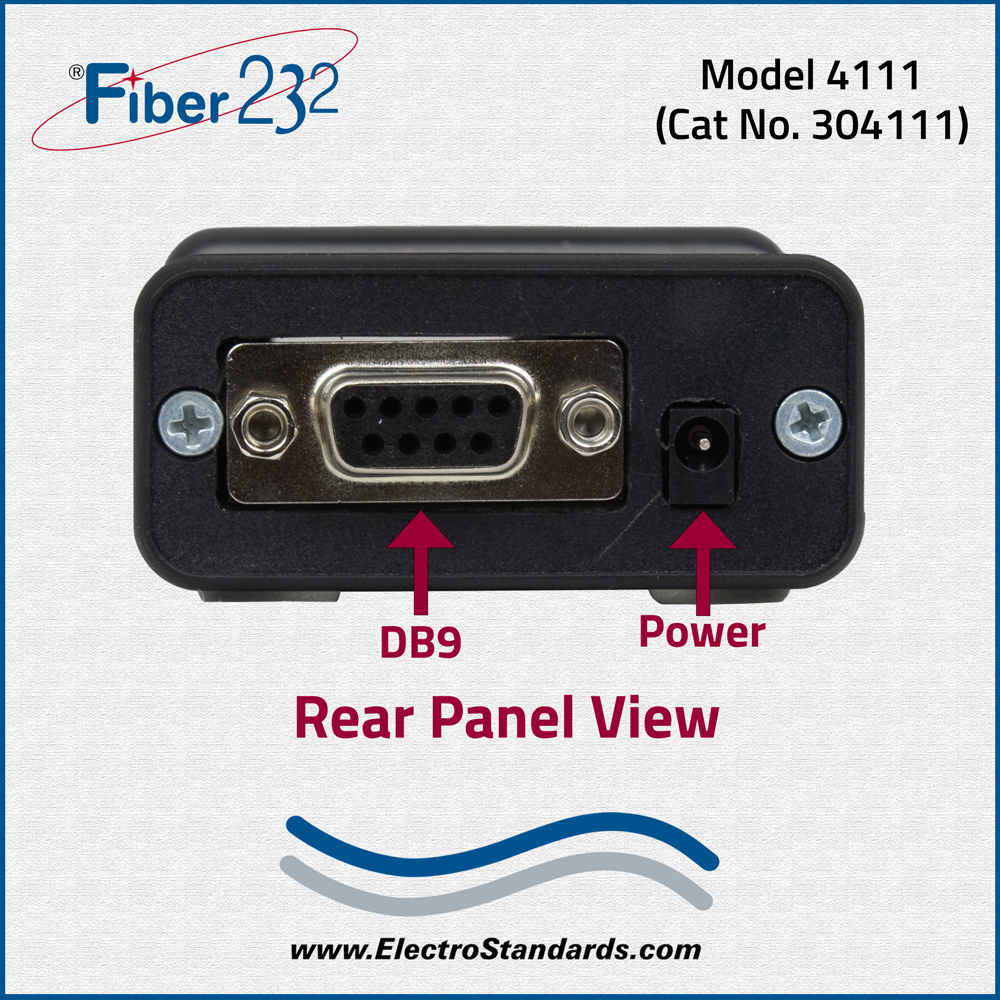

  • RS232 Connector: DB9 female port connector.
  • Optical Cable Type: 1mm plastic optical film.
  • Red Peak Wavelength: 660 nm (red).
  • External Power Supply: 120 VAC, 60 Hz wall mount power supply is included with each unit (Cat No 533973).
  • Dimensions: 2.24” x 1.1.” x 3.88” (5.7cm x 2.8cm x 9.9cm).
  • Weight: 0.3 Lb. (93.5 grams).
  • Status Display: (1) Red RX Data LED and (1) Green TX Data LED.

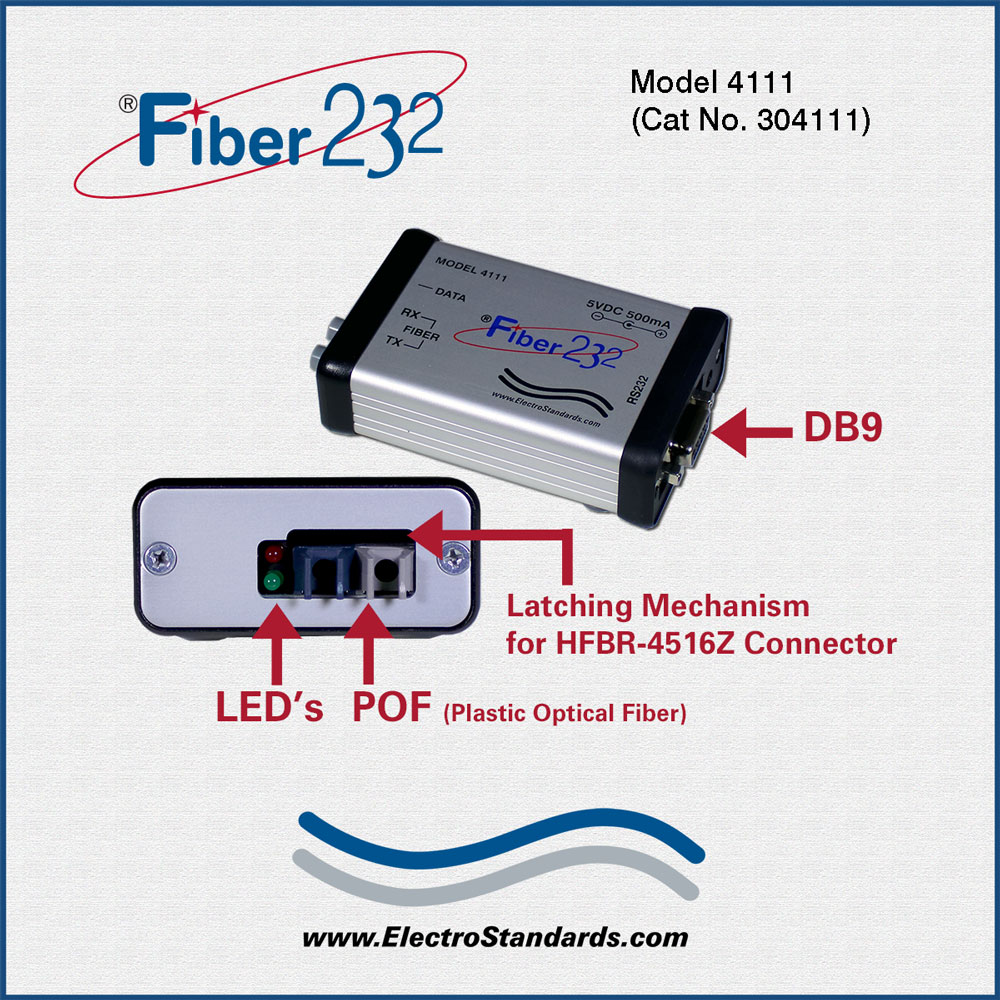

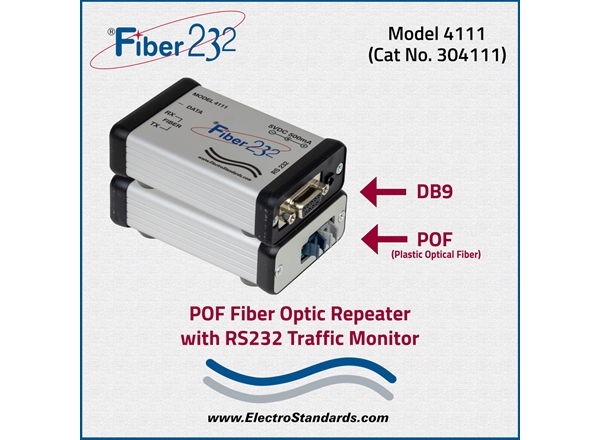

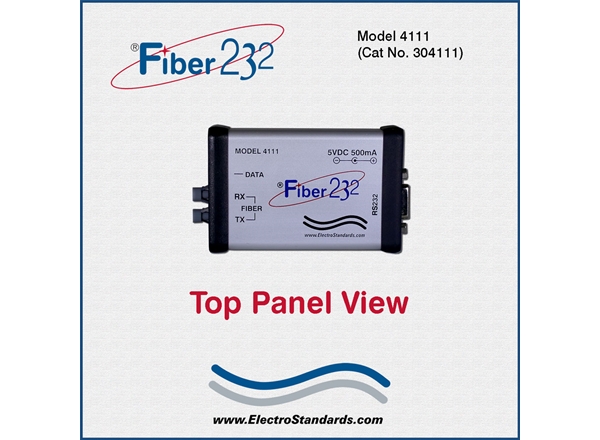

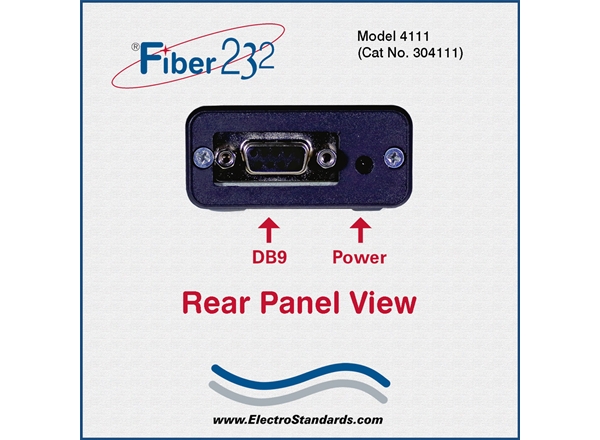

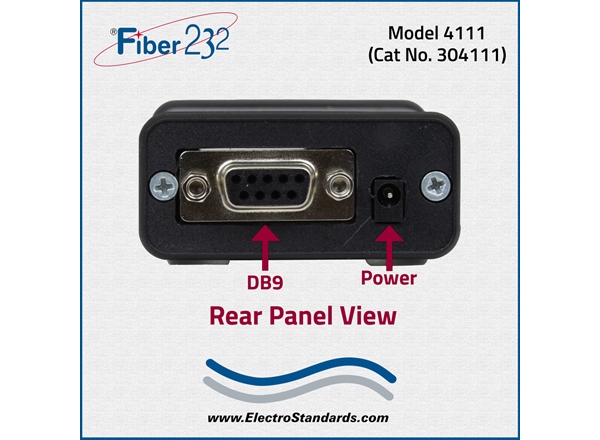

Model 4111 Interface Converter Application compatible with Duplex Latching Connector HFBR-4516Z:

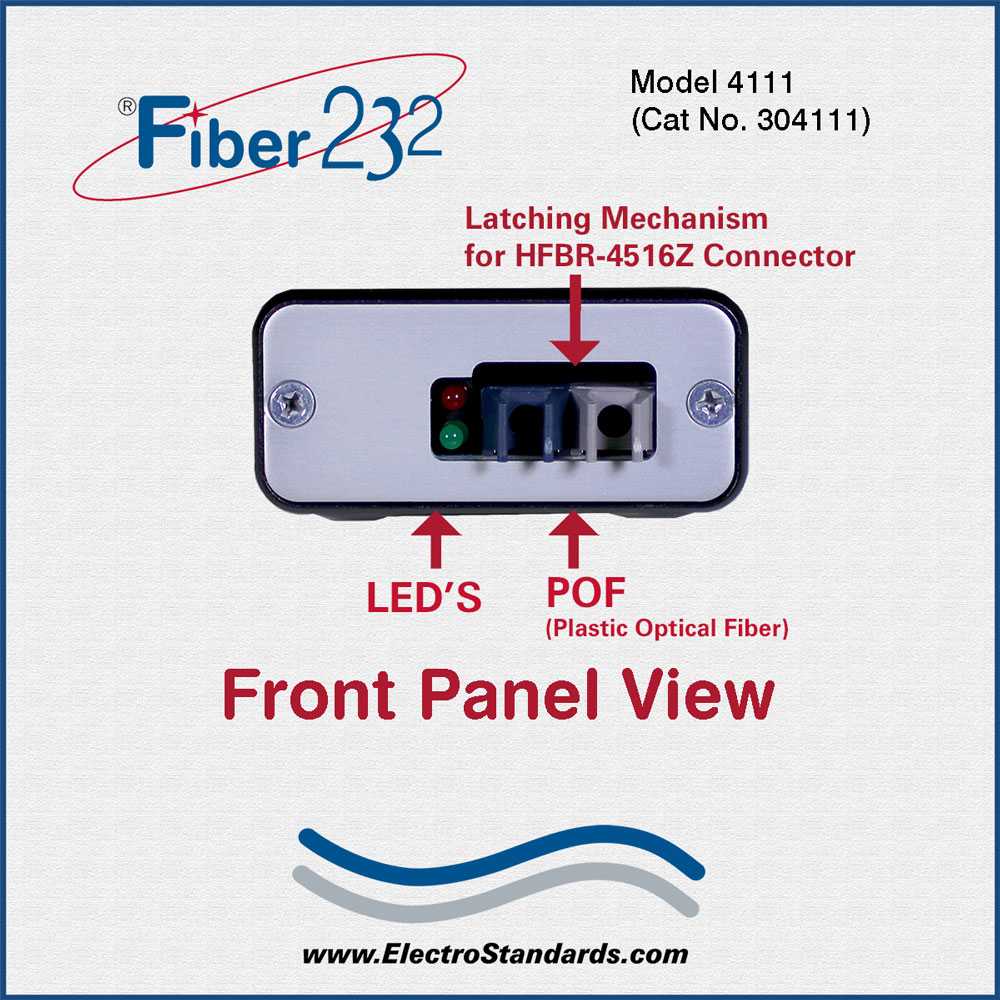

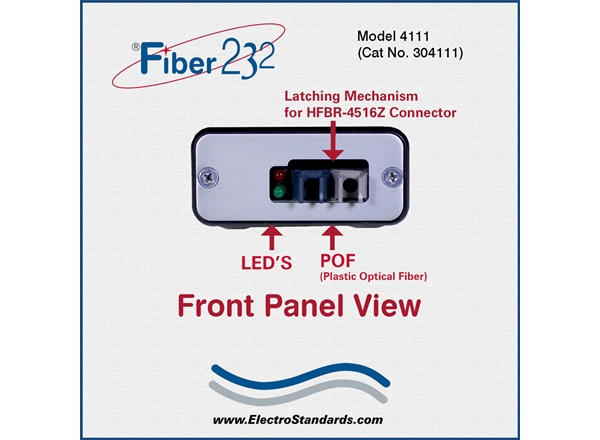

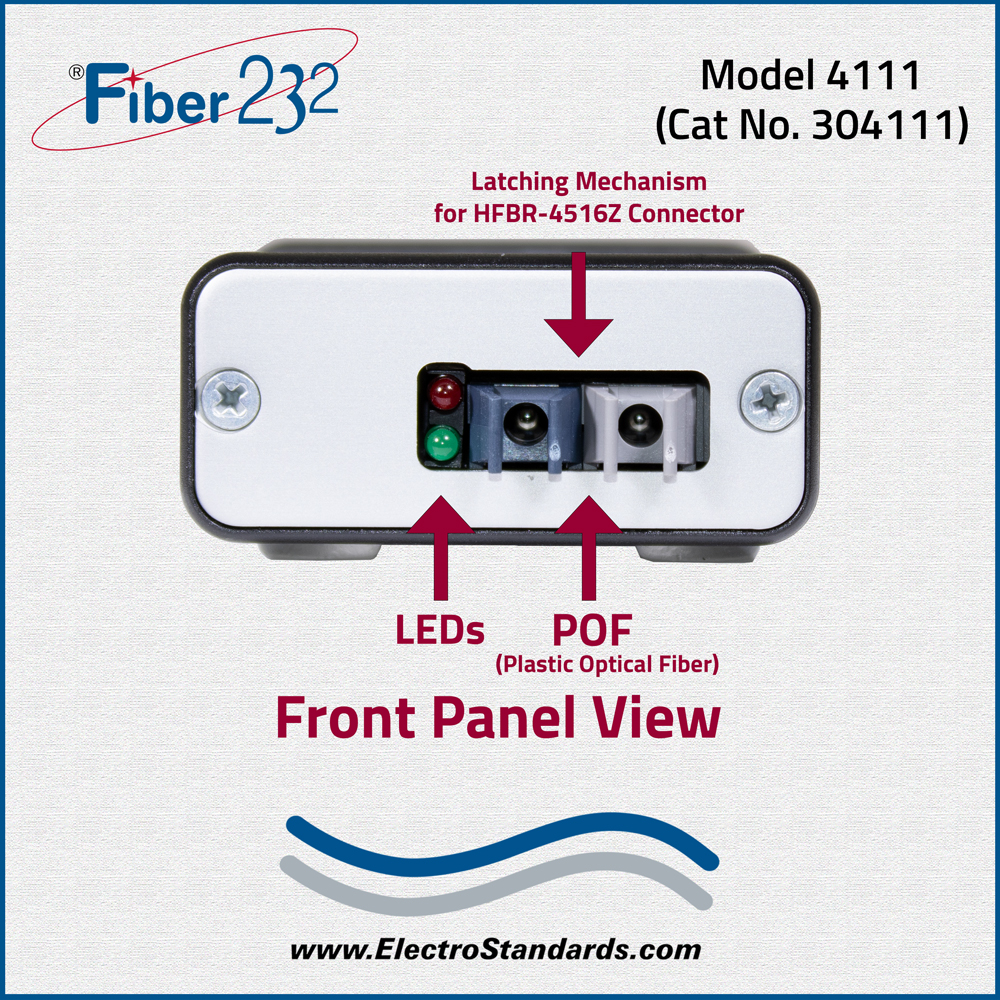

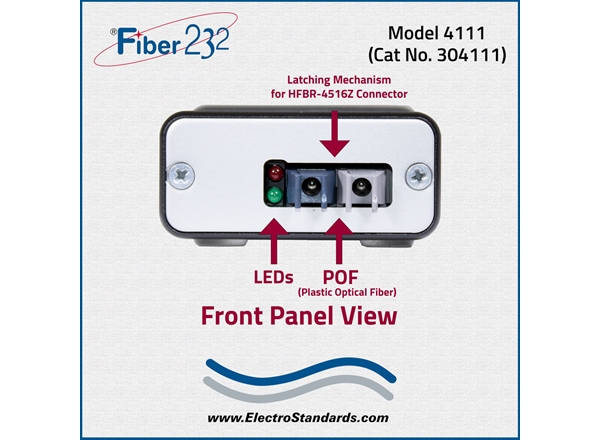

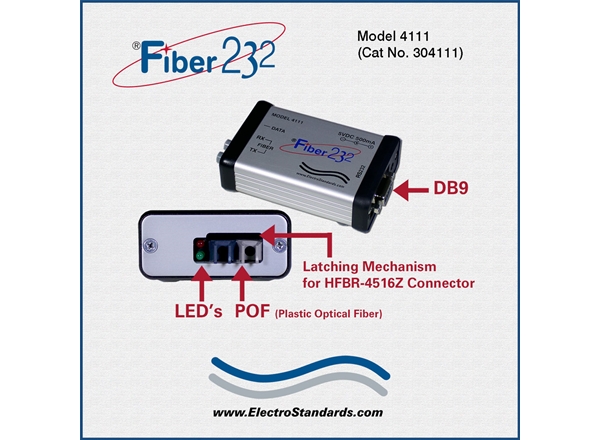

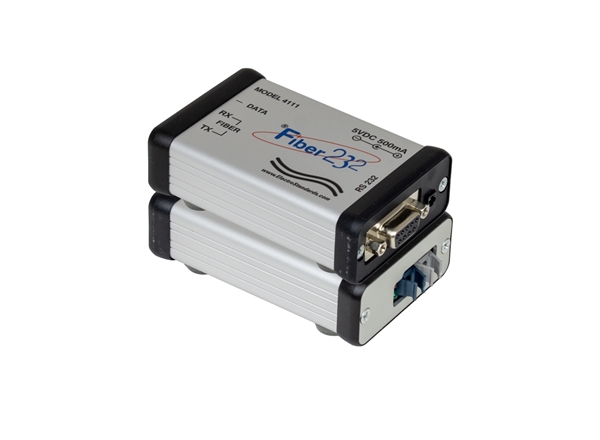

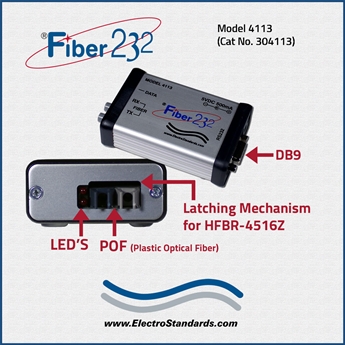

The drawing shows the Latching Mechanism for HFBR-4516Z above the POF  (Plastic Optical ports).

The HP VersaLink Fiber to RS232 Converters are used to connect fiber optic linked Video Lottery Terminals to a controller having an RS232 interface port. While RS232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.

HP FIBER / RS 232 CONVERTER APPLICATION FOR CASINO NETWORKS LINKING VIDEO LOTTERY TERMINALS & VIDEO GAMING MACHINES.

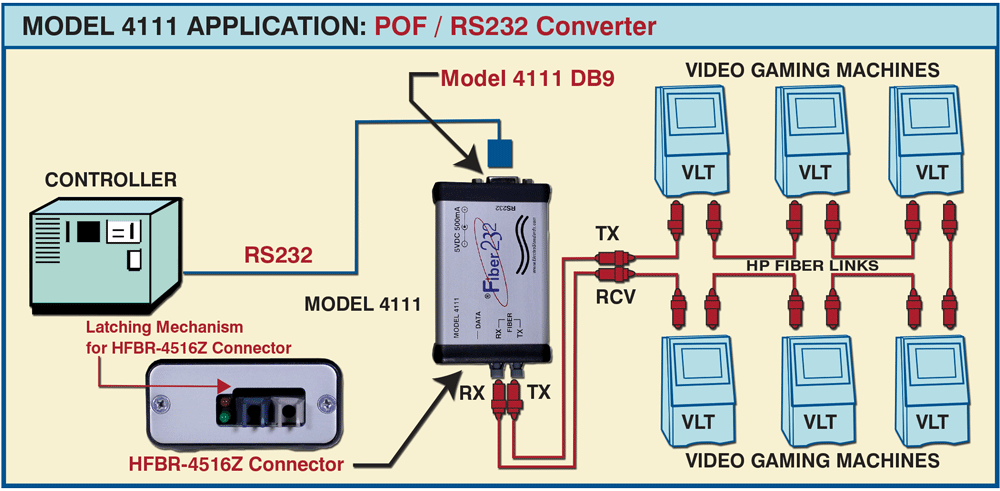

The illustration shows a Controller connected to the Model 4111 DB9 port and Video Gaming Machines linked to the HP/Agilent Versatile Link connectors via HP Versatile Link Plastic Core Cables.
