Model 4112 High Speed ST Fiber-to-USB Converter/Extender, Host & 4-Port USB Hub, Desktop Configuration

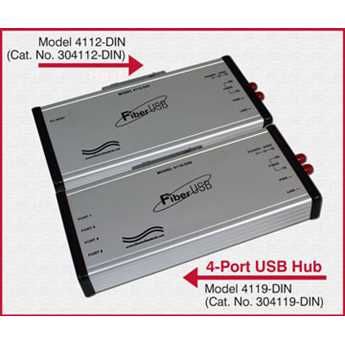

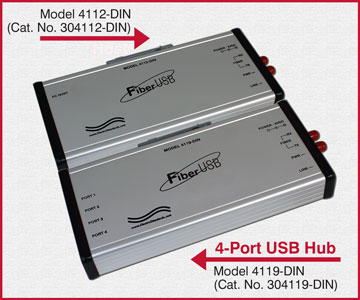

The desktop Model 4112 is a Host that works with desktop Model 4119 4-Port USB Hub (also see related products tab for M4119 details) to comprise a Host and a Four Port USB Wired Hub that extend USB connections up to 500 meters via a high speed ST Fiber interface.
Two configurations are available for each model
(see Related Products tab):
(1) Model 4112 Host Desktop Unit, for applications requiring an enclosure.
(2) Model 4112-DIN Host Unit for applications requiring mounting on a DIN rail.
(3) Model 4119 4-Port USB Hub Desktop Unit, for applications requiring an enclosure.
(4) Model 4119-DIN 4-Port USB Hub Unit for applications requiring mounting on a DIN rail.
FEATURES:
-
Convert USB 2.0 compliant data from a standard PC Host interface, Model 4112, over fiber to a remote 4-Port powered USB Hub, Model 4119.
-
Ideal for applications involving PC communication that require high speed, secure communication, and optical isolation.
-
Extend USB communication in environments that are subject to high EM or RF interference that might corrupt communication over a copper interface.
-
Typical applications include industrial control, KVM extension, remote desktop USB connections, and remote USB device sharing such as printers, scanners and storage devices.
-
Units offer true plug and play operability with support for Windows®, Mac OS®, Linux®, and support all USB device types: Control, Interrupt, Bulk and Isochronous up to 480 Mbps.
-
Designed to operate from -0 degree C to 50 degree C
(component ratings meet or exceed 0° C to 70° C).
-
Units feature ESD protection circuitry on all copper USB I/O interfaces, per IEC 61000-4-2 standard.
-
Power inputs are protected from overvoltage, overcurrent, and high power transients.
-
The 4-port USB Hub provides the USB standard of 500mA per port.
-
LEDs display Power, Fiber Link Active, Host Active (Model 4112, 4112-DIN)
and Port Active (Model 4119, 4119-DIN) indicator LEDs.
SPECIFICATIONS:
USB Interface
Connectors: Model 4112 - 1x USB Type B, High Retention
Model 4119 - 4x USB Type A,
(5V @500mA/port)
Model 4112-DIN - 1x USB Type B, High Retention
Model 4119-DIN - 4x USB Type A,
(5V @500mA/port)
USB Data Format:
Type: USB 2.0 Compliant (Backwards compatible USB 1.1)
Rate: Supports Low Speed (1.5 Mbps),
Full Speed (12 Mbps), and High Speed
(480 Mbps) USB Data transfer rates.
Fiber Interface:
Connectors: Fiber Optic ST
TX Power: -6.5 dBm (Typical)
RX Sensitivity: -21.5 dB (Typical)
Optical Budget: 14.5 dB
Max. Link Distance with 50/125 µm fiber: 500 Meters
Max. Link Distance with 62.5/125 µm fiber: 275 Meters
Wavelength: 850 nm, multimode
LED Indicators:
Model 4112 - Power, Fiber Link Active, Host Active
Model 4119 - Power, Fiber Link Active, Port Active
Model 4112-DIN - Power, Fiber Link Active, Host Active
Model 4119-DIN - Power, Fiber Link Active, Port Active
Input Power: Requirement
Model 4112 - 5VDC @ 2.5W
Model 4119 - 5VDC @ 15W
Model 4112-DIN - 5VDC @ 2.5W
Model 4119-DIN - 5VDC @ 15W
Power Connector: On all models, the input power connector is a DC power jack (Circular Barrel Type).
External Power Supply
The power supply is not included with any of the units and can be ordered separately, ESL Cat. No. 524450.
Operating Environment:
Tested operation, 0°C to 50°C; component ratings
meet or exceed 0°C to 70°C.
Model 4112 Mechanical (Desktop Unit):
Model 4112, Cat No 304112
Size: 4.27" W x 1.35" H x 9.44" D (10.9 x 3.5 x 24.0 cm)
Weight: Approx. 1.2 lbs (528g)
Mounting: Desktop Std, DIN rail (Optional)
Model 4119 Mechanical (Desktop Unit):
Model 4119 Cat No 304119
Size: 4.27" W x 1.35" H x 9.44" D (10.9 x 3.5 x 24.0 cm)
Weight: Approx. 1.2 lbs (528g)
Mounting: Desktop Std, DIN rail (Optional)
Model 4112-DIN Mechanical (DIN Rail Mounted Unit):
Model 4112-DIN Cat No 304112-DIN
Size: 4.27" W x 1.35" H x 9.44" D (10.9 x 3.5 x 24.0 cm)
Weight: Approx. 1.2 lbs (528g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)
Model 4119-DIN Mechanical (DIN Rail Mounted Unit):
Model 4119-DIN Cat No 304119-DIN
Size: 4.27" W x 1.35" H x 9.44" D (10.9 x 3.5 x 24.0 cm)
Weight: Approx. 1.2 lbs (528g)
Mounting: 2 Threaded Holes Standard, DIN rail
DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
DIN Rail Bracket Weight: 0.9 oz (25.5g)

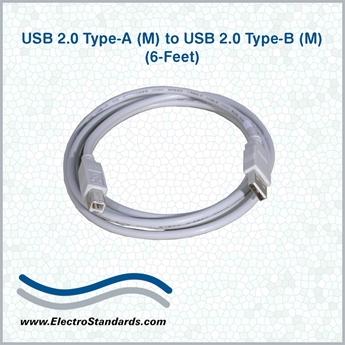

USB A-B Cable (6 Ft): Included with Model 4112 / 4112-DIN is the cable ESL Cat. No. 507366 (USB Type A to USB Type B)
To view more of Electro Standards' Media Converters, click here: Interface Converters.
Electro Standards can supply all your Network Cable requirements. Click here to reach our Cables/Connectors/Adapters Webpage.
For custom network interface converters call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online Custom Product Request form.
All data switches, fiber optic converters, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices of Fiber Optic Interface Converters are subject to change and verification.
All ESL Fiber Optic Converters are available for export
