Overview

Fiber to 485/232

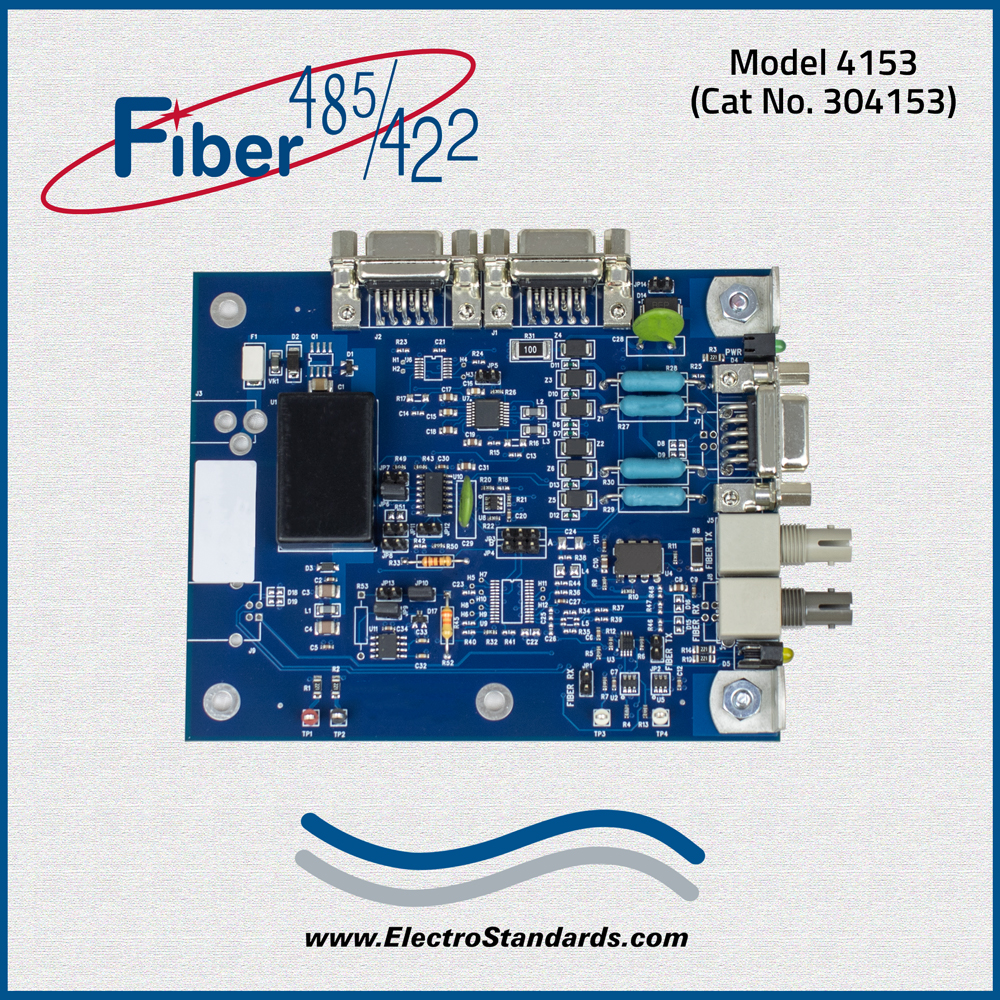

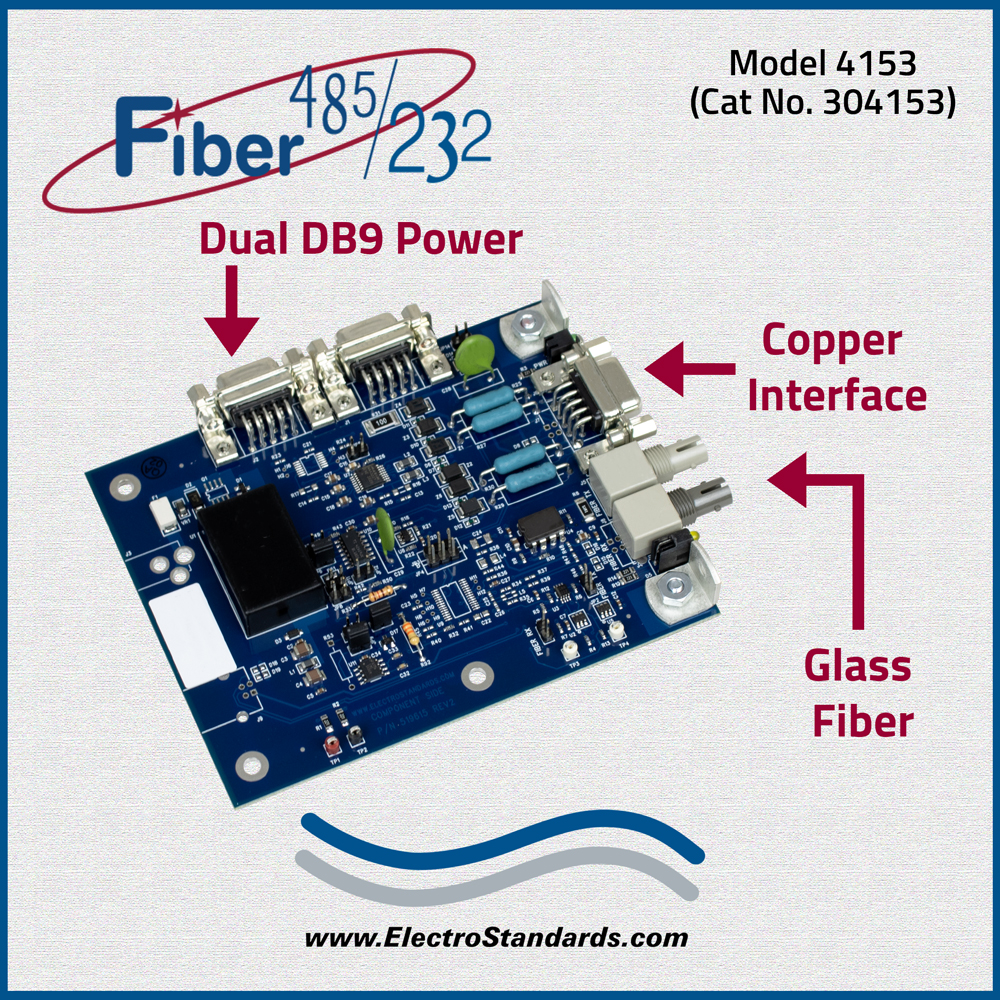

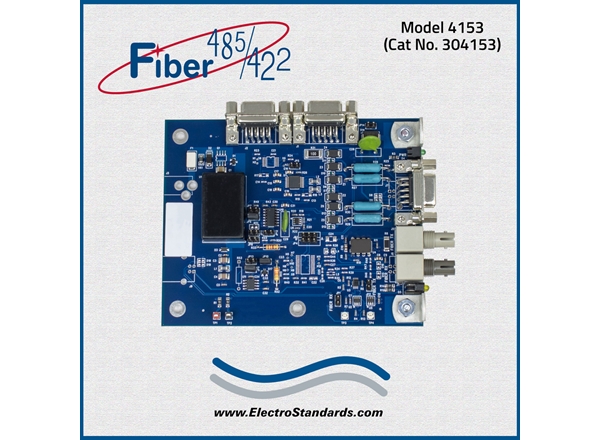

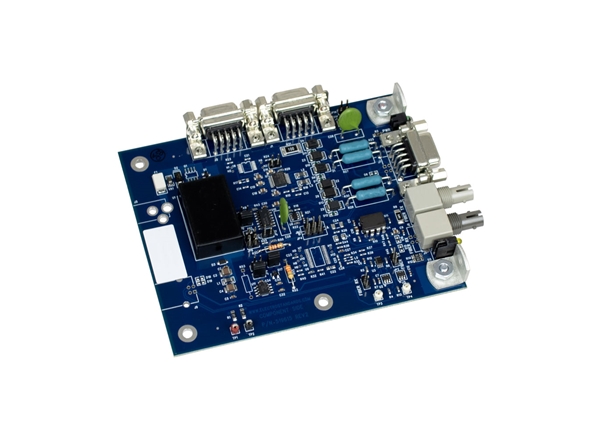

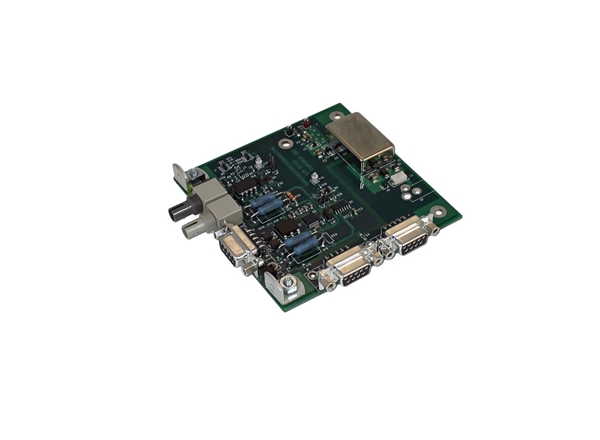

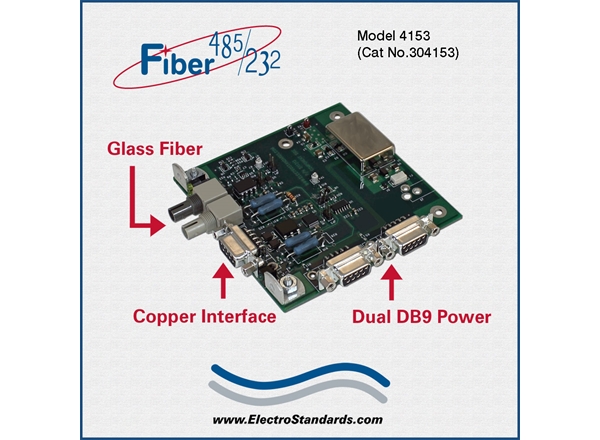

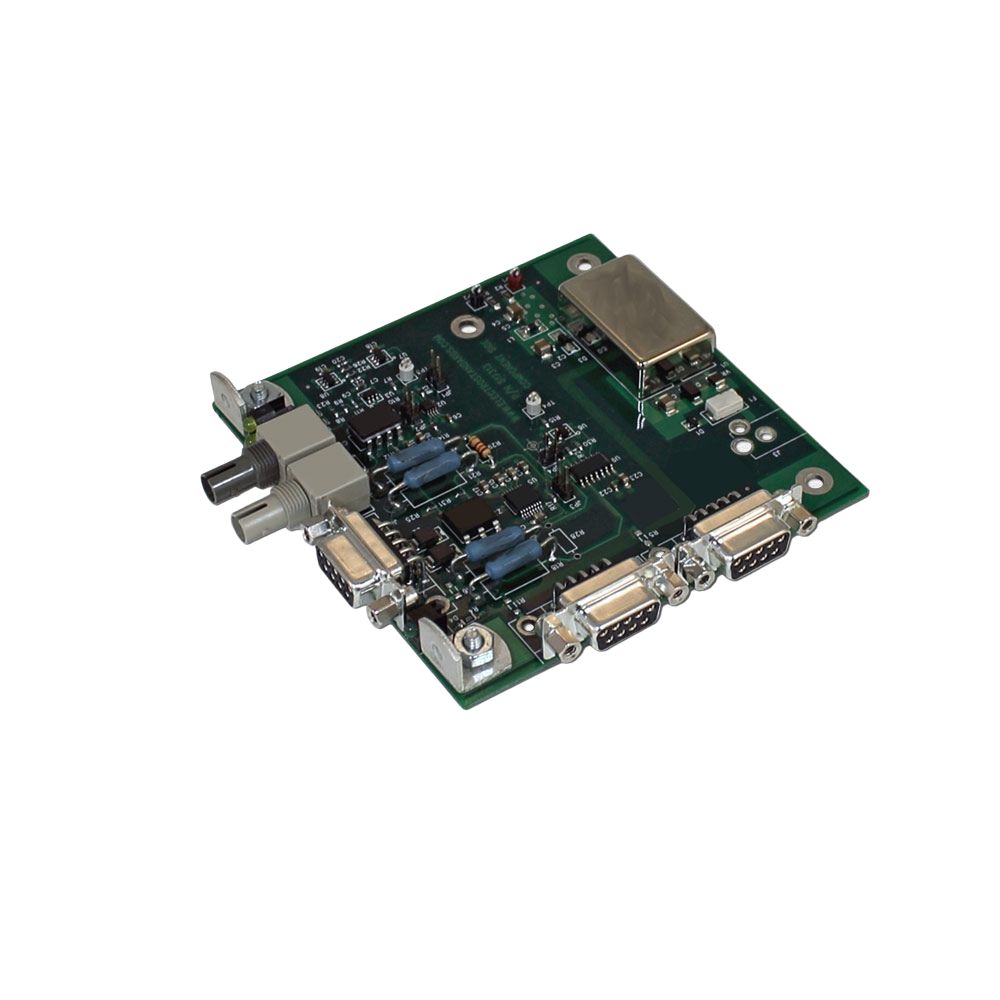

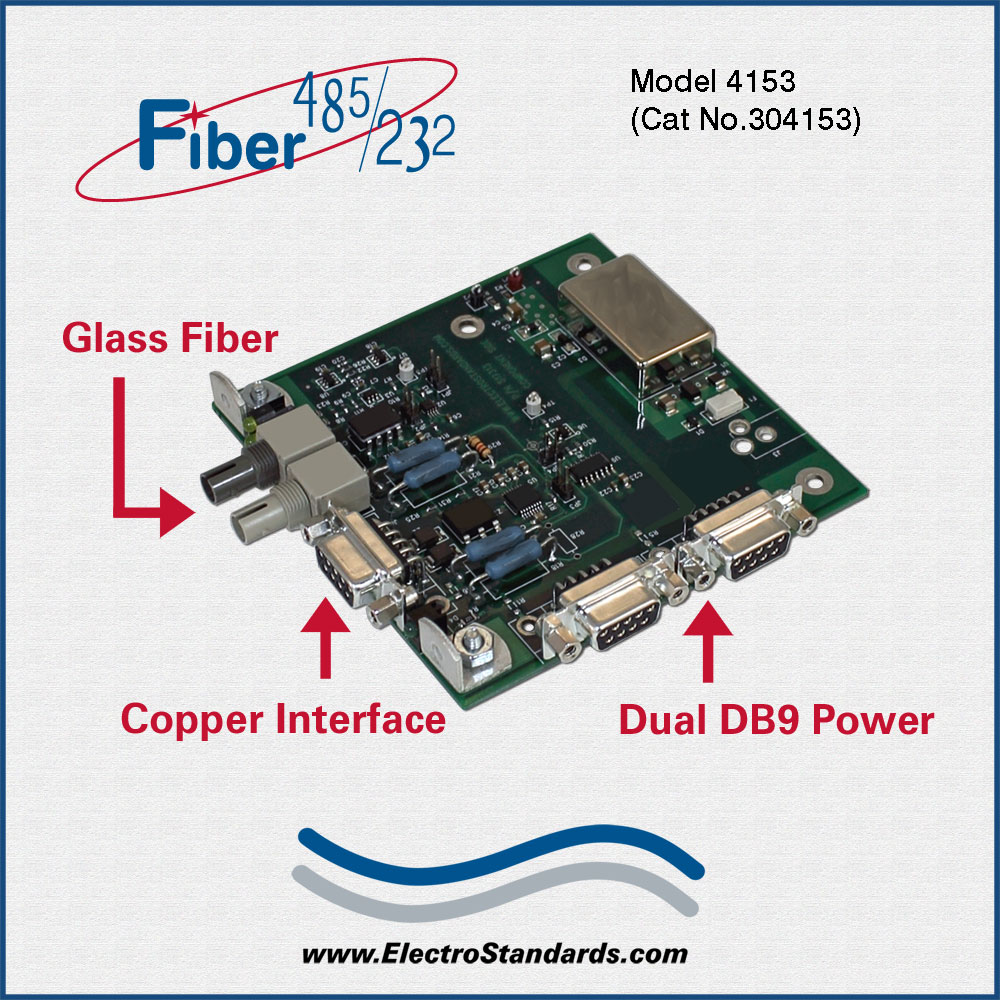

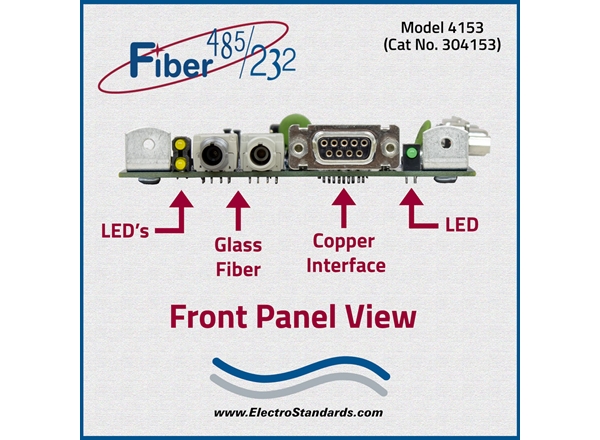

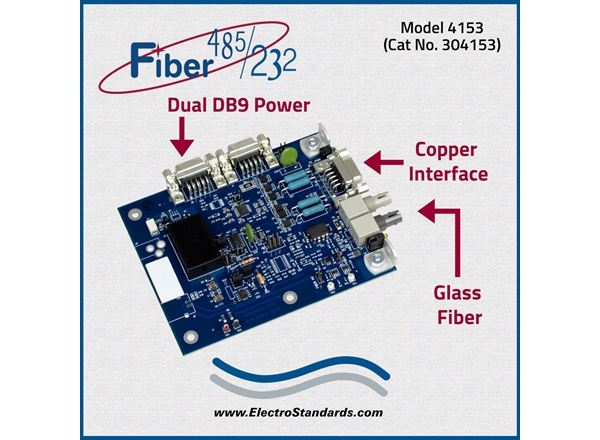

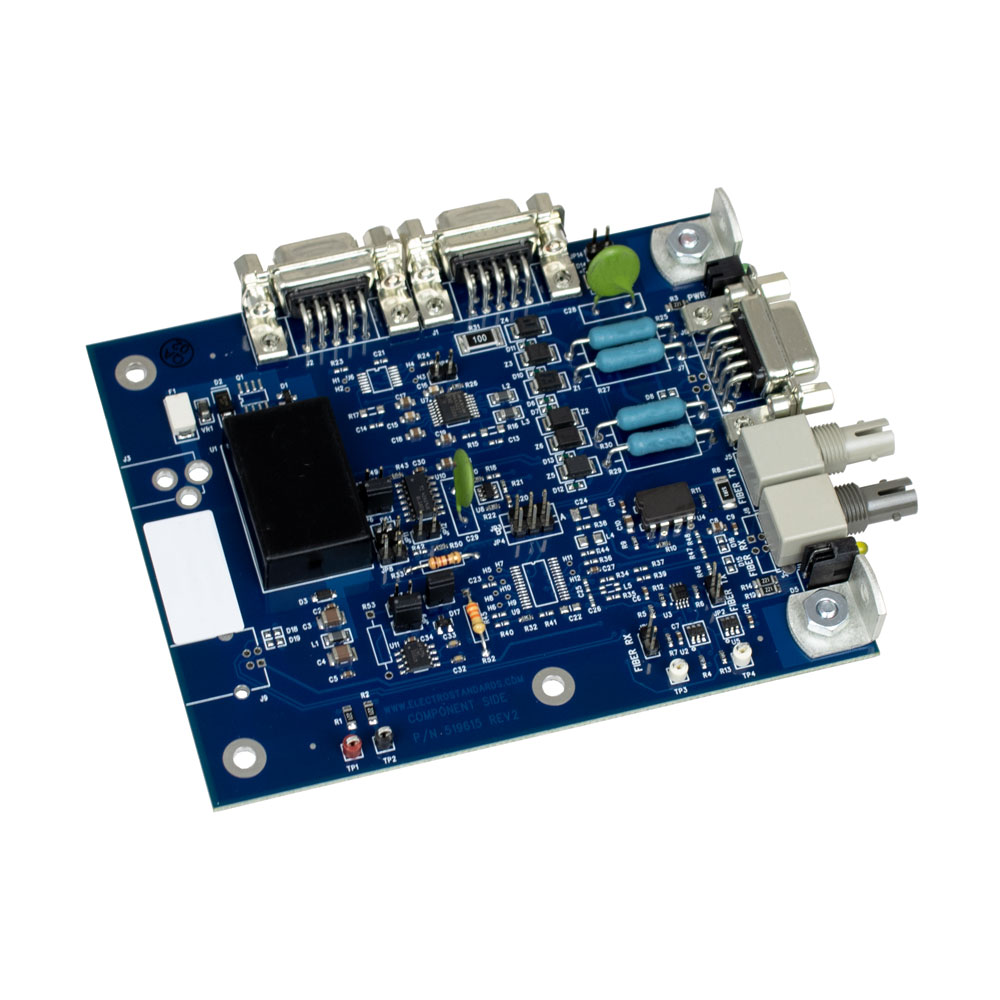

Model 4153 Very High-Speed Ruggedized ST Fiber-to-Multi-Point RS485/422/232 Interface Converter, Board unit

The Model 4153 is a high-speed ruggedized ST Fiber to RS485 / RS422 / RS232 (board only) interface converter from Electro Standards Laboratories.  Typical operating speeds are up to 1.5 Mbps for RS232 to fiber conversion and up to 5 Mbps for RS485/422 to fiber conversion.  When operating in RS485/422 mode, the converter can be configured for 2-wire half duplex or 4-wire full duplex operation.

This Fiber to RS converter provides an industrial solution for applications requiring a single point-to-point or a multi-point communications link over short and long distances.  Typical applications include PC to PC long distance communications, factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, ATMs and serial communications in harsh environments.

Three functions in one unit:

  • Fiber to RS485 Converter
  • Fiber to RS422 Converter
  • Fiber to RS232 Converter

Block diagram for Model 4152/4152-DIN/4153 Glass ST Fiber to Copper RS485/422/232

Model 4152/4153 block Diagram

SPECIFICATIONS:

  • FIBER INTERFACE:
    • Connectors: Fiber Optic ST
    • TX Power: -12.5 dBm
    • RX Sensitivity: -27.5 dBm
    • Optical Budget: 15 dB
    • Max. Link Distance with 62.5/125µm fiber:
    • 5.35 kM at up to 5 Mbps, 25°C
    • 3.75 kM at up to 5 Mbps, -40°C to 85°C
    • Wavelength: 820 nm/850 nm, multimode
    • Fiber Size: 50/125 µm, 62.5/125 µm, 100/140 µm.
  • FIBER POLARITY:
    • Logical 1 = Light ON/OFF: Jumper Selectable
  • COPPER INTERFACE:
    • Connectors: DB9, Female
    • Type: RS232, RS485 (2-wire/4-wire)
    • Terminations: RS485 120 Ohm jumper selectable
  • BIT RATE (nom.):
    • RS232: 0 to 1.5 Mbps
    • RS485/422: 0 to 5 Mbps
  • NETWORK CONFIGURATIONS:
    • RS232:          Point-to-Point
    • RS485/422   Point-to-Point
    • Multi-Point (Default 280 uSec TX disable time) (user configurable TX disable time via a single thru-hole resistor)
  • INDICATORS:

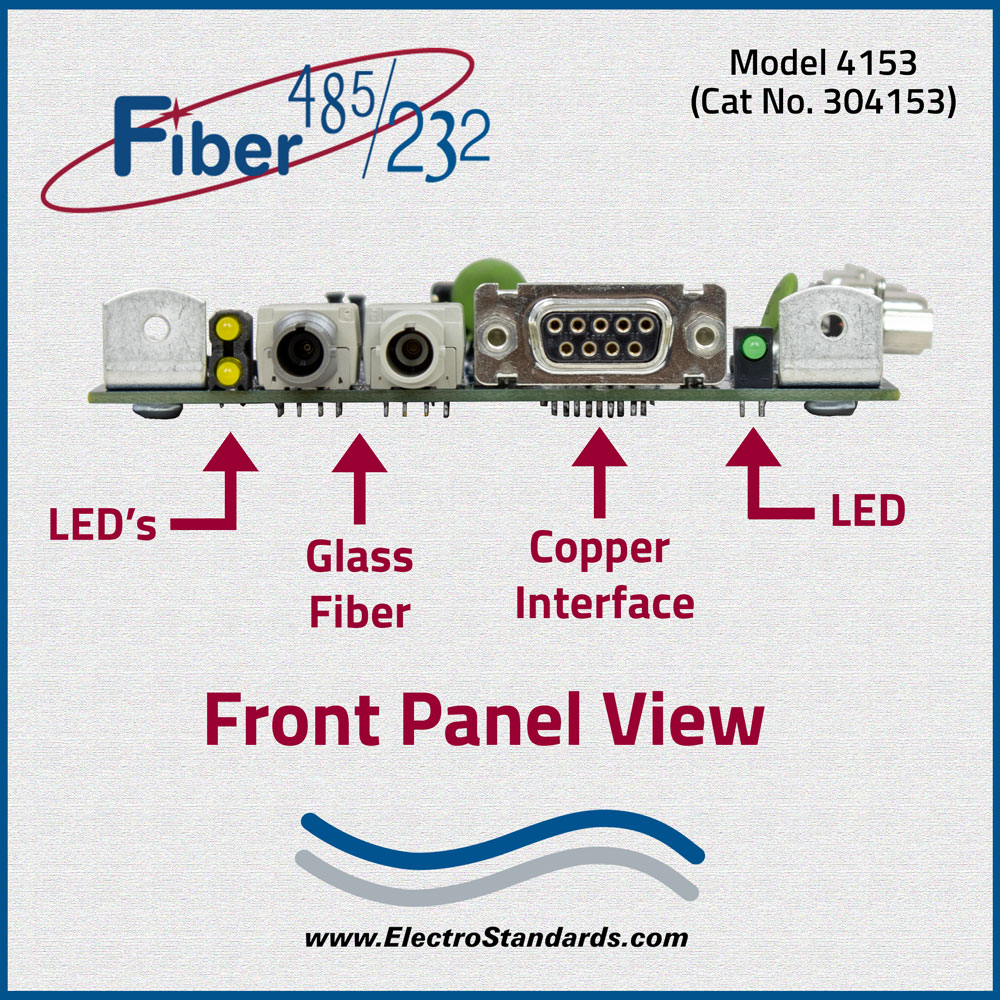

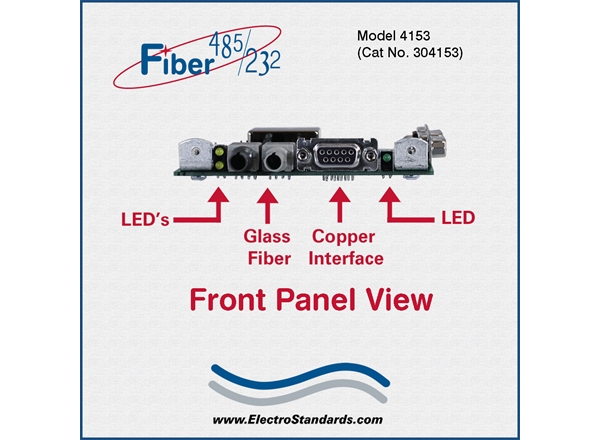

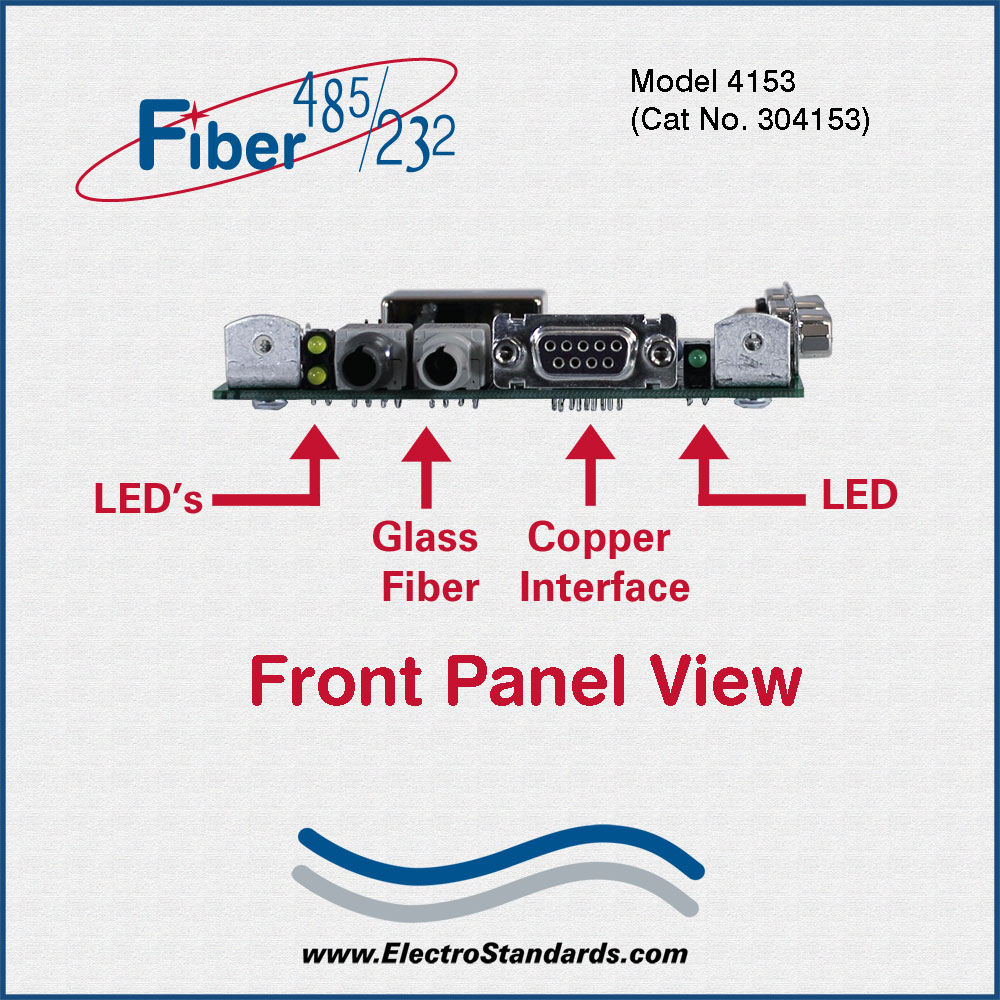

    • LEDs: TXD, RXD, PWR
  • POWER:
    • Input Power: 10VDC-36VDC std, 4.5VDC-9VDC, 19VDC-72VDC, Other at 1.5W.
    • Isolation: 3 kVDC

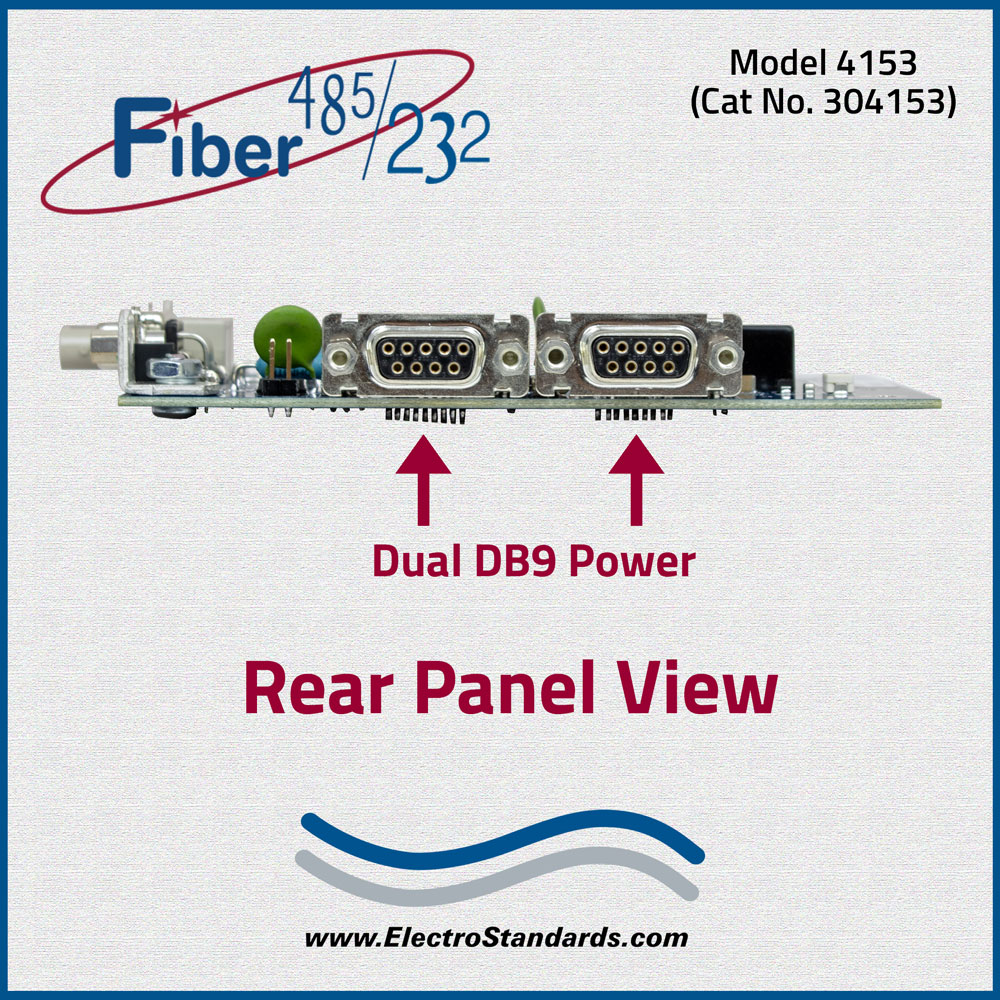

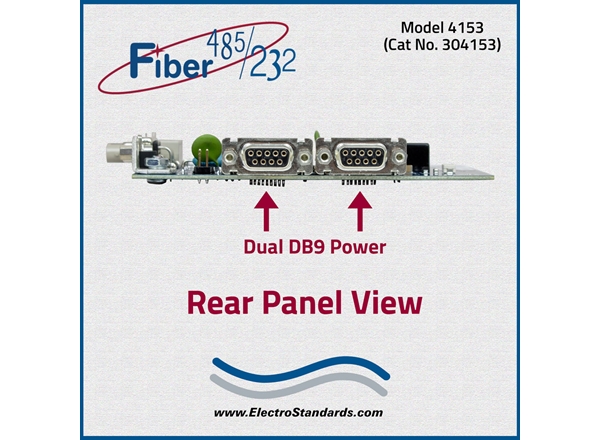

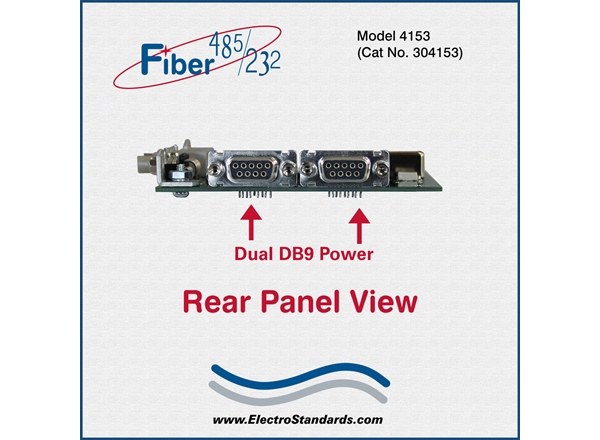

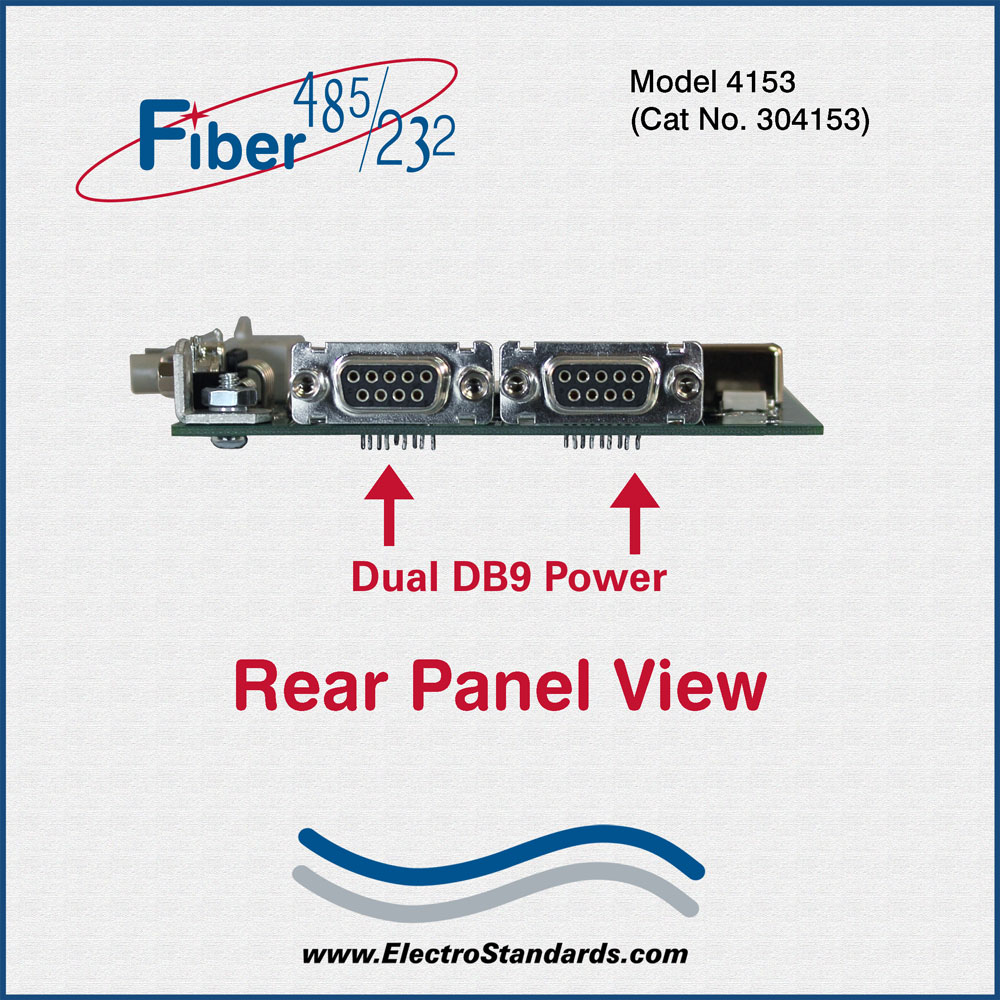

    • Connectors: Dual DB9F for Power Daisy Chaining (board only), DB Power Jack (desktop unit)
  • OPERATING ENVIRONMENT:
    • -40°C to 85°C
  • MODEL 4153 MECHANICAL (Board Only):
    • Model / Cat No: 4153 / 304153
    • Size: 4.8" x 3.9" x 0.63"
    • Weight: 3.5 oz (99g)
    • Mounting: Mounting Holes, Rt Angle Brackets
  • MODEL 4152 MECHANICAL (Desktop Unit):
    • Model / Cat No: 4152 / 304152
    • Size: 5" x 4.25" x 1.4"
    • Weight: 10.1 oz (286g)
  • MODEL 4152-DIN MECHANICAL (DIN Rail Mounted):
    • Model / Cat No: 4152-DIN / 304152-DIN
    • Size: 5" x 4.25" x 1.4"
    • Weight: 10.1 oz (286g)
    • Mounting: 4 Threaded Holes Std, DIN Rail Optional

Model 4152/4152-DIN/4153 Isolated PC RS485/422/232 Communications to Fiber Serial interface / Network Application: Copper Interface to Glass ST Fiber Conversion

A PC is connected to the DB9 Copper interface of the Model 4152/4152-DIN/4153. The Glass ST Fiber port of the Model 4152/4152-DIN/4153 is connected to a Fiber Serial Interface / Network up to 5 Mbps.

Isolated PC RS485/422/232 communcations to fiber serial interface/network

Model 4152/4152-DIN/4153 Point-to-Point Isolated PC RS485/422/232 Communications Application: Copper Interface to Glass ST Fiber to Copper Interface Conversion

A PC is connected to the DB9 Copper interface of the Model 4152/4152-DIN/4153. The Glass ST Fiber port of the Model 4152/4152-DIN/4153 is connected to a second Model 4149/4149-DIN/4159/4159CC Glass ST Fiber port. The second Model 4149 DB9 port is connected to another computer via the DB9 port connector.

Model 4152/4152DIN/4153 ST Fiber to Copper conversion

Model 4165/4165-DIN/4166 to Model 4152/4152-DIN/4153 Isolated PC USB to RS232/RS485 Communications Serial Interface / Network Application: Copper Interface to Glass ST Fiber to Copper Interface Conversion

A PC is connected to the USB Copper interface of the Model 4165. The Glass ST Fiber port of the Model 4165 is connected to the Model 4152 Glass ST Fiber port. The Model 4152 DB9 port is connected to a Serial Interface / Network up to 3 Mbps.

Model 4165/4165-DIN/4166 to Models 4152/4152-DIN/4159/4159CC Interface conversion
