Model 4168-DIN Quad USB 2.0 Extender, Multimode Fiber, 4-Port Hub
-
Extend the Distance of Four USB Devices over 500 Meters. Ideal for Platform Scale Applications.
-
Reliably extend USB 1.0 or 2.0 signaling over Multimode fiber cable to remote USB devices
-
Plug-and-Play, ready to operate right out of the box.

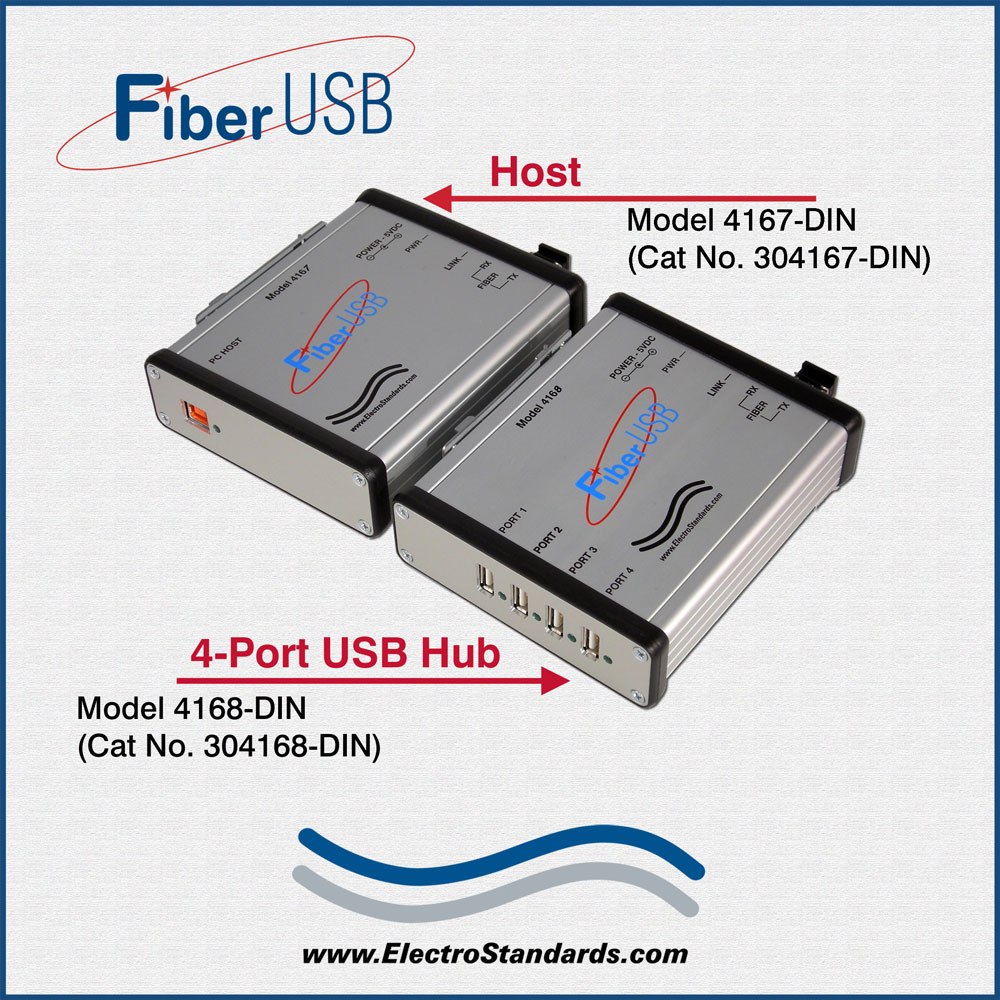

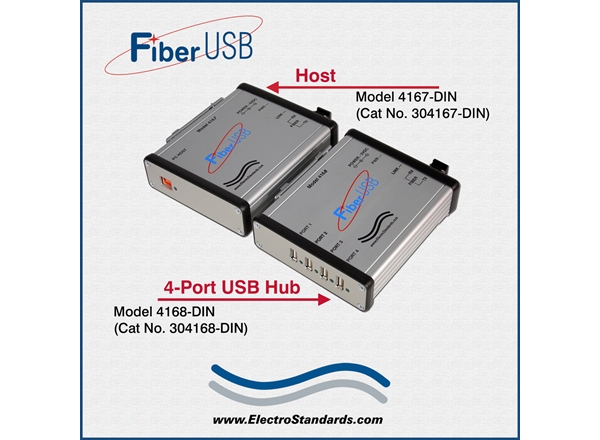

The DIN rail mounted unit, Model 4168-DIN is a 4-Port Hub that works with Model 4167-DIN Host (also see related products tab for M4167-DIN details) to comprise a local HOST and Remote 4-Port integrated USB HUB that directly accepts 4 USB load cells. Together, the host and remote units extend the range of USB load cells from less than 5 meters to 500 meters via a high-speed Fiber interface. Factory options can extend the distance up to 10 kilometers.
The units convert USB 2.0 compliant data from a standard PC Host interface over fiber to remote integrated 4-port powered USB Hub that directly accepts 4 USB load cells. Operation of the Quad USB Load Cell Extender/Isolator is plug-and-play and fully transparent to the USB Load Cell, requiring no other hardware and no PC software.
This instrumentation is ideal for PC data acquisition requiring high speed data acquisition with optical isolation from electromagnetic interference. The Model 4167 and Model 4168 system can extend a combination of USB load cells and other USB based devices using its integrated USB hub.
Applications include: industrial control, weigh tables, isolated data acquisition, and remotely located USB sensors. The units offer true plug and play operability with support for Windows®, MAC OS®, Linux®, and support all USB device types (Control, Interrupt, Bulk and Isochronous at up to 480 Mbps).
The units have been tested to operate from 0°C to 50°C (component ratings meet or exceed 0°C to 70°C). ESD protection circuitry is built into all copper USB I/O interfaces. Both units' power inputs are protected from transients and the 4-Port Hub (Model 4168, 4168-DIN) provides the USB standard of 500mA per port. The units feature; Power, Fiber Link Active, Host Active (Model 4167, 4167-DIN) and Port Active (Model 4168, 4168-DIN) indicator LEDs.
Two configurations are available for each model
- Model 4167 Host Desktop Unit, for applications requiring an enclosure.
- Model 4167-DIN Host Unit for applications requiring mounting on a DIN rail.
- Model 4168 4-Port Hub Desktop Unit, for applications requiring an enclosure.
- Model 4168-DIN 4-Port Hub Unit for applications requiring mounting on a DIN rail.
SPECIFICATIONS:
- USB INTERFACE
- Connectors: Model 4167 - 1x USB Type B, High Retention
- Model 4168 - 4x USB Type A, (5V @500mA/port)
- Model 4167-DIN - 1x USB Type B, High Retention
- Model 4168-DIN - 4x USB Type A, (5V @500mA/port
- USB DATA FORMAT:
- Type: USB 2.0 Compliant (Backwards compatible USB 1.1)
- Rate: Supports Low Speed (1.5 Mbps), Full Speed (12 Mbps), and High Speed (480 Mbps) USB Data transfer rates.
- FIBER INTERFACE:
- CONNECTORS: Fiber Optic LC SFP Transceiver
- TX Power: -6.5 dBm (Typical)
- RX Sensitivity: -21.5 dB (Typical)
- Optical Budget: 14.5 dB
- Max. Link Distance with 50/125 µm fiber: 500 Meters
- LC/LC Duplex fiber cable - Cat. No. 986147
- Max. Link Distance with 62.5/125 µm fiber: 275 Meters
- LC/LC Duplex fiber cable - Cat. No. 986017
- Wavelength: 850 nm, multimode
- LED INDICATORS:
- Model 4167 - Power, Fiber Link Active, Host Active
- Model 4168 - Power, Fiber Link Active, Port Active
- Model 4167-DIN - Power, Fiber Link Active, Host Active
- Model 4168-DIN - Power, Fiber Link Active, Port Active
- INPUT POWER: REQUIREMENT
- Model 4167 5VDC @ 2.5W
- Model 4168 5VDC @ 15W
- Model 4167-DIN 5VDC @ 2.5W
- Model 4168-DIN 5VDC @ 15W
- POWER CONNECTOR:
- DC Power Jack, Circular Barrel Type
- EXTERNAL POWER SUPPLY:
- The power supply is not included with any of the units and can be ordered separately, ESL Cat. No. 524450.
- OPERATING ENVIRONMENT:
- Tested operation, 0°C to 50°C; component ratings meet or exceed 0°C to 70°C
- USB POWERED OPTION:
- Available only for the Host units, See Models 4662 and 4662-DIN Host units.
Model 4167 Mechanical (Desktop Unit):
- Model 4167 / Cat No: 304167
- Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
- Weight: Approx. 11.5 oz (327g)
- Mounting: Desktop Std, DIN rail (Optional)
Model 4168 Mechanical (Desktop Unit):
- Model 4168 / Cat No: 304168
- Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
- Weight: Approx. 11.5 oz (327g)
- Mounting: Desktop Std, DIN rail (Optional)
Model 4167-DIN Mechanical (DIN Rail Mounted Unit):
- Model 4167-DIN Cat No: 304167-DIN
- Size: 5.0" x 4.25" x 1.4" (12.7 x 10.8 x 3.6 cm)
- Weight: Approx. 11.5 oz (327g)
- Mounting: 2 Threaded Holes Standard, DIN rail
- DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
- DIN Rail Bracket Weight: 0.9 oz (25.5g)
Model 4168-DIN Mechanical (DIN Rail Mounted Unit):
- Model 4168-DIN / Cat No: 304168-DIN
- Size: 5.0" x 4.25" x 1.4"(12.7 x 10.8 x 3.6 cm)
- Weight: Approx. 11.5 oz (327g)
- Mounting: 2 Threaded Holes Standard, DIN rail
USB A-B Cable (6 Ft): Included with Model 4167 / 4167-DIN is the cable ESL Cat. No. 507366 (USB Type A to USB Type B)
To view more of Electro Standards' Media Converters, click here: Interface Converters.
Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, CONNECTORS/ADAPTERS Webpage.
For custom network interface converters call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/
All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL products are available for export.
