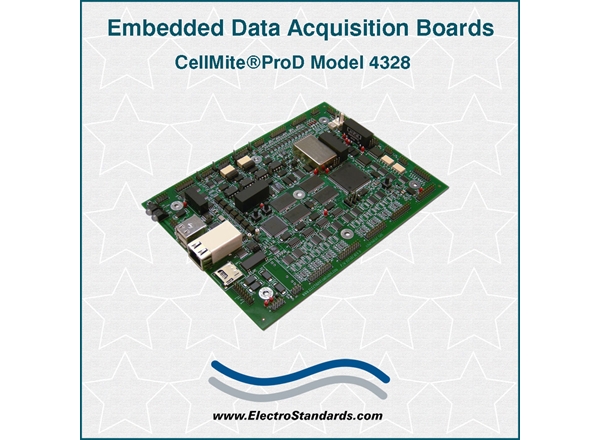

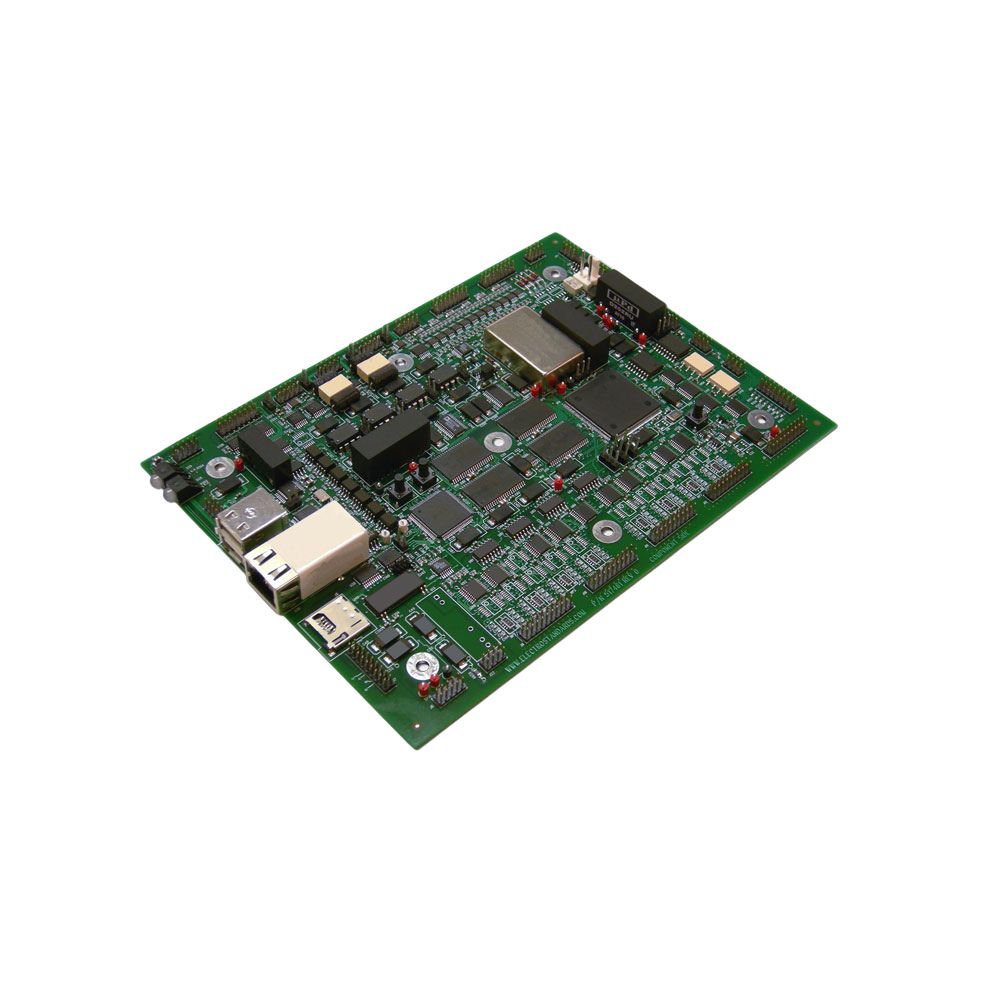

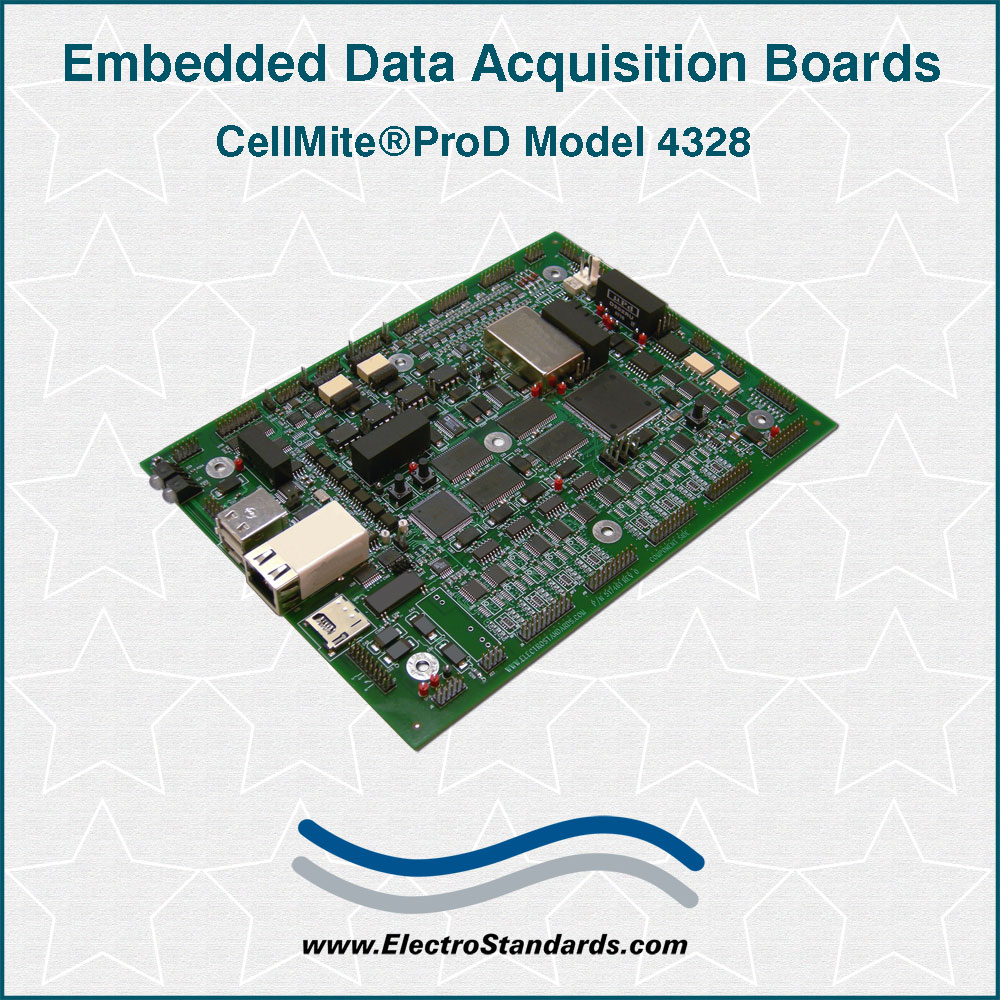

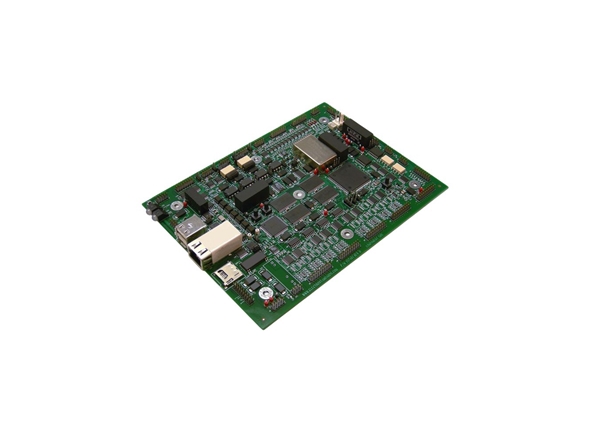

304328 - 4328 CellMite ProD Data Acquisition & Strain Gage Interface Board

    Data Acquisition & Strain Gage Interface BoardData Acquisition & Strain Gage Interface Board
Click image to enlarge
    • Data Acquisition & Strain Gage Interface Board
    • Data Acquisition & Strain Gage Interface Board
Base Price:
$3,084.00
Catalog No: 304328
Model No: 4328
Display:No
Excitation:5VDC
Input Range:10VDC-36VDC along with 3kVDC Isolation
Ouput_Analog:(4) 16-bit Channels
Output_Serial_Data:USB, RS232, RS485, 10/100Base-T Ethernet, Isolation: Optical
Storage:Onboard: 1M Word. Removable: SD Card
Product Type:CellMite®
Conversion Rate:Dual Channels=15K/sec. Quad Channels= 5K/sec. (12) 12-bit Channels= 1M/sec.

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

The CellMite® ProD Model 4328 is a high performance data acquisition and strain gage interface module from Electro Standards Laboratories that is suitable for embedded applications that require high speed and high accuracy analog and digital data acquisition.

The CellMite® ProD features dual 24-bit independent strain gage channels with simultaneous sampling at 15K samples/second that can also be configured as quad 24-bit strain gage channels sampled at 5K samples/second.  In addition, the CellMite® ProD features 12 additional 12-bit analog input channels with a throughput of 1M samples/second.  Digital data acquisition is also supported with 64-bits of simultaneously sampled digital inputs.  The digital inputs can be sampled at 20M samples/second.

The CellMite® ProD has four 16-bit high performance analog output channels with user specified scaling and offset, with a range of /-10 volts.  Direct PC or network communication is supported by USB, RS232, RS485 and Ethernet data channels.  The communication channels are optically isolated in order to minimize system ground loops.  For applications requiring on-board data storage, the CellMite® ProD features 1MWord of onboard memory along with an SD Card slot for additional bulk data storage.

The CellMite® ProD also supports dual quadrature encoder or pulsed inputs often used for measuring rotational position or velocity.  The CellMite® ProD features a wide input voltage range of 10VDC-36VDC, along with 3kVDC isolation.  The CellMite® ProD is designed for ruggedized applications and operates

from - 40°C to 85°C.

SPECIFICATIONS:

Analog Signal Inputs:

Very High Resolution, High Speed (Strain Gage) Channels:

Analog Input:

  • Differential, strain gage compatible 3mv/V nominal
  • Excitation: 5VDC
  • Resolution: 24-bit
  • Accuracy: 0.01%
  • Number of Channels: 4
  • Max. Sampling Rate: Dual channels operated, 15K samples/second, simultaneous. Quad channels operated, 5K samples/second.
  • Shunt Resistors: one per strain gage channel, 60K precision.

Moderate Resolution, High Speed Channels:

Analog Input:

  • Differential, general purpose.
  • Input Range: /-5 Volts
  • Resolution: 12-bit
  • Number of Channels: 12
  • Max. Sampling Rate: Single channel, 12M samples/second. 12 channels operated, 1M samples/second

Analog Signal Outputs:

  • Resolution: 16-bit
  • Range: /- 10V
  • Scaling: User selectable gain and offset
  • Channels: 4, One analog output channel isolated output

Digital Signal Inputs:

  • Input type: Logic, TTL, and HC compatible with hysteresis
  • Number of Channels: 64 bits, simultaneously sampled
  • Max Sampling Rate: 20 M samples/second

Digital Counter Inputs:

  • Excitation: 5VDC
  • Interface: Single ended or Differential
  • Type: Dual quadrature or Pulse

Digital Contact Inputs:

  • Type: Optically isolated
  • Channels: 4

Digital Trigger:

  • Type: Digital Trigger

Digital Outputs:

  • Type: Optically isolated solid state relays
  • Switching: AC or DC signals
  • Range: 0 to /-400V Peak, 120 mA
  • Channels: 4

Digital Data Output:

  • Interface Type: USB, RS232, RS485, 10/100Base-T Ethernet
    Isolation: Optical

Input Power:

  • Range: 10VDC-36VDC, std, 4.5VDC-9VDC
  • Power: 5W (Ex. 200 mA at 24 VDC)

Data Storage:

  • Onboard: 1M Word
  • Removable: SD Card

Electronic Identification:

  • Type: Solid State Teds-TagID®
  • Channels: 4, one for each strain gage

Indicators:

  • Discrete: Dual LEDs
  • Alphanumeric: LCD display, optional

Mechanical:

  • Size: 7.5” x 5.5” x 1”
  • Mounting: 7 mounting holes
  • Signal Connectors: 2mm ribbon
  • Environment: Operating -40°C to 85°C


All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
