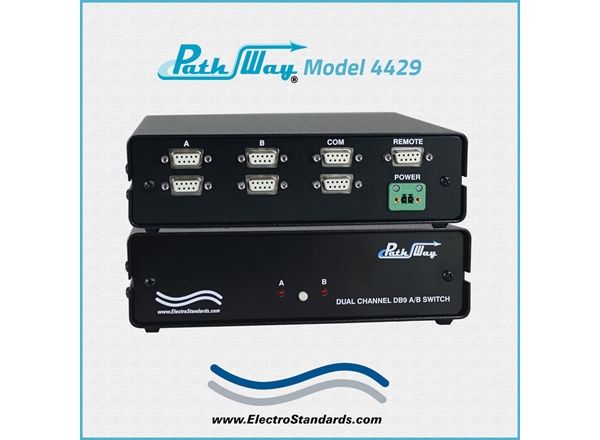

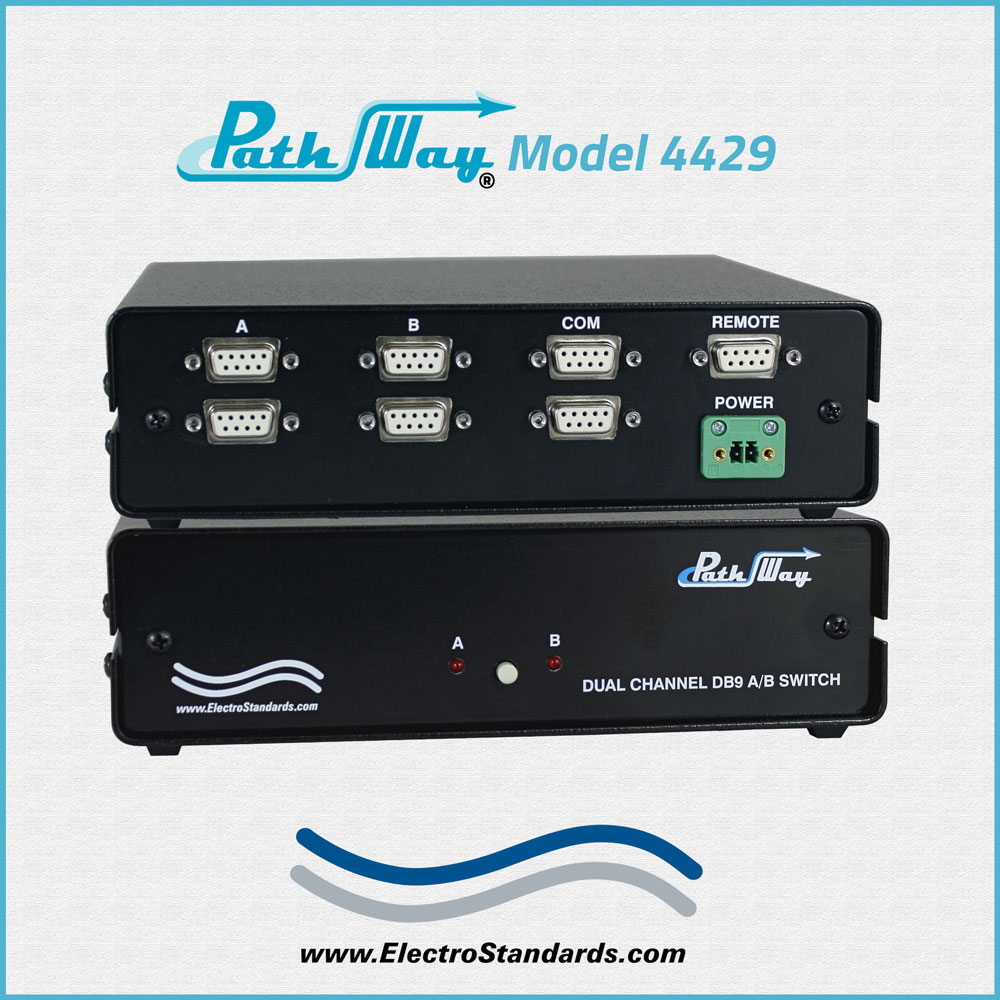

304429 Model 4429 2-Channel DB9 A/B Switch, Remote with Autobaud Detection Mode

    2-Channel DB9 A/B Switch2-Channel DB9 A/B Switch2-Channel DB9 A/B Switch2-Channel DB9 A/B Switch
Click image to enlarge
    • 2-Channel DB9 A/B Switch
    • 2-Channel DB9 A/B Switch
    • 2-Channel DB9 A/B Switch
    • 2-Channel DB9 A/B Switch
Base Price:
$1,088.00
Catalog No: 304429
Model No: 4429
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:RS232 Serial
Configuration:Desktop
Pins Switched:9
Remote Port:DB9
Local Control:Pushbutton

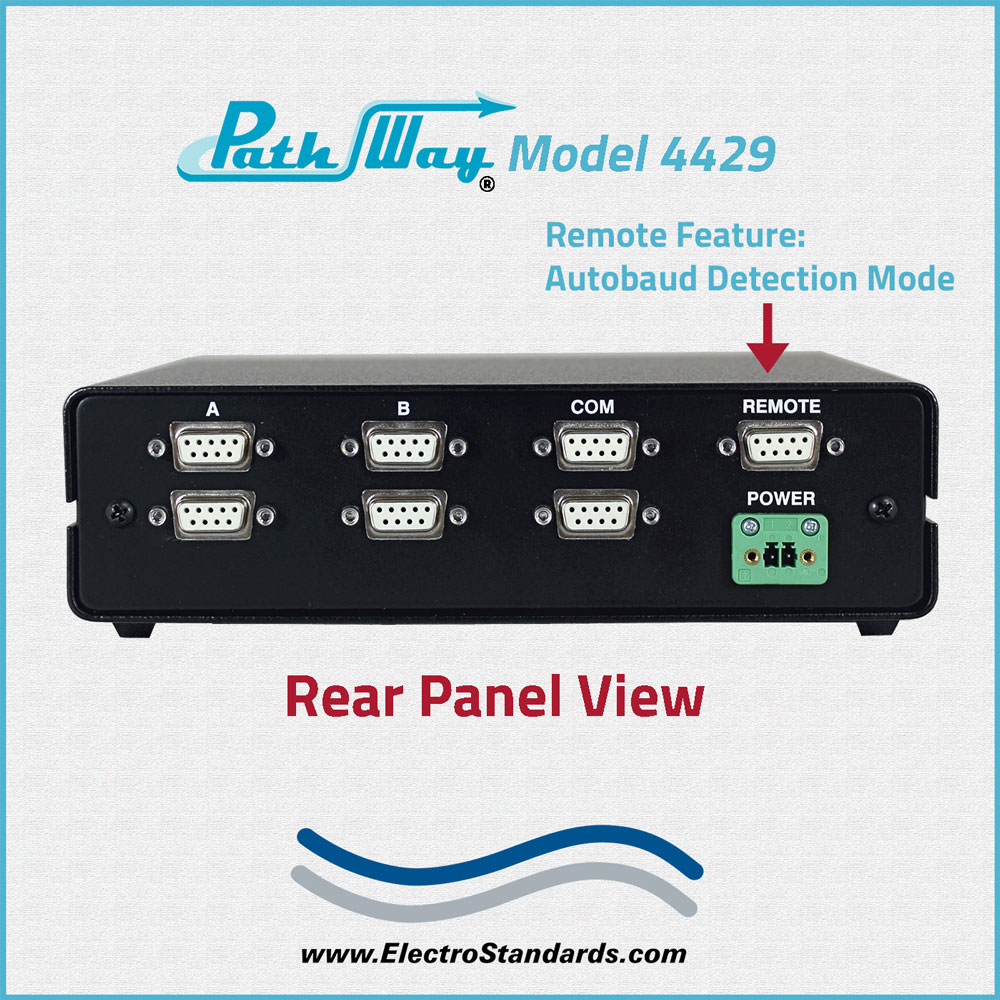

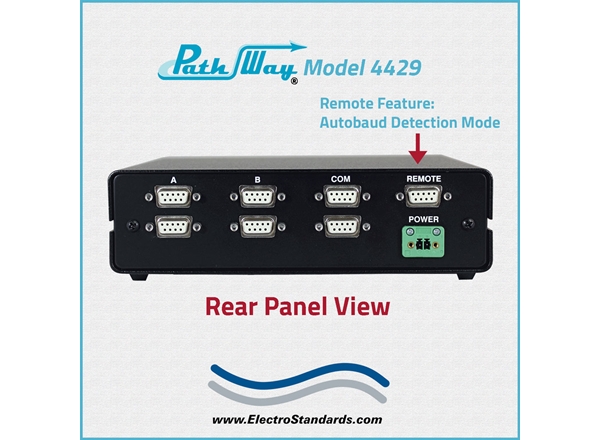

Feature:REMOTE port features Autobaud Detection Mode
Protocol:ASCII

Add to Cart
  • The REMOTE port features Autobaud Detection Mode that supports standard baud rates from 300 to 19200.

  • LineSelect® Model 4429 Dual Channel DB9 A/B Switch

  • All DB9 Female port Connectors for both channels.

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, DB9
Model 4429 Dual Channel DB9 A/B Data Switch with Serial Remote Control

  • Switch ANY DB9 interface device to share or backup.

SPECIFICATIONS:

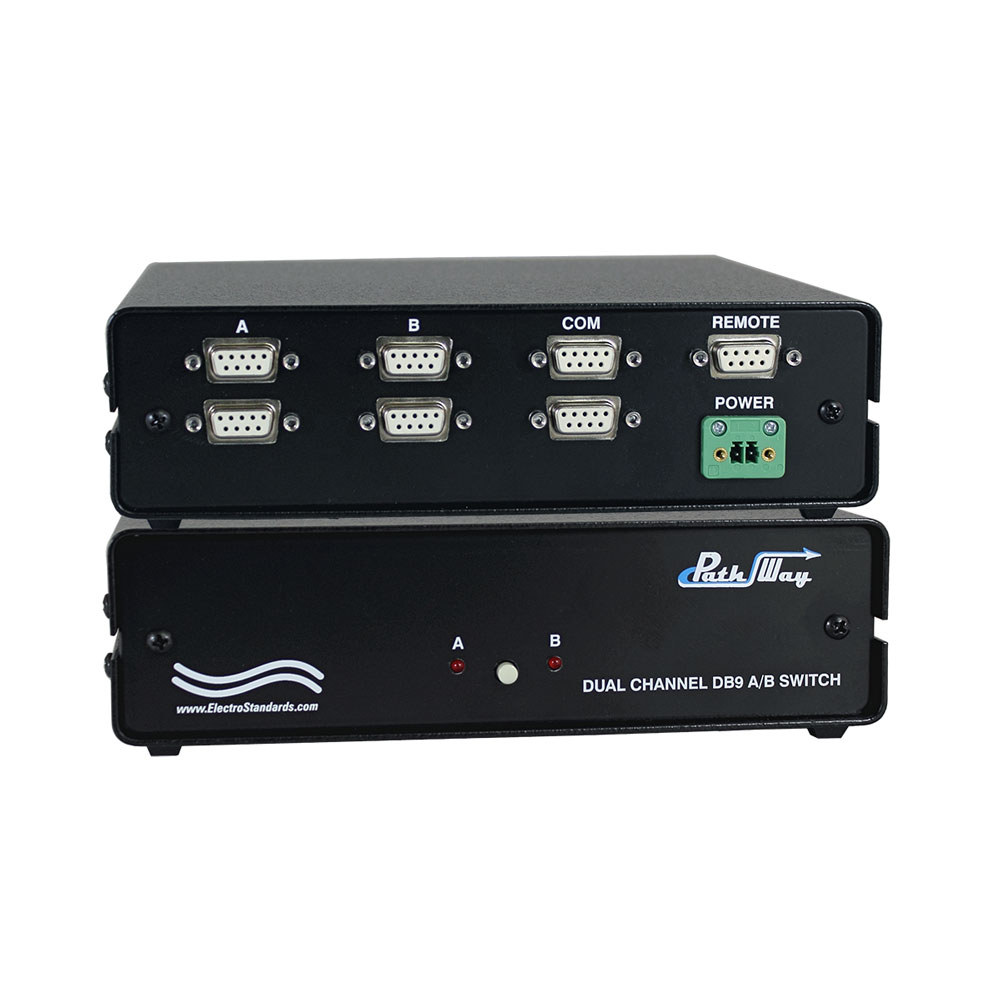

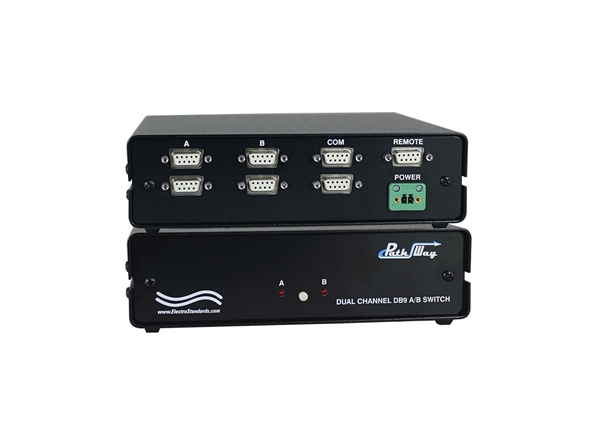

  • PORT CONNECTORS: (3) DB9 (F) connectors labeled A, B, and COMMON for each of two channels.

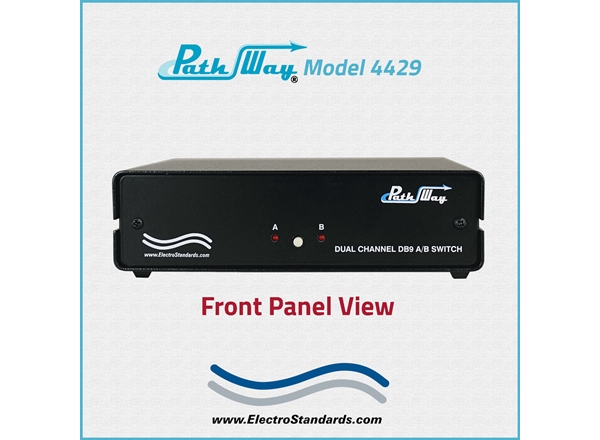

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB9 Female connector on rear panel accepts ASCII RS232 Serial Data at standard baud rates from 300 to 19200 for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 8.12" W x 2.40" H x 7.25" D (20.7 x 6.1 x 18.5 cm).
  • WEIGHT:  Approximately 1.8 lbs (0.8 kg)

DUAL CHANNEL DB9 A/B SWITCH APPLICATION w/SERIAL REMOTE PORT:

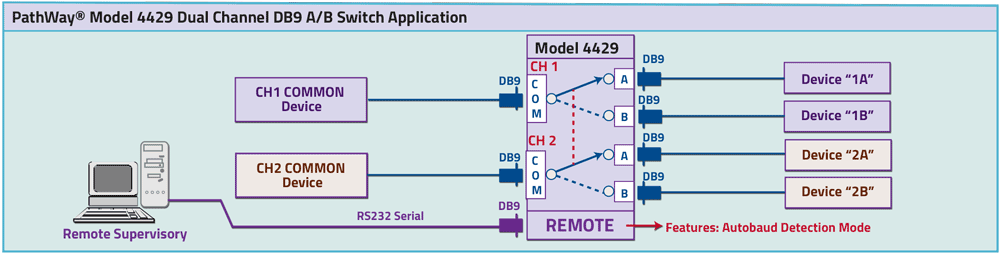

The drawing illustrates two channels of DB9 A/B simultaneous switching. Each channel has a COMMON device connected to the COMMON port with access to two devices connected to the A and B ports, respectively. The DB9 REMOTE port can be used to control the unit remotely via ASCII RS232 Serial data commands. The Remote port features an Autobaud Detection Mode that can be used to select standard baud rates from 300 to 19200.

PathWay® Model 4429 Dual Channel DB9 A/B Switch application drawing

FEATURES:

  • Allows access to two DB9 devices from one COMMON DB9 device for each of two channels.
  • Eliminates the need to plug and unplug cables.
  • The switch ports are transparent to all data.
  • All (9) pins of the DB9 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Simultaneous control of both channels.
  • Remote RS232 ASCII commands that allow the user to control the switch position, lockout front panel operations, obtain switch status, as well as query firmware version and the query the serial number of the unit.
  • The remote port features Autobaud Detection Mode that supports standard baud rates from 300 to 19200.
  • Front-panel LED's display switch position and power status.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB9 cables available for your switch installation.

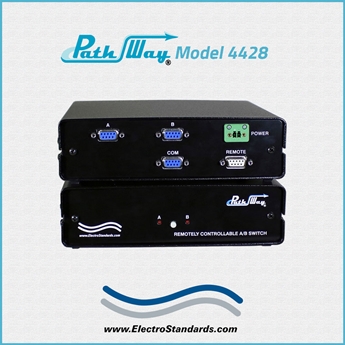

  • For a single channel version of this switch, see Model 4428, Cat. No. 305428
