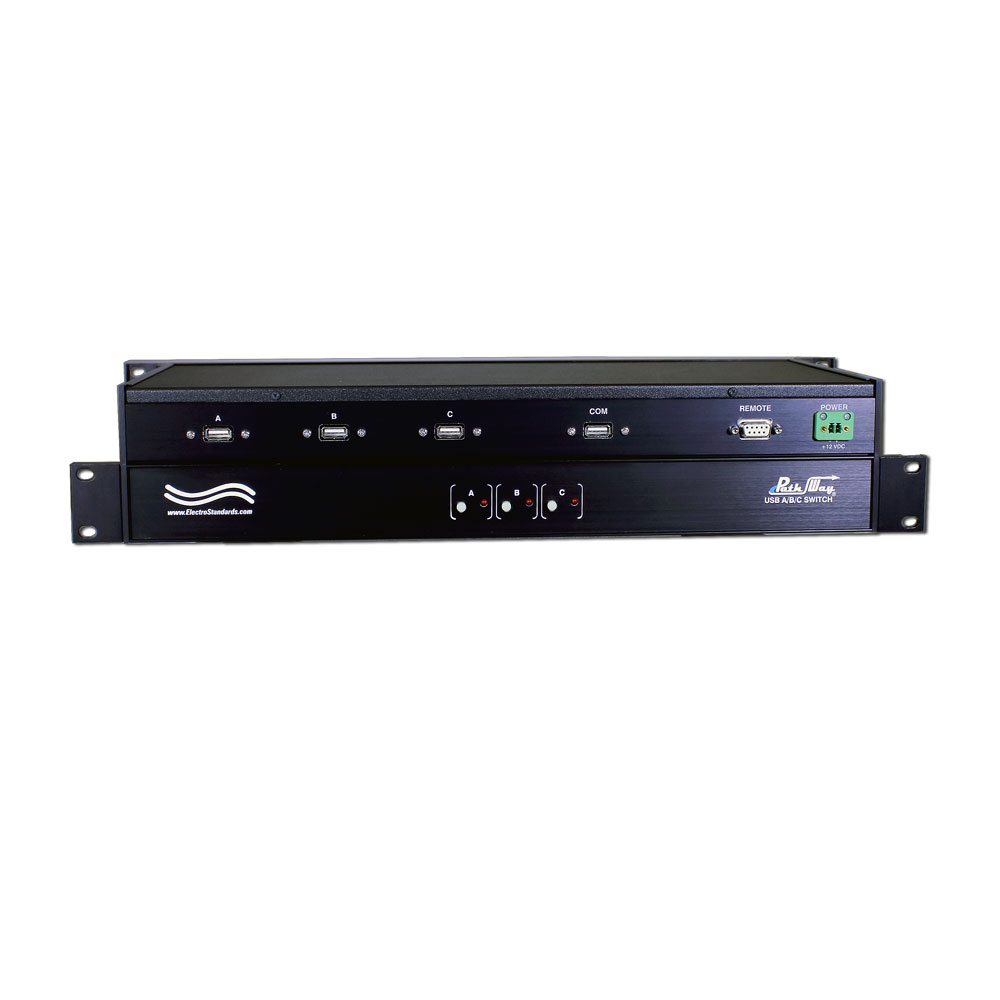

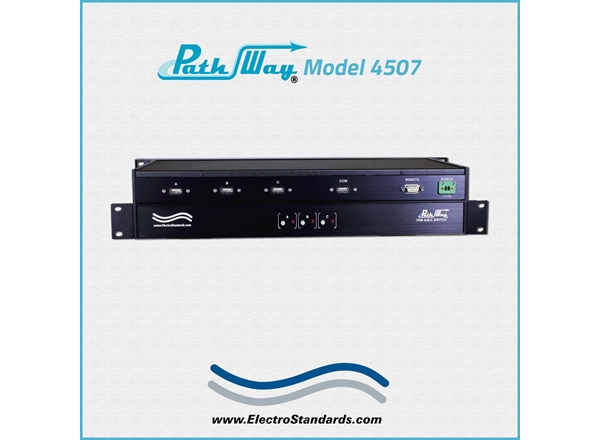

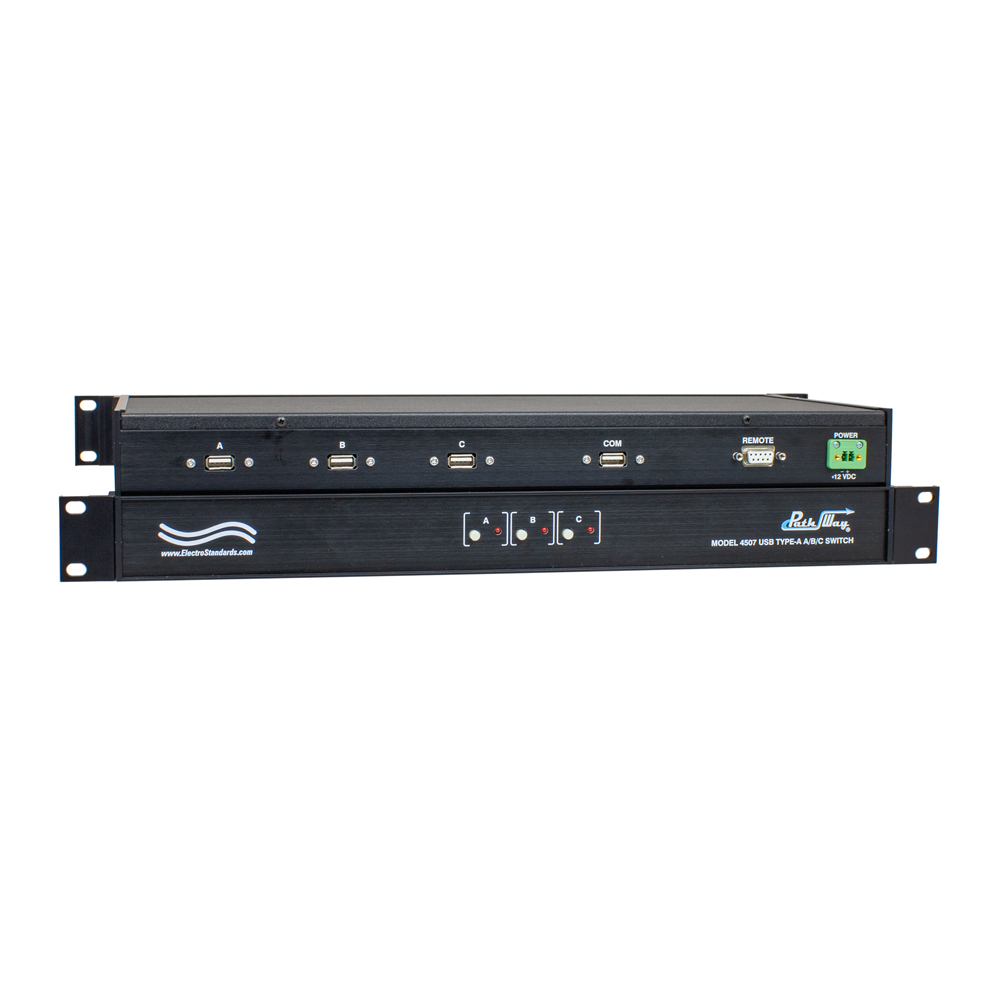

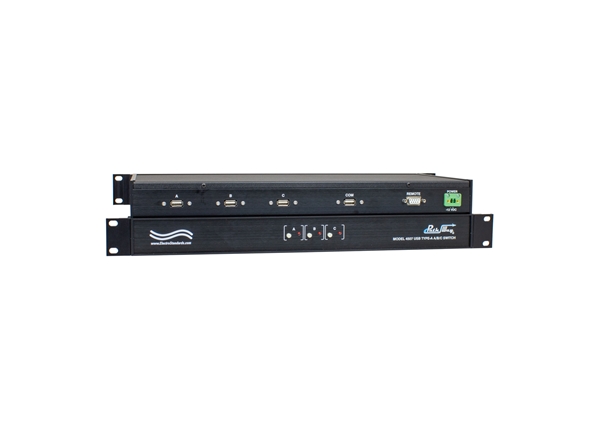

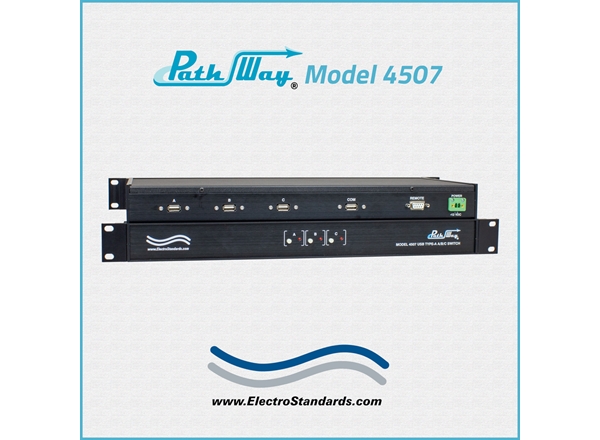

USB 2.0 Switch Catalog # 304507 - Model 4507 USB Type-A A/B/C Switch, Remote

    USB Type-A A/B/C Switch, RemoteUSB Type-A A/B/C Switch, RemoteUSB Type-A A/B/C Switch, RemoteUSB Type-A A/B/C Switch, Remote
Click image to enlarge
    • USB Type-A A/B/C Switch, Remote
    • USB Type-A A/B/C Switch, Remote
    • USB Type-A A/B/C Switch, Remote
    • USB Type-A A/B/C Switch, Remote
Base Price:
$1,159.00
Catalog No: 304507
Model No: 4507
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:USB
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Rackmount
Pins Switched:4
Remote Port:DB9
Local Control:Pushbutton
Feature:Remote Control

Add to Cart

USB 2.0 Switch

(4) USB Type-A connectors labeled A, B, C, and COM

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

PathWay® Remotely Controllable Network Switch, USB Type-A

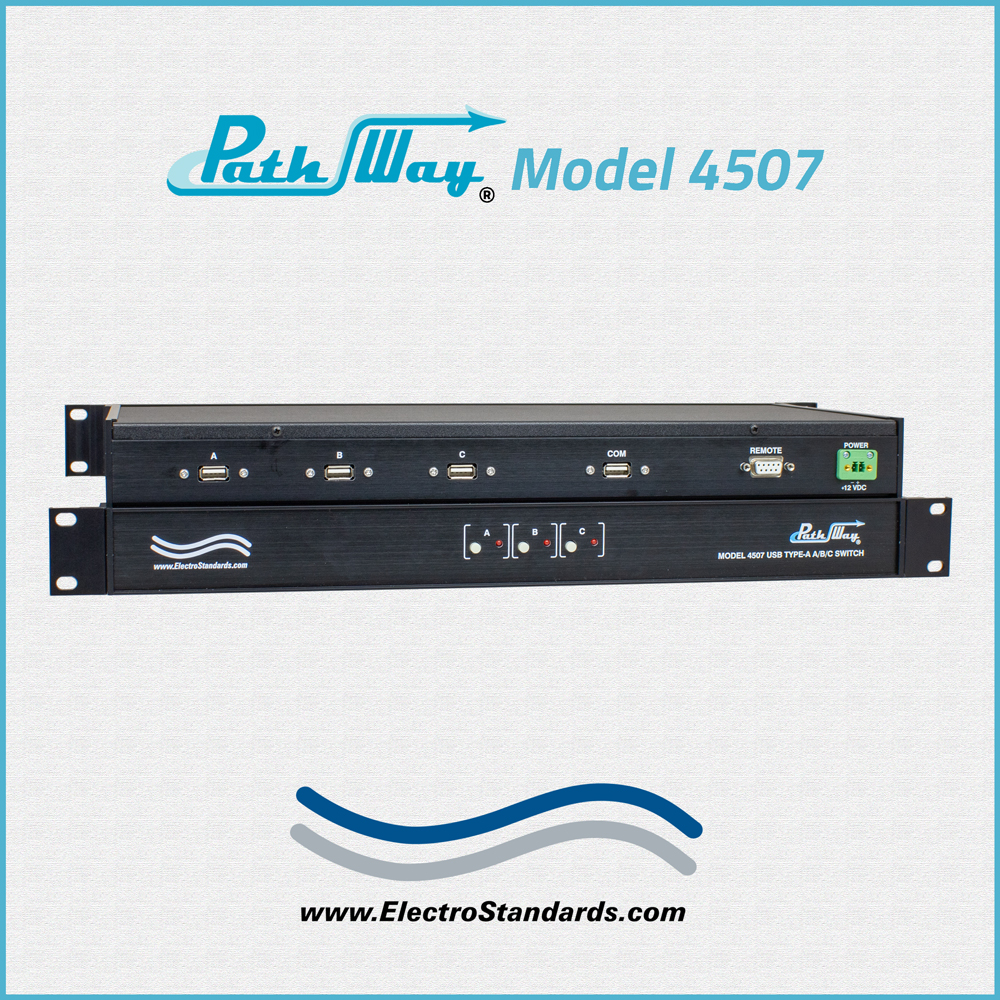

Model 4507 USB Type-A A/B/C Switch with Remote Control, Rackmount

  • Switch between three USB devices without having to disconnect cables

  • Share a USB device between 3 PC's

  • Perfect to connect a computer to multiple USB devices

SPECIFICATIONS:

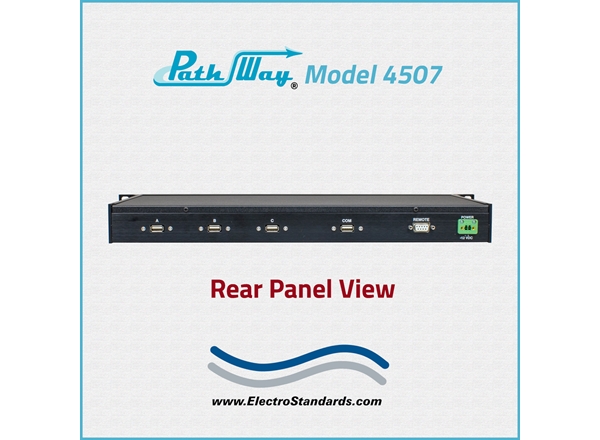

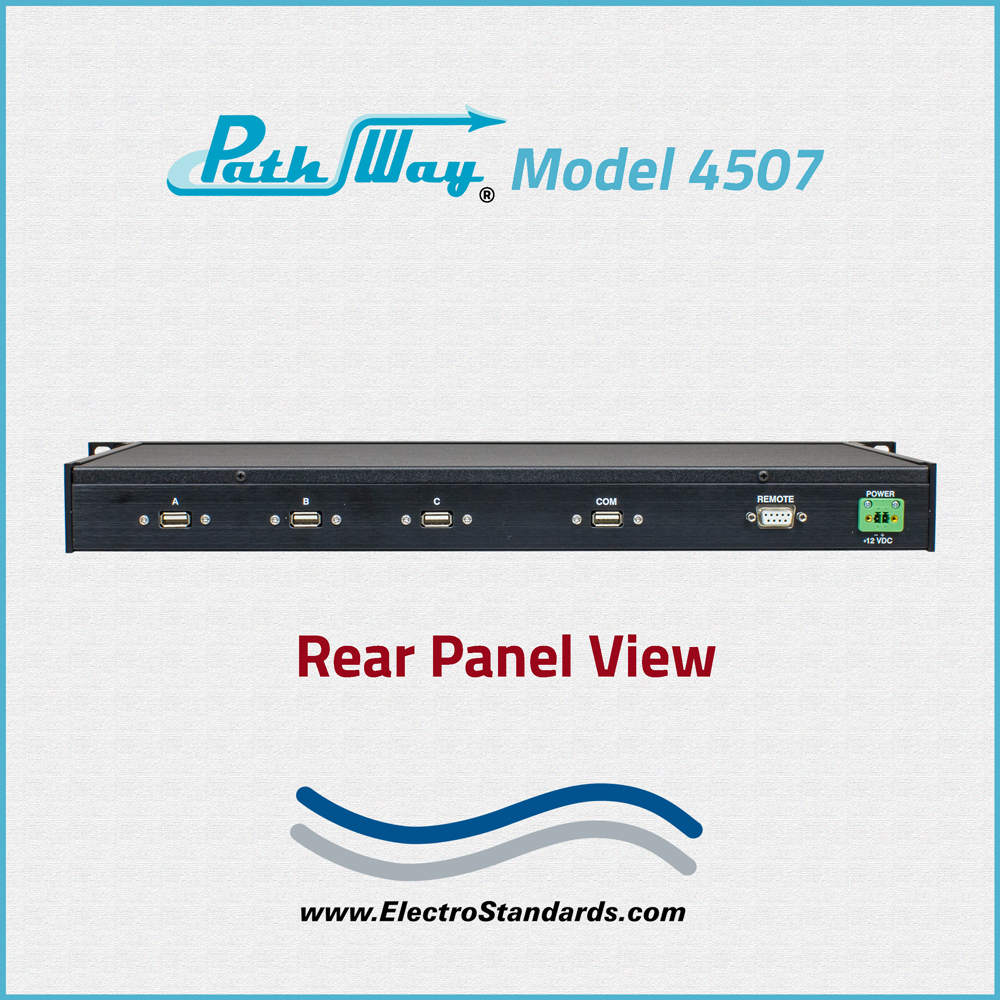

  • PORT CONNECTORS: (4) USB Type A connectors labeled A, B, C, and Common.

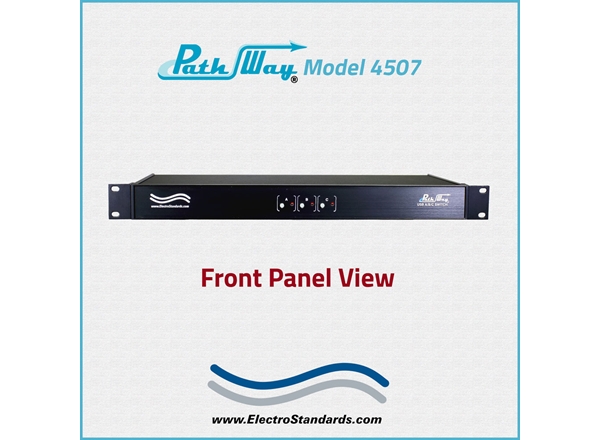

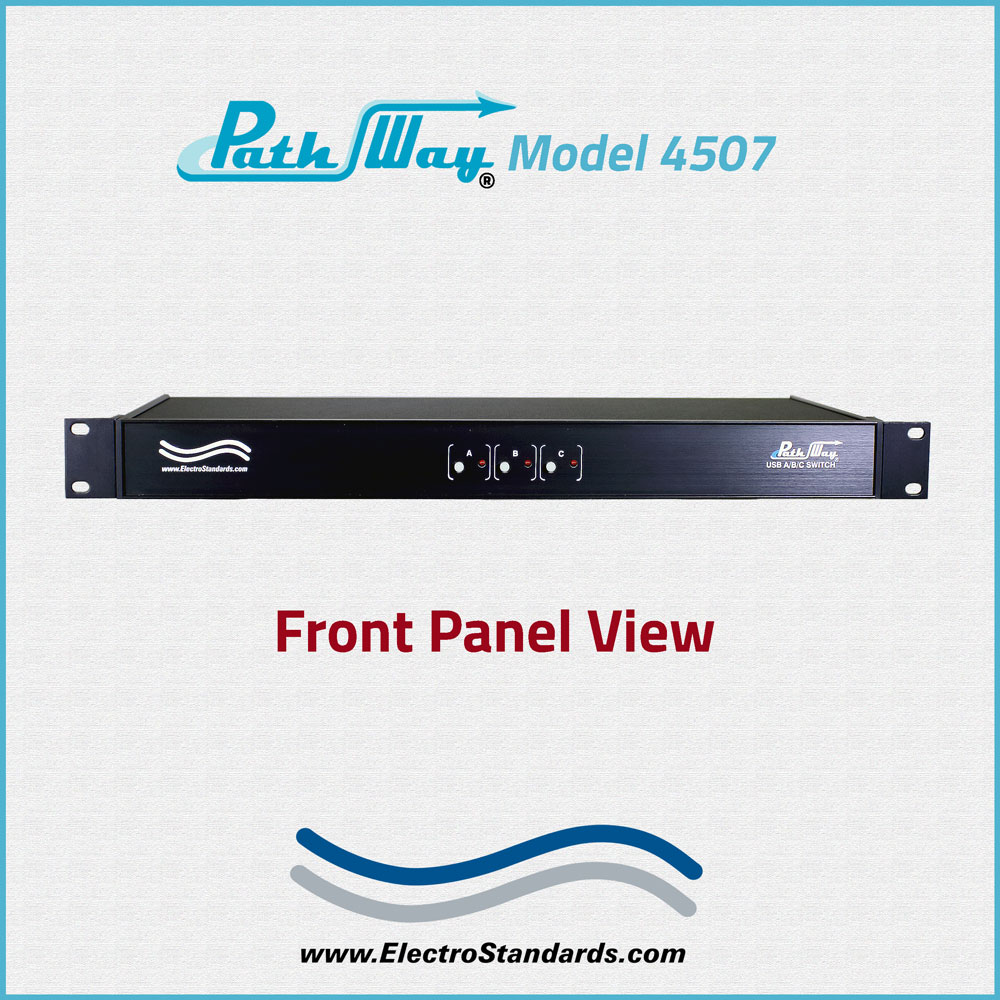

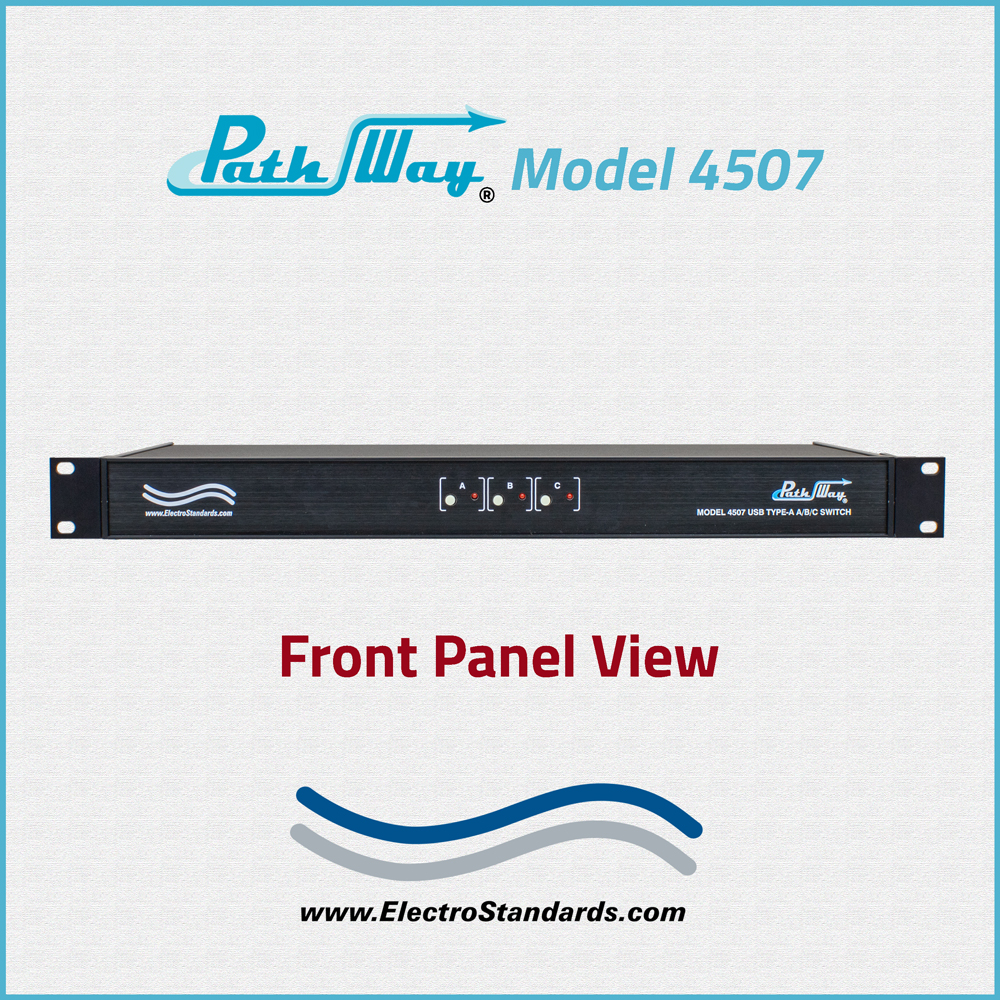

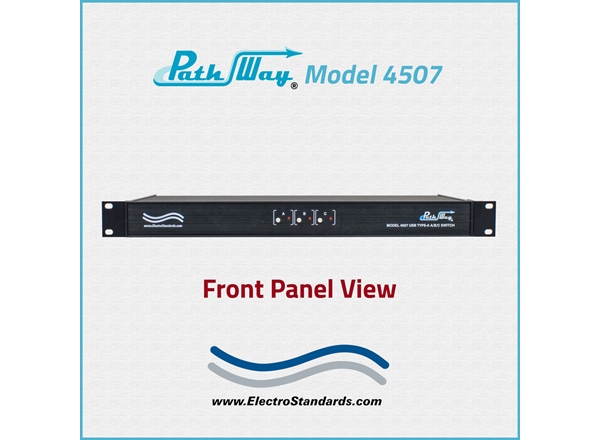

  • FRONT PANEL CONTROL: (3) Manual pushbuttons allows local switching.
  • DISPLAY: (3) Front panel LED's display switch position and power status.

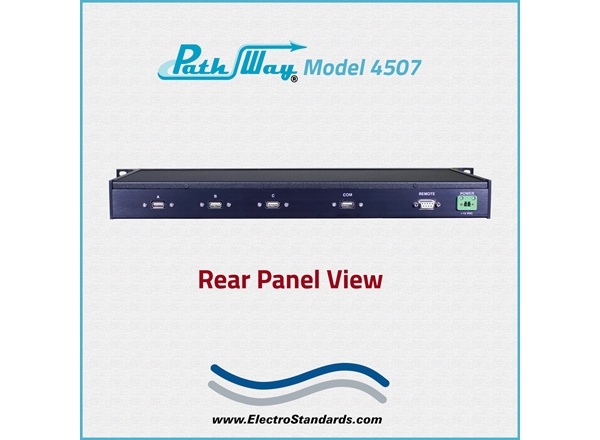

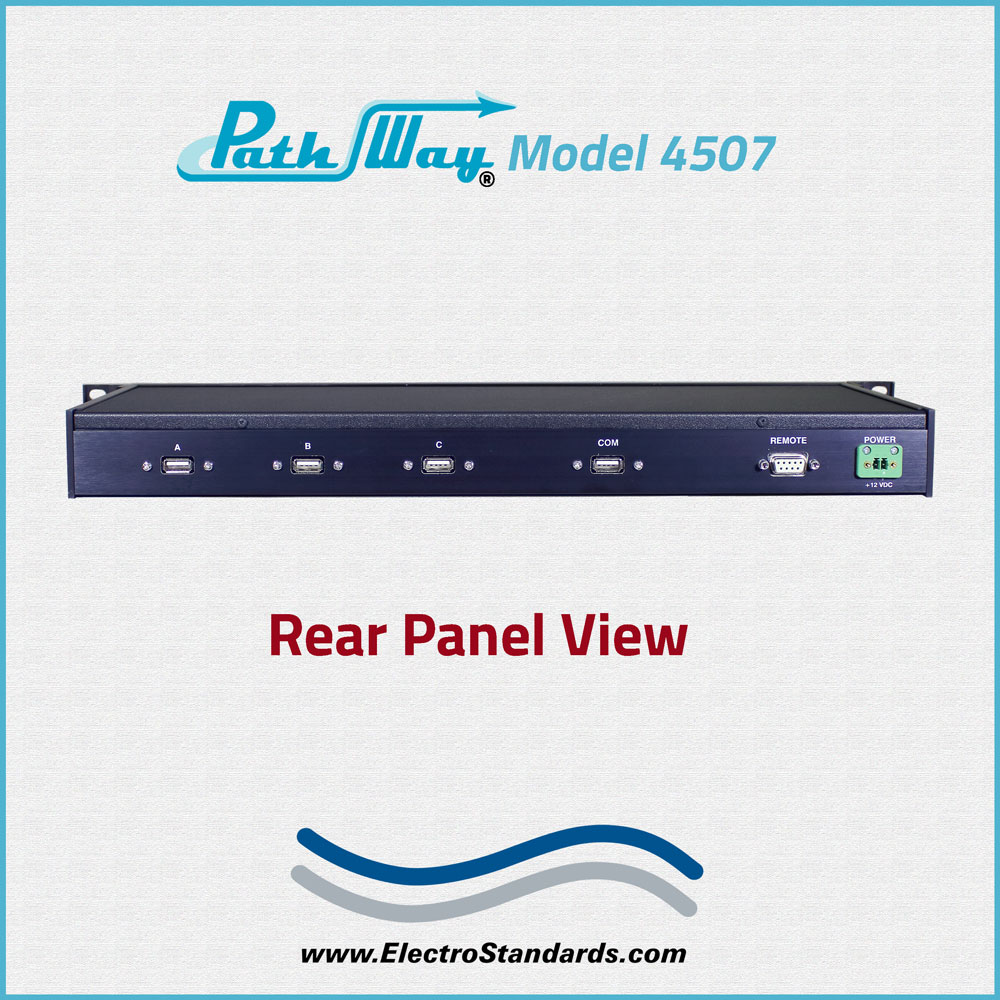

  • REMOTE: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 120VAC, 60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rack Mount configuration 19.0" W x 1.75" H x 8.08" D. (48.3 x 4.4 x 20.6 cm)
  • WEIGHT: Approximately 4.5 lbs. (2.1 kg)

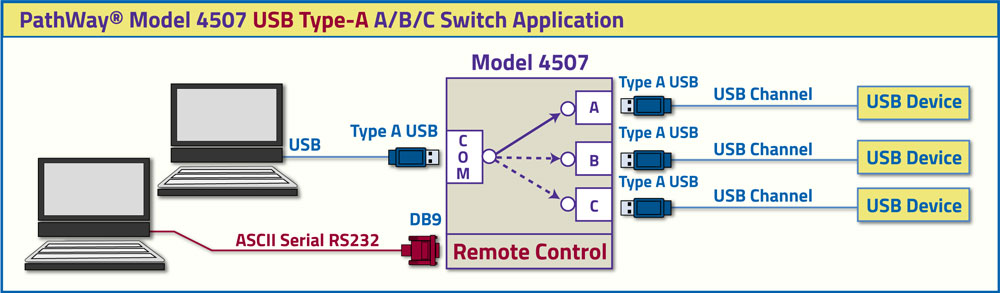

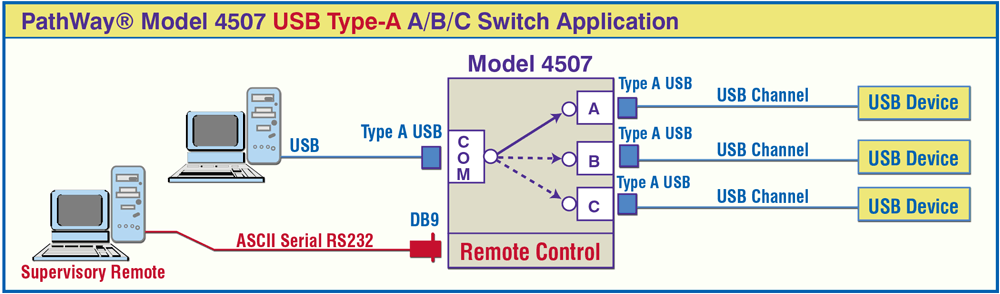

PathWay Model 4507 USB Type-A A/B/C RACK MOUNT APPLICATION WITH REMOTE:

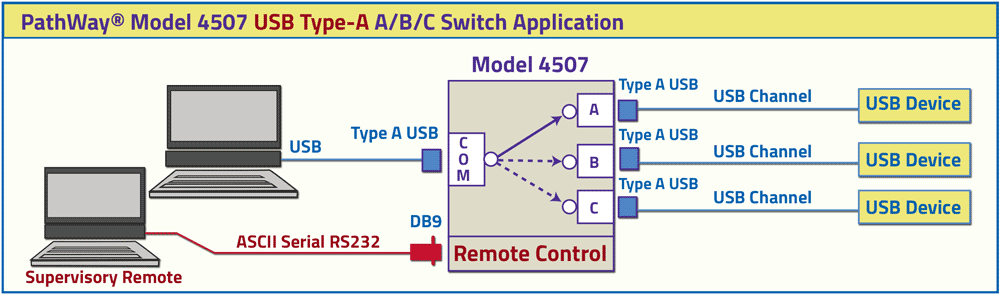

 The diagram illustrates a computer connected to the COMMON port accessing three USB devices connected to the A, B, and C ports.  The DB9 REMOTE port allows the user to control switch position, lockout front panel operations, change switch delay, set default power up/down position and obtain switch status using RS232 serial data commands.

PathWay Model 4507 USB Type -A A/B/C Switch Application

FEATURES:

  • Pathway USB 2.0 Switch Model 4507 allows quick connection to any one of three USB Type-A interface devices from one COMMON device!
  • Compatible with Hi-Speed USB 2.0 devices.
  • The switch ports are transparent to all data.
  • Eliminates the need to plug and unplug cables.
  • All (4) pins of the USB interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front-panel pushbutton control.
  • Remote RS232 ACSII commands that allow the user to control switch position, lockout front panel operations, and obtain switch status.
  • Front panel LED's display present position and power status.
  • Attractive all metal black box packaging provides EMI/RFI shielding.

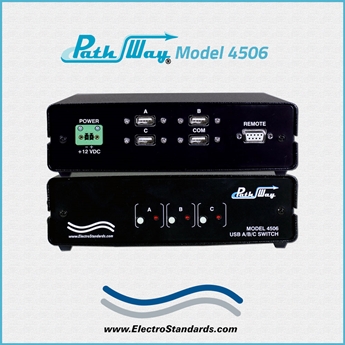

  • For a desktop version, see Model 4506, Cat. No. 304506.

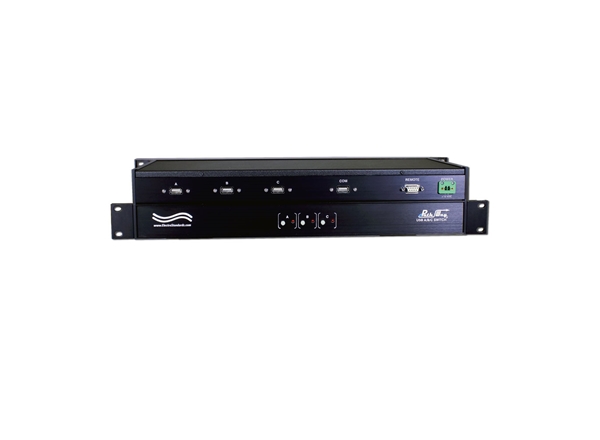

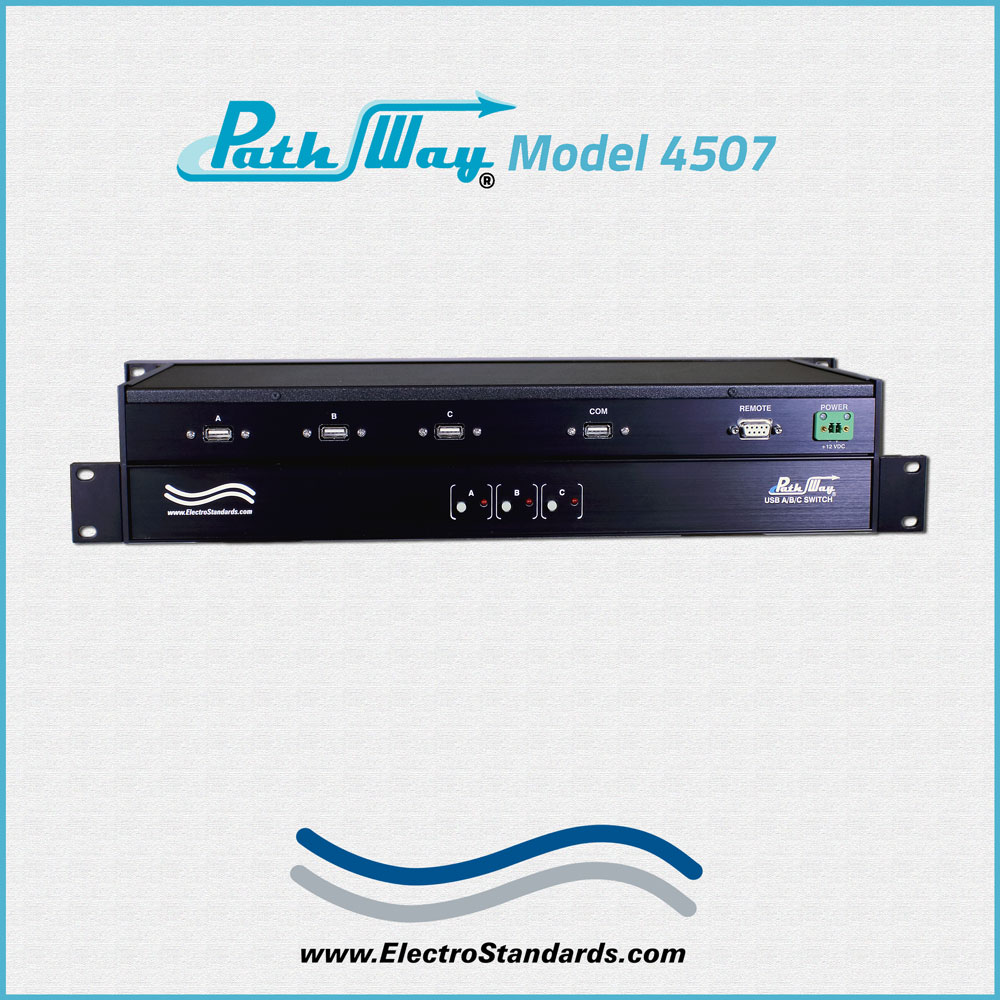

The PathWay® Model 4507 USB Type-A  A/B/C Switch with Remote Control allows the user the capability of sharing a single USB interface device connected to the Common port among three other devices connected to the A, B, and C ports. The Model 4507 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding.

The switch may be controlled manually via front panel pushbuttons or remotely from an RS232 serial port located on the rear of the unit.

Switch position states may be attained via the front panel LED display or the Remote RS232 serial port (DB9) located on the rear of the unit.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed.  This cable can be provided by ESL under part number 528693.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
