Catalog # 305264 - Model 7264 2-Channel DB25 RS232/RS530 A/B Switch

    2-Channel DB25 RS232/RS530 A/B Switch2-Channel DB25 RS232/RS530 A/B Switch2-Channel DB25 RS232/RS530 A/B Switch2-Channel DB25 RS232/RS530 A/B Switch
Click image to enlarge
    • 2-Channel DB25 RS232/RS530 A/B Switch
    • 2-Channel DB25 RS232/RS530 A/B Switch
    • 2-Channel DB25 RS232/RS530 A/B Switch
    • 2-Channel DB25 RS232/RS530 A/B Switch
Base Price:
$1,400.00
Catalog No: 305264
Model No: 7264
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure, RS232 Serial
Configuration:Rackmount
Pins Switched:25
Remote Port:DB9
Local Control:Pushbutton
Feature:Remotely Controllable

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, DB25, RS232, RS530

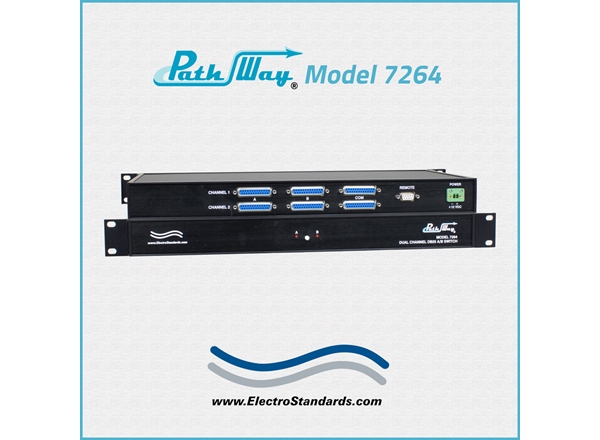

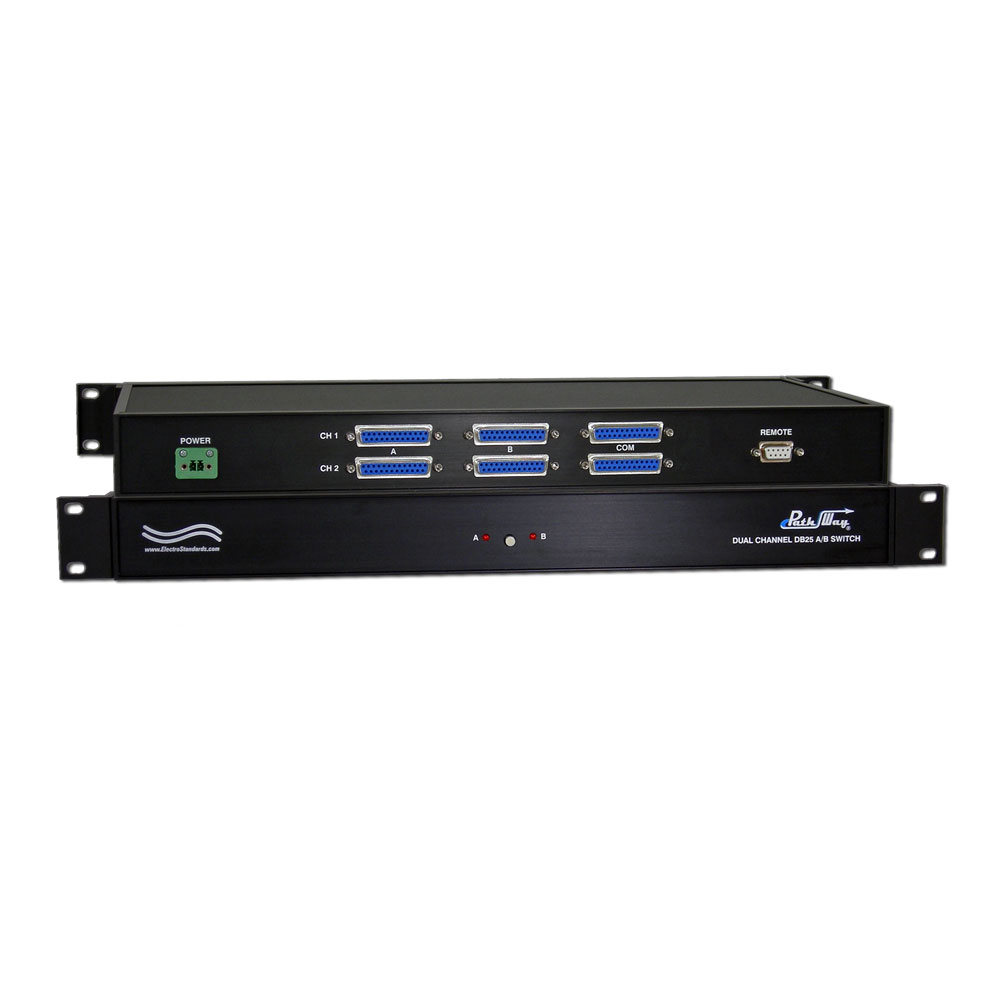

Model 7264 DB25 Dual Channel RS232/RS530 A/B Switch with both Serial and Contact Closure Remote Control Port

  • Two Remotely Controllable A/B Switches in a Slim 1U High Rackmount Package.

  • Applicable to ANY DB25 Interface since all 25 pins are switched.

SPECIFICATIONS:

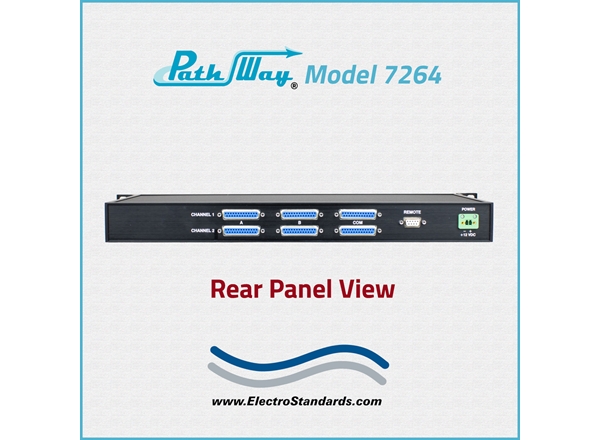

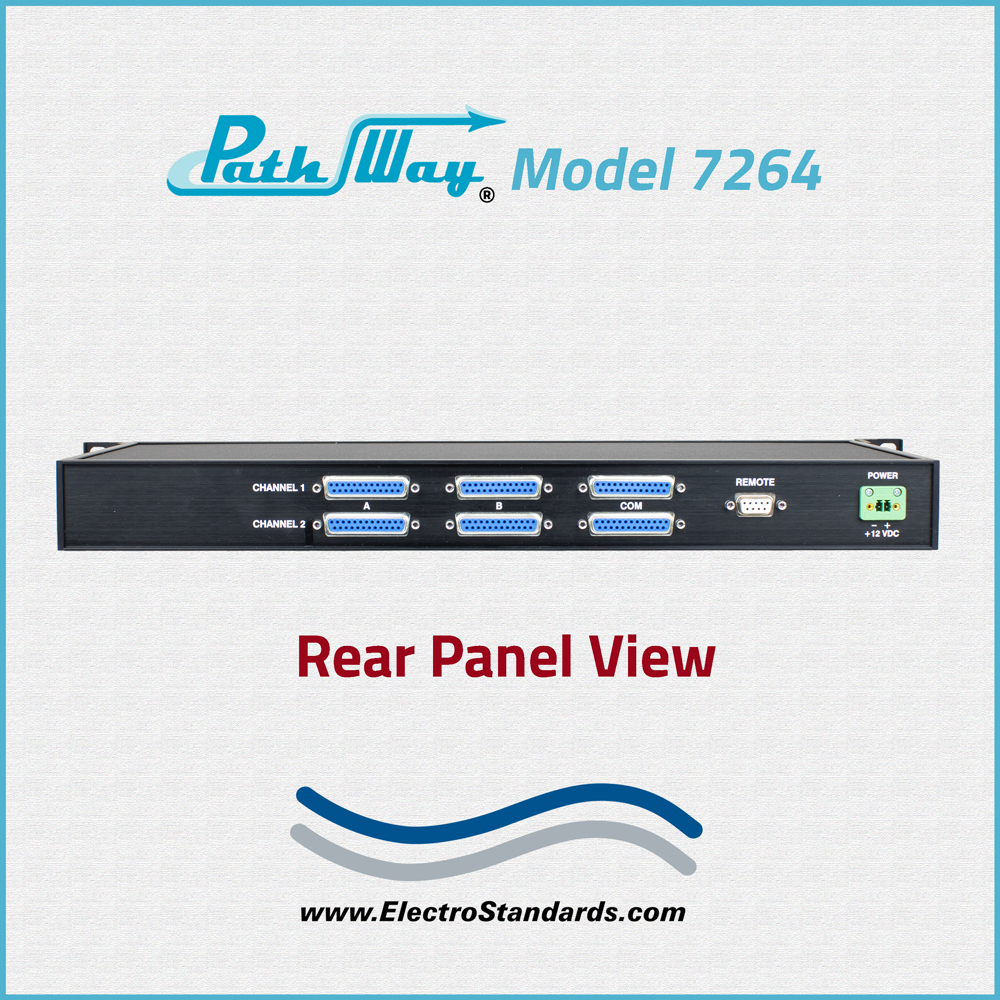

  • PORT CONNECTORS: Each channel has (3) DB25 female connectors labeled A, B, and COMMON.

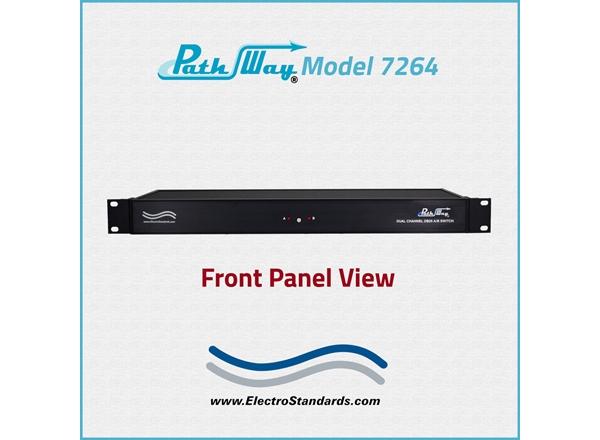

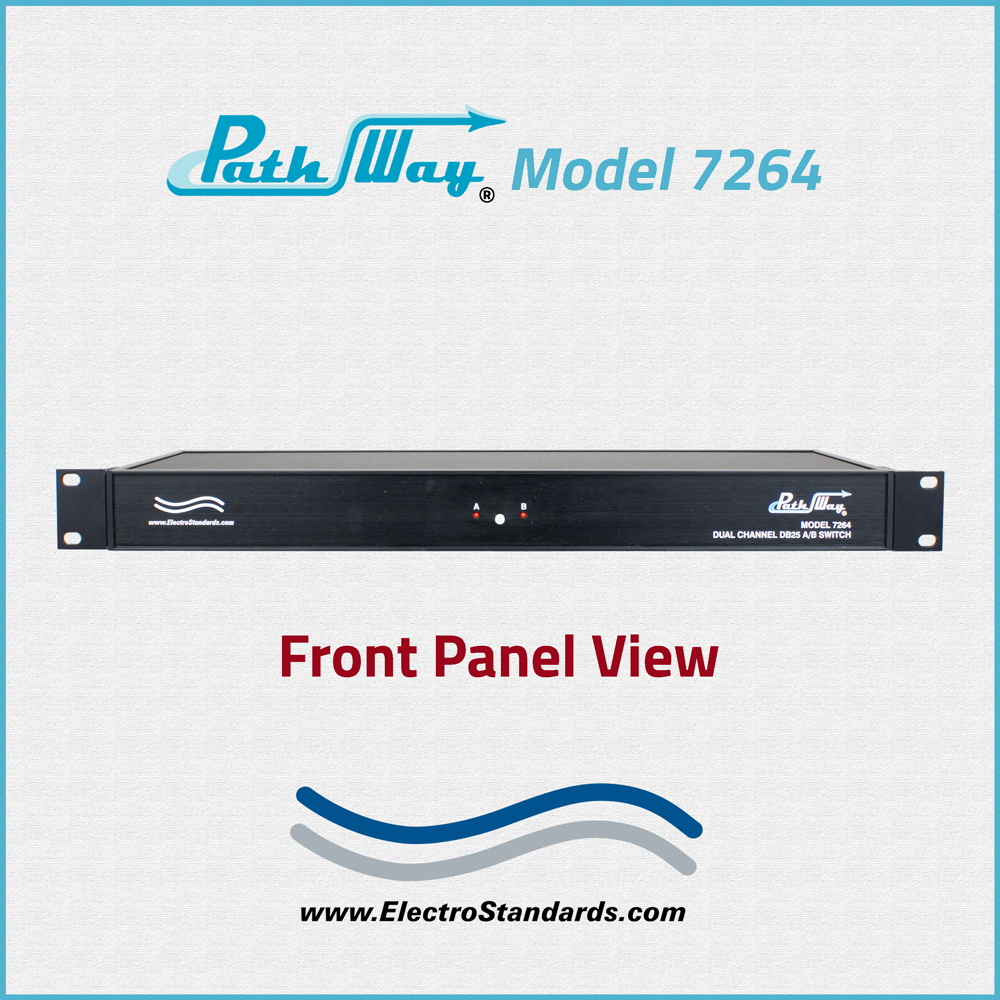

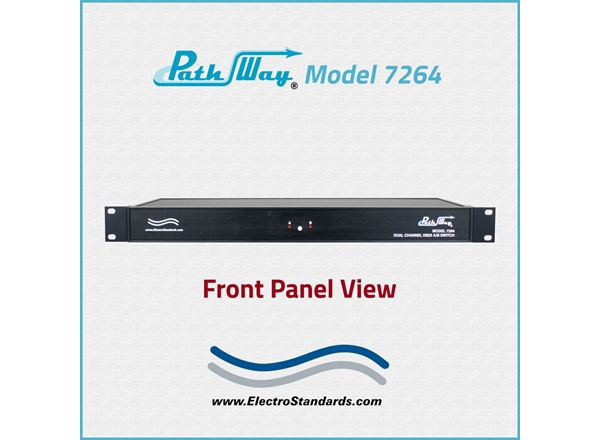

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display channel switch position and power status.
  • REMOTE: (1) DB9 (F) connector on rear panel accepts Contact Closure or RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, Non-polarized plug.
  • MTBF: 1,766,200 hrs. (unit alone). 69,770 hrs. (unit with power supply included).
  • DIMENSIONS: Rackmount configuration: 19.0" W x 1.75" H x 8.17" D. (48.3 x 4.4 x 20.8 cm)
  • WEIGHT: Approximately 4.6 lbs. (2.1 kg)

PathWay Model 7264 Dual Channel RS232/RS530 A/B Switch application with DB9 Remote RS232 Serial or Contact Closure Signaling:

The application illustrates two channels of RS232/RS530 A/B switching.  Each channel has a COMMON device connected to the DB25 COMMON port sharing between two other devices connected to the DB25 A and B ports. Both DB25 channels switch simultaneously.  The switch may be controlled from a remote location using either RS232 Serial Data or Contact Closure signaling via the DB9 REMOTE port.

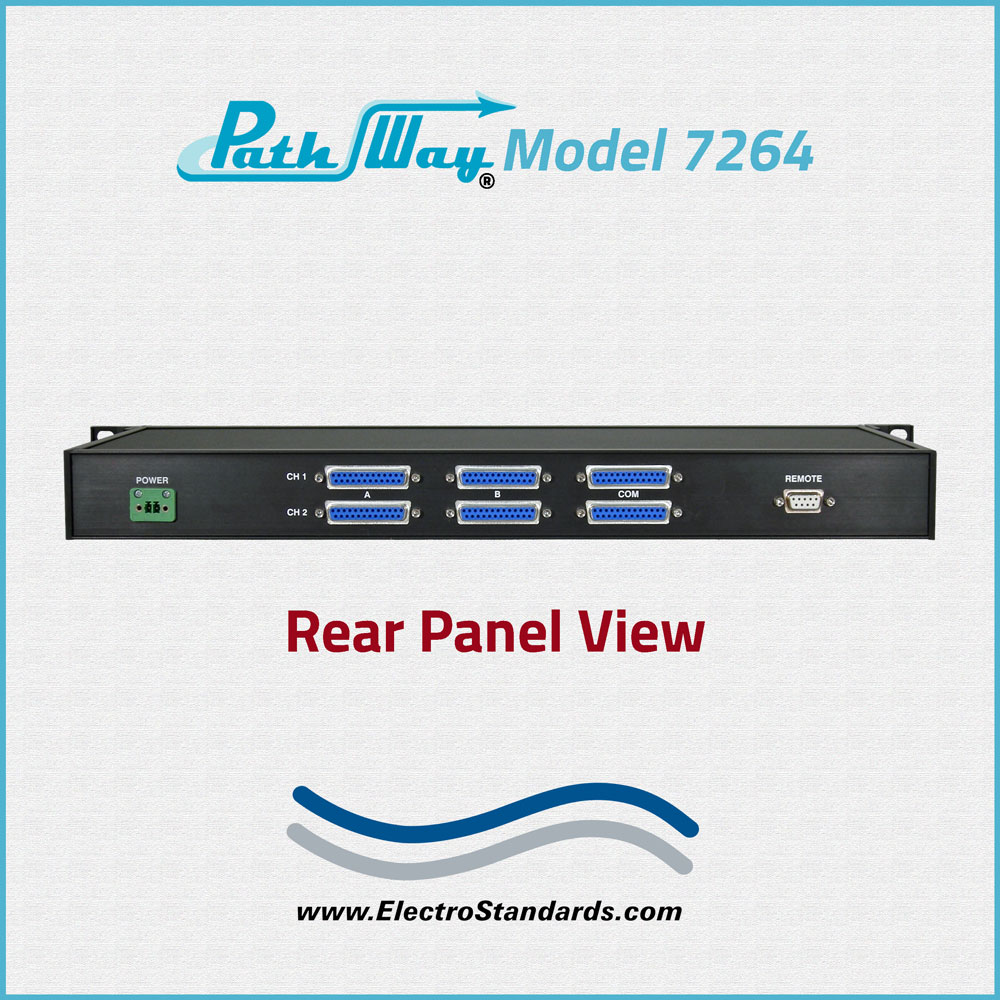

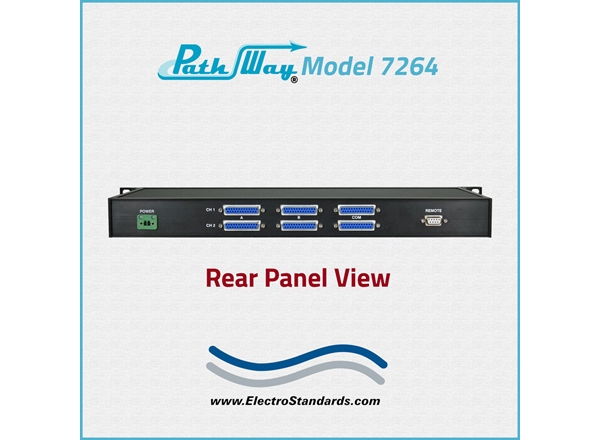

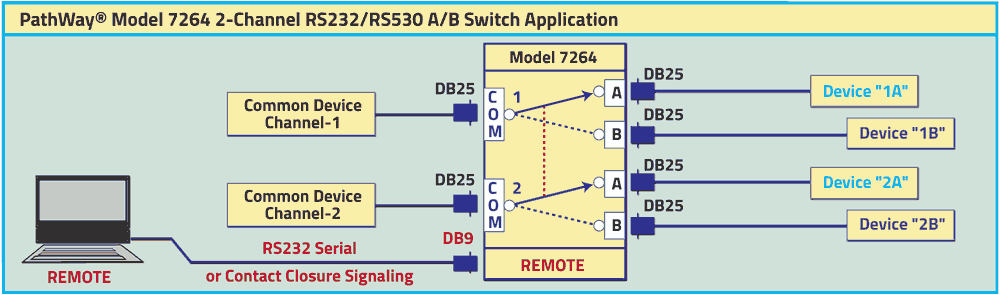

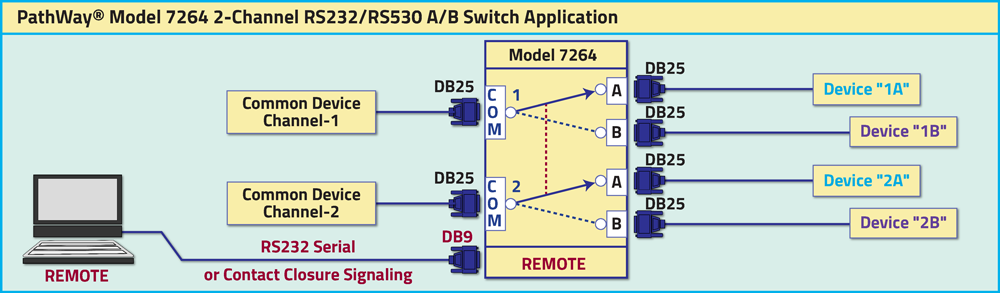

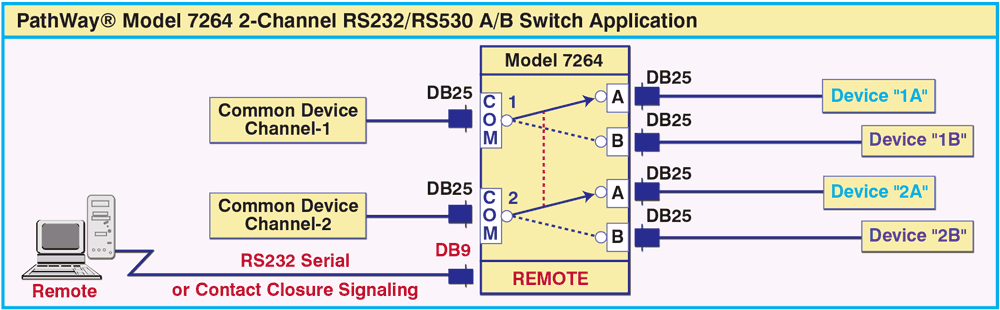

PathWay® Model 7264 DB25 Dual Channel RS232/RS530 A/B Switch Application

FEATURES:

  • Each channel allows quick connection to any one of two DB25 networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (25) pins of the DB25 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • REMOTE RS232 ASCII commands that allow the user to control switch position, lock out front panel operations and obtain switch status, as well as query firmware version number, query serial number and enable/disable autosend of switch positions.
  • Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position and lockout state.
  • Front-panel LED's display present position and power status.
  • Attractive all metal black box packaging provides EMI/RFI shielding.

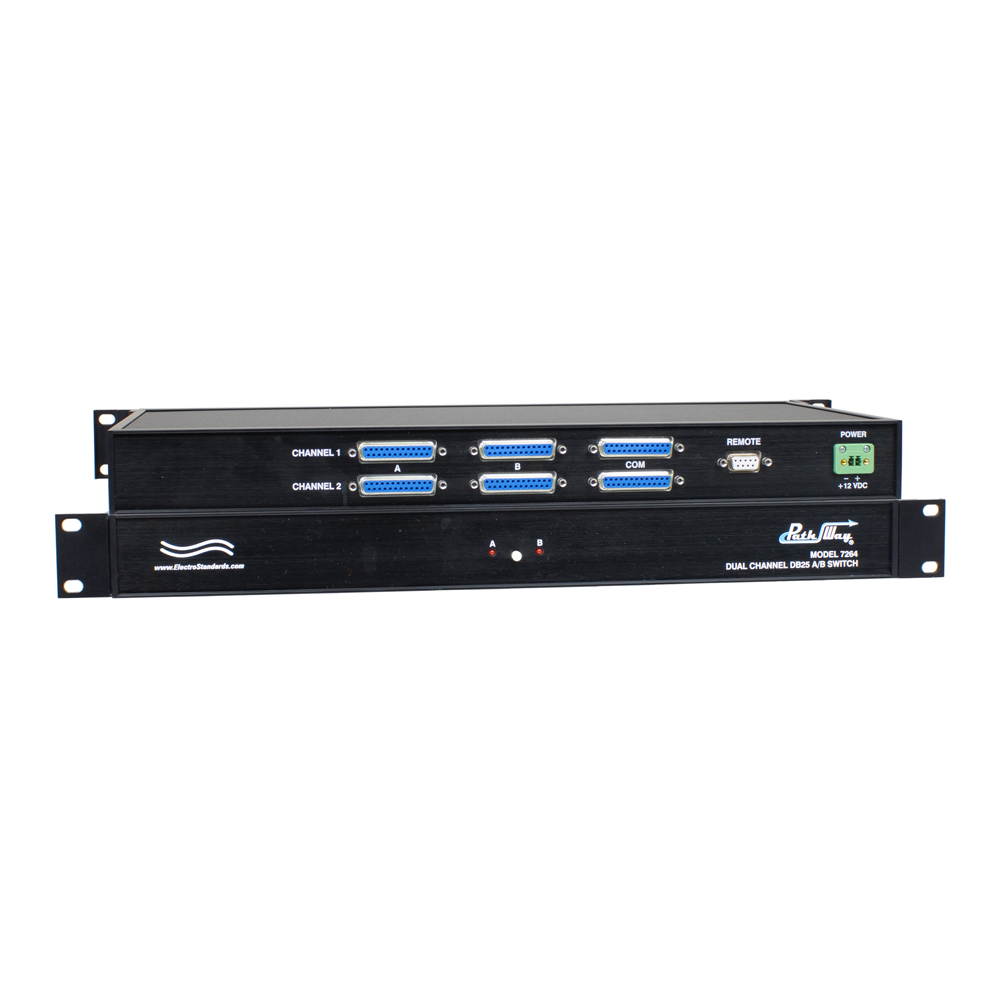

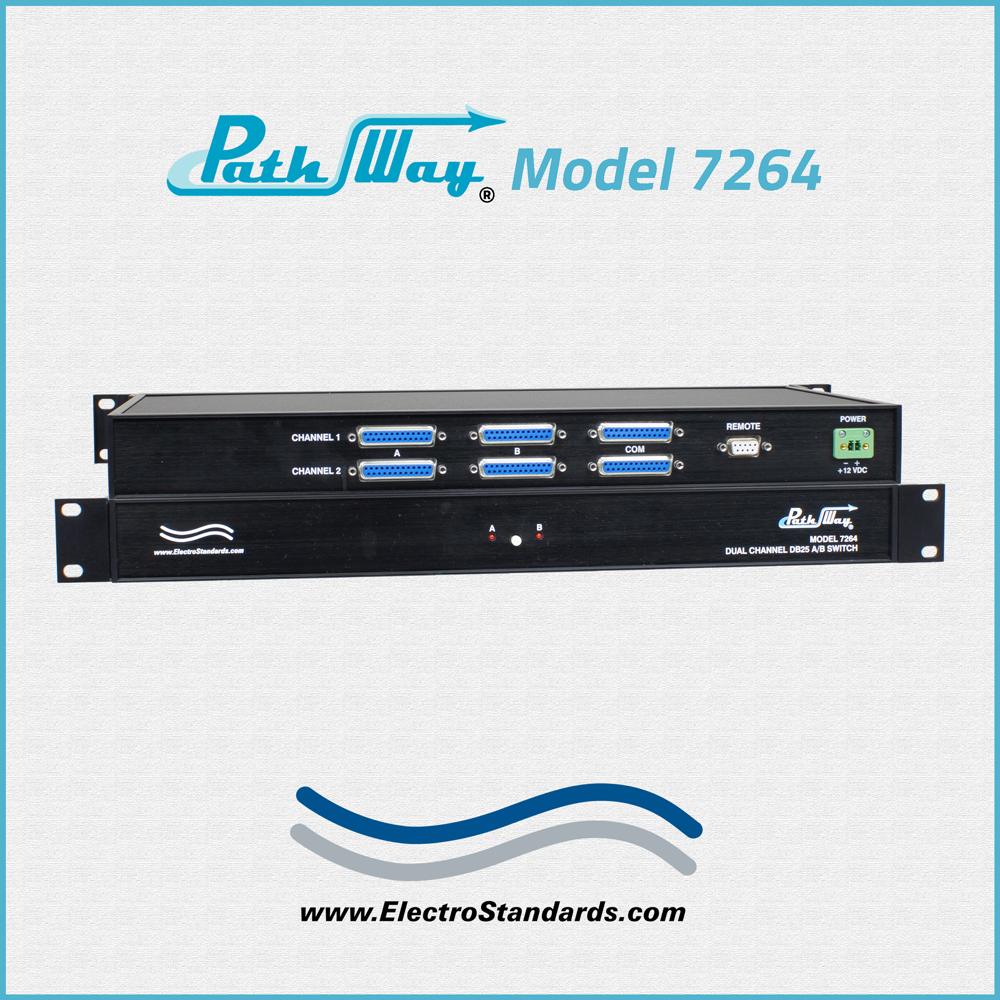

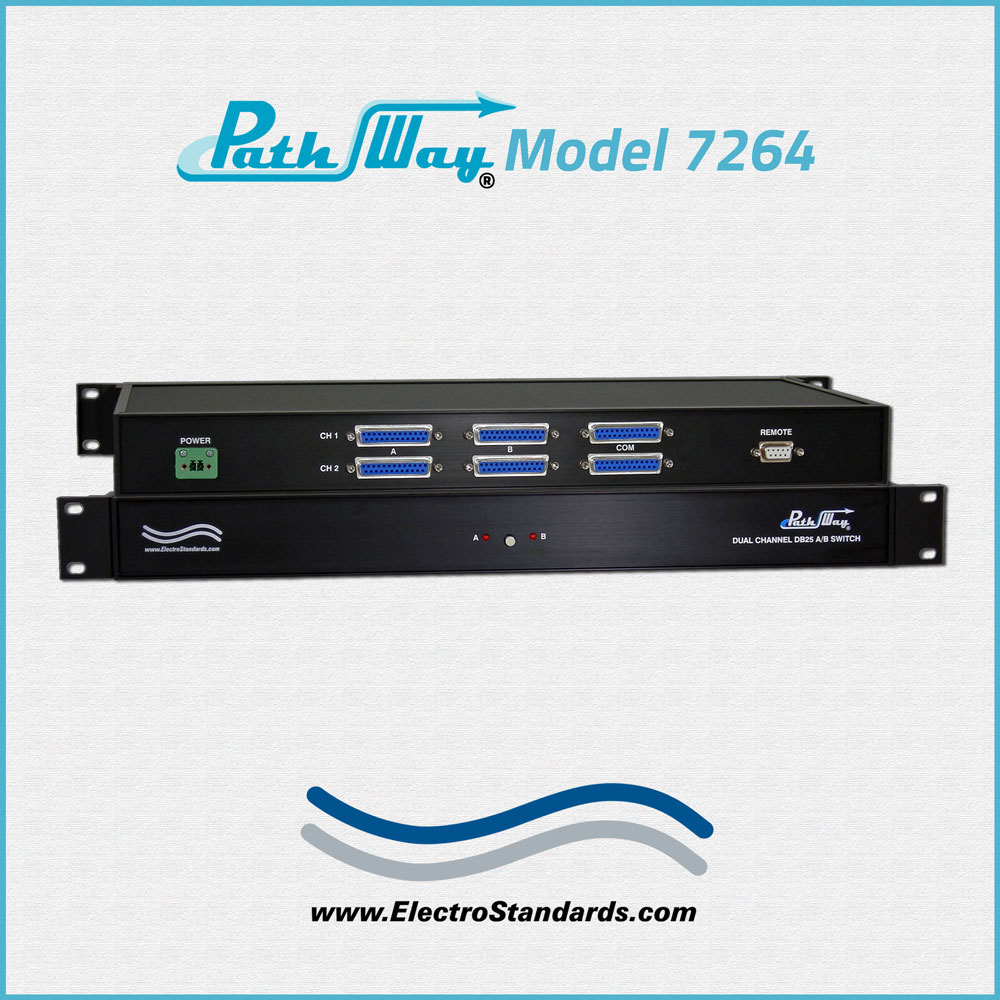

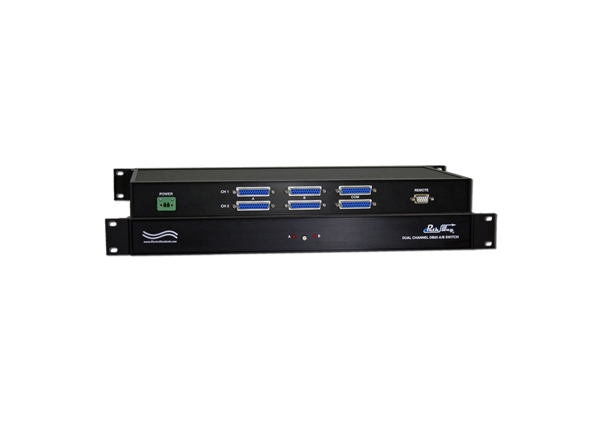

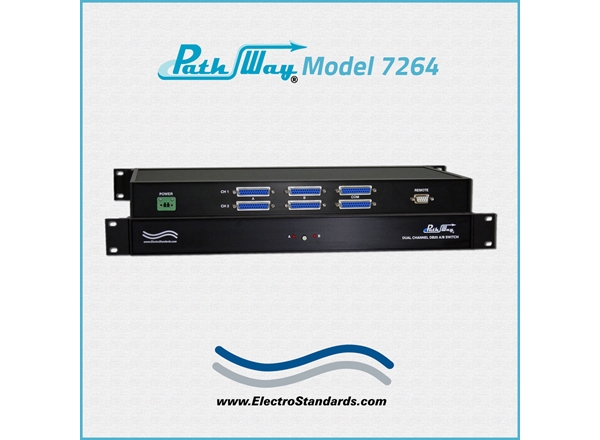

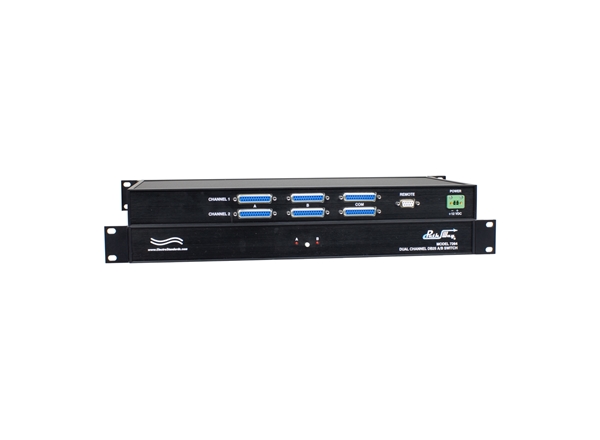

The PathWay® Model 7264 Dual Channel DB25 A/B Switch with RS232 and Contact Closure Remote allows the user the capability of sharing a single port interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports, for each channel. The Model 7264 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

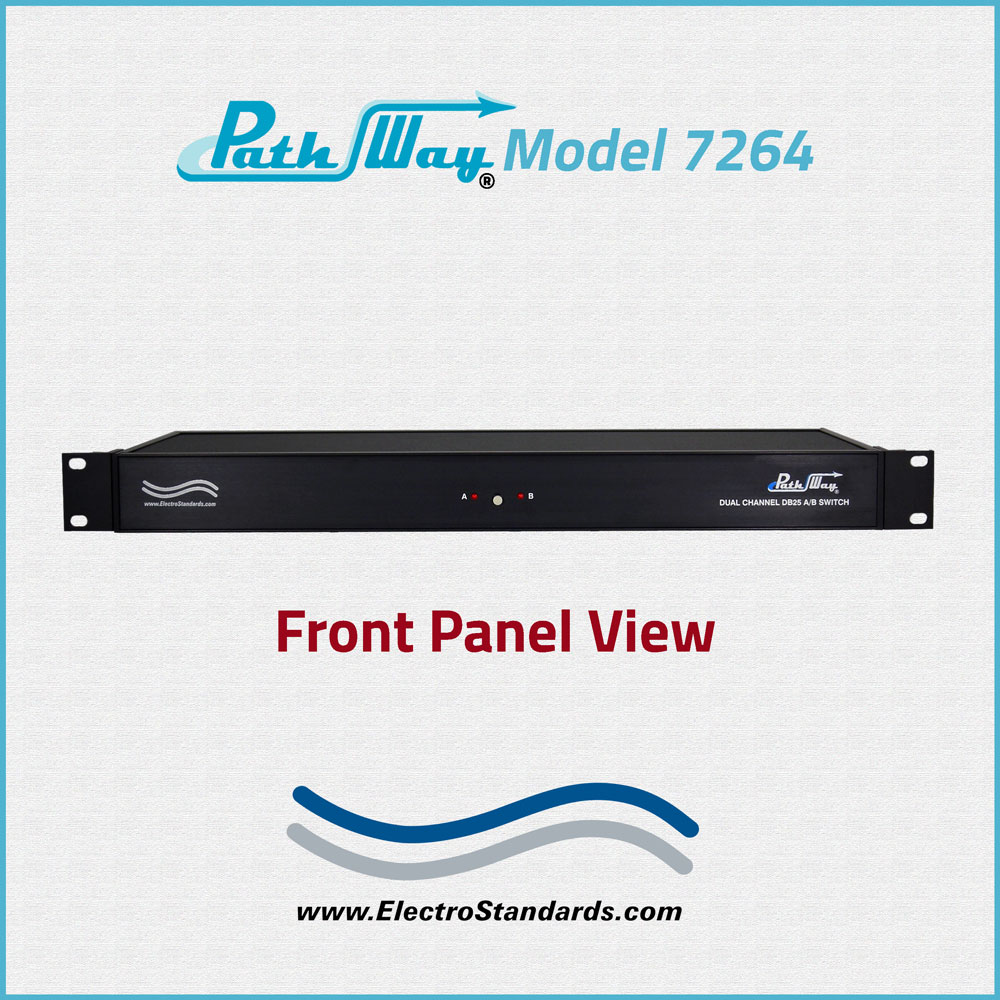

The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 female Remote port located on the rear of the unit.  The front panel LED display indicates the switch position and unit power status.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
