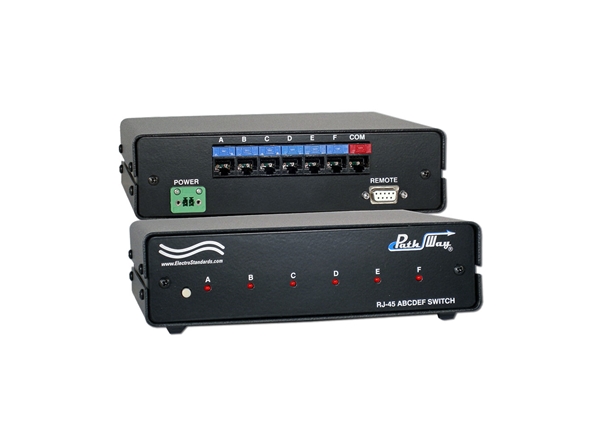

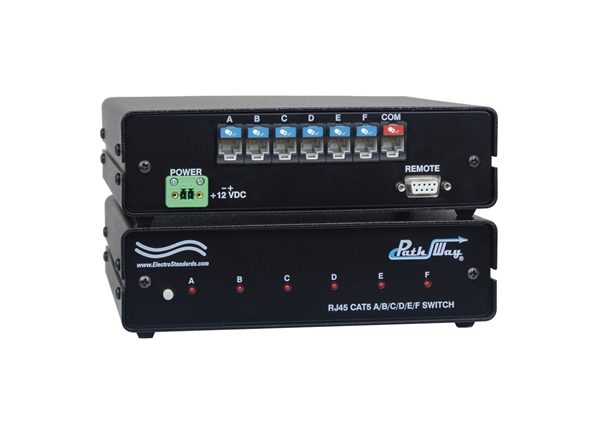

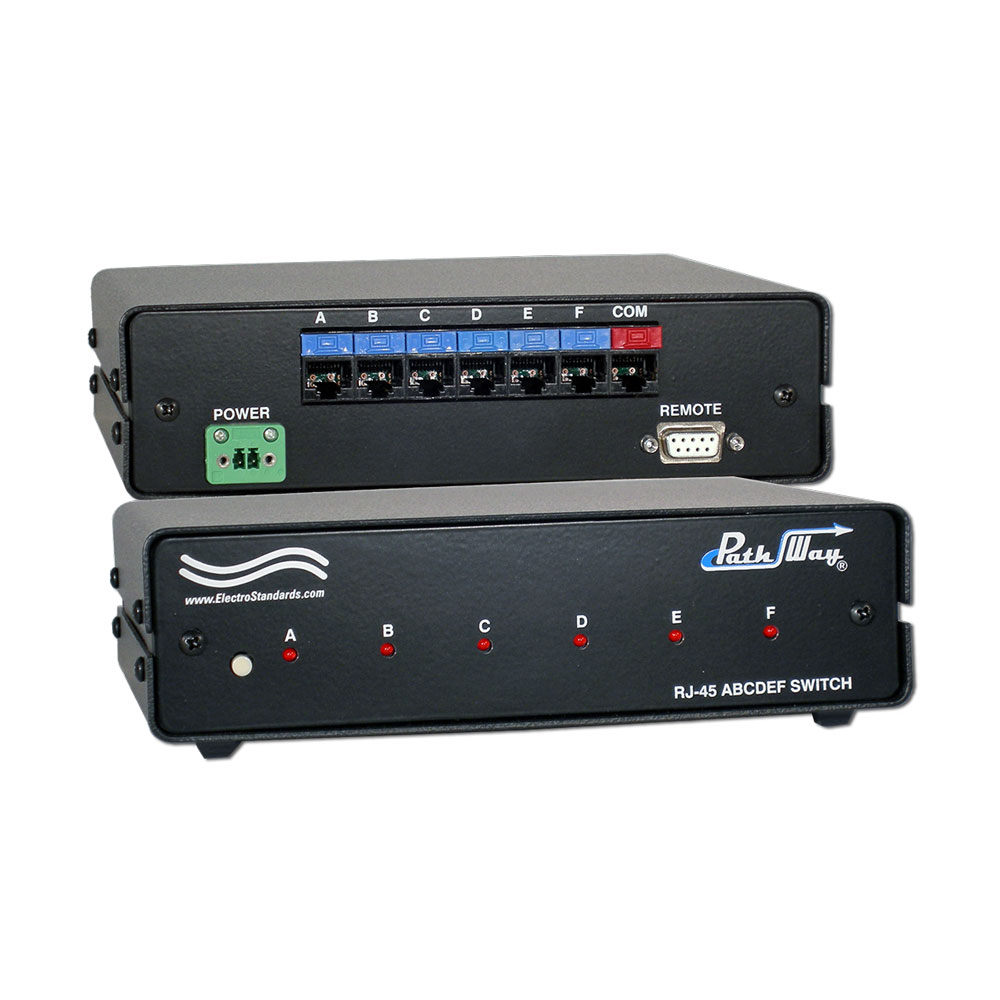

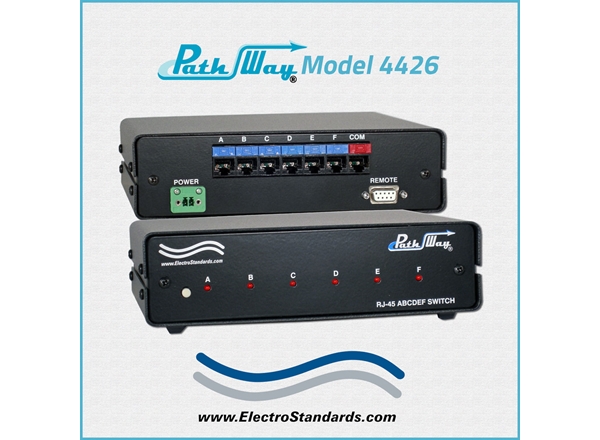

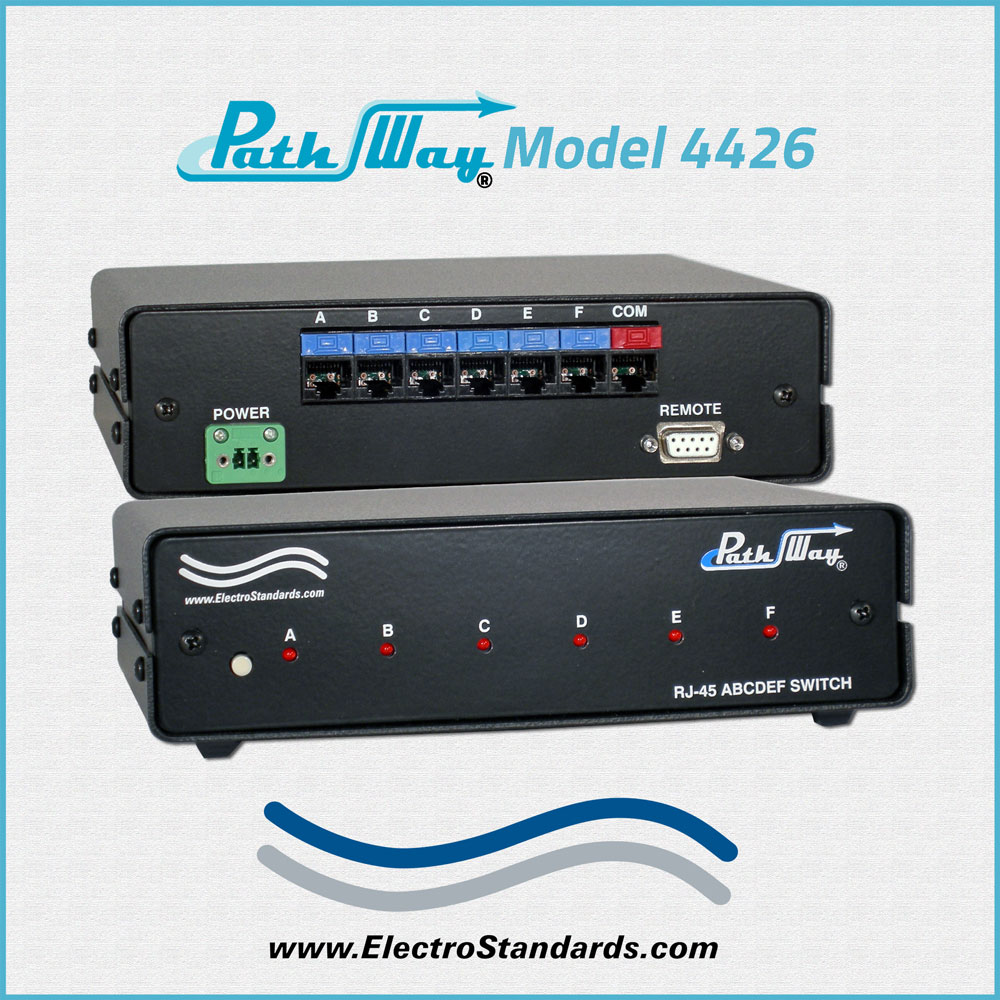

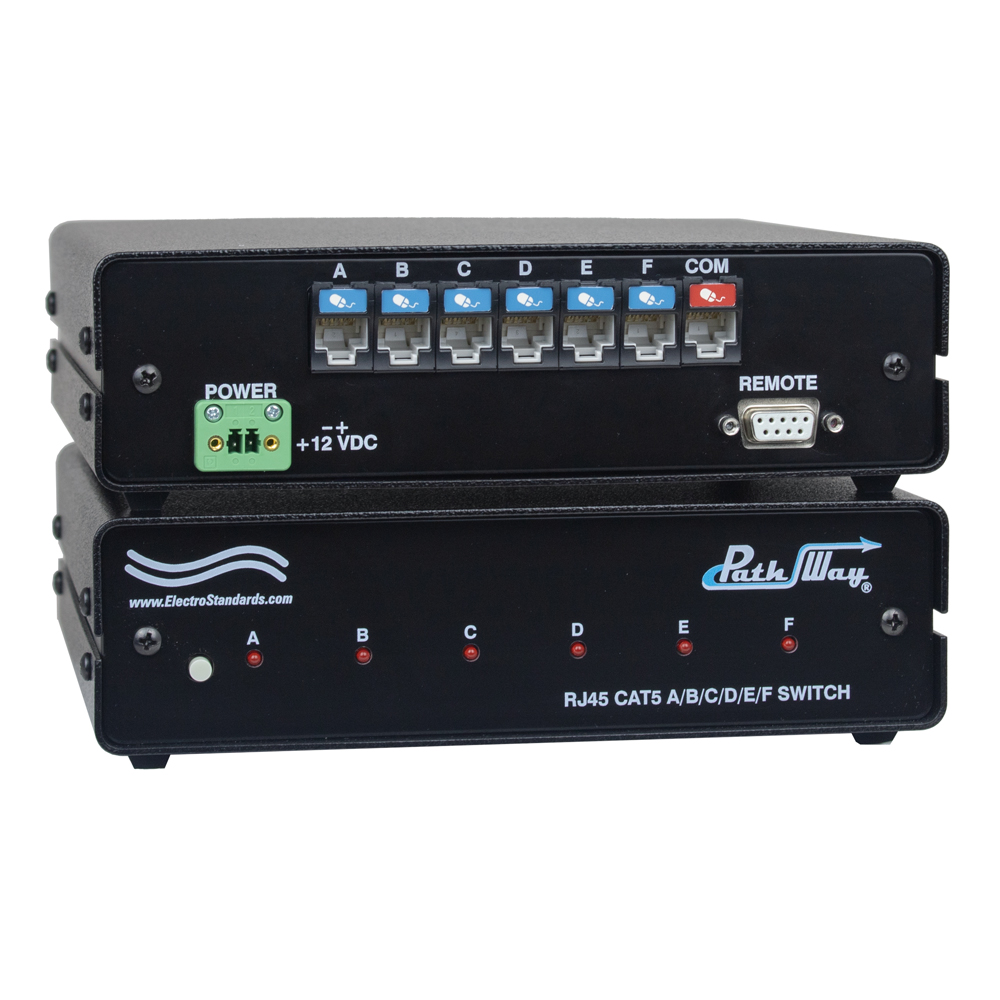

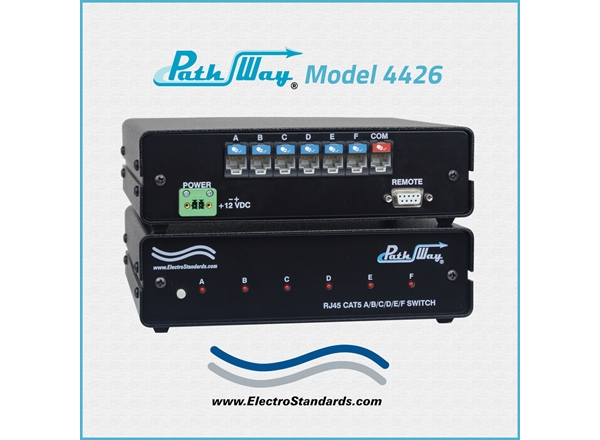

Catalog # 305423 - Model 4426 6-to-1 RJ45 CAT5 Switch

    6-to-1 RJ45 CAT5 Switch6-to-1 RJ45 CAT5 Switch6-to-1 RJ45 CAT5 Switch6-to-1 RJ45 CAT5 Switch
Click image to enlarge
    • 6-to-1 RJ45 CAT5 Switch
    • 6-to-1 RJ45 CAT5 Switch
    • 6-to-1 RJ45 CAT5 Switch
    • 6-to-1 RJ45 CAT5 Switch
Base Price:
$1,244.00
Catalog No: 305423
Model No: 4426
Product Type:Switches: Copper
Positions:6
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Compliance/Standards:Cat5
Configuration:Desktop
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Protocol:ASCII

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual





Overview

Path Way® Remotely Controllable Network Switch, RJ45
Model 4426 RJ45 Cat5 6-to-1 Switch with RS232 Serial Remote Control Port

  • CAT5 Compliant RJ45 Interface

  • Ideal for Commercial-Off-The-Shelf (COTS) purchase applications.

  • Applicable to switching ANY RJ45 interface, quickly and reliably.

SPECIFICATIONS:

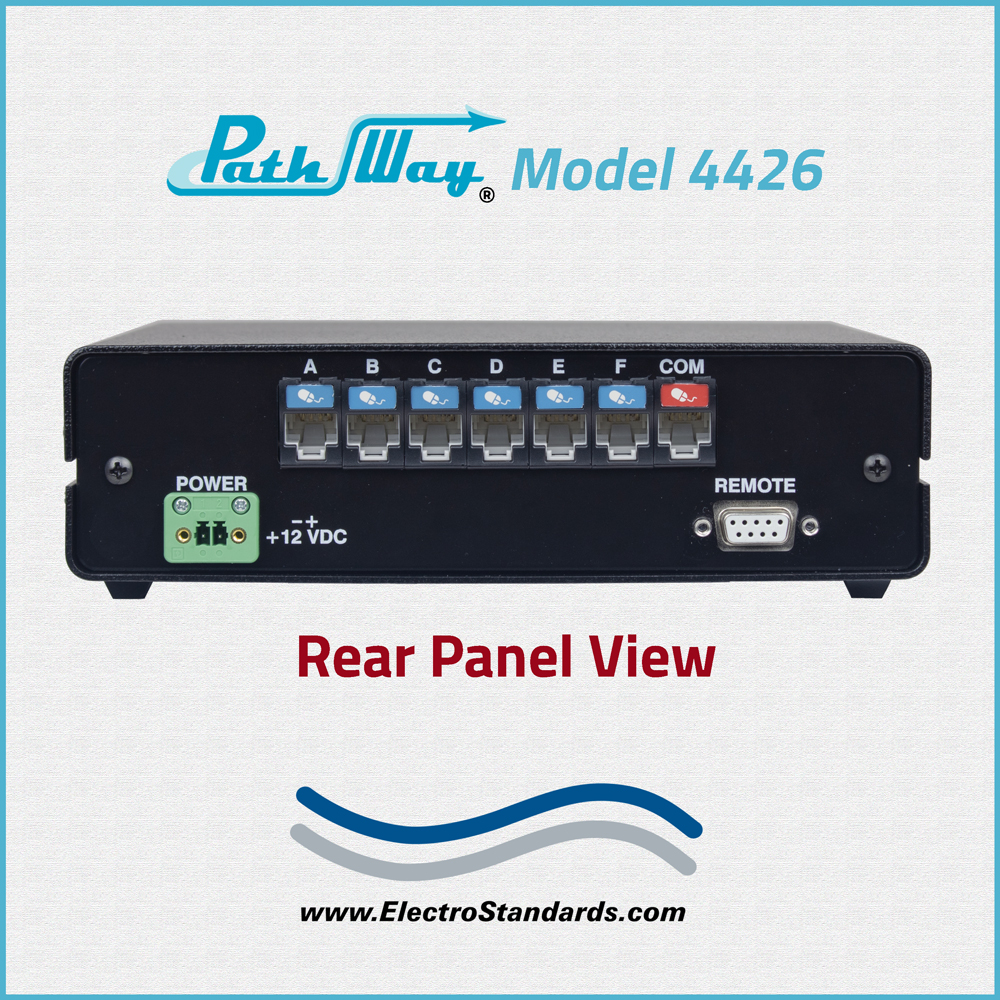

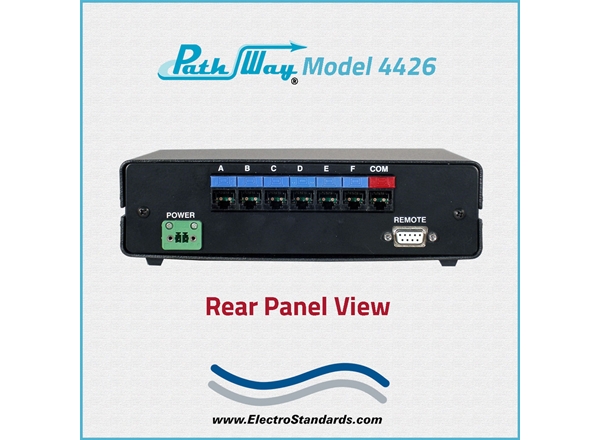

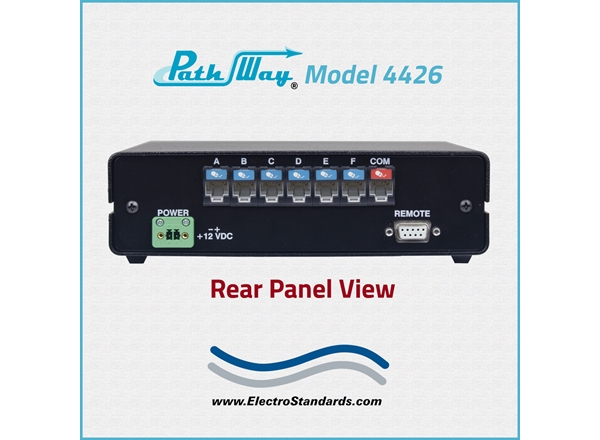

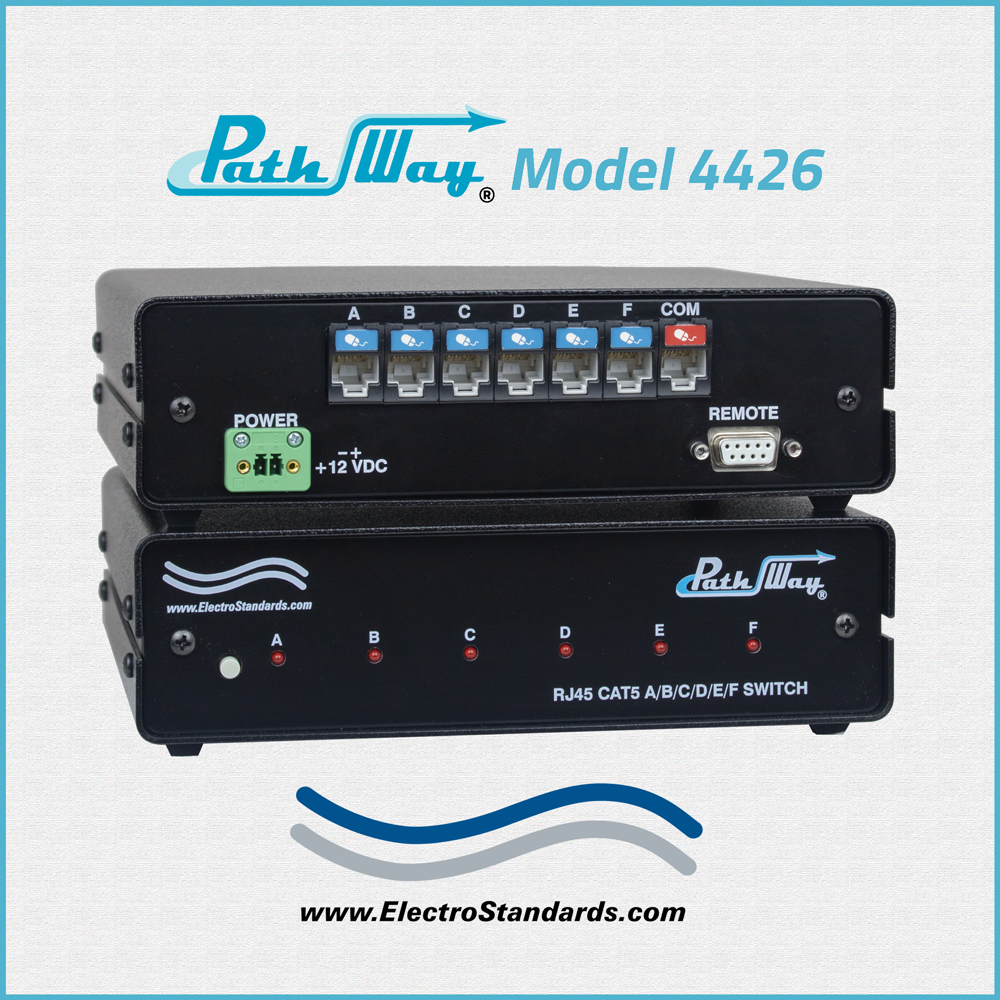

  • PORT CONNECTORS: (7) RJ45 female connectors labeled A, B, C, D, E, F and COM.

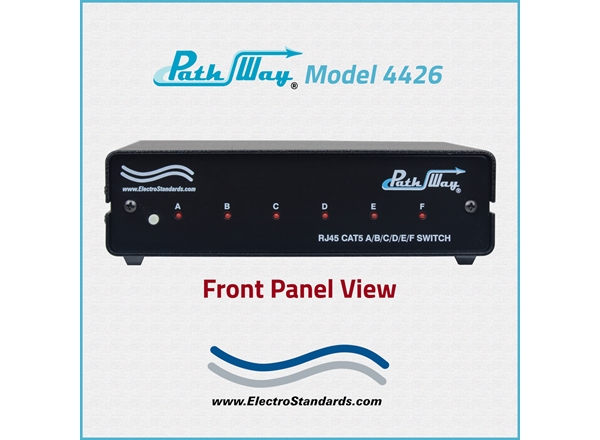

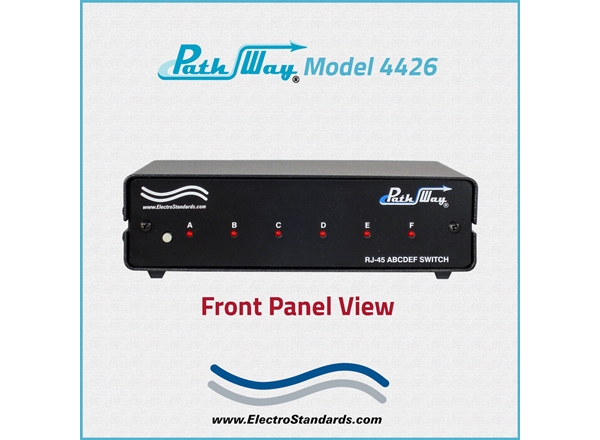

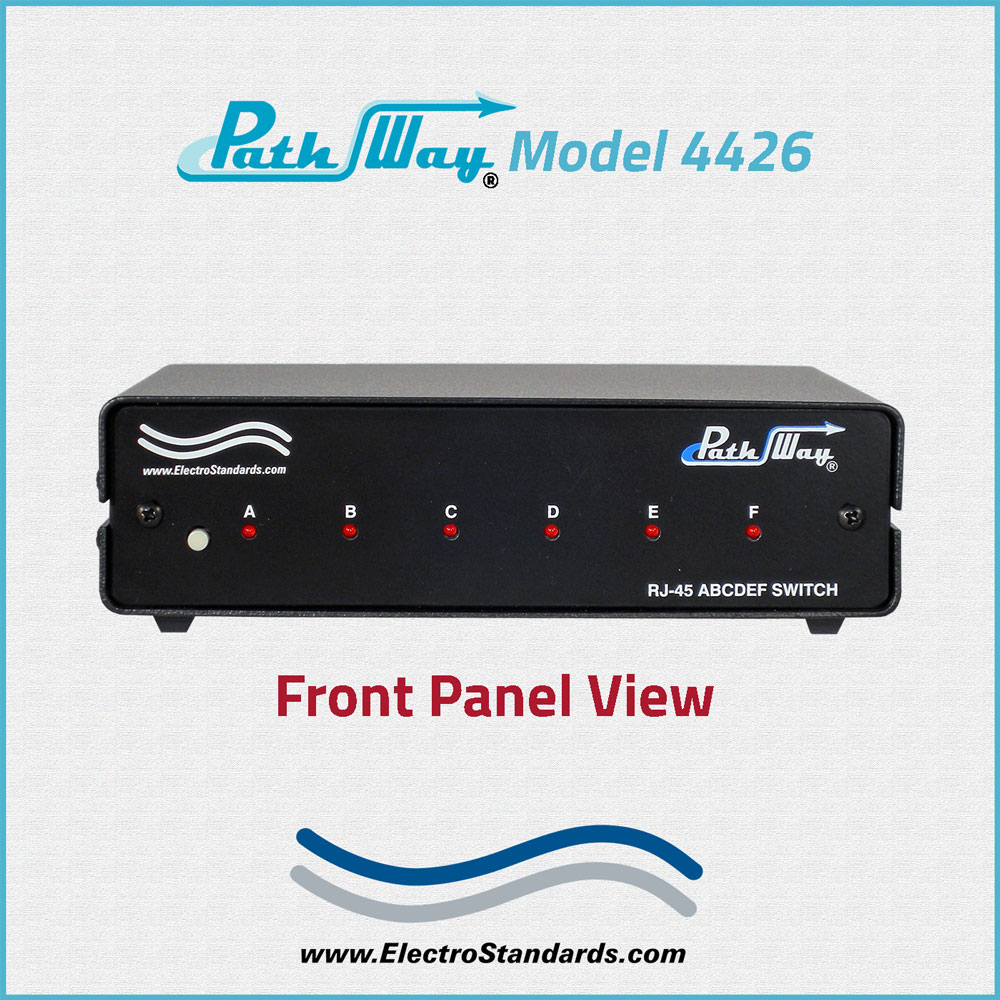

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local control.

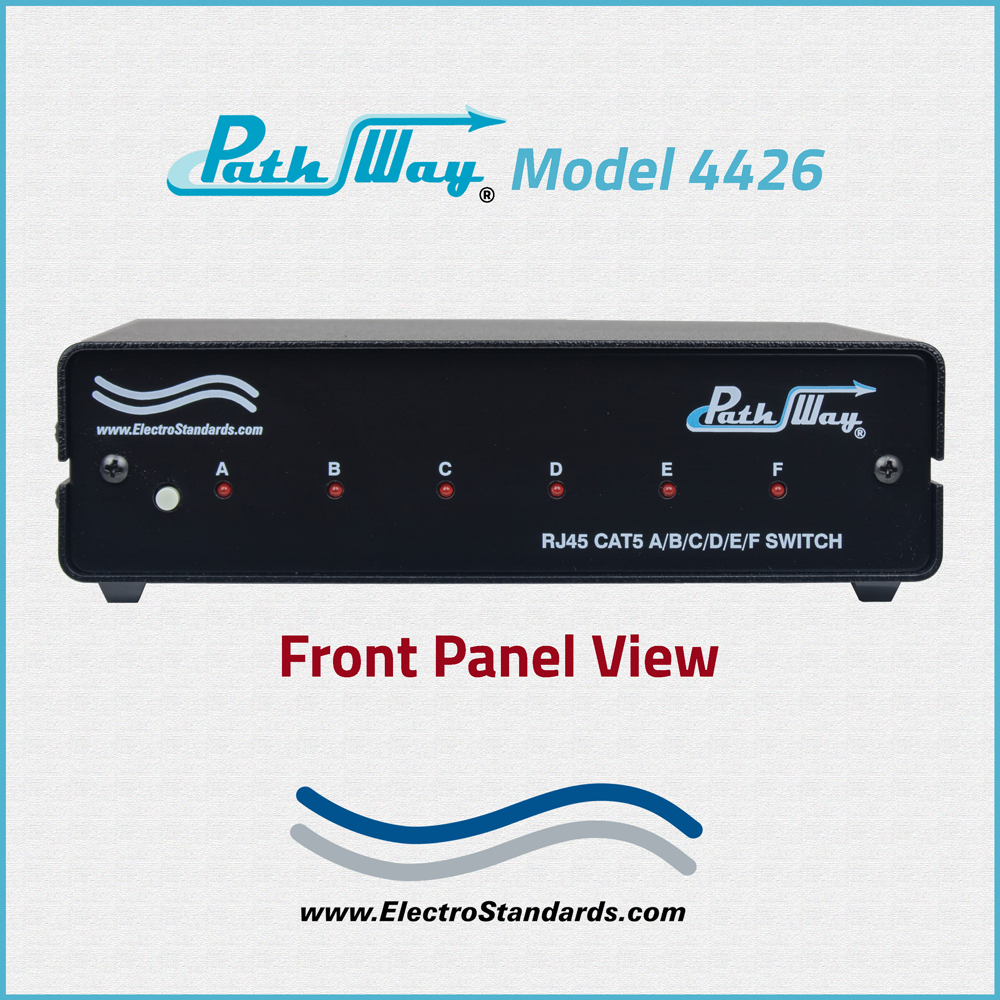

  • DISPLAY: (6) Front panel LED's display switch position and power status.

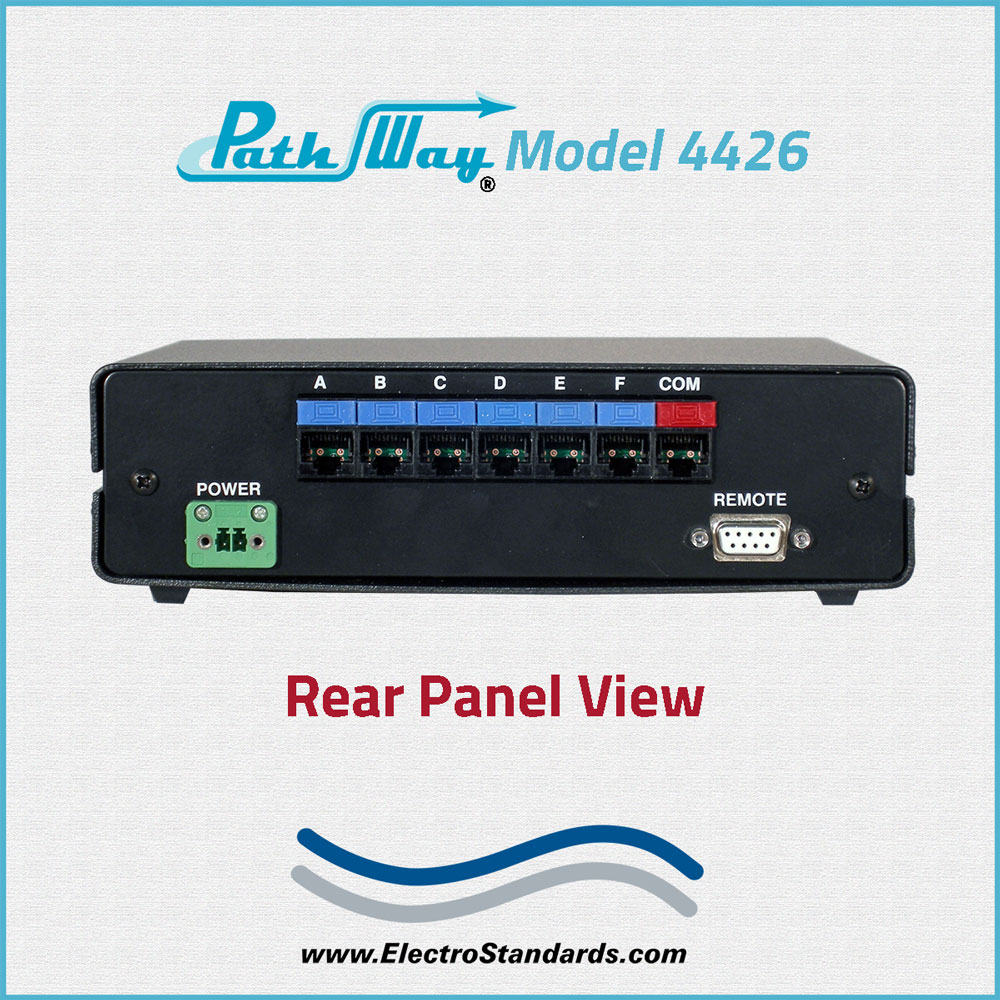

  • REMOTE CONTROL: (1) DB9 female connector on rear panel, accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop Configuration, 8.15" W x 2.26" H x 7.27" D. (20.8 x 5.8 x 18.5 cm)
  • WEIGHT: 2 lbs. (0.9 kg)

PathWay Model 4426 Cat5 RJ45 6-TO-1 SWITCH WITH RS232 REMOTE:

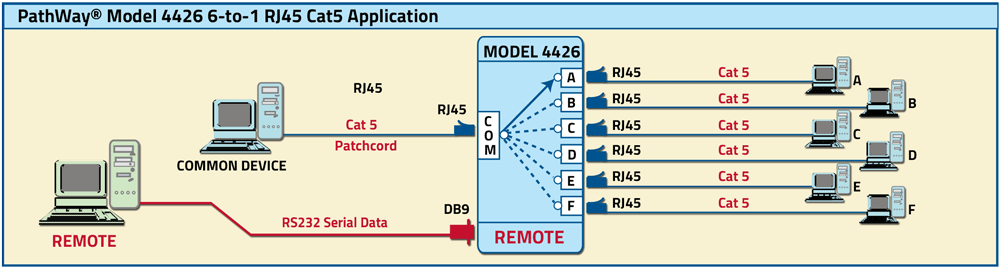

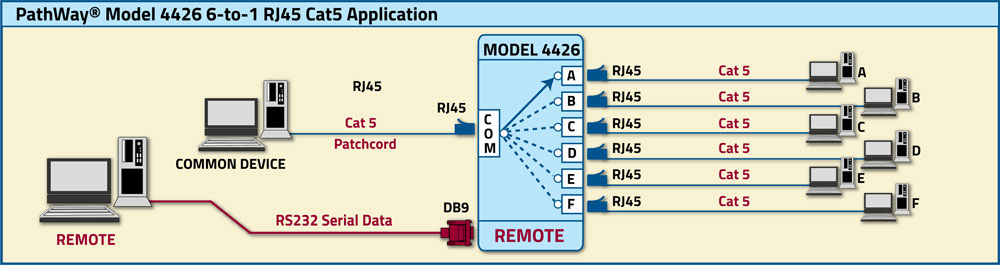

The drawing illustrates a COMMON device connected to the RJ45 COMMON port with access to six RJ45 interface devices connected to the RJ45 ports A, B, C, D, E, and F. The COMMON Device has access to one Device at a time. The DB9 Remote Port can be used to control the switch remotely via ASCII RS232 Serial data commands.

PathWay® Model 4426 RJ45 Cat5 six to one switch with RS232 Remote control

FEATURES:

  • Allows quick connection to any one of six RJ45 interface devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All 8 pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Front panel LED's display present position and power status.
  • Certified for Cat5 compliance.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Eliminates the need to plug and unplug cables.
  • Custom length RJ45 cables available for your switch installation.
  • Municipalities, schools, government: On GSA Schedule!

The PathWay® Model 4426 RJ45 6-to-1 Cat5 Switch with RS232 Remote allows the user the capability of accessing six separate devices, ports A-F, via a connection through a device connected to the Common port of the switch.  The system affords local and Remote RS232 access functionality. The Model 4426 is packaged in a slim desktop style enclosure.

The switch may be controlled manually via the front panel pushbutton, or remotely from an RS232 Serial port located on the rear of the unit.  Switch position states may be attained via the front panel LED display, or the Remote RS232 Serial port (DB9) located on the rear of the unit.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed.  This cable can be provided by ESL under part number 528693.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 4426 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
