Overview


Path Way® Remotely Controllable Network Switch

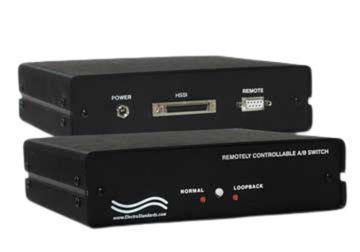

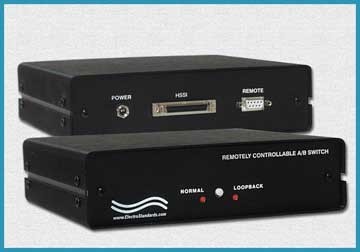

Model 7432 HSSI Singel Port Normal/Loopback Switch with RTS Remote

  • Applicable to High Speed Serial Interface (HSSI) Networks.

Model 7432 HSSI Single Port Normal/Loopback Switch with RTS Remote



SPECIFICATIONS:

  • PORT CONNECTORS: (1) HSSI connector on rear panel labeled HSSI.
  • FRONT PANEL CONTROL: (1) Manual pushbutton selects either NORMAL or LOOPBACK position.
  • DISPLAY: (2) Front panel LED's display switch position, system mode and power status.
  • REMOTE: (1) DB9 (F) connector on rear panel accepts presence or absence of RS232 RTS signal for Remote Control operation.
  • POWER: UL approved 120VAC, 60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.
  • DIMENSIONS: Desktop configuration 8.0" W x 2.0" H x 7.25" D.
  • WEIGHT: Approximately 2.0 lbs. (0.9 Kg)

APPLICATION: The diagram shows a 50-pin Micro D port (HSSI Interface) connected to a single HSSI device allowing NORMAL or LOOPBACK position based on the presence or absence of the RTS signal on the DB9 REMOTE port.  The user can control the switch from the front panel pushbutton as well.

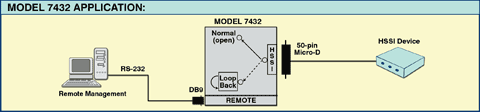

Model 7432 Normal/Loopback Network Switch Application Diagram

FEATURES:

  • Micro-D 50-Pin connector interface.
  • Loops (RT, RD, TA) to (TT, SD, CA) respectively.
  • Front panel pushbutton control selects between 'Normal' and "Loopback" position.
  • LEDs indicate switch position and power status.
  • Switch position and connection through the switch maintained during power loss.
  • RS232 Interface, DB9/Female connector on rear panel allows remote control of the unit based on RTS presence/absence.
  • Remote control allows the user to change switch position.

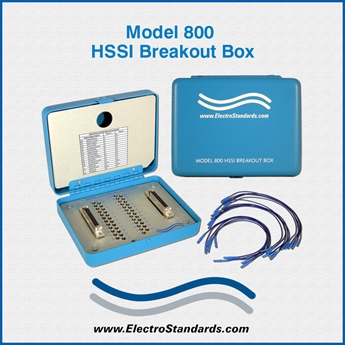

  • Ask about our Model 800 HSSI (SCSI-2) Interface Breakout Box. (Cat. No. 301300)
