Catalog # 305445 - Model 9060 RJ45 A/B Switch, Modular Design

Click image to enlarge

Base Price:

$213.00

Catalog No:

305445

Model No:

9060

Product Type:

Switches: Copper

Interface:

RJ45

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Configuration:

Rackmount

Pins Switched:

Local Control:

Rotary Knob

Feature:

Modular Design for System Expansion

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Manual Network Switch, RJ45 Rotary Switches
Model 9060 RJ45 A/B Switch Module

Signals paired for 10Base-T compliance (1,2) (3,6) (4,5) (7,8) to reduce cross talk.

SPECIFICATIONS:

PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON.
FRONT PANEL CONTROL: (1) Rotary switch allows local switching.
POWER: Manually operated. No Power required.
MODULE DIMENSIONS: 2.0"W x 5.25"H x 7.0"D (5.1 x 13.3 x 17.8 cm)
WEIGHT: Approximately 1.0 lb. (0.45 kg)

LineSelect® Model 9060 A/B Switch Module Application:

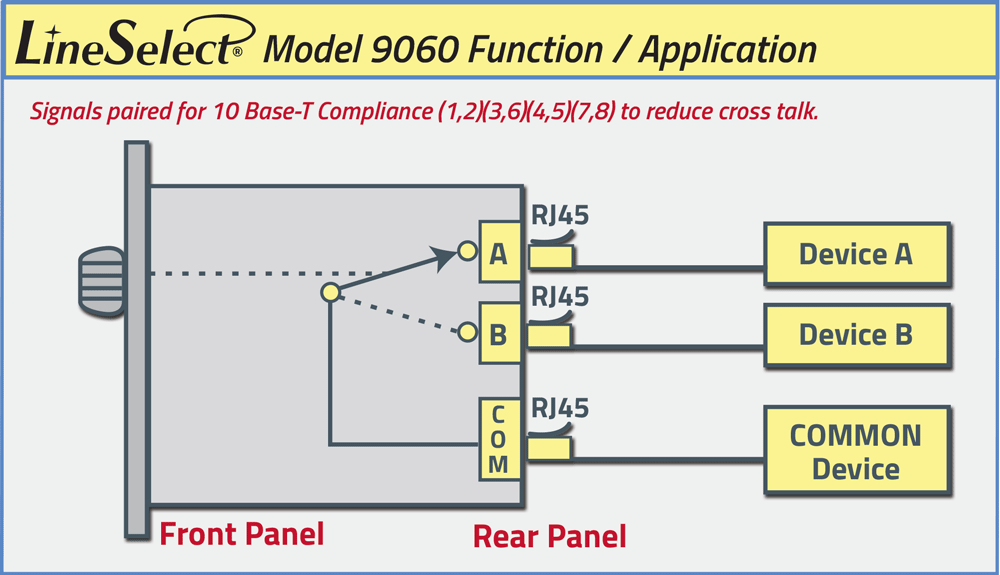

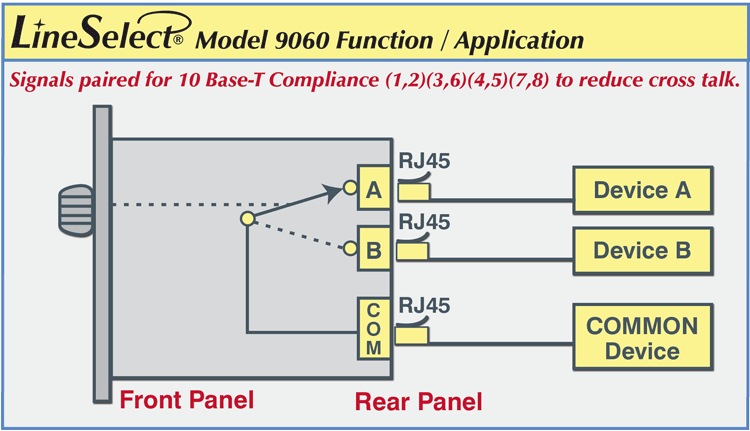

The application drawing illustrates a COMMON device connected to the RJ45 Common port with access to Device A or Device B connected to the RJ45 A and B ports, respectively.

Signals paired for 10 Base-t compliance (1,2)(3,6)(4,5)(7,8) to reduce cross talk.

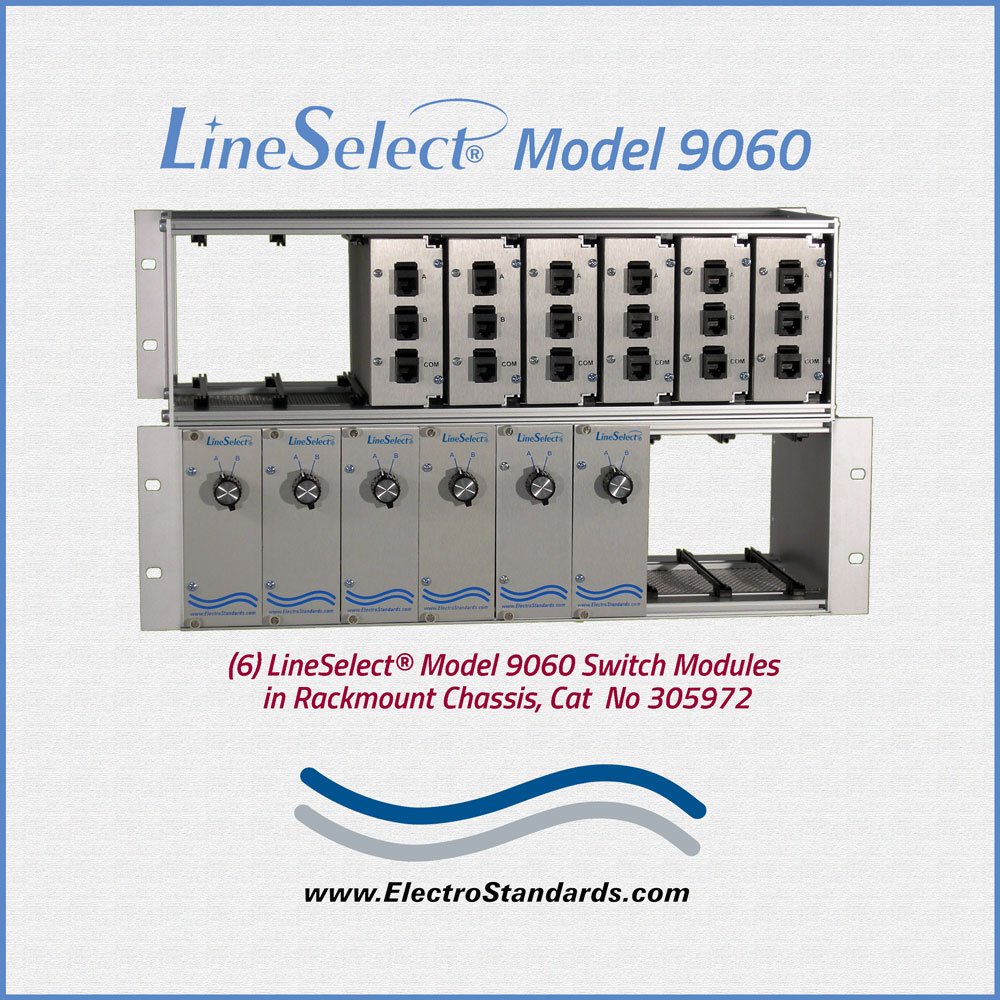

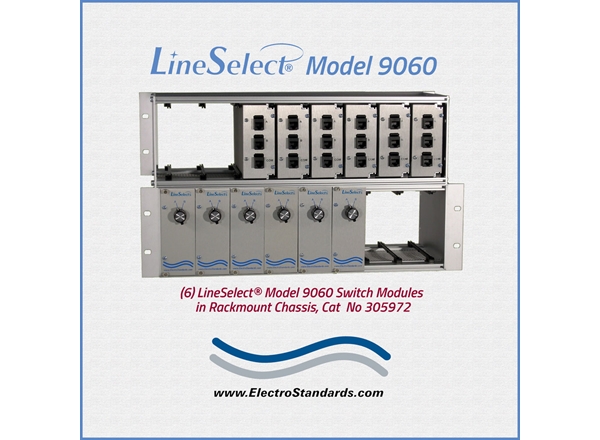

Up to eight of the switch modules can be installed in Rackmount Chassis, Cat. No. 305972.

Lineselect Model 9060 RJ45 A/B Switch Module Lineselect Model 9060 RJ45 A/B Switch Module Application

FEATURES:

Manually select switch position from front panel rotary switch.
All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
High quality sealed switch with self-wiping precious metal contacts.
Attractive anodized all aluminum packaging provides EMI/RFI shielding.
No external power required.
Up to eight Model 9060 Switch Modules can be housed in one Model 9025 Rack Chassis (Cat No 305972).
Add more modules having various switch functions as your system grows.
For Cat 5e compliant version, see Model 9067, Cat. No. 305446.
For Cat 6 compliant version, see Model 9069, Cat. No. 309069.

The LineSelect® Model 9060 switch module allows the user to switch a device connected to the COMMON port between devices connected to ports A and B. The LineSelect® Model 9060 is an open frame module designed to be installed in the Model 9025 Rack.

The Model 9025 Rack accommodates up to Eight LineSelect® M9060's. The Model 9025 is a 3U, full rack size chassis designed to fit in a standard 19" rack.

System Expands to meet your needs!

This modular approach to switch system requirements allows expansion to more channels on an as-needed bases. Filler panels are available to attractively cover unused module slots. Model 9008, Cat No 305983 for a two inch filler panel.

Model 9025 Rackmount Chassis for Switch Modules (Cat No 305972) Features:

Rack can accommodate up to eight Model 9060 A/B modules (2.0" W).
Rackmount chassis supports multiple switch module chassis of various widths.
Rack Size: 19" W x 5.25" H x 7" D. (48.3 x 13.3 x 17.8 cm)
Full opening for modules is 16.8" W. (42.7 cm)

Model 9025 Rack Mount Chassis Cat No 305972

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form by clicking here.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
