Video Presentation Switch Catalog # 305528 - Model 5528 Cat5e Secure Video Conference Room Switch

    SVCN/GPCN/OFFLINE SwitchSVCN/GPCN/OFFLINE Switch
Click image to enlarge
    • SVCN/GPCN/OFFLINE Switch
    • SVCN/GPCN/OFFLINE Switch
Base Price:
$852.00
Catalog No: 305528
Model No: 5528
Positions:3, Offline
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Security:Keylock, Offline Position
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:All 8 pins of RJ45
Local Control:Keylock

Add to Cart

Custom labeling available, call us 401-943-1164!

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

 Video Conference Room Switch, RJ45 Cat5e

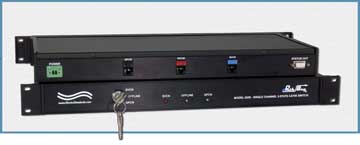

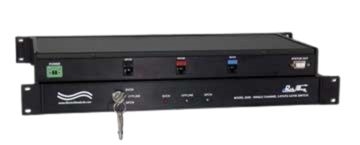

 PathWay® Model 5528 Single Channel 3-State SVCN/GPCN/OFFLINE RJ45 Cat5e Switch

 Great for Video Presentation Applications!



Custom labeling available, call us 401-943-1164!

SPECIFICATIONS:
  • PORT CONNECTORS: (3) RJ45 female connectors labeled SVCN, GPCN, and ROOM.
  • FRONT PANEL CONTROLS: (1) Three-position keylock actuator.
  • DISPLAY: (3) Front panel LED's display switch position and power status.
  • STATUS OUT: (1) DB9 (F) port allows linking the Model 5528 switch to a remote large character alpha display unit, Model 5527.  Contact closures indicate
    switch position:  OFFLINE, SVCN, GPCN.
  • POWER: UL Approved 120VAC, 60Hz wall mount power module supplies
    12 VDC, 500 mA to the unit.
  • DIMENSIONS: 19" W x 1.75" H x 8.0" D.
  • WEIGHT: 4.5 lbs

Model 5528 Single Channel SVCN/GPCN/OFFLINE RJ45 CAT5e Switch App Note


 The PathWay® Model 5528 RJ45 Secure Off-Line Switch allows the user the capability of accessing two separate devices, ports SVCN and GPCN, via connection through a device connected to the ROOM port.  Users can link this model to the Model 5527 SVCN/GPCN/OFFLINE Display Indicator unit for a robust conference communications switching system.  The dimensions of the unit are 1.75" H x 8"D x 19"W and the unit mounts in a standard 19" equipment rack.  The unit weight is approximately 4.5 lbs.

 FEATURES:
  • The switch ports are transparent to all data.
  • All pins of the RJ45 interface are switched.
  • Interface meets Cat5e performance.
  • This network switch is manually switched via front panel keylock actuator.
  • Unit permits signal to pass uninterrupted (SVCN and GPCN positions) or isolates in/out copper (OFFLINE position).

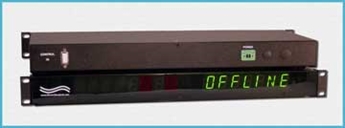

  • Status Out port for linking switch system unit to the Model 5527 SVCN/GPCN/OFFLINE Display Indicator Unit.
  • Installs in a standard 19" wide equipment rack.
  • The front panel indicator LED's on the Model 5528 will display the position status of the unit.
  • The position of the Model 5528 will follow the keylock actuator position at all times when there is power to the switch.
  • In the event power is lost, the switch will revert to the secure OFFLINE status regardless of the keylock position.  When power is restored, the unit will automatically read and match the switch position indicated by the keylock actuator.
  • The key can only be removed from the keylock actuator in the OFFLINE position.
 OPTION: WIDE RANGE POWER MODULE (Cat No. 517277) CE and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz in place of standard 115VAC or 120VAC power module.  Ideal for international applications. Click Product Accessories Tab!
 Model 5528 Single Channel SVCN/GPCN/Offline RJ45 CAT5e Switch

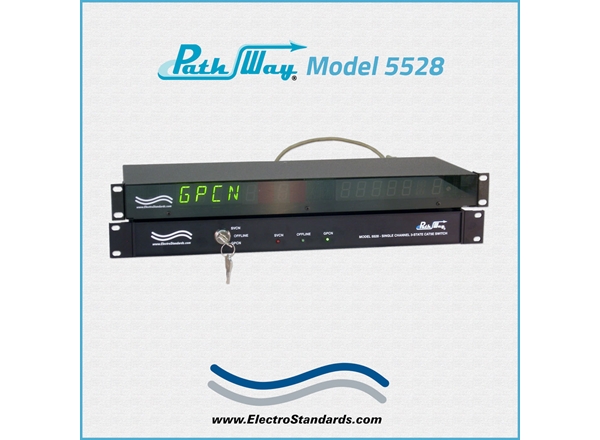

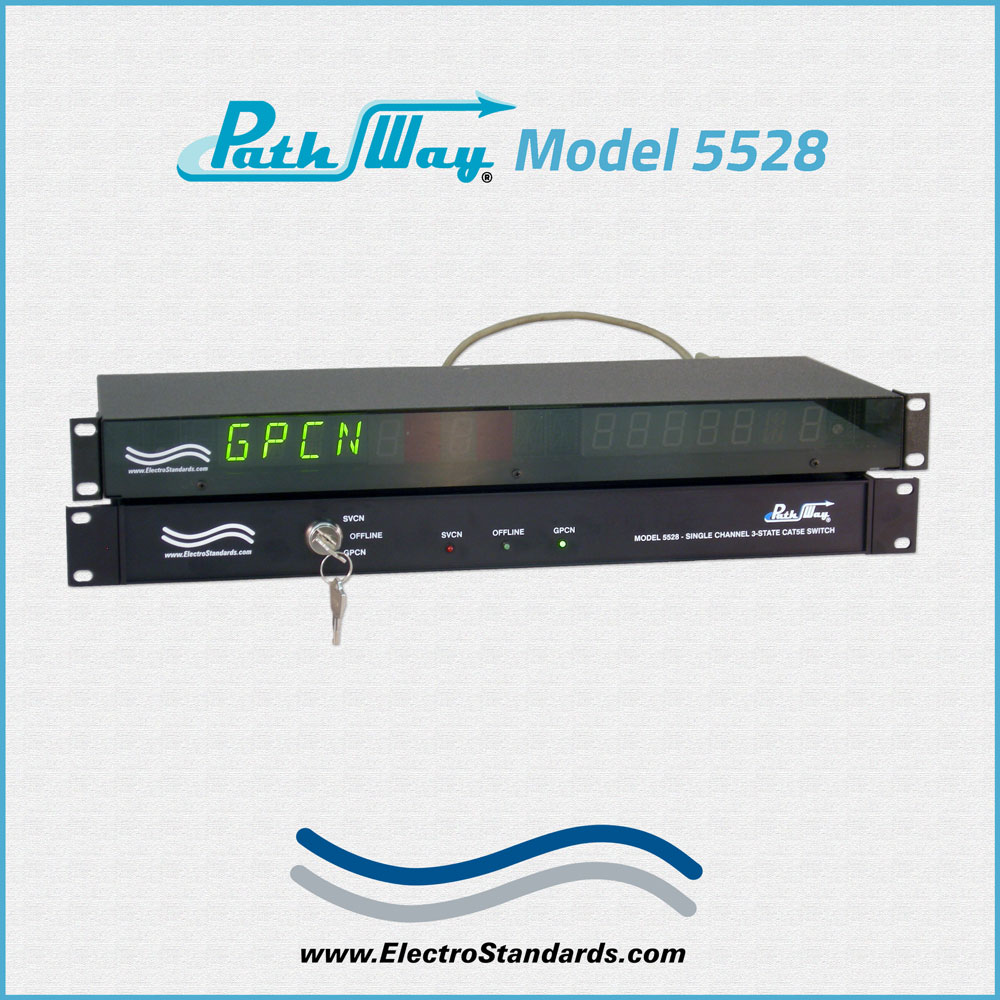

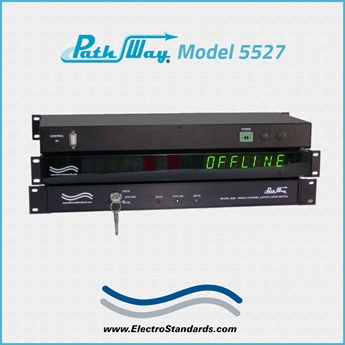

Model 5528 3-State RJ45, Cat5e Keylock Switch shown with the Model 5527
Display Indicator Unit, Cat. No. 305527 in the OFFLINE position. Click Product Accessories Tab!



Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

 Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.


All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL Secure Offline Switches are available for export
