Video Presentation Switch Catalog # 305528A - Model 5528A CAT5e Secure Video Conference Room Switch

    A SVCN/GPCN/OFFLINE CAT5e Switch
Click image to enlarge
Base Price:
$938.00
Catalog No: 305528A
Model No: 5528A
Product Type:Switches: Copper
Positions:3, Offline
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Security:Keylock, Offline Position
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:All 8 pins of RJ45
Local Control:Keylock

Add to Cart

Custom labeling available, call us 401-943-1164!

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Video Conference Room Switch, RJ45 Cat5e
Model 5528A Single Channel 3-State SVCN/GPCN/OFFLINE RJ45 Cat5e Switch

  • Keylock actuator insures secure switch operation.
  • Absolutely no data passes through the switch when in the OFF-LINE position.
  •  Custom labeling available, call us 401-943-1164!

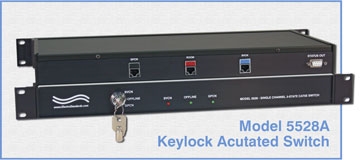

5528A Single Channel SVCN/GPCN/OFFLINE RJ45 CAT5e Switch

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45 female connectors labeled SVCN, GPCN, and ROOM.
  • FRONT PANEL CONTROLS: (1) Three position keylock acutator.
  • DISPLAY: (3) Front panel LED's display switch position when linked to a powered Model 5527A unit.
  • STATUS OUT: (1) DB9 (F) port allows linking the Model 5528A switch to a remote large character alpha display unit, Model 5527A. Contact closures indicate switch postion: OFFLINE, SVCN, GPCN.
  • POWER: LEDs are powered from the Model 5527A Display unit thru Status Out port of the Model 5528A.
  • DIMENSIONS: 19" W x 1.75" H x 8.0" D. [48.3 x 4.5 x 20.4 cm]
  • WEIGHT: 4.2 lbs. [1.9 kg]

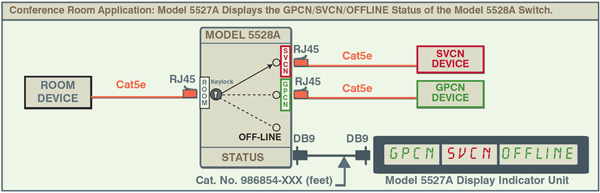

CONFERENCE ROOM APPLICATION: Model 5527A displays the GPCN/SVCN/OFFLINE Status of the Model 5528A Switch.

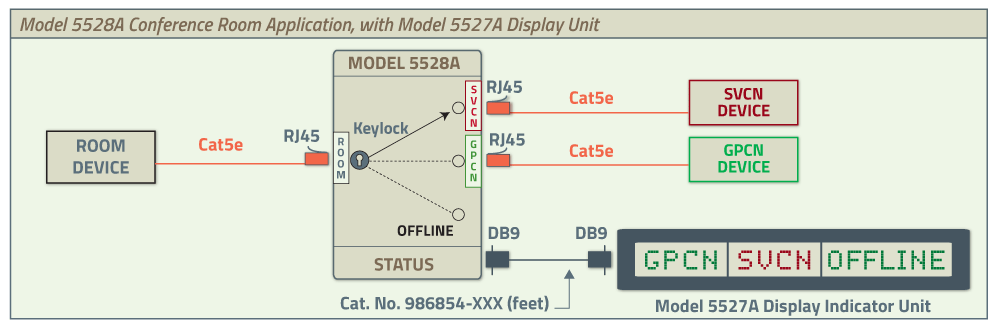

5528A Single Channel SVCN/GPCN/OFFLINE RJ45 CAT5e Switch Application Note

 FEATURES:

  • Unit permits signal to pass uninterrupted (SVCN and GPCN positions) or isolates in/out copper (OFFLINE position).
  • Unit switched via front panel keylock acutator.
  • All pins of the RJ45 interface are switched via break-before-make keylock switch.
  • The switch ports are transparent to all data.
  • Interface meets Cat5e performance.
  • The position of the Model 5528A will follow the keylock actuator position at all times.
  • The key can be removed from the keylock acutator in the OFFLINE position.
  • The front panel indicator LED's on the Model 5528A will display the position status of the unit when linked to a powered Model 5527A unit.
  • Status port for linking switch system unit to the Model 5527A
    SVCN/GPCN/OFFLINE Display Indicator Unit.
  • No power required to operate the unit. It is a manual switch.
  • Installs in a standard 19" wide equipment rack.
  • RJ45 Cat5e patchcords of custom length and various colors available.
    Order them with the switch.

 The PathWay® Model 5528A RJ45 Secure Off-Line Switch allows the user the capability of accessing two separate devices, (ports SVCN and GPCN) via connection through a device connected to the ROOM port.  Users can link this model to the Model 5527A SVCN/GPCN/OFFLINE Display Indicator unit for a robust conference communications switching system.  The Model 5528A is enclosed in a 1U, full rack size, all metal black chassis designed to provides EMI/RFI shieldin and fit in a standard 19" rack.

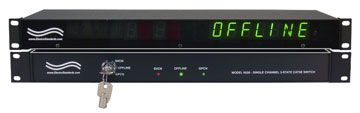

Model 5528A 3-State RJ45, Cat5e Keylock Switch shown with the Model 5527A
Display Indicator Unit, Cat. No. 305527A in the OFFLINE position.
