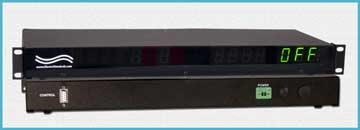

Catalog # 305533 - Model 5533 Display For Model 5534 4-State Secure Switch

    OFF/SVCN/JSIS/GPCN Display For 5534
Click image to enlarge
Base Price:
$726.00
Catalog No: 305533
Model No: 5533
Positions:4, Offline
Security:Offline Position
Configuration:Rackmount

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

  Video Conference Room Switch, Display Indicators
 Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator Unit

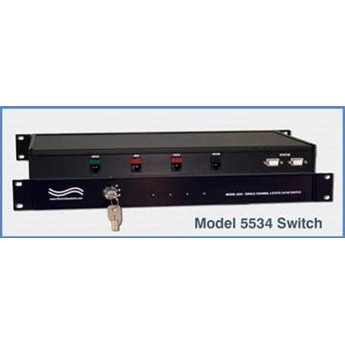

Use with Model 5534 4-State Cat5e RJ45 Switch to Create a Robust Conference Communications Switching System.  Great for Video Conference Rooms!


 Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator for Model 5534 Switch

Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator for Model 5534 Switch App Note




The Model 5533 is designed to display the isolation/connection status of communications equipment.  This equipment comprises a switching system that includes the Model 5534 Single Channel 4-State Cat5e switch.  Users can link these units to create a robust conference communications switching system.  The dimensions of the Model 5533 are 1.75"H x 8"D x 19"W and the unit mounts in a standard 1U equipment rack.  The unit weight is approximately 2.0 lbs.


Model 5533 Display Indicator Unit showing the GPCN position
of the Model 5534, Cat. No. 305534

Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator for Model 5534 Switch


Model 5533 Display Indicator Unit showing the JSIS position
of the Model 5534, Cat. No. 305534

 Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator for Model 5534 Switch

Model 5533 Display Indicator Unit showing the SVCN position
of the Model 5534, Cat. No. 305534

 Model 5533 OFF/SVCN/JSIS/GPCN Display Indicator for Model 5534 Switch

 FEATURES:
  • Large display of important isolation/connection status of secure communication networks, including secure Offline position (OFF).
  • The front panel LED Display on the Model 5533 will display the OFF/SVCN/JSIS/GPCN status of the switch system.
  • Has a DB9(F) Control port for linking the Model 5533 Display Unit to the Model 5534 Switch that it is monitoring.
  • This unit also supplies power to the LED's of the companion Model 5534 Switch.
  • UL and CE approved wall mount power module supplies 12VDC, 500mA to the Display Indicator Unit.
  • Installs in a standard 19" wide equipment rack.



Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/


 Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.


All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL Secure Offline Switches are available for export
