Overview

Model 9030 Rack with Power Supply and Cabling

SPECIFICATIONS: Model 9030 Rack with Power

Rack Size: 19" W x 5.25" H x 6.91" D. (48.3 x 13.3 x 17.6 cm)
Weight: 3.3 lbs (1.5 kg)
Power: UL Approved 100VAC/240VAC, 50/60 Hz wall mount power module supplies 12 VDC, 500 mA to the unit. (Cat No 523520)
Option: Wide Range Power Module: (Cat No 514296)
CE, RoHS, and UL listed table mount power module 100VAC/240VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

FEATURES (Model 9030 Rack):

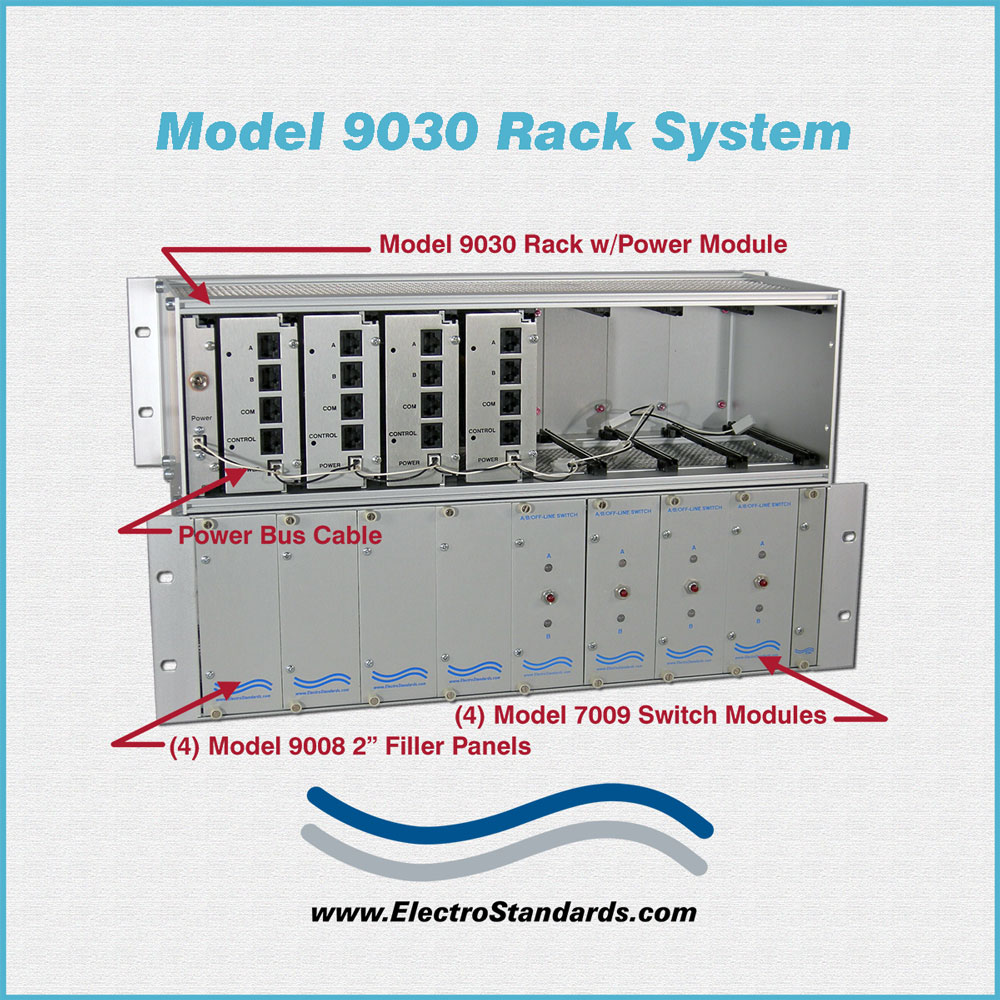

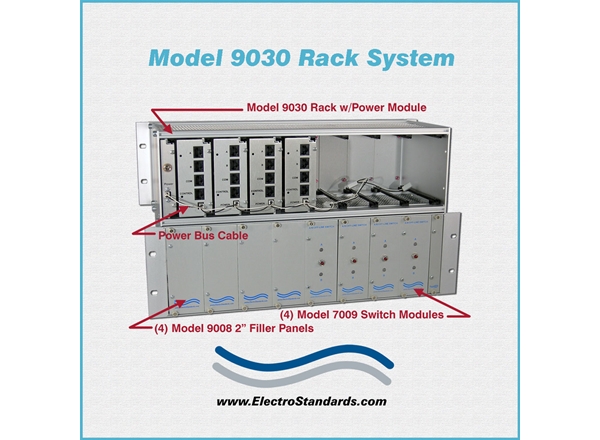

The Model 9030 is a 3U, full rack size chassis designed to fit in a standard 19" rack.
The Model 9030 modular rack system is sold in conjunction with the open frame modules, PathWay® Models 7006, 7008, or 7009.

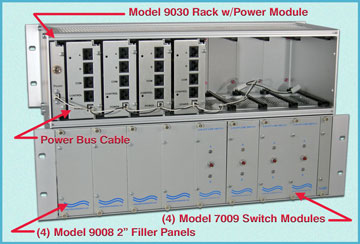

The Model 9030 Rack can accommodate up to eight Model 7009 Switch Modules, up to eight Model 7008 Switch Modules, or up to eight Model 7006 Switch Modules.
Model 9030 Rack includes a power supply module, which is responsible for powering all the switches in the rack. A power bus cable (included) distributes the power among the modules.
Filler panels are available to attractively cover unused module slots. (See Model 9008, Cat No 305983)
Municipalities, schools, government: This product is on GSA Schedule!
This high-quality modular rack switch system is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

PathWay® Model 7009 Cat5e A/B/OFFLINE Switch Module Application w/Contact Closure Remote Control:

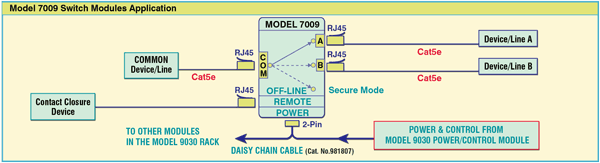

The drawing illustrates one PathWay® Model 7009 module. The Model 9030 rack can hold up to eight Model 7009 modules. Each module has a COMMON device connected to the RJ45 COM port accessing two other devices connected to the A and B ports. There are three positions, "A", "B" and "OFFLINE". The OFFLINE position is Secure Mode; no data passes through the switch. The RJ45 Remote port accepts Contact Closure for Remote Control operation. The power bus cable (Cat No 981107) distributes power to all modules from the power supply module included with the Model 9030 rack system.

PathWay Model 7009 Switch Module Application with Contact Closure Signals

PathWay® Model 7008 Cat5 A/B/OFFLINE Switch Module Applicaiton w/Contact Closure Remote Control:

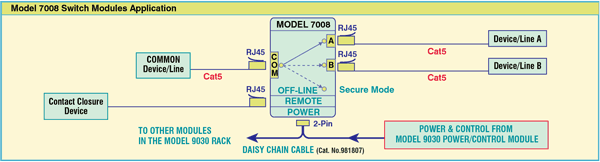

The drawing illustrates one Model 7008 module. The Model 9030 rack can hold up to eight Model 7008 modules. Each module has a COMMON device connected to the RJ45 COM port accessing two other devices connected to the A and B ports. There are three positions, "A", "B" and "OFFLINE". The OFFLINE position is Secure Mode; no data passes through the switch. The RJ45 Remote port accepts Contact Closure for Remote Control operation. The power bus cable (Cat No 981107) distributes power to all modules from the power supply module included with the Model 9030 rack system.

PathWay Model 7008 RJ45 Cat5 A/B/OFFLINE Switch Modules Application w/Contact Closure application

PathWay® Model 7006 Cat5 A/B/OFFLINE Switch Module Application w/RS232 REMOTE:

The drawing illustrates one Model 7006 module. The Model 9030 rack can hold up to eight Model 7006 modules. Each module has a COMMON device connected to the RJ45 COM port accessing two other devices connected to the A and B ports. There are three positions, "A", "B" and "OFFLINE". The OFFLINE position is Secure Mode; no data passes through the switch. The RJ45 Remote port accepts RS232 ASCII Serial data for Remote Control operation. The power bus cable (Cat No 981107) distributes power to all modules from the power supply module included with the Model 9030 rack system.

PathWay Model 7006 A/B/OFFLINE Switch Modules Application with RS232 Remote

System Expands to meet your needs!

Select from PathWay® Models 7009, 7008, or 7006 Switch Modules.

This modular approach to switch system requirements allows expansion to more channels on an as-needed basis. Filler panels are available to attractively cover unused module slots (See Model 9008, Cat No 305983 for 2-inch filler panel)

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7009 Switch Module is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.
