Overview
Cassette provides quick installation of MTP / MPO Fiber Optic Networks
Cassettes break-out 12-Fiber MPO cable inputs into standard LC connectors

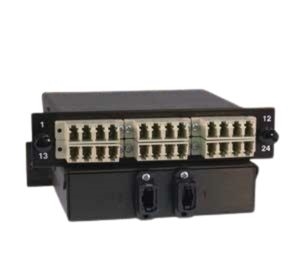

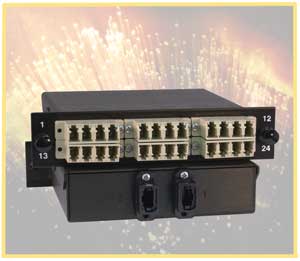

Model 6014, Catalog No. 306014, MTP/MPO - LC, 24-Fiber Cassette, Multimode, 62.5/125 Micron
The Model 6014 high-density, pre-terminated Fiber Optic Cassette breaks out (2) 12-Fiber MTP / MPO male inputs to (24) LC male outputs (24 Simplex or 12 Duplex). This system offers the advantages of saving duct space and installation time. Up to three Model 6014 Fiber Optic Cassettes mount into a Model 3294 Rackmount Fiber Patch Enclosure.
The Model 6014 cassette's cabling side (rear) contains an MTP® interface for connecting the trunk or backbone cabling. An internal optical assembly within the cassette interconnects the rear and front ports. A speedy connection is established when the patch cords from the equipment are plugged into the front-panel LC connectors.
Model 6014 Features:
- Two 12-Fiber MTP / MPO male inputs break-out to 24 LC male
outputs (24 Simplex or 12 Duplex).
- Provides MTP/MPO Fiber Solutions
- Electro Standards can supply all of your fiber optic cable requirements!
Model 6014 Specifications:
- Dimensions: 5" W x 1.12" H x 5" D
- Weight: Approximately 0.5 lbs.
- Micron Size: 62.5/125
- Mode: Multimode
- Wiring Standard: Straight
