Overview
Cassette provides quick installation of MTP / MPO Fiber Optic Networks
Cassettes break-out 12-Fiber MPO cable inputs into standard SC connectors
Model 6017, Catalog No. 306017 MTP/MPO - SC, 12-Fiber Cassette, Multimode, 50/125 Micron, OM3 10 Gigabits

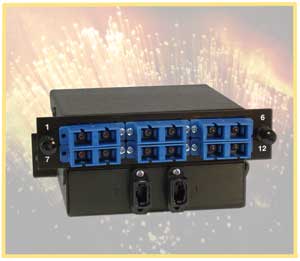

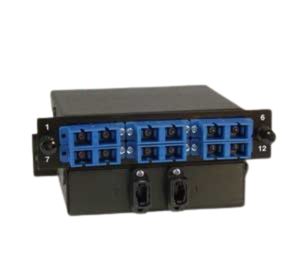

The Model 6017 high-density, pre-terminated Fiber Optic Cassette breaks out (1) 12-Fiber MTP / MPO male input to (12) SC male outputs (12 Simplex or 6 Duplex). This system offers the advantages of saving duct space and installation time. Up to three Model 6017 Fiber Optic Cassettes mount into a Model 3294 Rackmount Fiber Patch Enclosure.
The Model 6017 cassette's cabling side (rear) contains an MTP® interface for connecting the trunk or backbone cabling. An internal optical assembly within the cassette interconnects the rear and front ports. A speedy connection is established when the patch cords from the equipment are plugged into the front-panel SC connectors.
Model 6017 Features:
- One 12-Fiber MTP / MPO male input will break-out to 12 SC male
outputs (12 Simplex or 6 Duplex).
- MTP / MPO Fiber Solutions
- Electro Standards can supply all of your fiber optic cables!
Model 6017 Specifications:
- Dimensions: 5" W x 1.12" H x 5" D
- Weight: Approximately 0.5 lbs.
- Micron Size: 50/125 Mircons
- Classification: OM3, 10 Gigabits
- Mode: Multimode
- Wiring Standard: Straight
