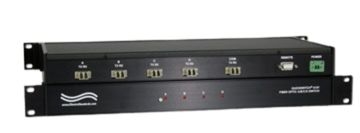

Catalog # 306197 - Model 6197 LC Duplex A/B/C/D Fiber Switch

    LC Duplex A/B/C/D Fiber SwitchLC Duplex A/B/C/D Fiber Switch
Click image to enlarge
    • LC Duplex A/B/C/D Fiber Switch
    • LC Duplex A/B/C/D Fiber Switch
Base Price:
$7,370.00
Catalog No: 306197
Model No: 6197
Product Type:Switches: Fiber Optic
Positions:4
Cable Type/Port Connector:LC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:RS232 Serial
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:50/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Pushbutton
Mirror Technology:OO
Wavelength Nano:850 nm

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, LC Duplex

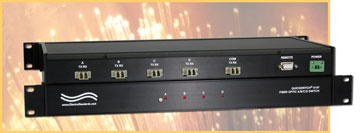

QuickSwitch® 6197 Single Channel All Fiber Optic LC Duplex A/B/C/D Switch with RS232 Remote
6197 Single Channel All Fiber Optic LC Duplex A/B/C/D Switch with RS232 Remote
 SPECIFICATIONS:
  • WAVELENGTH: 850 nm.
  • PORT CONNECTORS: (5) LC Duplex female connectors labeled A, B,C, D, and COMMON.
  • CONTROL: (1) Pushbutton allows selection of switch position.
  • DISPLAY: (4) Red LED's display switch position and power status.
  • REMOTE: (1) DB9(F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Standard rackmount, 19.0"W x 1.75" H x 8.0" D. (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.7 lbs (2.1 Kg)
FIBER OPTIC LC DUPLEX A/B/C/D APPLICATION WITH RS232 REMOTE CONTROL: The drawing illustrates a COMMON Fiber Optic network connected to the LC Duplex COMMON port with access to four Fiber Optic Networks connected to the LC Duplex A, B, C, and D ports. The DB9 port is a REMOTE port that accepts ASCII RS232 commands for remotely controlling the Fiber Optic Networks connected to the Model 6197.

Model 6197 Fiber Optic LC Duplex A/B/C/D Switch with RS232 Remtoe Application

FEATURES:

  • Access any one of four separate fiber optic networks from one computer.
  • The switch ports are transparent to all data.
  • The unit maintains last set position on power loss and continues to pass data.
  • Fiber switch employs mirror technology
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • All A, B, C, D and COM ports are LC duplex, multimode, 50/125 micron and support a wavelength of 850 nm.
  • Front panel pushbutton control.
  • Remote RS232 ASCII Commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Front-panel LED's display switch position and power status.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Optical  data throughput scalability
  • Custom length rigorously tested and certified, LC fiber optic cables available for your switch installation.

 The QuickSwitch® Model 6197 Single Channel LC Duplex A/B/C/D Switch with RS232 allows the user the capability of sharing a single port interface device connected to the COM port among four other devices connected to the A, B, C, and D ports with remote access functionality.  The QuickSwitch® Model 6197 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.

The switch may be controlled locally by manually operating the front panel pushbuttons or remotely from the DB9 Remote Control port located on the rear of the unit.  The Remote port provides control through RS232 serial commands and allows the user to both control and monitor the switch position. The front panel LED display indicates the switch position and unit power status.

Wide Range Power Option Available:(Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

 QuickSwitch® ® is a registered trademark of Electro Standards Laboratories.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Fiber Optic Switch Form.

 All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
