Catalog # 306259R - Model 6259R 16-Channel ST Simplex A/B/Off-Line Fiber Switch, RoHS

    R 16-Channel A/B/Off-Line Fiber SwitchR 16-Channel A/B/Off-Line Fiber Switch
Click image to enlarge
    • R 16-Channel A/B/Off-Line Fiber Switch
    • R 16-Channel A/B/Off-Line Fiber Switch
Base Price:
$18,301.00
Catalog No: 306259R
Model No: 6259R
Product Type:Switches: Fiber Optic
Positions:3, Offline
Cable Type/Port Connector:ST
Channels per Switch Chassis:16
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Simultaneous Channel Control
Security:Offline Position
Compliance/Standards:RoHS
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Simplex
Mirror Technology:OO
Wavelength Nano:850

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, ST Simplex
QuickSwitch® 6259R RoHS Compliant 16-Channel ST Simplex, Fiber Optic A/B/OFFLINE Switch

  • RoHS Compliant

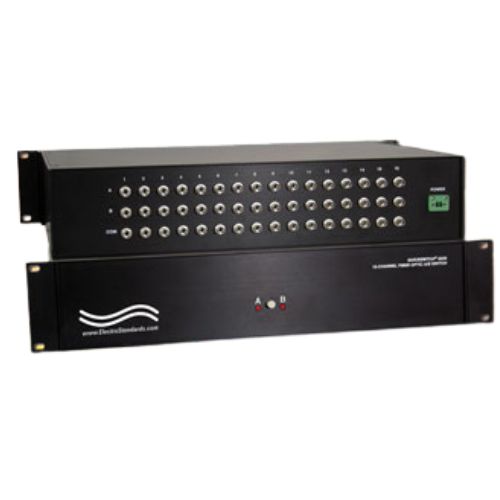

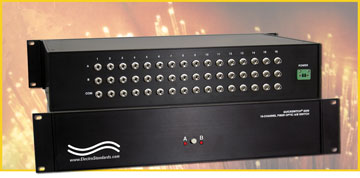

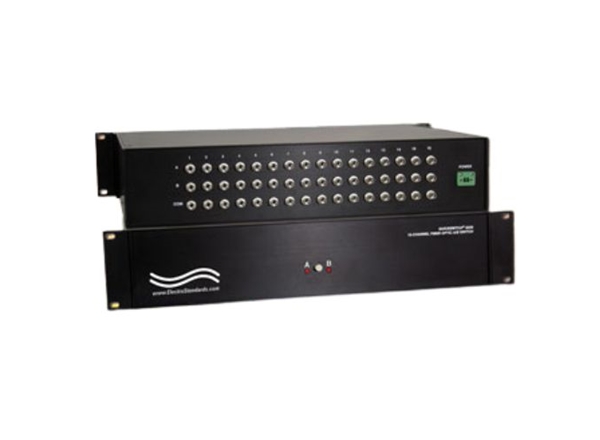

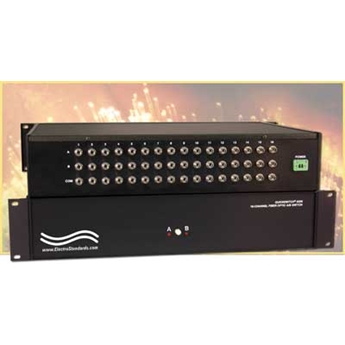

Model 6259R RoHS Compliant 16-Channel ST Simplex Fiber Optic A/B/OFFLINE Switch

 Specifications:

  • PORT CONNECTORS: (48) ST female connectors (A group of (3) labeled A, B, and COMMON for each of the 16 channels).
  • WAVELENGTH: 850 nm
  • FRONT PANEL CONTROLS: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

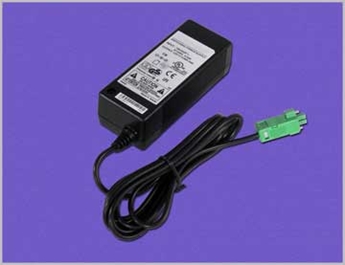

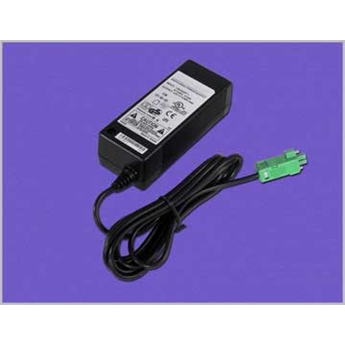

  • POWER: WIDE RANGE CE and UL listed table mount power module (Cat.No. 988147R) 100VAC/240VAC, 50Hz/60Hz supplies 12VDC to the unit. Ideal for international applications. RoHS Compliant.
  • DIMENSIONS: 19" W x 3.5" H x 12" D (48.3 x 8.9 x 30.5cm)
  • WEIGHT: 8.5 lbs (3.9 kg)

 APPLICATION: The diagram illustrates a 16 channel A/B/OFFLINE fiber optic switch with
an offline position and no remote control access. All channels are switched simultaneously.
Upon loss of power the switch goes to the OFFLINE position an no data is passed.

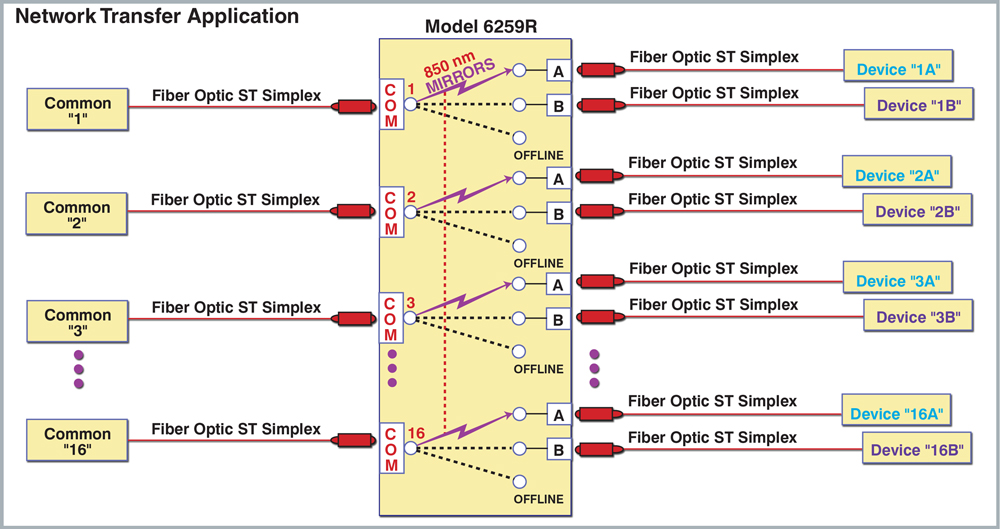

 Model 6259R 16-Channel ST Simplex, Fiber Optic A/B/OFFLINE Switch Application Note
