Catalog # 306283 - Model 6283 LC Duplex Gigabit A/B Fiber Switch

    LC Duplex Gigabit A/B Fiber SwitchLC Duplex Gigabit A/B Fiber SwitchLC Duplex Gigabit A/B Fiber SwitchLC Duplex Gigabit A/B Fiber Switch
Click image to enlarge
    • LC Duplex Gigabit A/B Fiber Switch
    • LC Duplex Gigabit A/B Fiber Switch
    • LC Duplex Gigabit A/B Fiber Switch
    • LC Duplex Gigabit A/B Fiber Switch
Base Price:
$3,248.00
Catalog No: 306283
Model No: 6283
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:LC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Ethernet
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Remote Port:RJ45
Local Control:Pushbutton
Mirror Technology:OO
Wavelength Nano:1310

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, LC Duplex
QuickSwitch® 6283 Single Channel LC Duplex A/B Switch with Telnet Remote

  • IP Addressable For Critical Network Alternate-Path Switching!

  • All Optical Switching!

SPECIFICATIONS:

  • WAVELENGTH: 1310 nm.
  • FIBER SIZE: 62.5/125 micron.

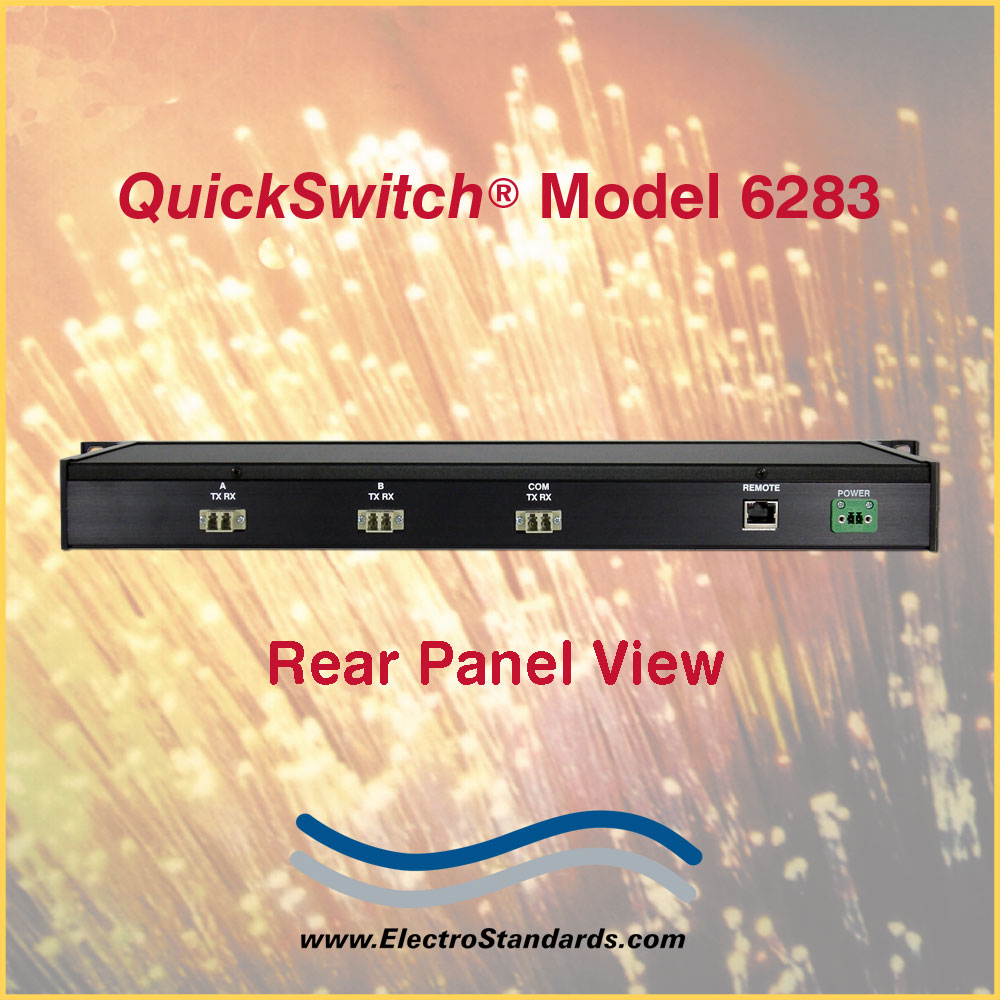

  • PORT CONNECTORS: (3) LC Duplex connectors labeled A, B, and COMMON.
  • CONTROL: (1) Pushbutton allows selection of switch position.
  • DISPLAY: (2) Red LED's display switch position and power status.
  • SUPERVISORY REMOTE PORT: (1) RJ45 (F) connector accepts 10/100 BASE-T LAN Ethernet (TELNET command interface).
  • POWER: UL approved 120VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.0" D (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.5 lbs. (2.04 kg)

QuickSwitch® Model 6283 LC Duplex A/B  APPLICATION with Telnet Commands:

The Network application drawing illustrates a COMMON Fiber optic Network switching between two other Fiber Optic Networks connected to the A and B ports.  The switch has an RJ45 10/100BASE-T, Ethernet Remote which is IP addressable. Using TELNET commands, the Remote allows the user to control and monitor switch position remotely.

QuickSwitch® 6283 LC Duplex A/B Application

FEATURES:

  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • Switch maintains position on power loss and continues to pass data.

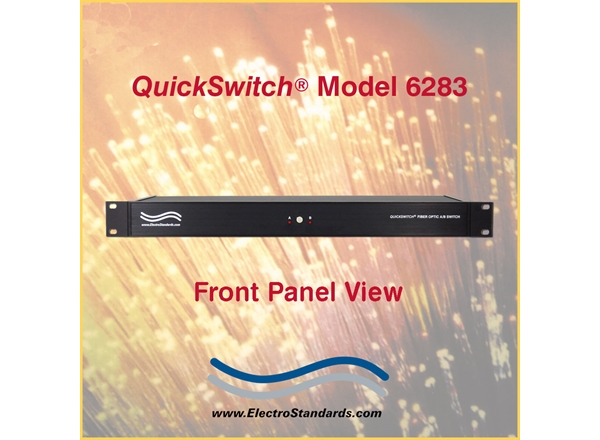

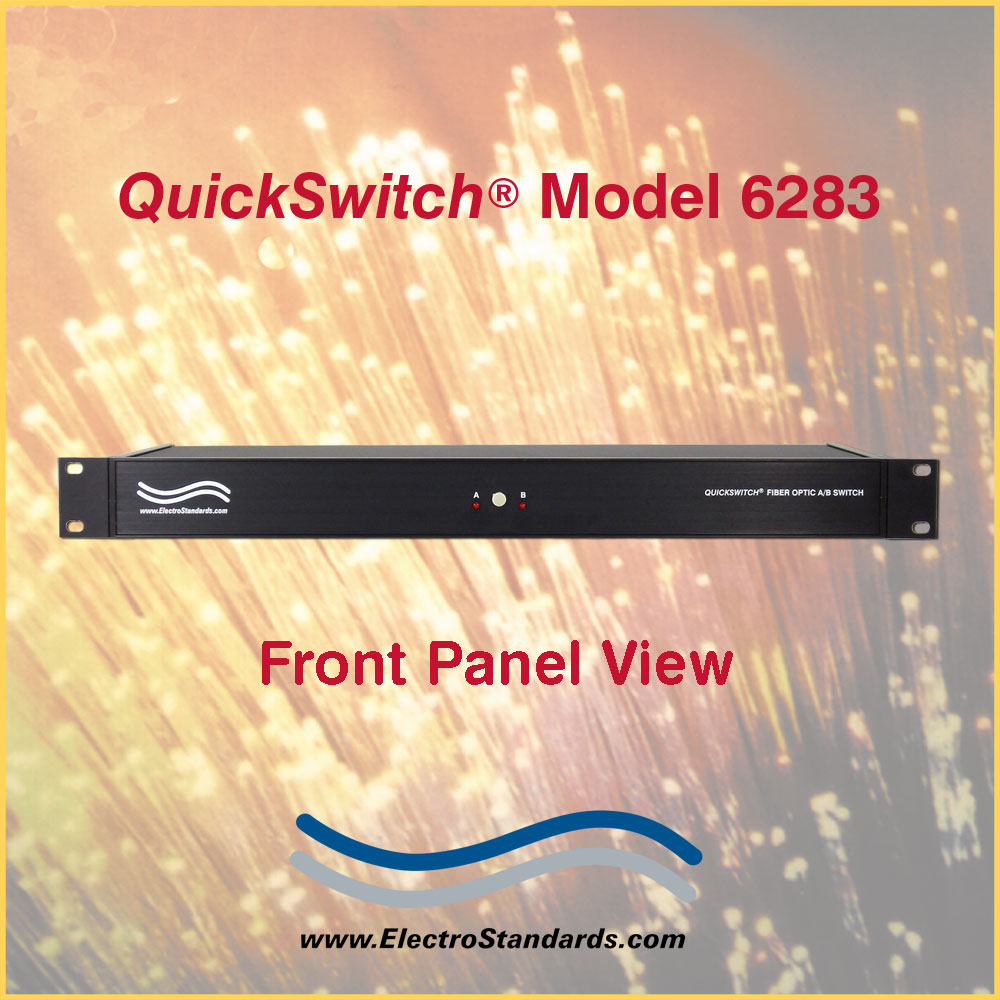

  • Front panel pushbutton control.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment. IP Addressable.
  • Remote Control Telnet command interface that allows the user to control switch position, lockout front panel operations and obtain switch status.
  • Remote control of the switch through the telnet command interface is password protected.
  • Front panel LED's for display of current position and power status.
  • All A, B, and COM ports are LC, Multimode, 62.5/125 micron, and support a wavelength of 1310nm.
  • Custom length rigorously tested and certified LC fiber optic cables available for your switch installation.

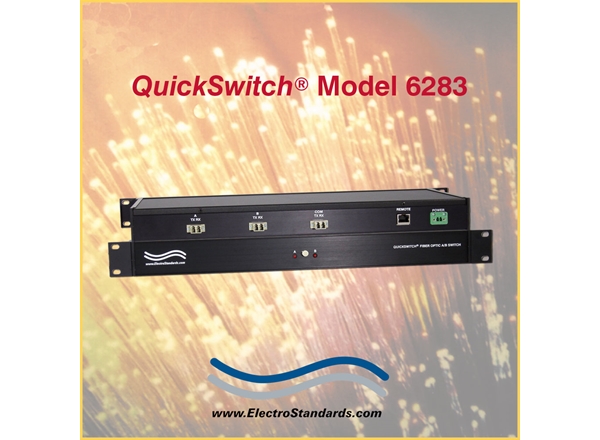

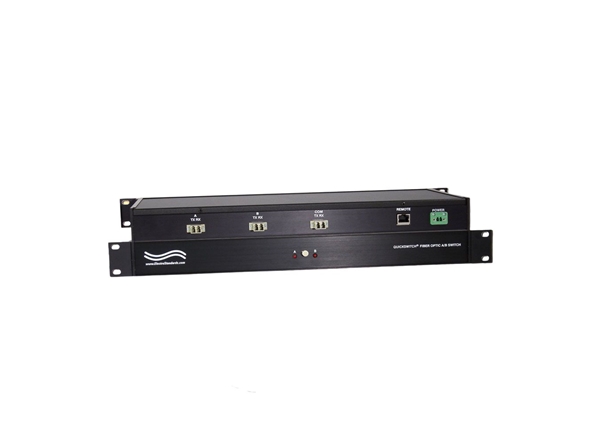

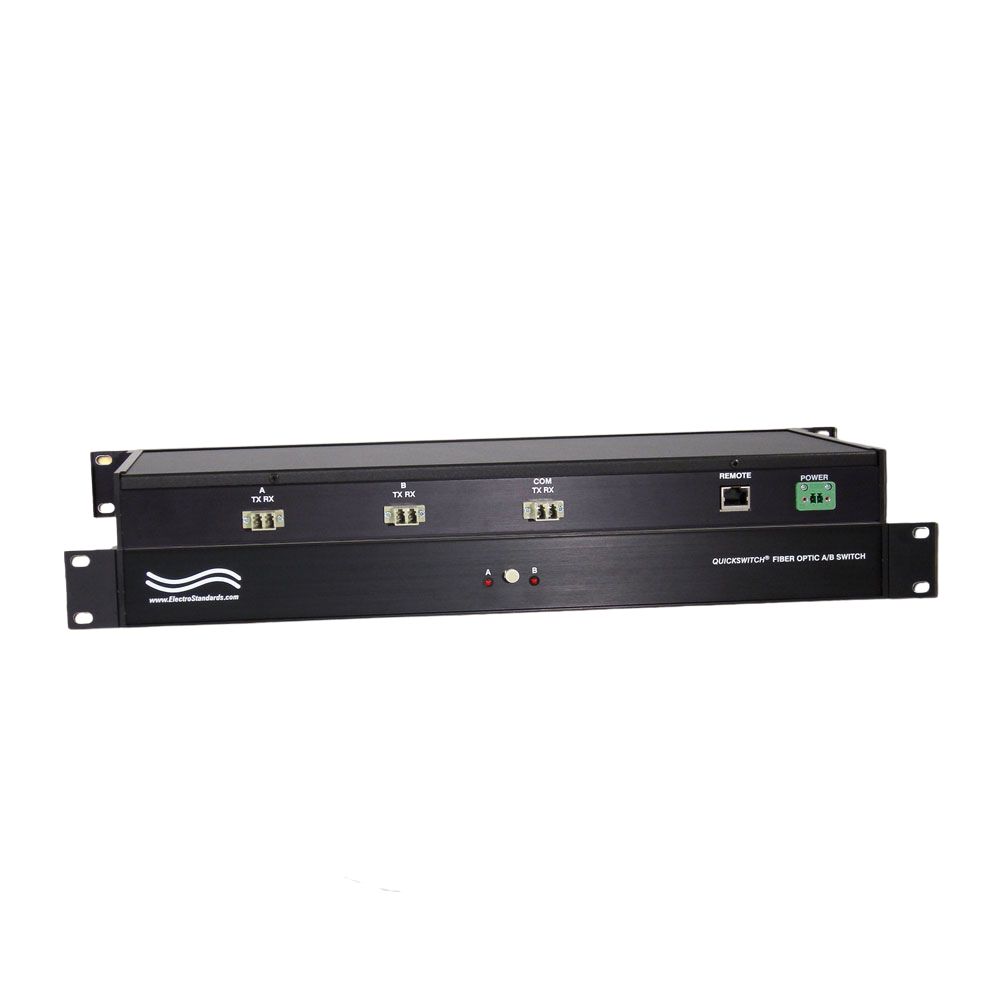

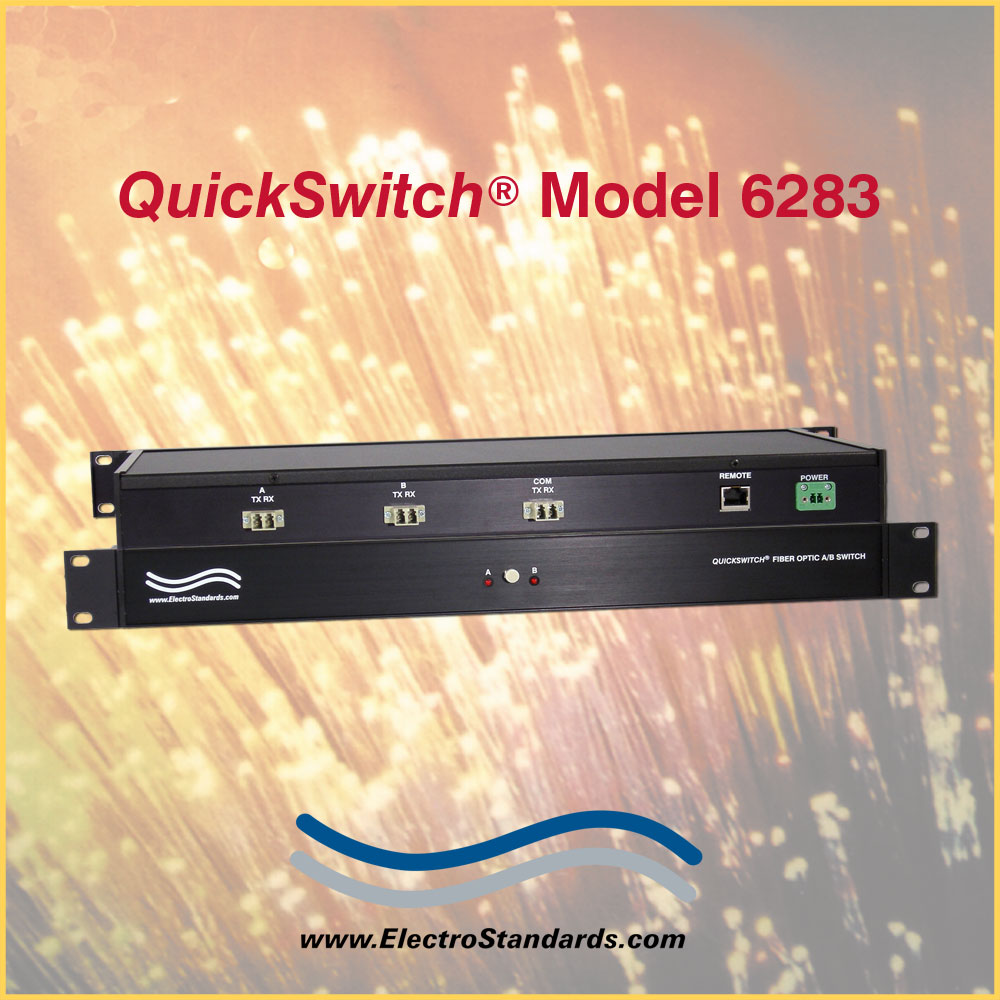

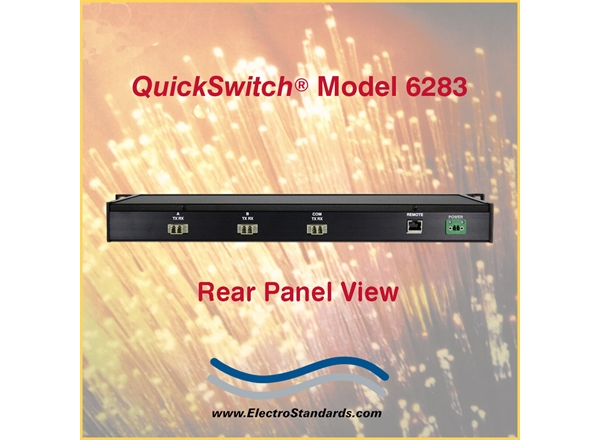

The QuickSwitch® Model 6283 Single Channel LC Duplex A/B Switch with Telnet Remote allows a device connected to the COM port access to the A or B port.  The QuickSwitch® 6283 fits in a standard 19" rack, taking 1U of rack space.  The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the RJ45 Remote Control port located on the rear of the unit.  The RJ45 Remote port provides control through telnet commands and allows the user to both control and monitor the switch position remotely.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

To read the article, either click the "Application Note" Icon at the top of page on the right, or click this link: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view this file.

QuickSwitch® ® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Product Request Form.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
