Overview

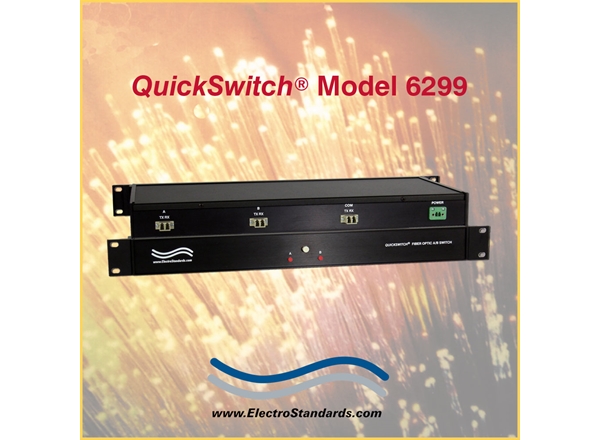

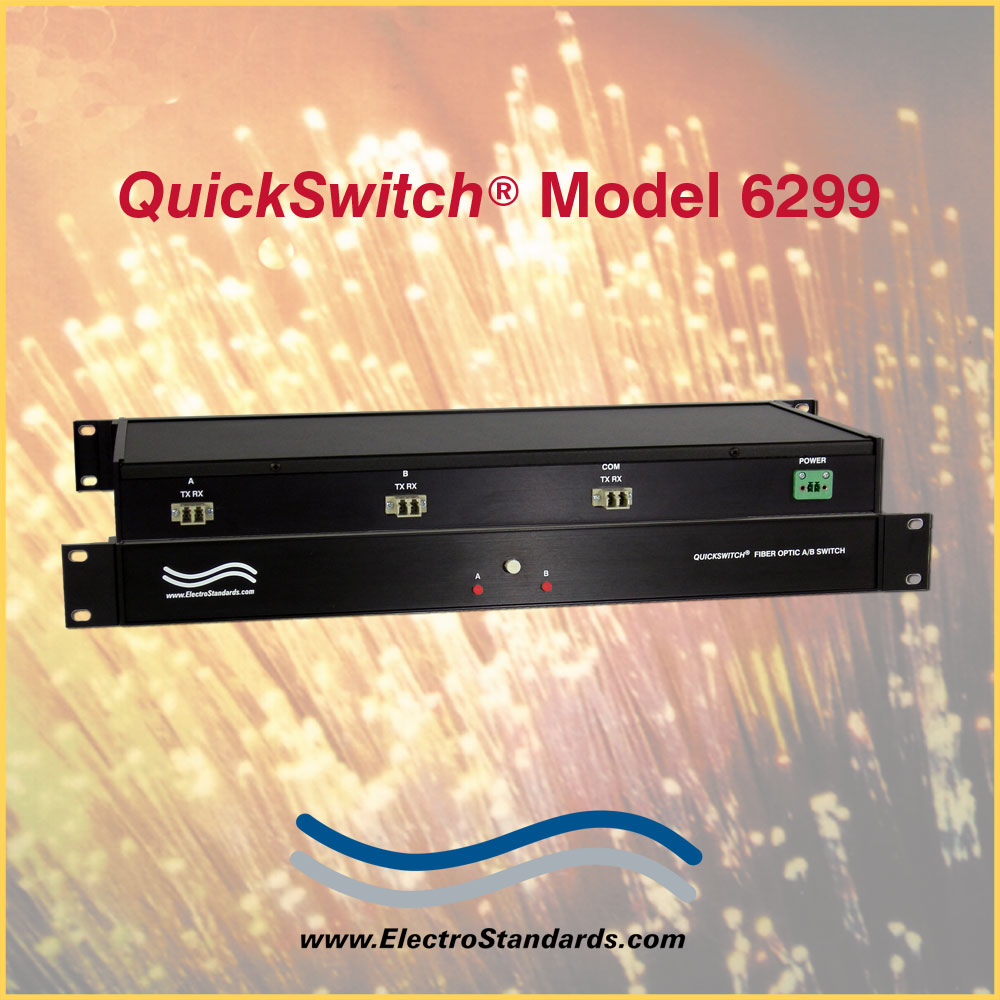

QuickSwitch® 6299 Single Channel All Fiber Optic LC Duplex A/B Switch

  • Switch to backup fiber optic link, quickly and easily!

  • Ideal for switching data to multiple video displays, scoreboards, LED signs.

  • Add flexibility to mission critical IT platforms and tactical communication networks.

SPECFICATIONS:

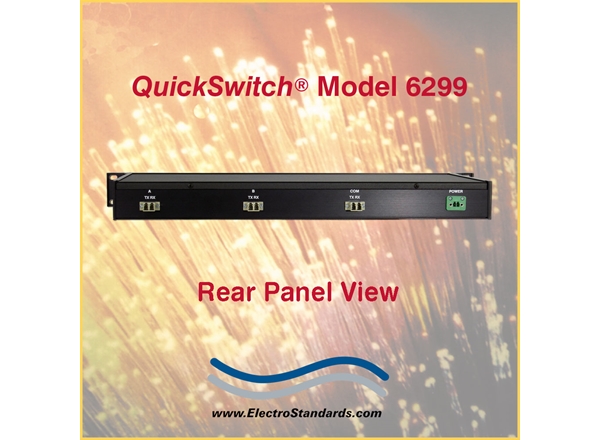

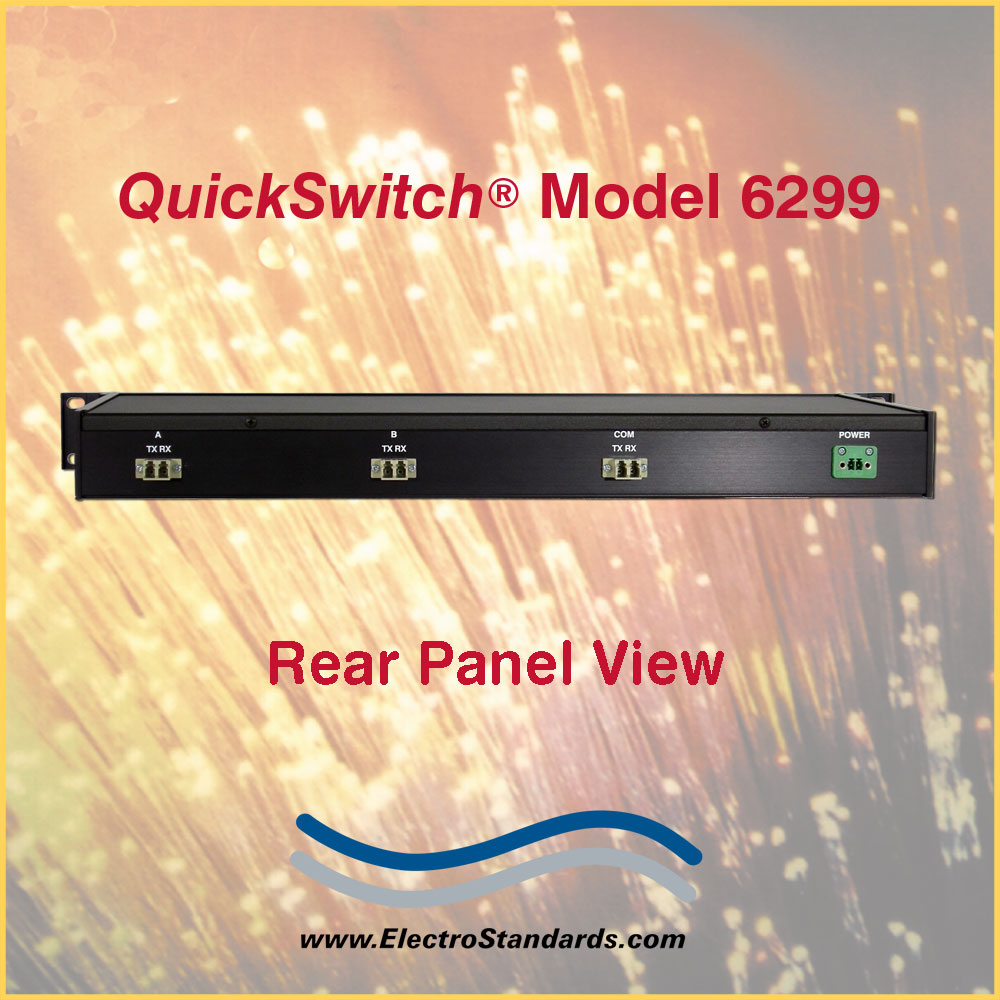

  • PORT CONNECTORS: (3) LC duplex female connectors labeled, A, B, and COMMON.
  • FIBER SIZE: 50/125, 850 nm.

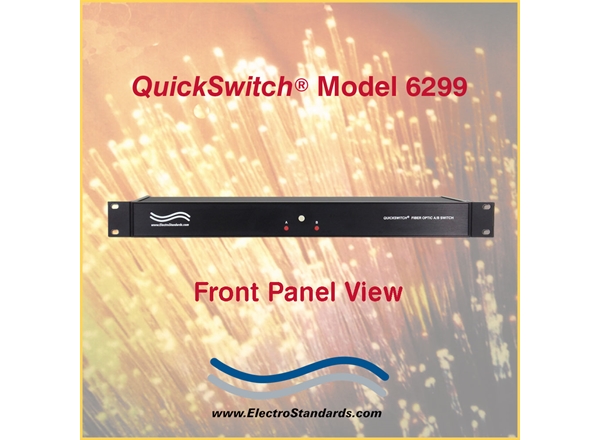

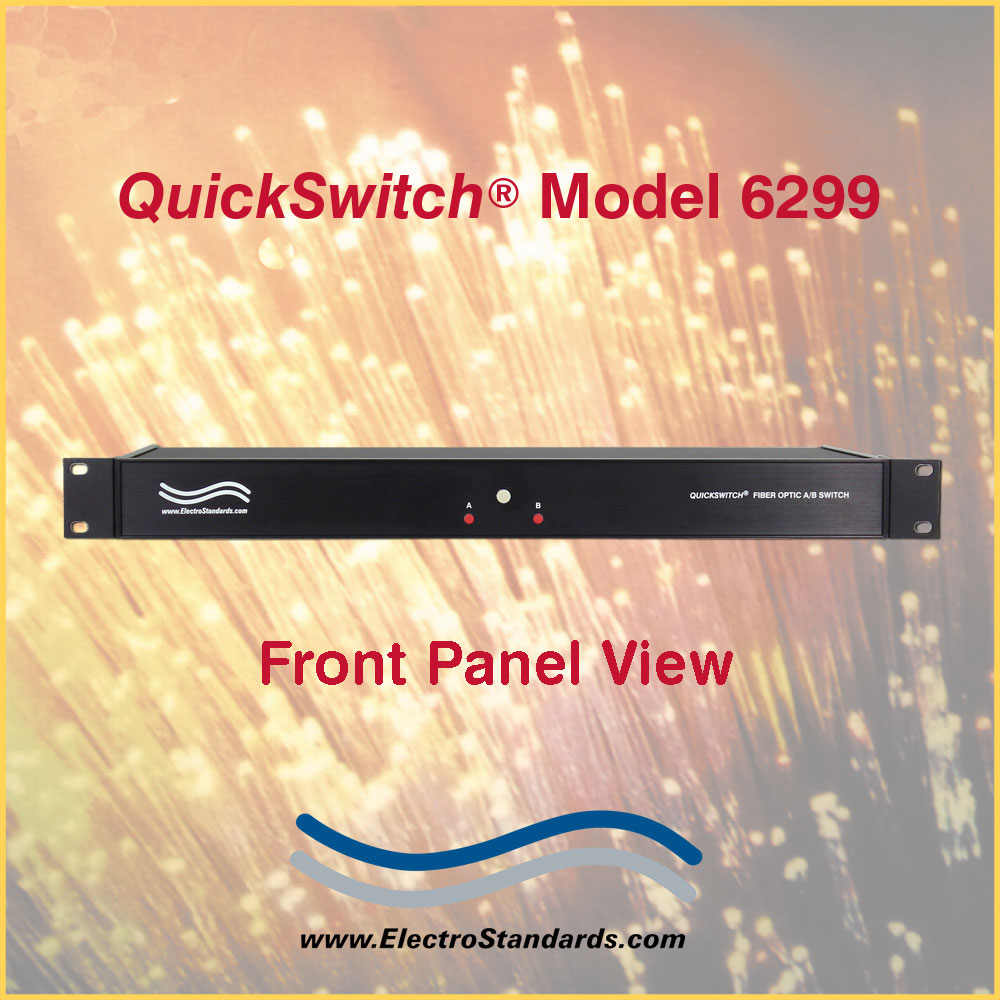

  • FRONT PANEL CONTROL: (1) Manual Pushbutton allows local switching. (No remote control)
  • DISPLAY: (2) Front-panel LEDs display switch position and power status.
  • POWER: "WIDE RANGE" CE, RoHS, and UL listed table mount power modules (Cat No 517277) 100VAC/240VAC, 50/60 Hz supplies 12VDC to the unit. Has IEC 30620 C14 inlet. Ideal for international applications.
  • DIMENSIONS: 19"W x 1.75"H x 8"D. (48.3 x 4.4 x 20.3)
  • WEIGHT: Approx. 4.0 lbs. (1.8 kg)

LOCALLY CONTROLLED FIBER OPTIC LC DUPLEX A/B APPLICATION:

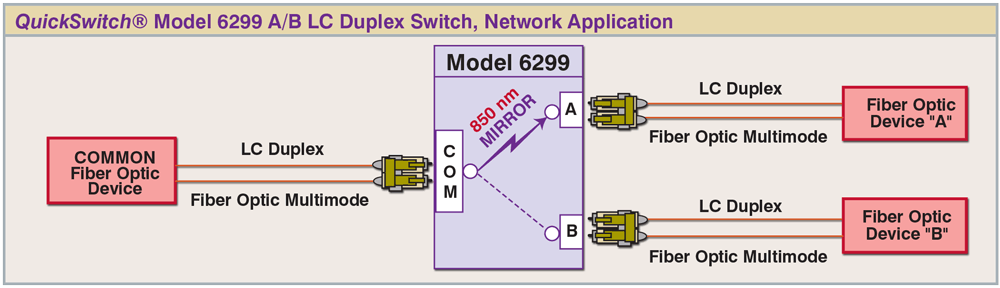

 The drawing illustrates a single channel Fiber optic AB Switch with no remote control.  A COMMON fiber optic device connected to the LC duplex COMMON port shares between two devices connected to the LC duplex ports A and B.  Local control of the fiber optic switch is achieved using the front-panel pushbutton.

QuickSwitch® 6299 LC Duplex A/B Switch

FEATURES:

  • Allows quick connection to any one of two LC fiber optic interface devices from one COMMON port.
  • The switch ports are transparent to all data.
  • All fiber optic signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • Switch reverts to "A" position on power loss and continues to pass data.
  • When power is restored, unit will stay in the "A" position until switched by the user.
  • Front panel pushbutton control.
  • Front panel LED's display present position and power status.
  • All A, B, and COM ports are LC, Multi-mode, 50/125 micron, and support a wavelength of 850nm.
  • MEMS-based mirror/prism switch technology supports Gigabit data rates.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Ideal for fallback applications.
  • Optical data throughput scalability.
  • Custom length, rigorously tested and certified, LC fiber optic cables available for your switch installation.

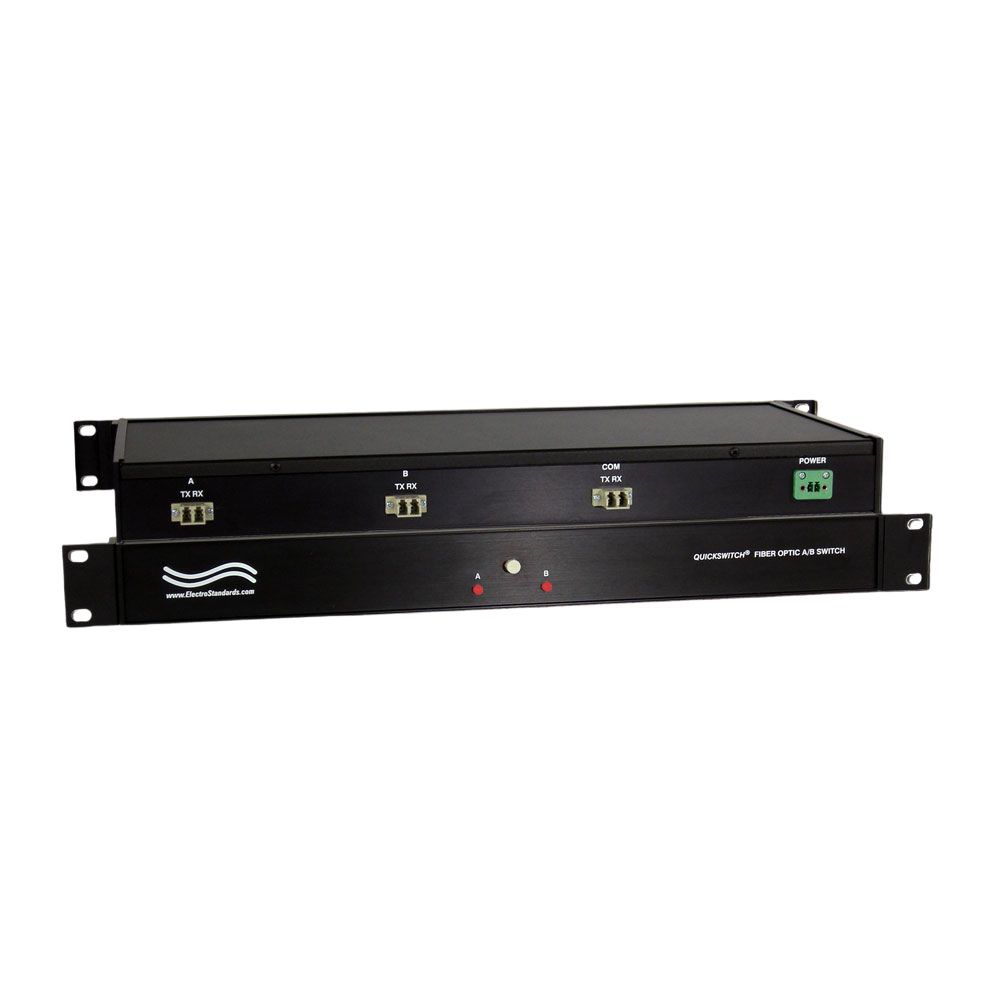

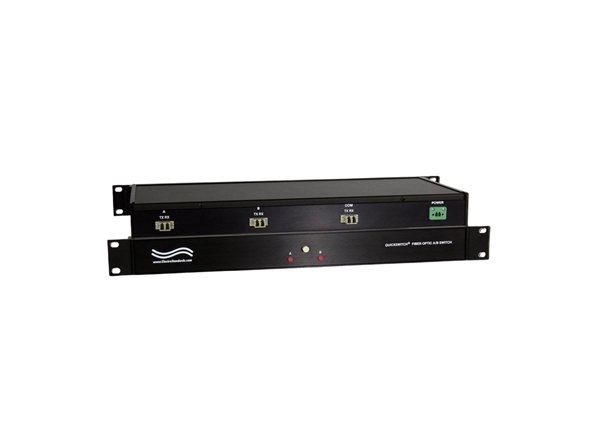

The QuickSwitch® Model 6299 Single Channel All Fiber Optic LC Duplex A/B Switch allows a device connected to the COM port to access devices connected to the A or B port.  The QuickSwitch® 6299 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.

The switch may be controlled locally by manually operating the front-panel pushbutton.  The front-panel LED display indicates the switch position and unit power status.

TO READ THE ARTICLE: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view the file.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.
