Catalog # 306314 - Model 6314 4-Channel Online/OffLine Fiber Switch

    4-Channel ST Simplex Online/OffLine Fiber Switch4-Channel ST Simplex Online/OffLine Fiber Switch4-Channel ST Simplex Online/OffLine Fiber Switch
Click image to enlarge
    • 4-Channel ST Simplex Online/OffLine Fiber Switch
    • 4-Channel ST Simplex Online/OffLine Fiber Switch
    • 4-Channel ST Simplex Online/OffLine Fiber Switch
Base Price:
$4,193.00
Catalog No: 306314
Model No: 6314
Product Type:Switches: Fiber Optic
Positions:2, Offline
Cable Type/Port Connector:ST
Channels per Switch Chassis:4
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Simultaneous Channel Control
Security:Offline Position
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Simplex
Mirror Technology:OO
Wavelength Nano:850 nm

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, ST Simplex
QuickSwitch® 6314 Quad Channel ST Simplex Online/Offline Switch

  • Quick Connect/Disconnect to/from four networks.

  • Fully decoupled OFFLINE capability.  The ultimate firewall!

SPECIFICATIONS:

  • PORT CONNECTORS:
    • (4) ST Simplex connectors, labeled IN, one for each channel.

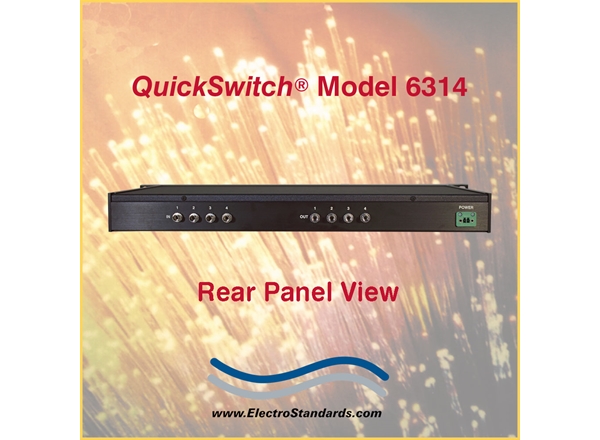

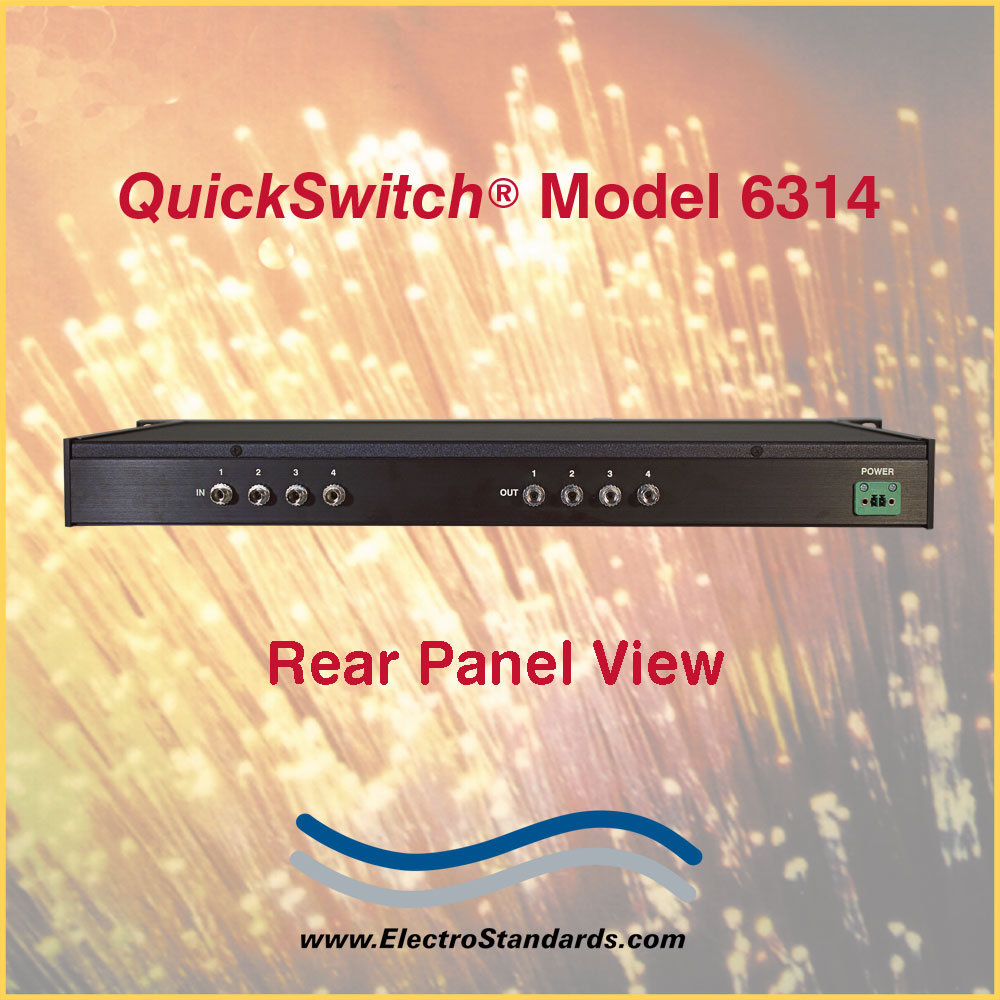

    • (4) ST Simplex connectors labeled OUT, one for each channel.
  • FIBER: 62.5/125 micron, 850 nm, multimode.
  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.

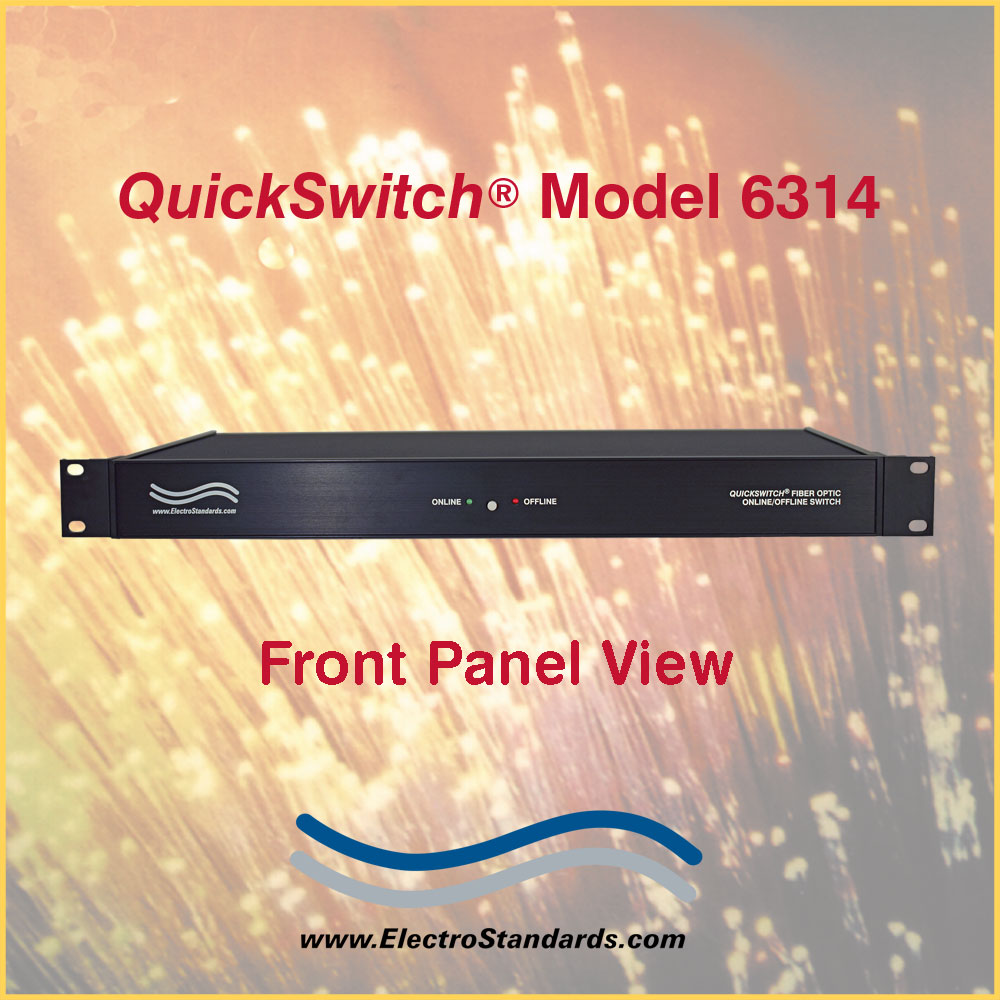

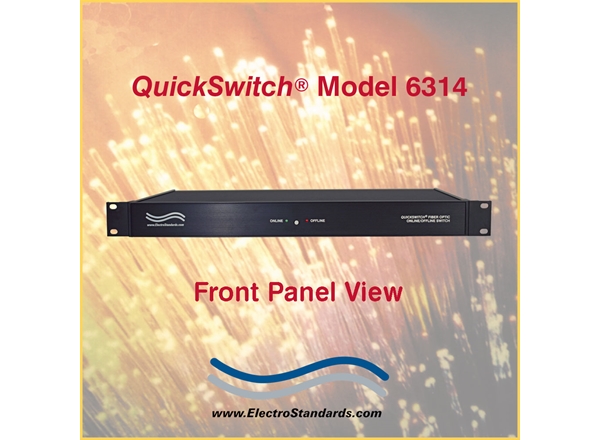

  • FRONT PANEL DISPLAY: On the front-panel, (1) Green LED (ONLINE) and (1) Red LED (OFFLINE) indicates switch position and power.
  • NO REMOTE CONTROL
  • POWER: UL Approved 100VAC-240VAC, 50 Hz-60 Hz wall mount power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 10.6" D (48.3 x 4.4 x 27.0 cm)
  • WEIGHT: Approximately 5.4 lbs. (2.5 kg)

QuickSwitch® 6314 Quad Channel ST Simplex ONLINE/OFFLINE Application:

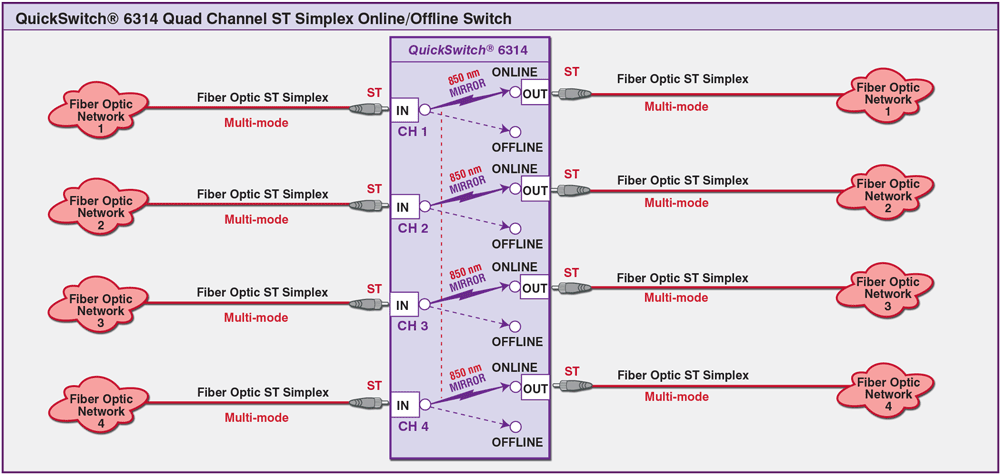

The drawing illustrates four channels of ST Simplex ONLINE/OFFLINE switching.  Each channel has a Fiber Optic Network connected to the IN port and a Fiber Optic Network connected to the OUT port. The ONLINE position CONNECTS the Fiber Optic Networks connected to the IN ports and the OUT ports for all four channels. The OFFLINE position DISCONNECTS the Fiber Optic Networks connected to the IN ports from the OUT ports for all four channels.

QuickSwitch® 6314 Quad Channel ST Simplex Online/Offline Switch Application

 FEATURES:

  • Each channel allows quick connection or disconnection between four fiber optic networks or devices.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and supports Gigabit data rates.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power restore, the unit will remain in the position it was in at power down.
  • Simultaneous control of all channels.
  • Front panel pushbutton control.
  • No Remote Control.
  • Front panel LED's display present position and power status.
  • All A, B, and COM ports are ST Simplex, Multi-mode, 62.5/125 micron and support a wavelength of 850nm.
  • Optical scalability throughput.
  • Eliminates need to plug/unplug fiber optic patchcords.
  • Custom length, rigorously tested and certified, ST Simplex fiber optic cables available for your switch installation.

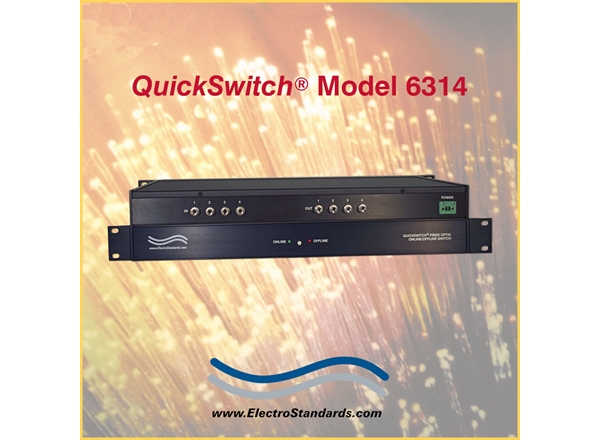

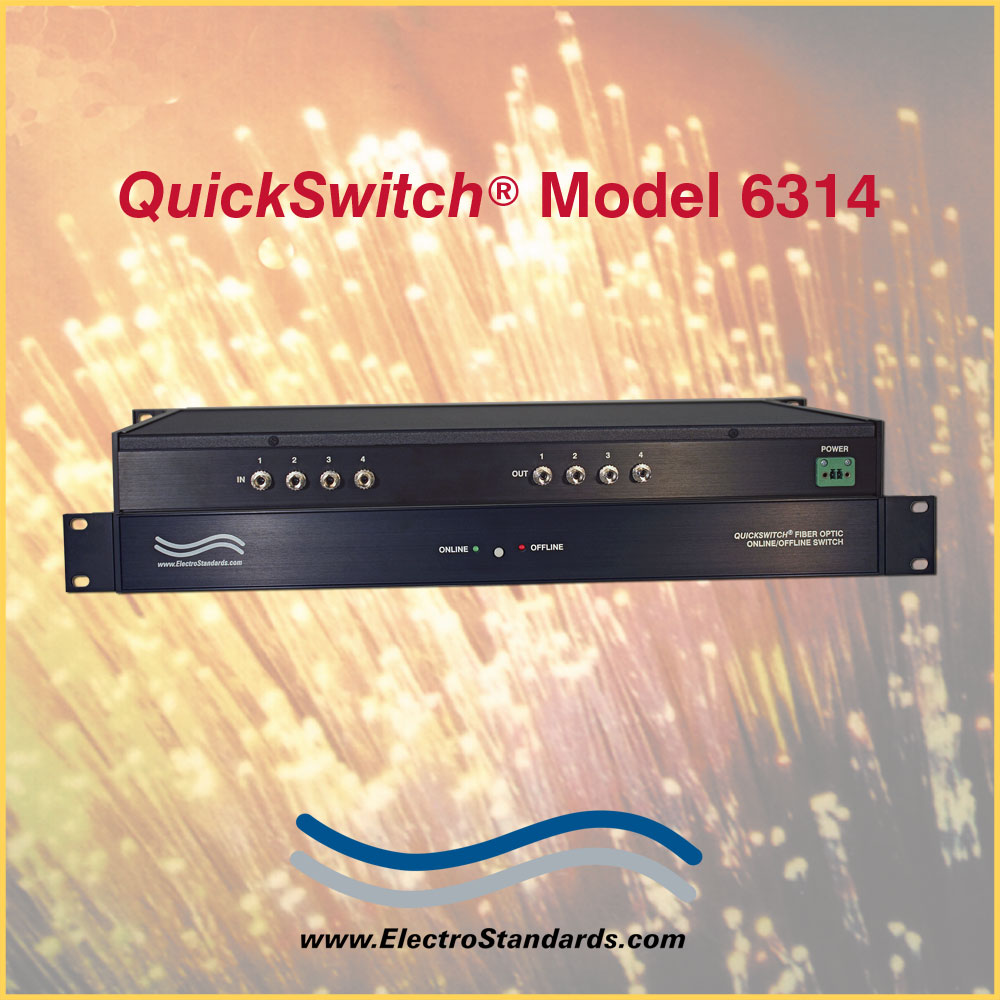

The QuickSwitch® 6314 Quad Channel ST Simplex Online/Offline Switch allows the user the capability of connecting or disconnecting four separate devices, ports IN and OUT, via an Online or Offline connection for each channel.  The QuickSwitch® 6314 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.

The switch may be controlled manually via the front panel only.  Switch position state may be attained via the front panel LED's.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

TO READ THE ARTICLE EITHER CLICK THE LINK: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view the file.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
