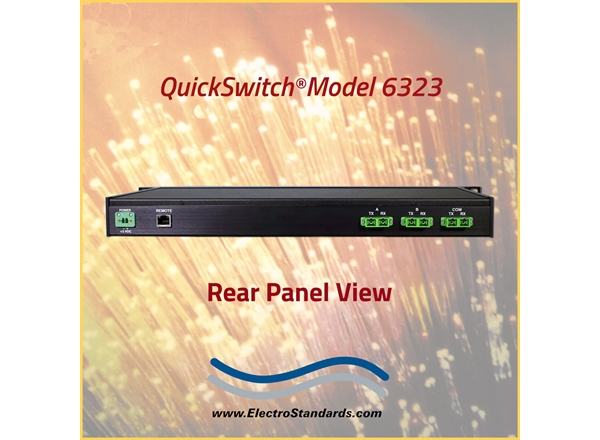

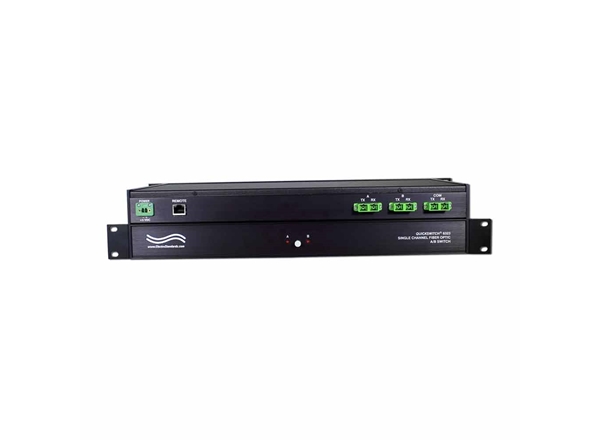

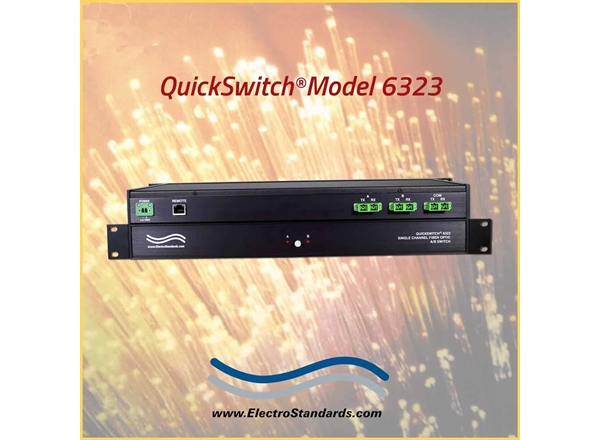

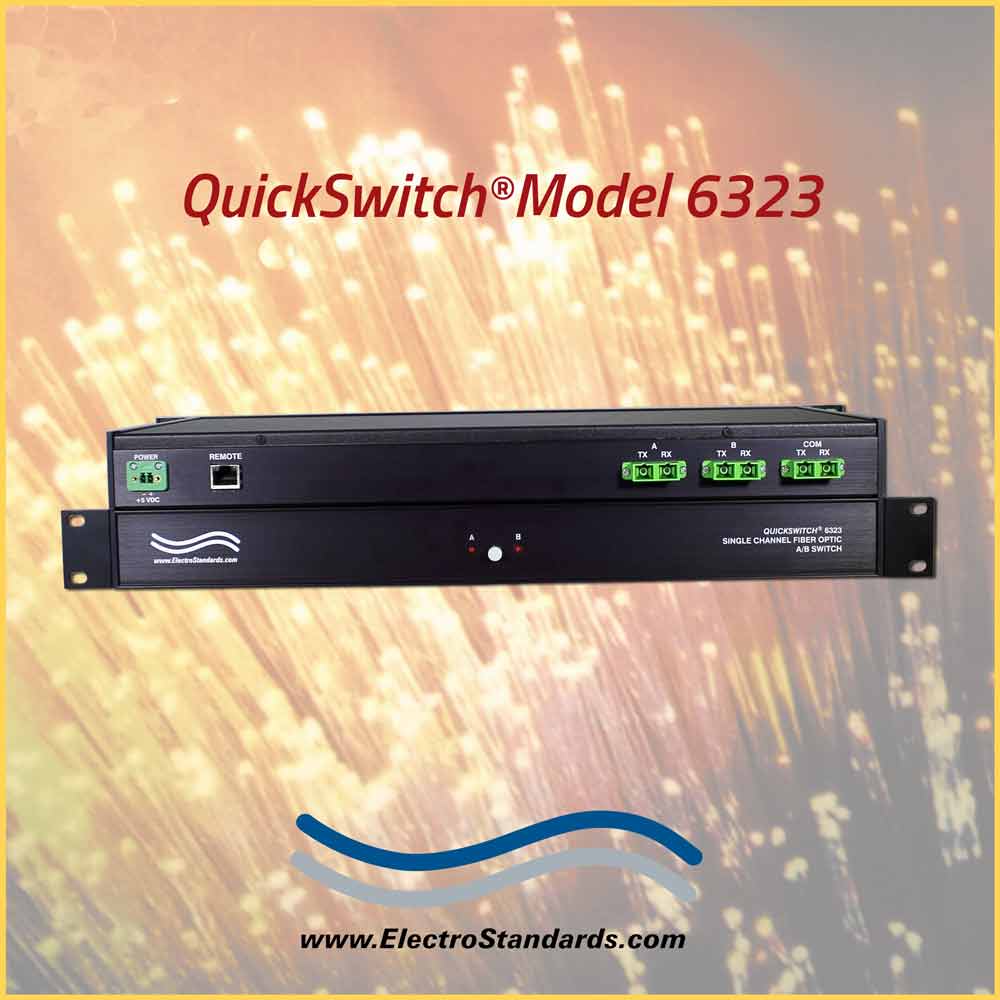

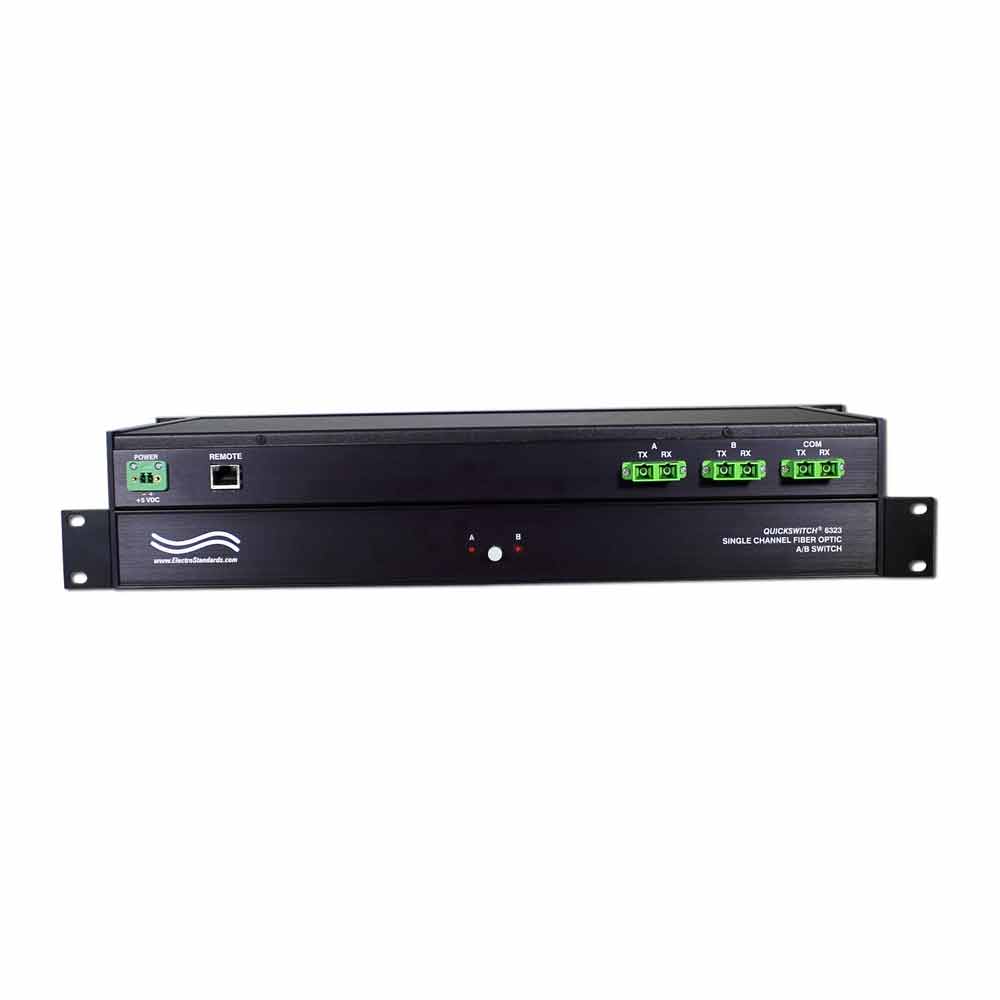

**SIGNAL POWER AUTO FALLBACK FIBER OPTIC SWITCH** Catalog # 306323 - Model 6323 SC/APC Duplex,Telnet & GUI

    SC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUISC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUISC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUISC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUI
Click image to enlarge
    • SC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUI
    • SC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUI
    • SC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUI
    • SC/APC Duplex A/B Fiber Switch, Auto Fallback  w/Telnet & GUI
Base Price:
$5,224.00
Catalog No: 306323
Model No: 6323
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Auto Fallback, Ethernet
Configuration:Rackmount
Auto Fallback:Port A RX for incoming light, Signal Power Threshold
Fiber Mode:Single Mode
Fiber Size:9/125
Fiber Type:Duplex
Remote Port:RJ45
Local Control:Pushbutton
Mirror Technology:OO
Speed:Gigabit data rates
Wavelength Nano:1260 - 1620

Add to Cart
  • Auto Fallback based on Fiber Signal Power Strength
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® 6323 SC/APC Duplex Signal Power Auto Fallback Fiber Optic A/B Switch with Telnet and GUI

  • Three Switch Modes: Manual / GUI Remote Ethernet / Auto Fallback - Signal Power Threshold

  • Auto Fallback based on Fiber Signal Power Strength.

QuickSwitch® 6323 Specifications:

  • FIBER SIZE & WAVELENGTH: 9/125 micron, 1260 - 1620 nm.
  • PORT CONNECTORS: (3) SC/APC Duplex connectors labeled A, B and COMMON.
  • CONTROL: (1) Pushbutton allows selection of switch position.
  • DISPLAY: (2) Red LED's display switch position and power status.
  • REMOTE PORT: (1) RJ45 (F) connector accepts 10/100 BASE-T LAN Ethernet that uses both TELNET commands and a GUI interface for Remote Control operation.
  • POWER: (Cat. No. 521091) RoHS, UL/CE listed and LPS approved 100VAC-240VAC, 50hz-60Hz power module supplies 5VDC, 4.0A to the unit. Wide Range Power Module with IEC-320-C14 receptacle and supplied power cord.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H X 10.97" D. (48.3 x 4.4 x 27.9 cm)
  • WEIGHT: Approximately 4.9 lbs. (2.3 kg)

SC/APC Duplex Signal Power Auto Fallback Fiber Optic A/B Switch with Telnet and GUI:

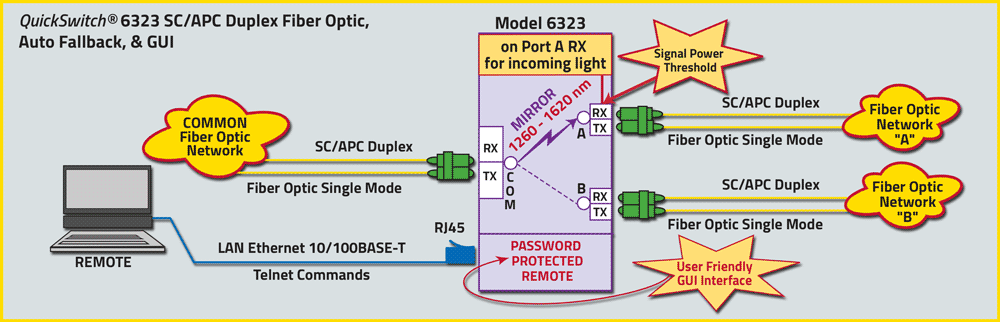

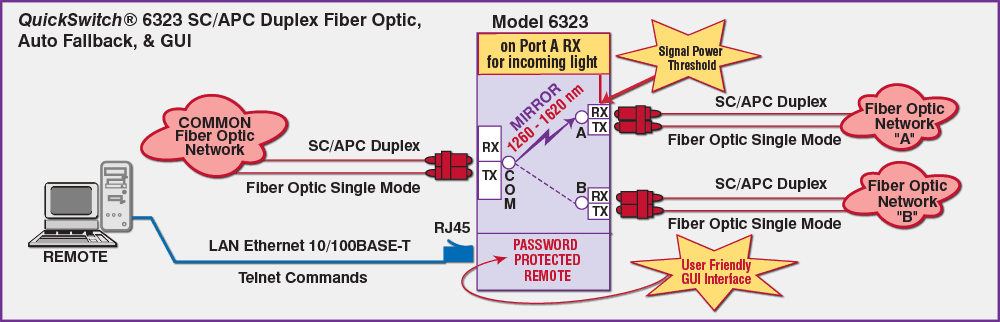

The diagram illustrates COMMON Fiber Optic Network connected to the SC/APC Duplex COM port with access to Fiber optic Network A and Fiber Optic Network B connected to SC/APC Duplex A and B ports, respectively. The Auto Fallback is based on Signal Power Threshold of Port A RX for incoming light. The RJ45 Remote port can be used to control the switch remotely via the 10/100 Base-T Ethernet port via TELNET commands or the GUI Remote.

QuickSwitch® 6323 SC/APC Duplex Fiber Optic Application

  Model 6323 QuickSwitch® Fiber Optic Switch Features:

  • Access any one of two SC/APC Duplex Fiber Optic networks from one computer.
  • The switch ports are transparent to all data.
  • Automatic Switching based on Signal Power Threshold of Port A RX for incoming light.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • Switch maintains last set position on power loss and continues to pass data.
  • Front-panel pushbutton control.
  • Control of switch position from a 10/100 Base-T LAN Ethernet environment. IP Addressable!
  • Remote Control Telnet Command interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations, operating mode, obtain switch status, as well as, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Remote control of the switch is password protected, the password can be changed, as well as disabled.
  • Front panel Led’s display present position and power status.
  • All A, B, and COM ports are SC/APC Duplex, Single Mode, 9/125 micron, and support a wavelength of 1260-1620nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.

The QuickSwitch® 6323 Single Channel SC/APC Duplex A/B Switch, Automatic Fallback with Telnet and GUI allows the user the capability of sharing a single port SC/APC Duplex interface device, connected to the COMMON port, among two other devices, connected to the A and B ports.  The QuickSwitch® 6323 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.

Remote access can be accomplished using an Ethernet 10/100Base-T connection with either a Telnet or GUI Session.

Auto Switch Model operation permits the switch to manage the channel connection. When signal power drops on Channel A, the unit automatically switches to backup/Channel B position.

UTILIZING THE USER-FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the QuickSwitch® 6323 LAN port is connected to simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

QuickSwitch® 6323 Main panel in browser

Figure 1: GUI in a Standard Browser

Finding the IP Address of the Switch

After installing DeviceInstaller and opening it, the software will automatically search for devices on the network.  Once found, the devices will be listed in the right pane (see Figure 2).  Match the MAC address on the rear of the unit to the MAC address (“Hardware Address”) shown in DeviceInstaller to correctly identify the desired unit and find the associated IP address.

Lantronix Device Installer

Figure 2: Finding the IP address in the DeviceInstaller

SOFTWARE FEATURES:

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the QuickSwitch® 6323.
  • Remote control of the switch is password protected, where password protection can be disabled.
  • Users can change the switch’s IP address.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

LOGGING into the Remote Control GUI

  • Once logged in, the user can perform one of several actions:
  • Select one of three switch modes.
  • Change the switch position.
  • Lockout control of the switch’s front panel
  • Obtain switch status.
  • Change the login password or disable password.
  • Re-configure the switch’s IP address,

QuickSwitch® 6323 Main panel in browser

Figure 3: Logging into the GUI

CHANGING POSITION, LOCK STATUS & MODE

To change the switch position, click on the radio button “A” or “B” as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the “Locked” or “Unlocked” radio buttons. To change switch mode, select one of three modes of operation.



Figure 4: Change position, select mode & lockout from the GUI

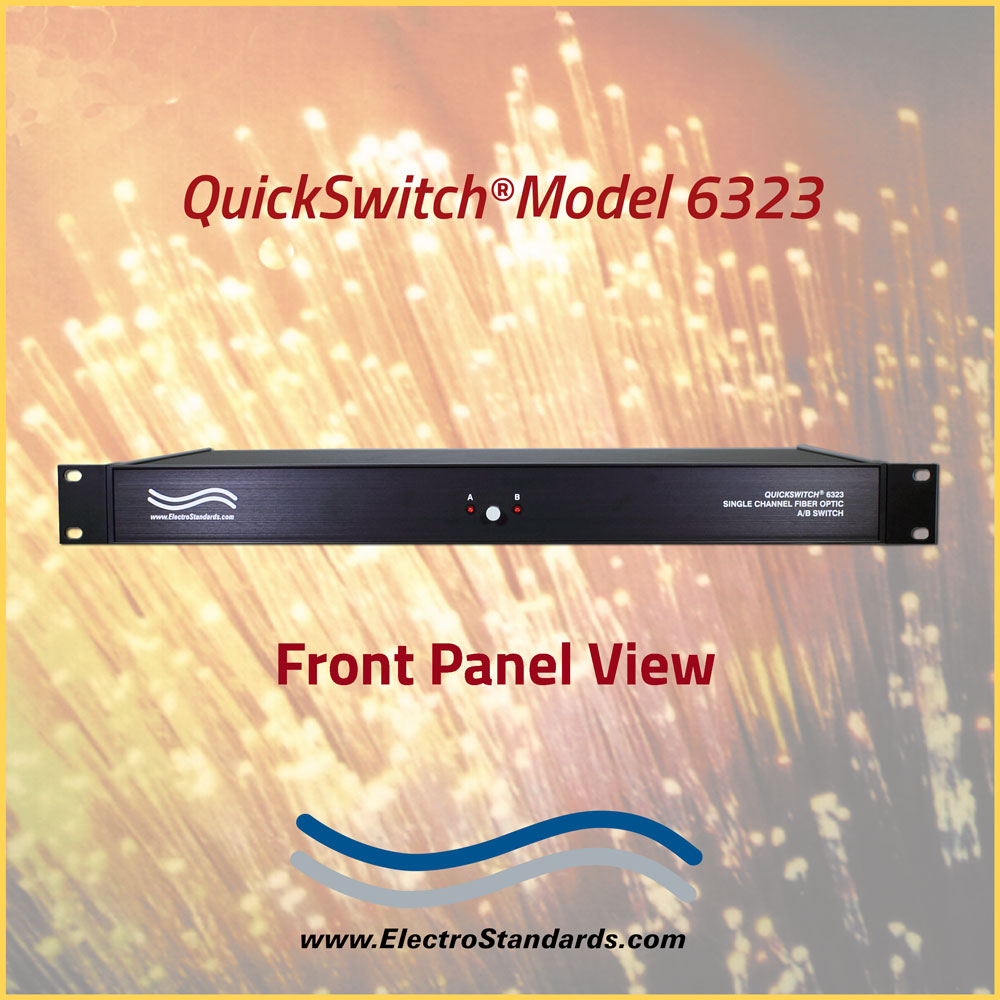

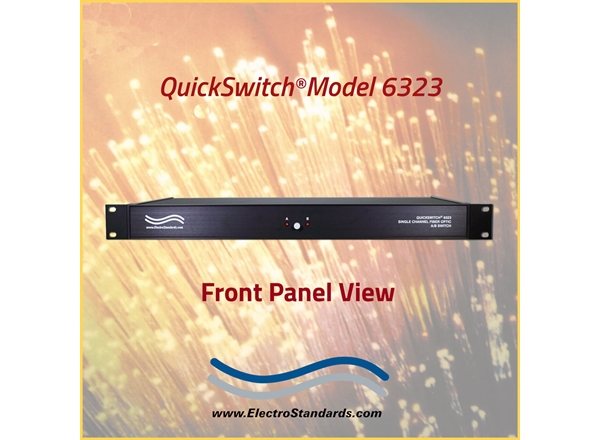

The switch may be controlled locally by manually operating the front-panel pushbutton.  The front-panel LED display indicates the switch position and unit power status.

TO READ THE ARTICLE: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view the file.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
