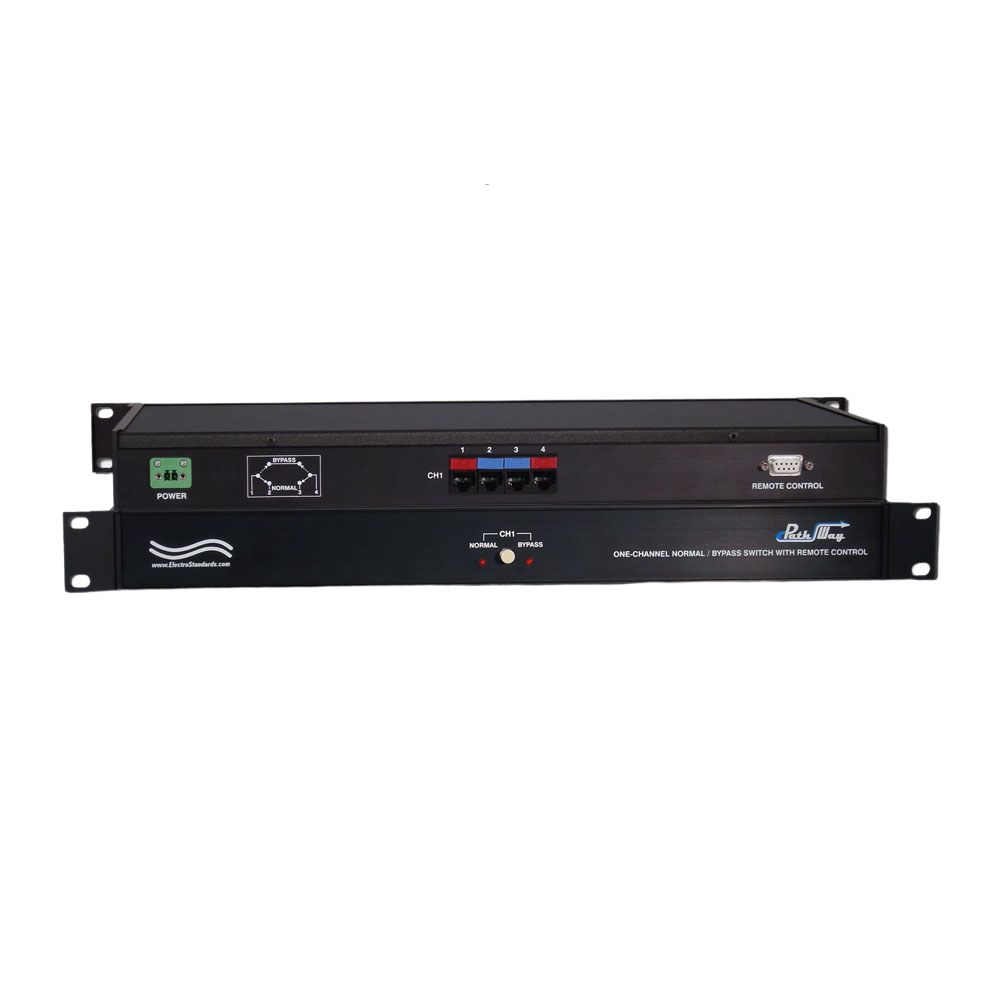

Catalog # 307141 - Model 7141 1-Channel RJ48 Normal/Bypass Switch

    1-Channel RJ48 Normal/Bypass Swi1-Channel RJ48 Normal/Bypass Swi1-Channel RJ48 Normal/Bypass Swi1-Channel RJ48 Normal/Bypass Swi
Click image to enlarge
    • 1-Channel RJ48 Normal/Bypass Swi
    • 1-Channel RJ48 Normal/Bypass Swi
    • 1-Channel RJ48 Normal/Bypass Swi
    • 1-Channel RJ48 Normal/Bypass Swi
Base Price:
$2,039.00
Catalog No: 307141
Model No: 7141
Product Type:Switches: Copper
Interface:E1
Positions:2, Bypass
Cable Type/Port Connector:RJ48
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Feature:Automatic Bypass Mode

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, E1 Interface
Model 7141 One-Channel Normal/Bypass Switch, E1 Interface with Remote Control

  • Allows New Equipment to be Added-To or Bypassed From E1 Data Links.

  • Ideal for inserting or removing devices that are concatenated, linked together in a chain or series.

SPECIFICATIONS:

  • PORT CONNECTORS: (4) RJ48 female connectors (Four connectors labeled 1, 2, 3, 4, for each of the three channels).
  • FRONT PANEL CONTROLS: (1) Manual pushbuttons allow local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: "Wide Range" CE, RoHS, and UL listed table mount power module (Cat No. 517277) 100VAC/240VAC, 50Hz/60Hz. Has IEC 60320 C14 inlet.  Ideal for international applications.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 8.2" D. (48.3 x.4.5 x 21.9 cm)
  • WEIGHT: Approximately 4.5 lbs (2.0 kg)
  • NORMAL/BYPASS E1 INTERFACE APPLICATION:  Allows New Equipment to be Added-To or Bypassed From E1 Data Links along with an ASCII RS232 DB9 Remote Control.
  • Typical Model 7141 Normal/Bypass Switch Function for One Channel.

NORMAL/BYPASS E1 INTERFACE APPLICATION:  Allows New Equipment to be Added-To or Bypassed From E1 Data Links along with an ASCII RS232 DB9 Remote Control.

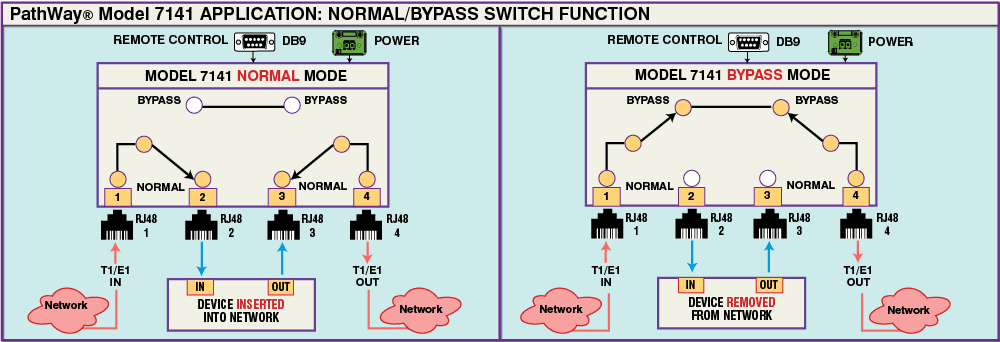

The application drawing shows a device inserted into the network and a device removed from the network. It also shows the DB9 Remote port for ASCII RS232 commands for Remote Control Operation.

PathWay® Model 7141 Normal/Bypass application

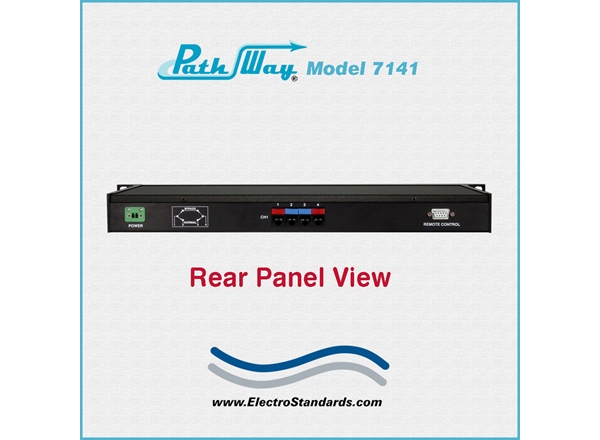

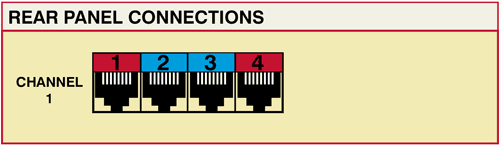

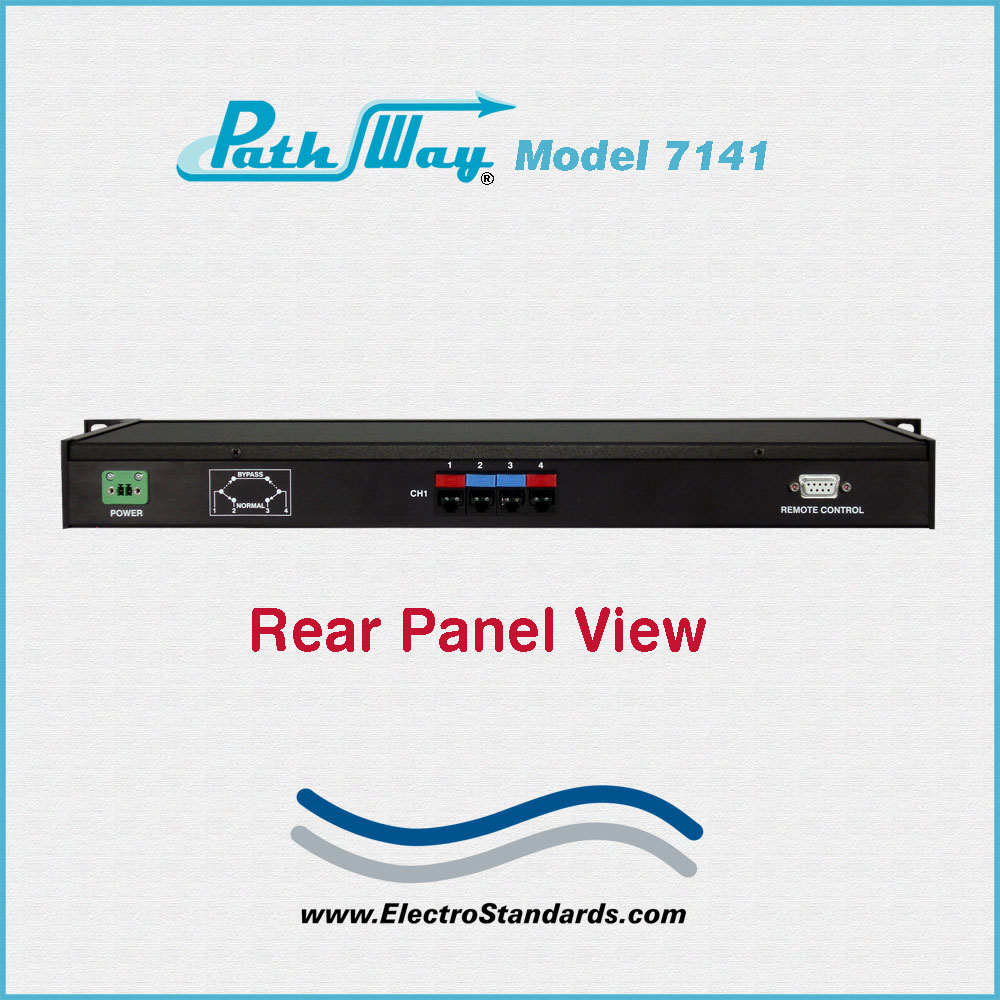

NORMAL/BYPASS E1 TYPICAL REAR PANEL CONNECTIONS: The drawing illustrates one channel of the One-Channel Model 7141. The typical channel has four RJ45 connectors labeled 1, 2, 3 and 4 on the rear panel of the unit.

Model 7141 Rear Panel RJ48/RJ45 ports

FEATURES:

  • Model 7141 is a 1-Channel unit.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ48/RJ45 interface are switched via break-before-make electromechanical relays.
  • Normal Position connects 1 to 2, and connects 4 to 3, thereby inserting concatenated device into the network.
  • Bypass Position connects 1 to 4, isolates 2 and 3, thereby removing concatenated device from the network.
  • Simultaneous control of channels.
  • Independent control of channels.
  • When power is lost, unit reverts to the Bypass position.
  • In Manual mode, when power is restored, the unit stays in Bypass position.
  • In Auto mode, when power is restored, the unit will automatically switch to the Normal position if signal is present on Ports 2 and 3 of a given channel.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number and enable/disable autosend of switch positions.
  • Remote RS232 commands that also allow Set Filter Default value, unlock/lock designated channel, Auto Mode, Manual Mode, and gang commands.
  • A 6-Channel unit is also available (Model 7146, Cat 307146).
  • A 1-Channel unit is also available (Model 7143, Cat 307143).

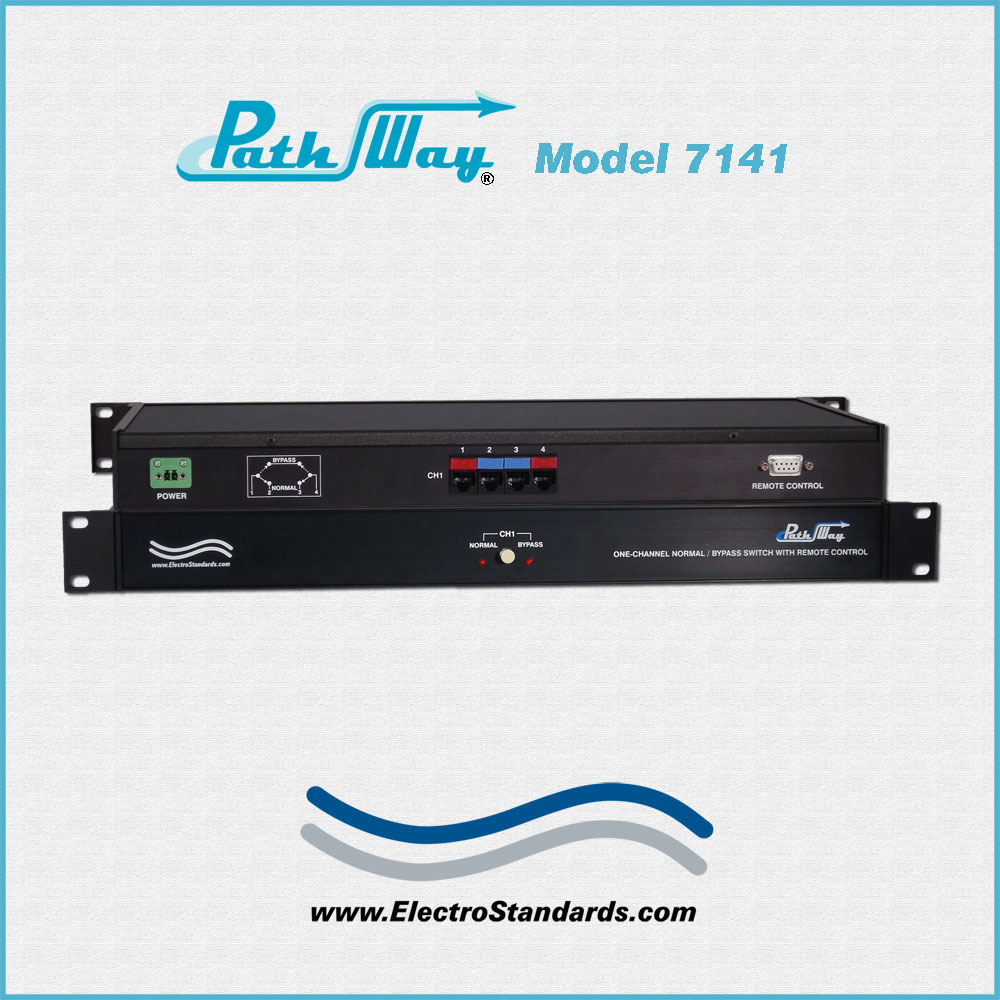

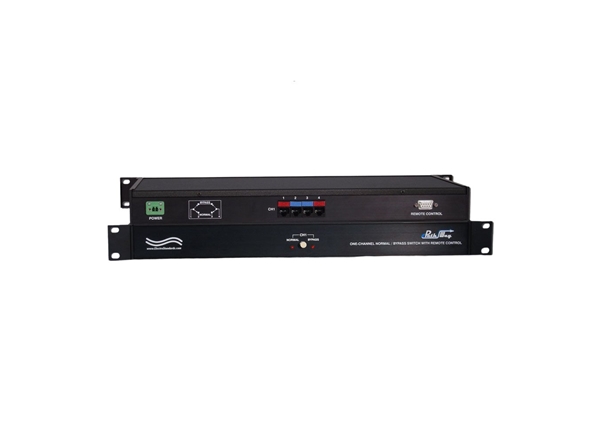

The PathWay® 7141 One-Channel RJ48/RJ45 Normal/Bypass Switch supports connection into a network (NORMAL) or disconnection from a network (BYPASS) of an “in-series” type device or terminal. The Model 7141 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

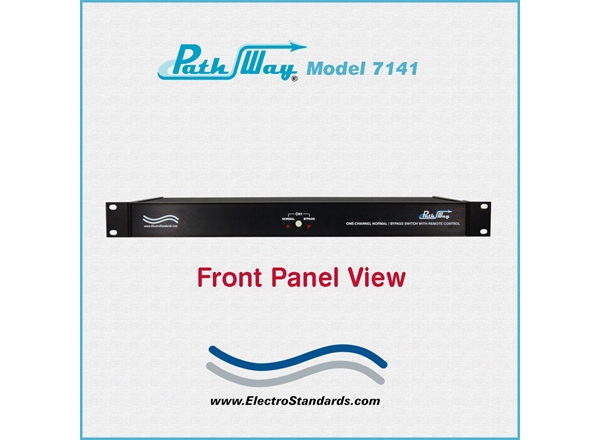

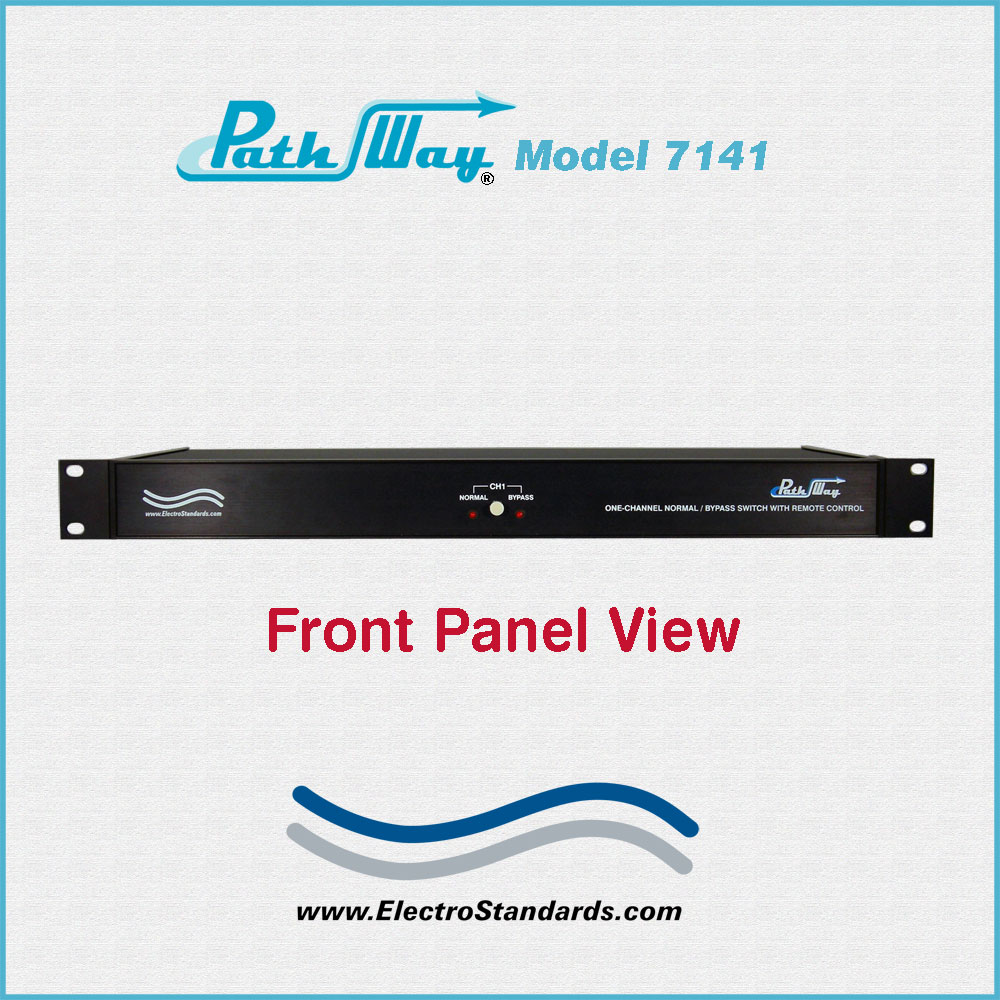

The switch may be controlled locally by manually operating the front panel pushbuttons, or remotely from the DB9 Serial Remote port located on the rear panel.  The front panel LED display indicates if the switch is in Normal or Bypass Mode.

Each channel monitors data activity of port “2” and port “3”. The Model 7141 can be set to different modes of operation to respond to data presence and data failure.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7141 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
