Catalog # 307199 - Model 7199 4-Channel BNC A/B Switch with RS485 Remote

    4-Channel BNC A/B Switch with RS485 Remote4-Channel BNC A/B Switch with RS485 Remote4-Channel BNC A/B Switch with RS485 Remote4-Channel BNC A/B Switch with RS485 Remote
Click image to enlarge

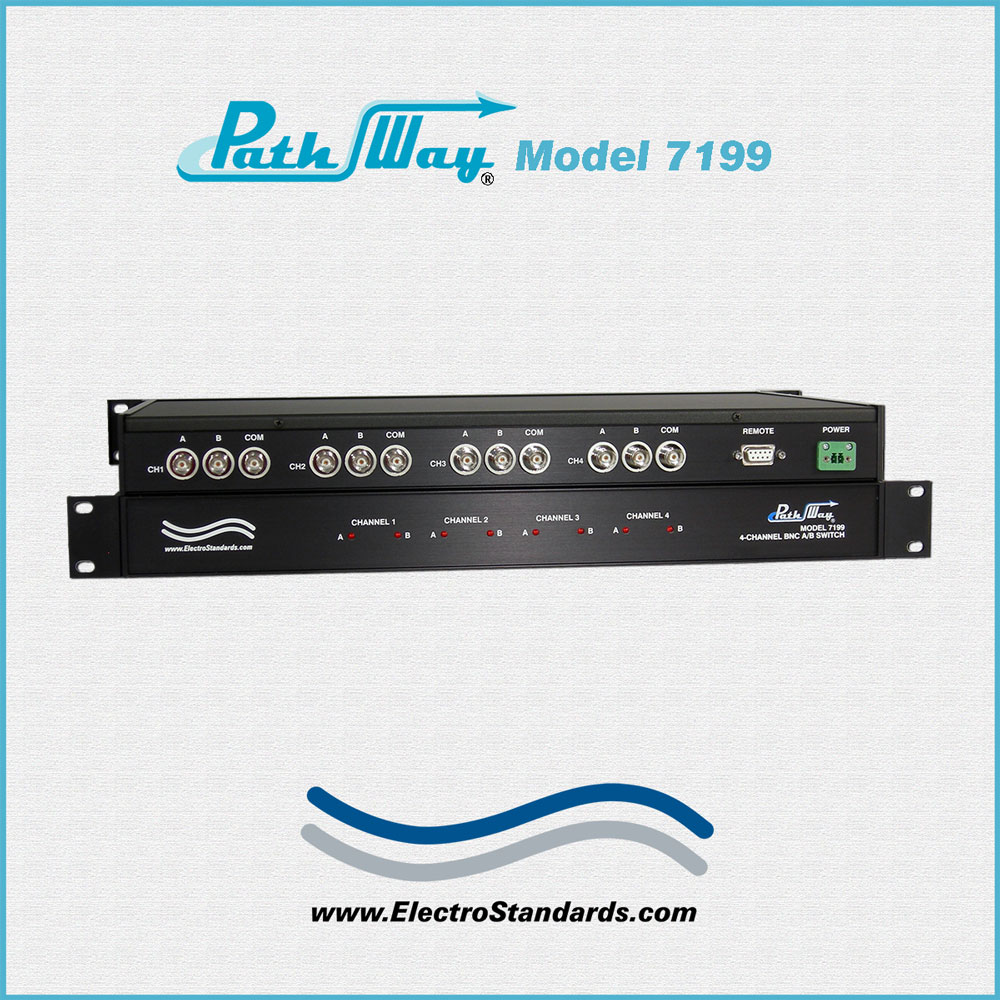

    • 4-Channel BNC A/B Switch with RS485 Remote
    • 4-Channel BNC A/B Switch with RS485 Remote
    • 4-Channel BNC A/B Switch with RS485 Remote
    • 4-Channel BNC A/B Switch with RS485 Remote
Base Price:
$1,698.00
Catalog No: 307199
Model No: 7199
Product Type:Switches: Copper
Positions:2
Switch Application:Audio/Video Switching
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:4
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control, Independent Channel Control
Remote Control:RS422/485 Serial
Security:Exclusive Remote Control
Configuration:Rackmount
Pins Switched:Center Pin Only
Remote Port:DB9
Local Control:None
Feature:No Front Panel Control, RS485 Remote
Protocol:ASCII

Add to Cart
  • No front panel pushbutton control.
  • Remote port designed for RS485 multi-drop applications.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, BNC
Model 7199 4-Channel BNC A/B Switch with RS485 Remote

  • Great for Audio, Video Remote Switch Applications!

SPECIFICATIONS:

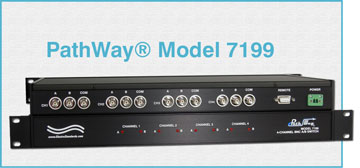

  • PORT CONNECTORS: (3) BNC (F) connectors labeled A, B, and COMMON for each channel.

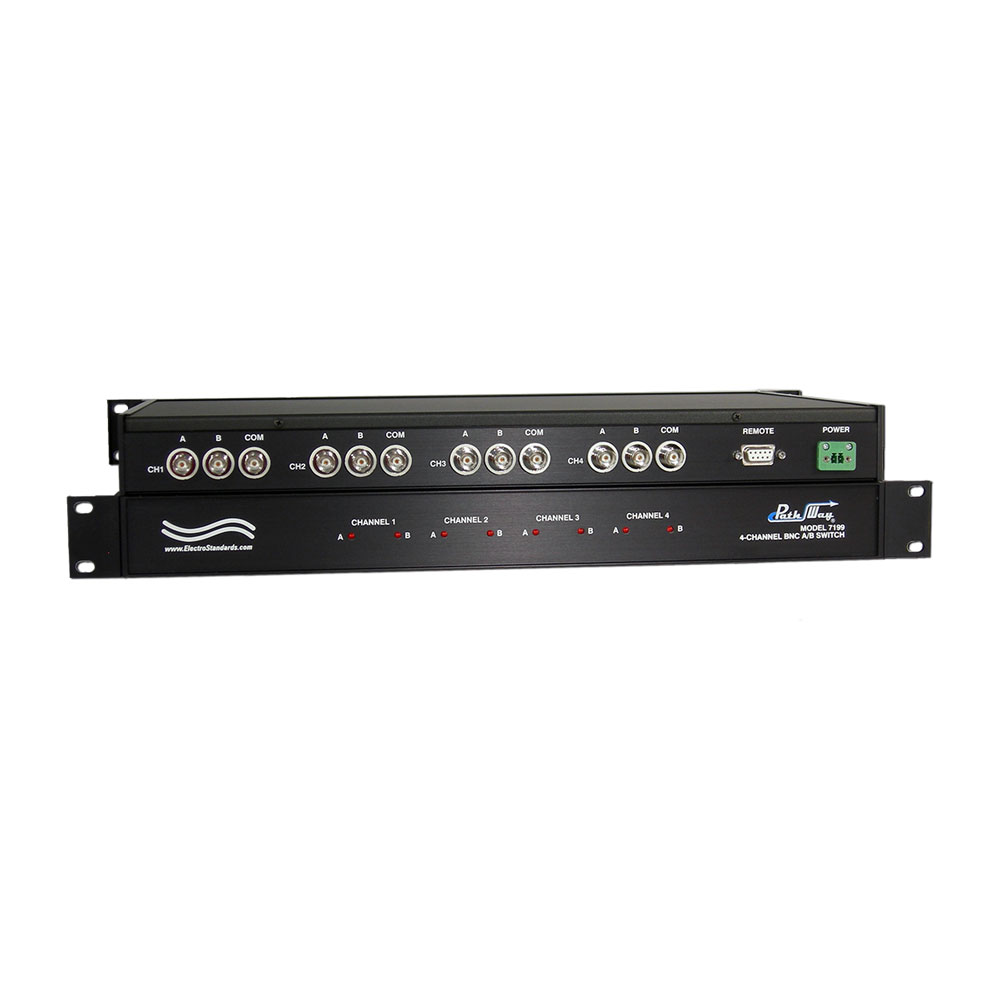

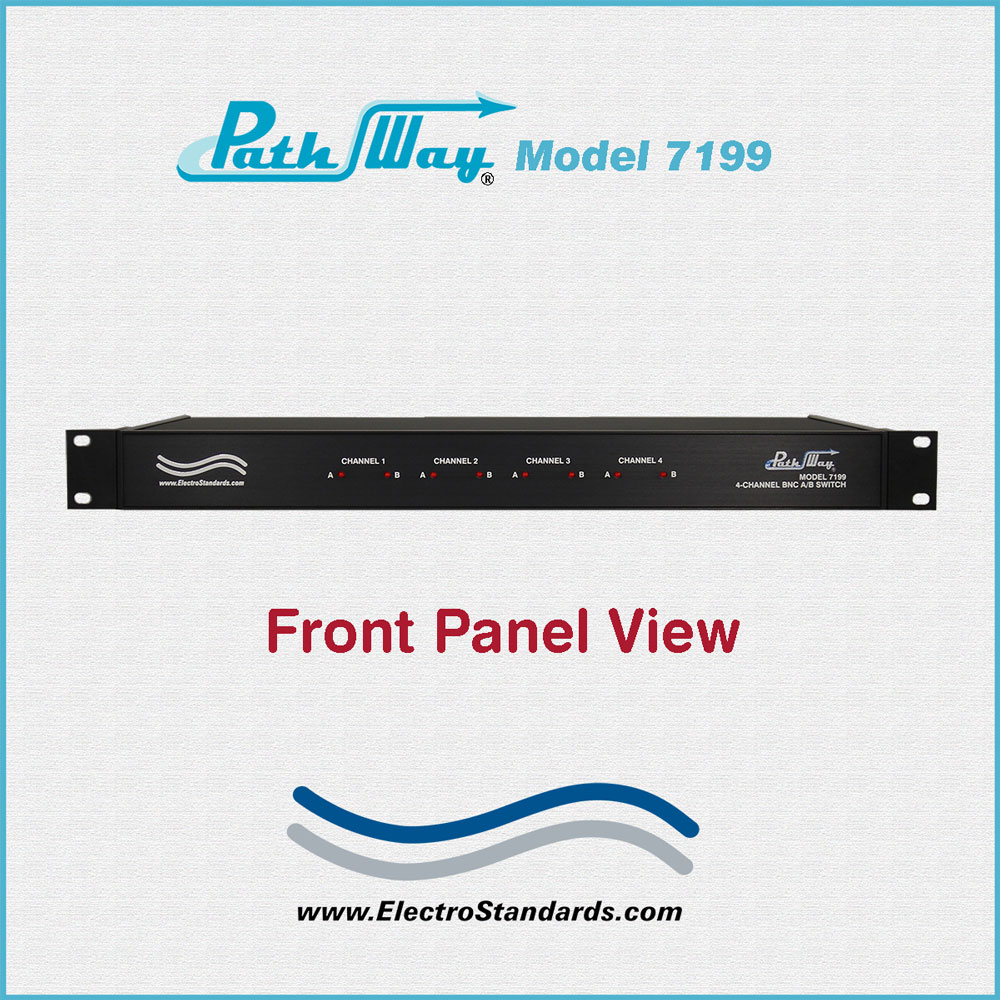

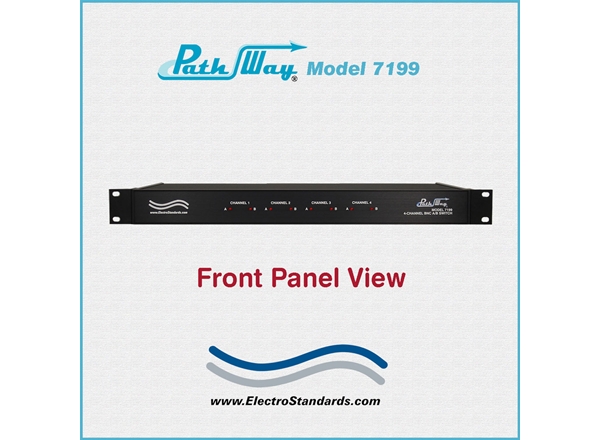

  • DISPLAY: (8) Front panel LED's display switch position and power status.

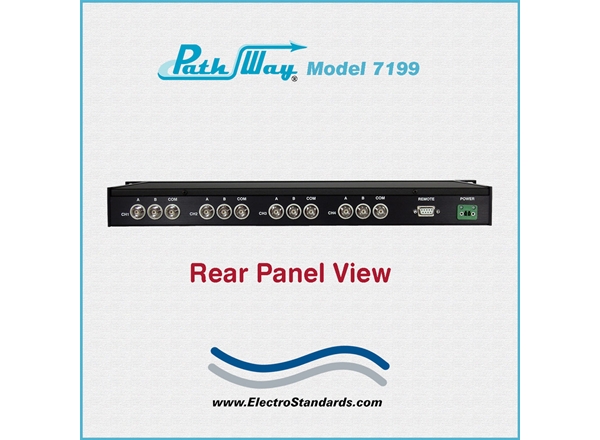

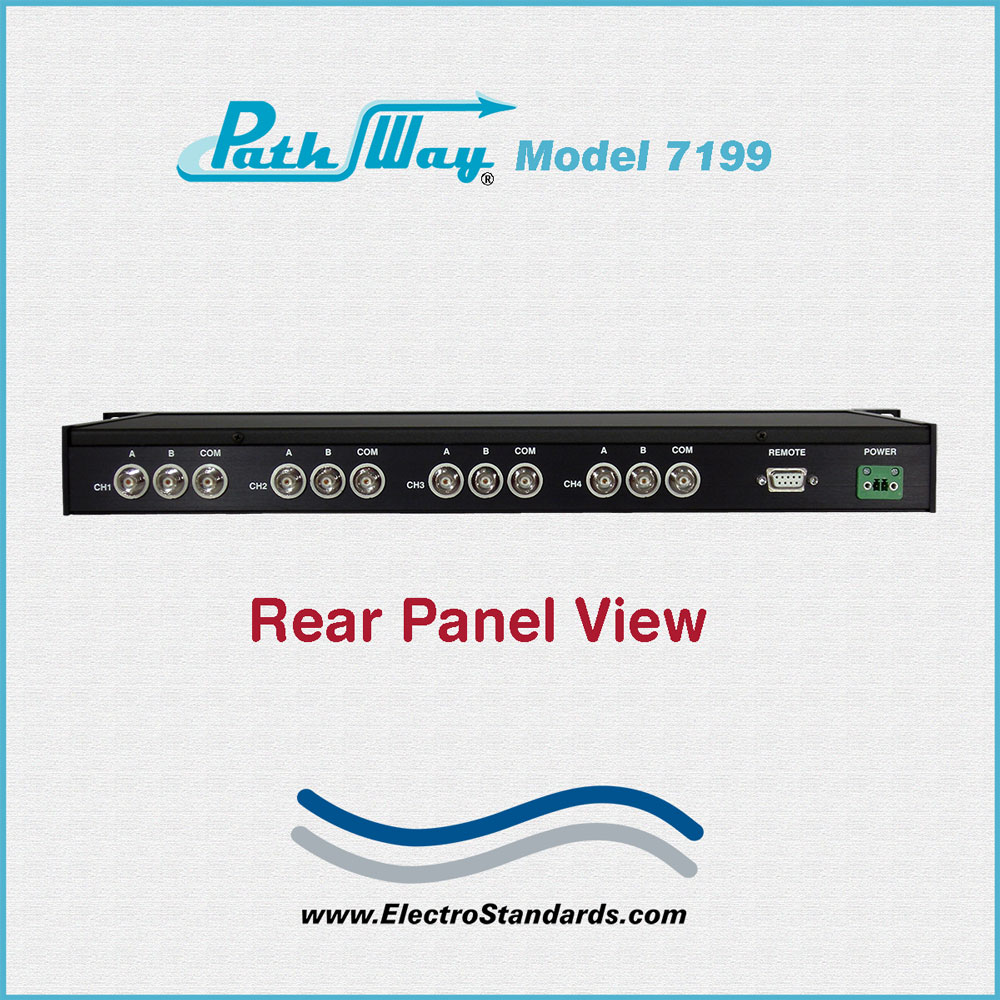

  • REMOTE: (1) DB9 female connector on rear panel accepts RS485 ASCII commands for Remote Control Operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60 Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount 19.0" W x 1.75" H x 10.75" D, (48.3 x 4.4 x 27.4 cm), (1U rack height).
  • WEIGHT:  Approximately 5.6 lbs. (2.6 kg)

PathWay® Model 7199 4-Channel BNC A/B Switch with Remote Port RS485 Multidrop Applications:

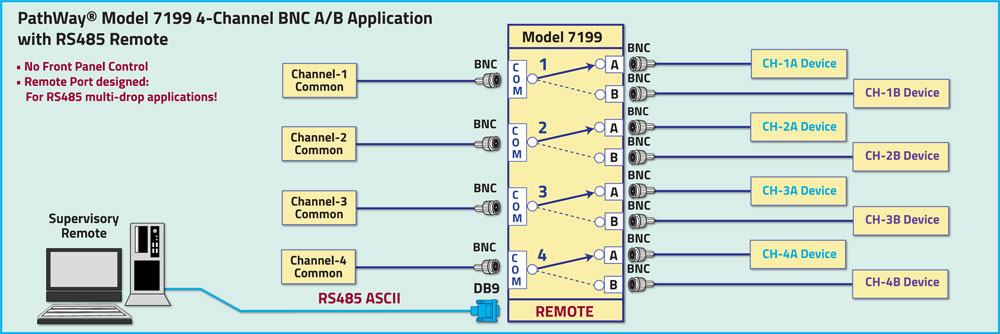

The drawing illustrates four BNC interface independent switching channels. Each channel has one device connected to its COMMON port sharing between two devices connected to the BNC ports A and B. Each channel can be controlled via the DB9 port using ASCII RS485 commands designed for RS485 multi-drop applications.

  • No front panel pushbutton control.
  • Remote port designed for RS485 multi-drop applications.

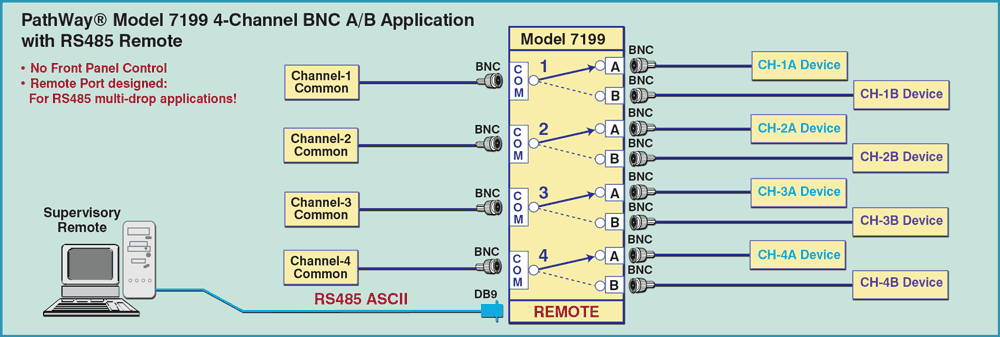

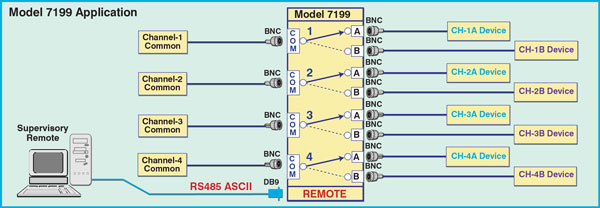

PathWay Model 7199 4-Channel BNC A/B Application drawing

FEATURES:

  • Each channel allows access to two BNC networks from one COMMON BNC network or device.
  • Four independent switch channels may be switched individually or simultaneously.
  • The switch ports are transparent to all data.
  • Only the center pin of the BNC interface is switched via break-before-make electromechanical relays. The shells of the BNC interface are tied together and separated by channel.
  • The unit maintains last set position on power loss and continues to pass data.
  • No front panel pushbutton control.
  • Remote port designed for RS485 multi-drop applications.
  • Remote RS485 ASCII commands that allow the user to control switch position and obtain switch status.
  • Front panel LED's display switch position and power status.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.

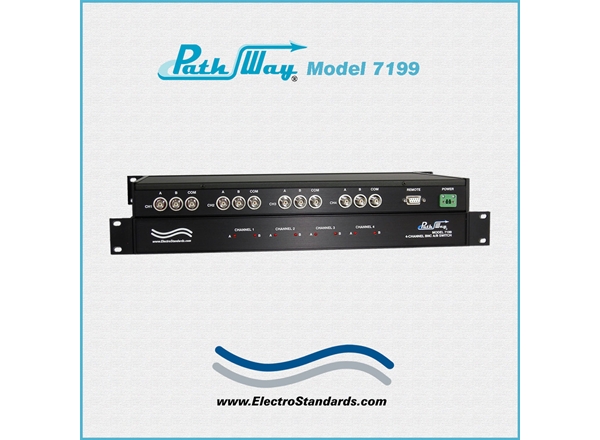

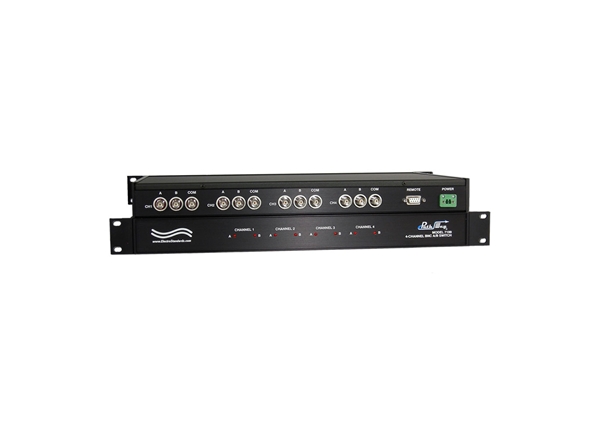

 The PathWay® Model 7199 4- channel BNC A/B Switch with RS485 Remote allows the user the capability of sharing a single BNC interface device connected to the Common port among two other devices connected to the A and B ports for each channel. The Model 7199 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
