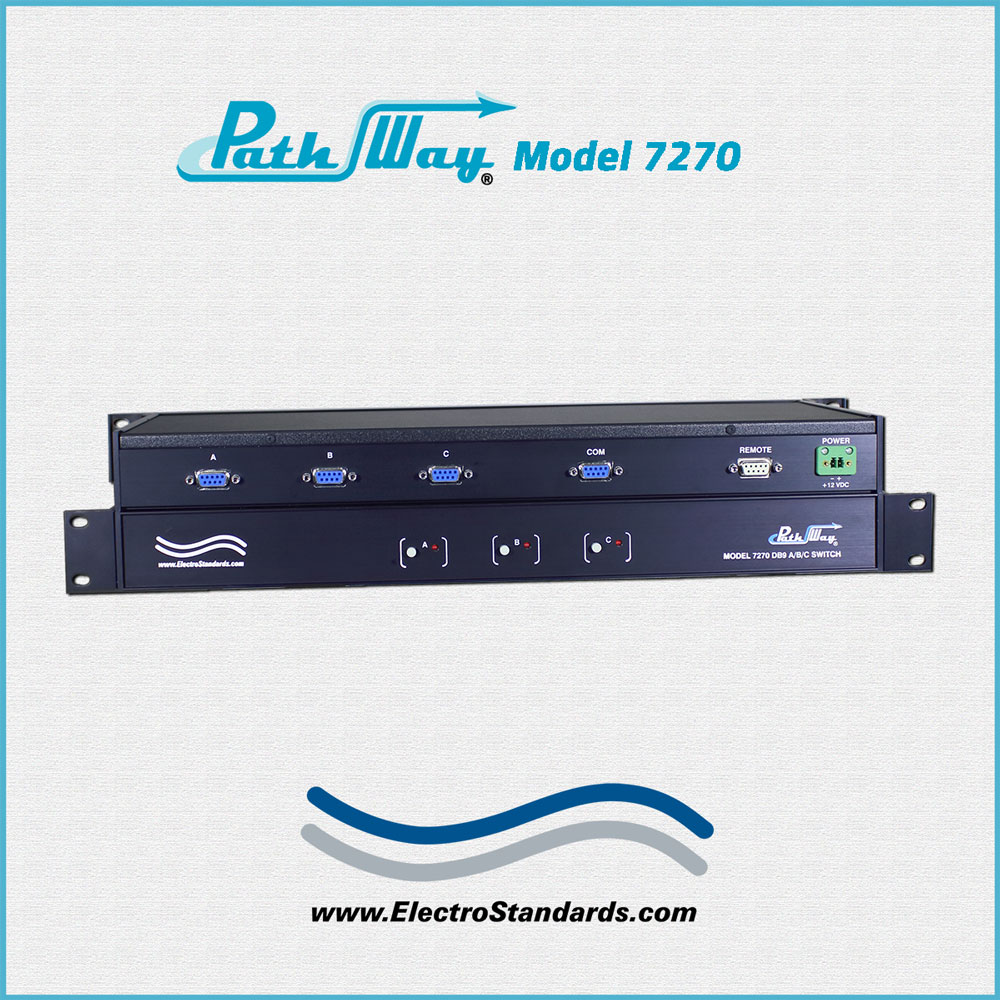

Catalog # 307270 - Model 7270 DB9 A/B/C Switch

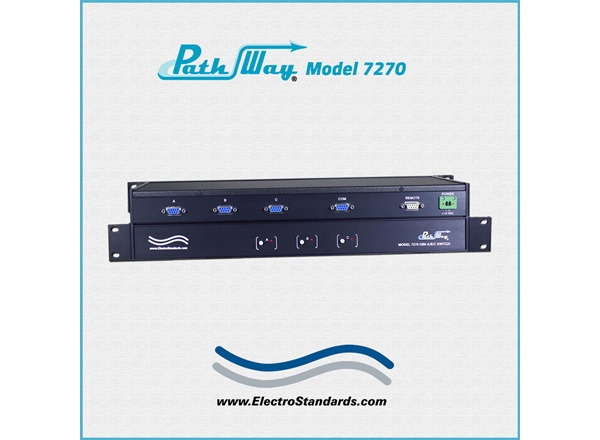

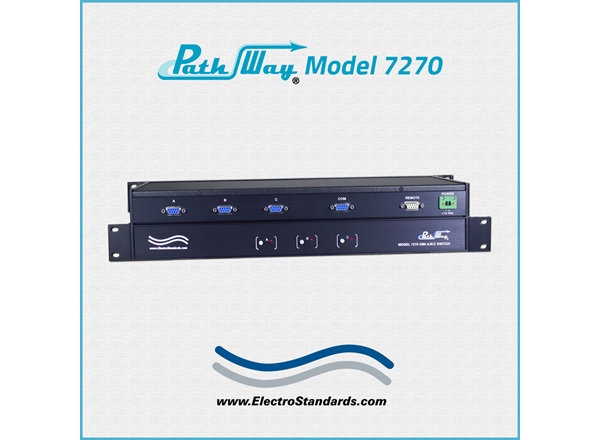

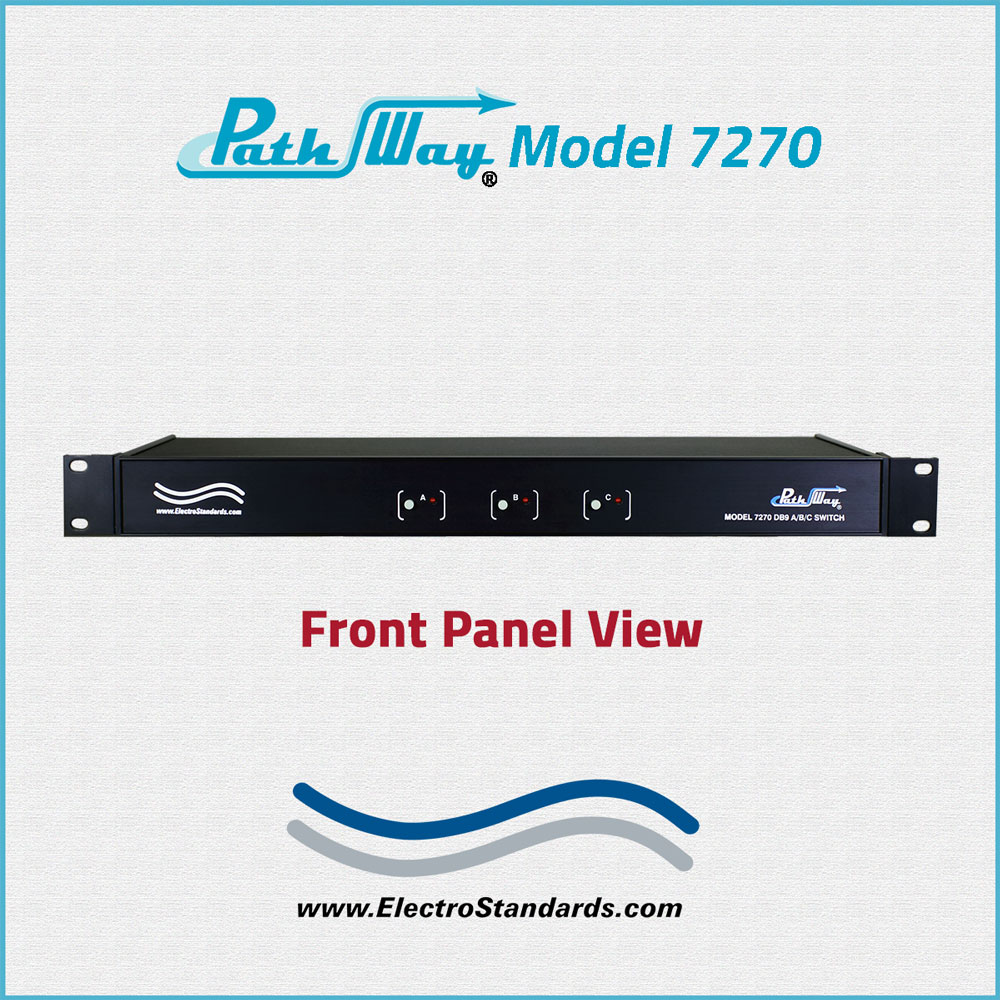

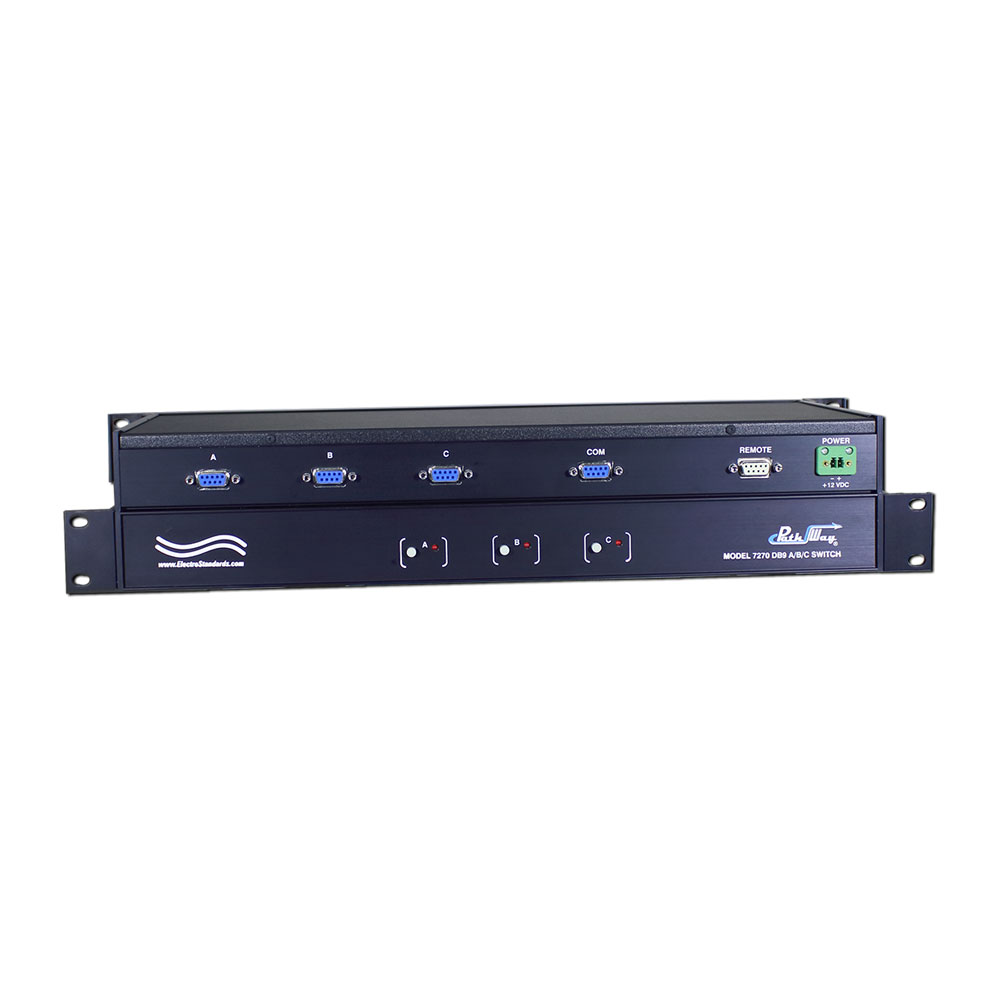

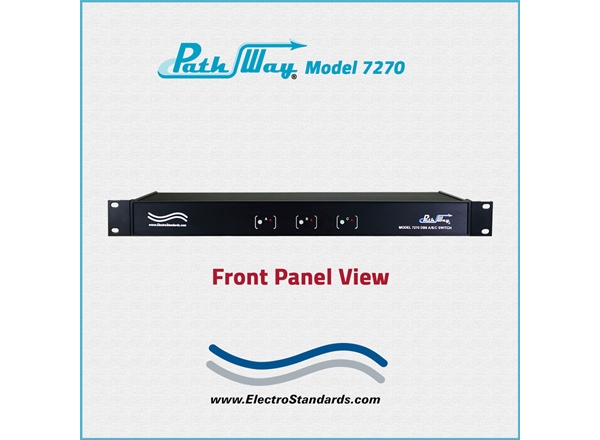

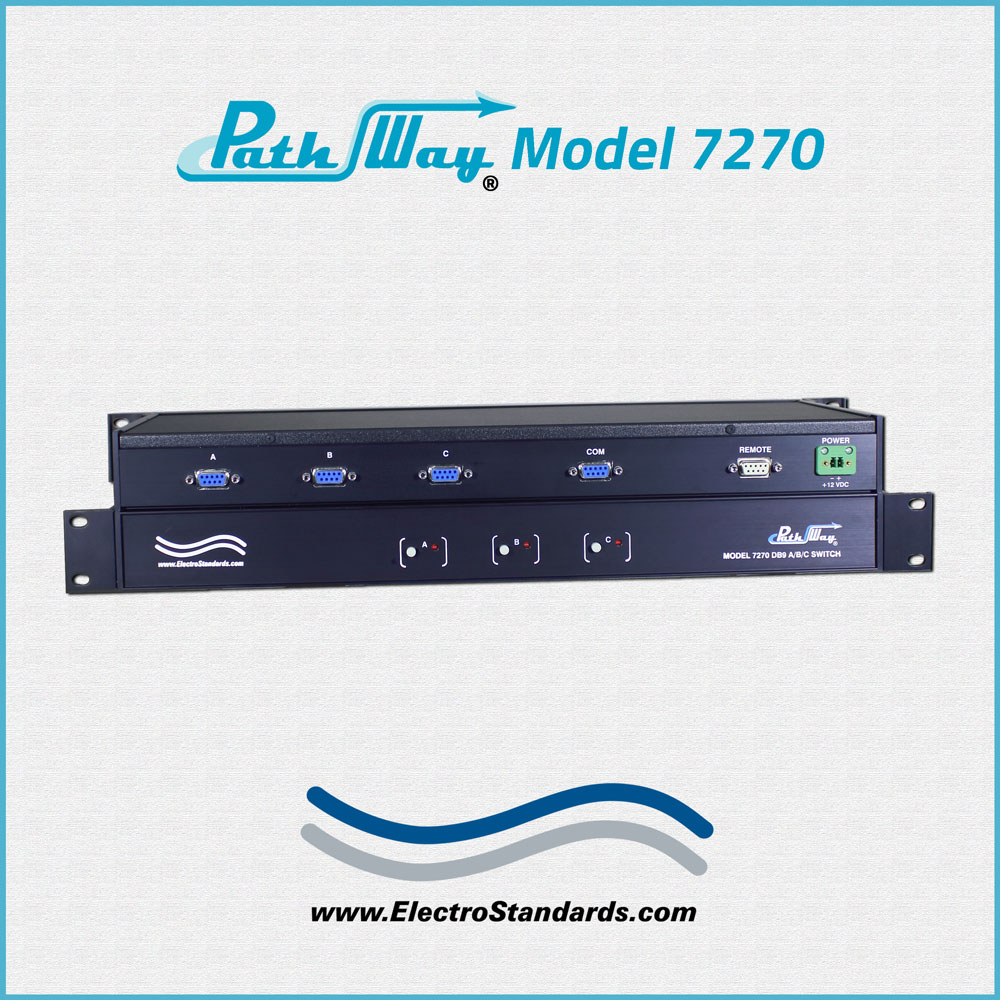

    DB9 A/B/C Switch w/Serial RemoteDB9 A/B/C Switch w/Serial RemoteDB9 A/B/C Switch w/Serial RemoteDB9 A/B/C Switch w/Serial Remote
Click image to enlarge
    • DB9 A/B/C Switch w/Serial Remote
    • DB9 A/B/C Switch w/Serial Remote
    • DB9 A/B/C Switch w/Serial Remote
    • DB9 A/B/C Switch w/Serial Remote
Base Price:
$1,102.00
Catalog No: 307270
Model No: 7270
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:DB9 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Rackmount
Pins Switched:9
Remote Port:DB9
Local Control:Pushbutton

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switches, DB9

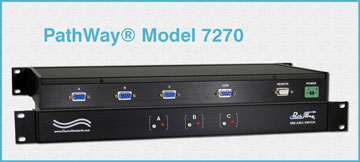

Model 7270 Single Channel DB9 A/B/C Switch with Serial Remote Control Port

  • Increases network efficiency by facilitating sharing of peripherals!

 SPECIFICATIONS:

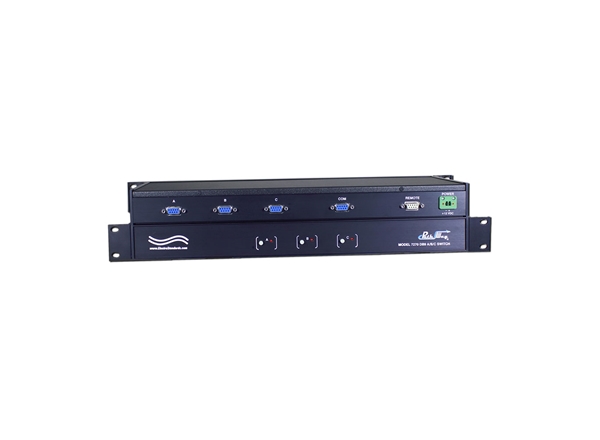

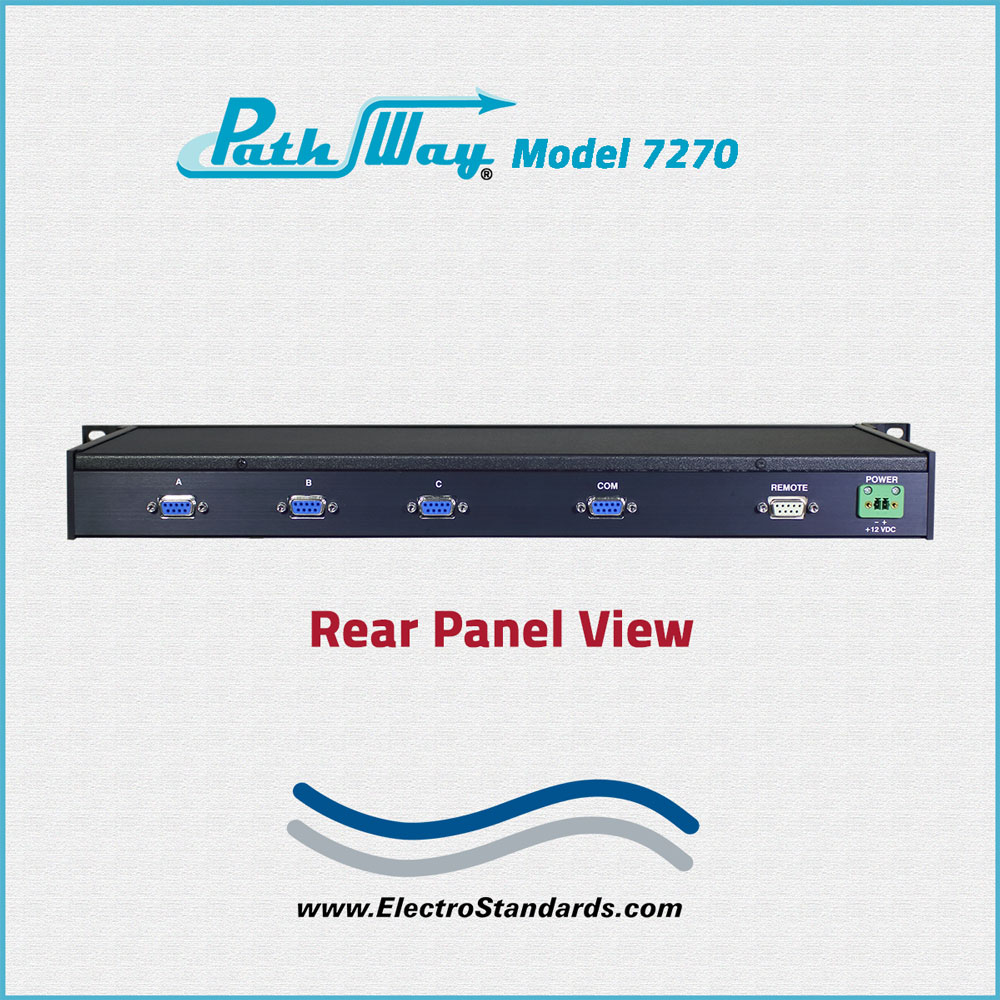

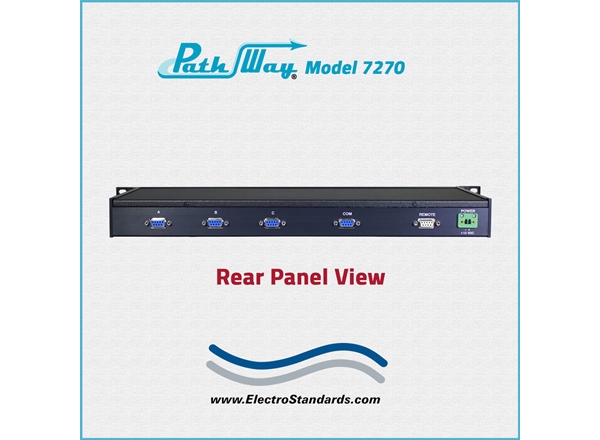

  • PORT CONNECTORS: (4) DB9 female connectors labeled A, B, C and COMMON.

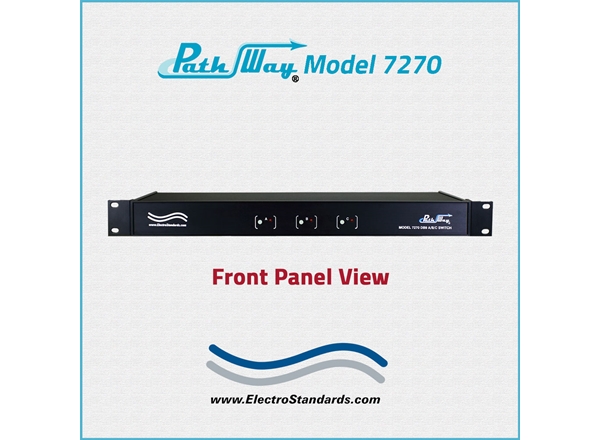

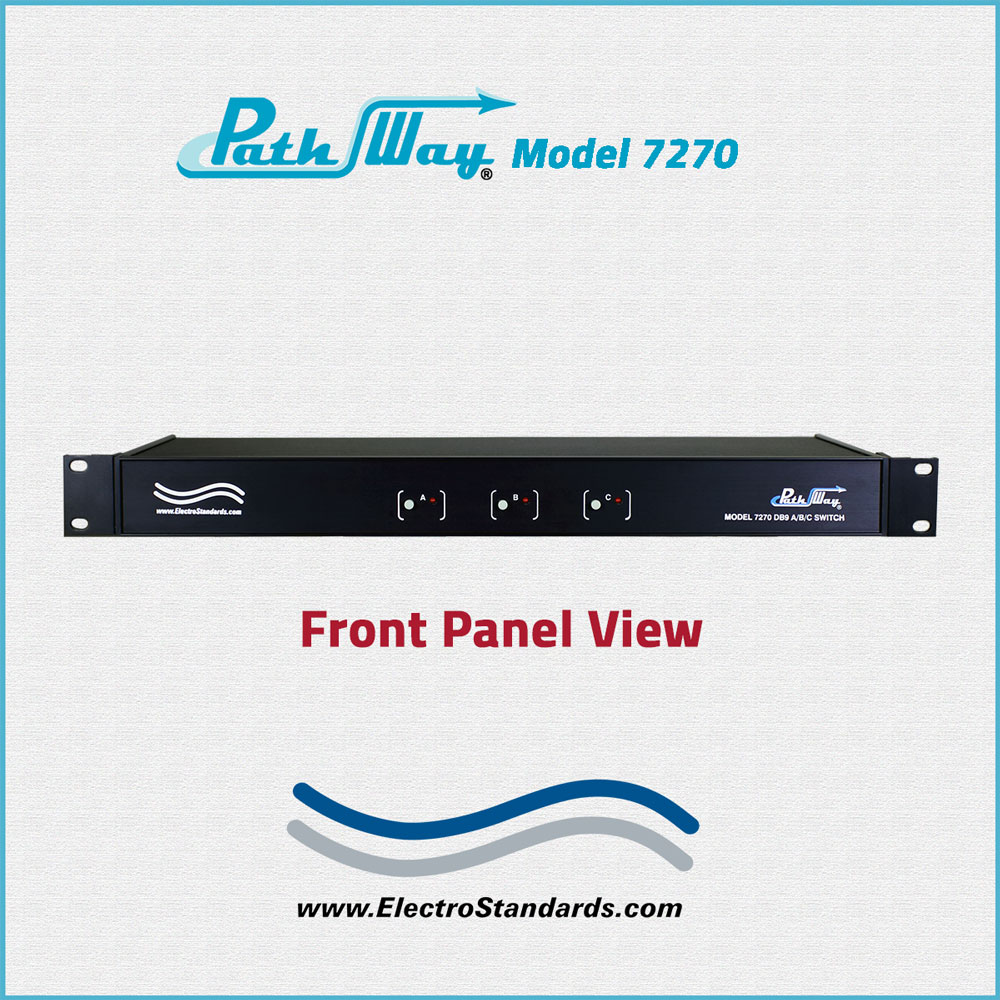

  • FRONT PANEL CONTROL: (3) manual pushbuttons allow local switching.
  • DISPLAY: (3) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US non-polarized plug.
  • DIMENSIONS: Rackmount: 19.0" x 1.75" H x 8.0" D. (48.3 x 4.4 x 20.3 cm).
  • WEIGHT: Approximately 4.3 lbs. (2.0 kg)

PathWay® Model 7270 DB9 A/B/C Switch Application w/Serial Remote Control

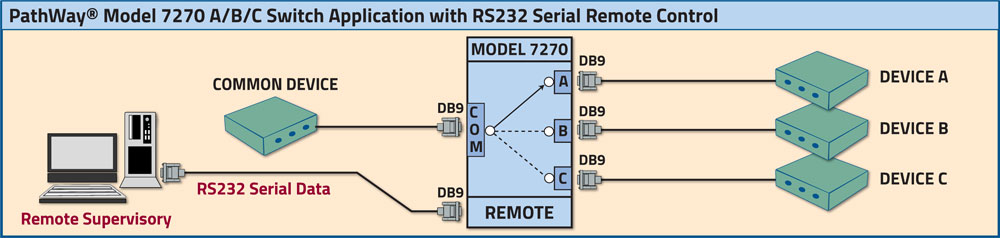

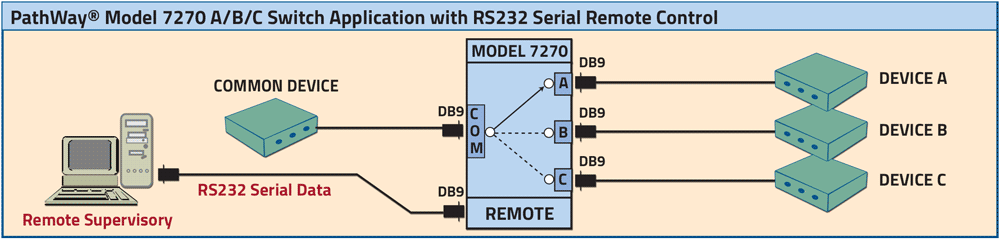

The drawing illustrates a COMMON Device connected to the DB9 COMMON port with access to three other DB9 interface Devices connected to the "A", "B", and "C" ports, respectively. A DB9 Remote port can be used to control the switch remotely via RS232 ASCII commands.

PathWay® Model 7270 DB9 A/B/C Switch w/RS232 Remote application drawing

FEATURES:

  • Quickly, easily, access three DB9 devices from one device. Control the switch both locally and remotely.
  • The switch ports are transparent to all data.
  • All (9) pins of the DB9 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Front panel LED's display present position and power status.
  • Municipalities, schools, government: This product is on GSA Schedule!

The PathWay® Model 7270 Single Channel DB9 A/B/C Switch with RS232 Remote allows the user the capability of sharing a single port interface device, connected to the "COMMON" port, among three other devices connected to the "A", "B", and "C" ports, with remote access functionality. The Model 7270 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled locally by manually operating the front panel pushbuttons or remotely from the DB9 (female) Serial Interface Remote port located on the rear of the unit.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed.  This cable can be provided by ESL under part number 528693.

Suggested cables for use with Model 7270 Switch:

Part Number    Description

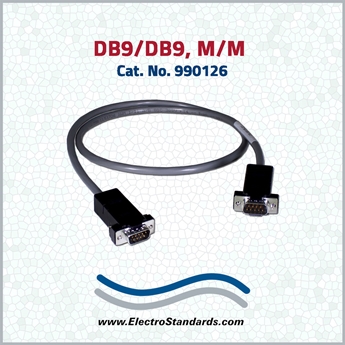

990125-005      DB9 M/F, 9-Conductor, Unshielded PVC Cable, 5 FT
