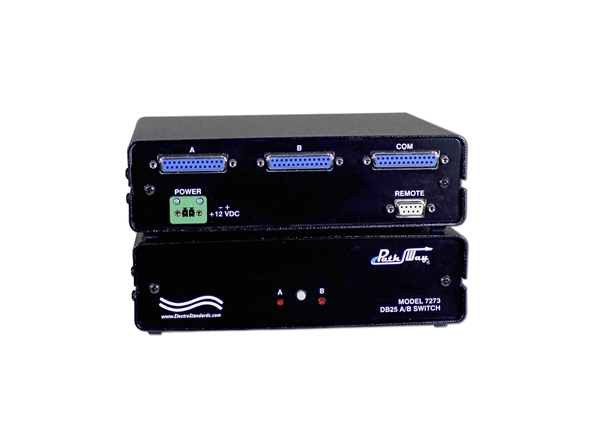

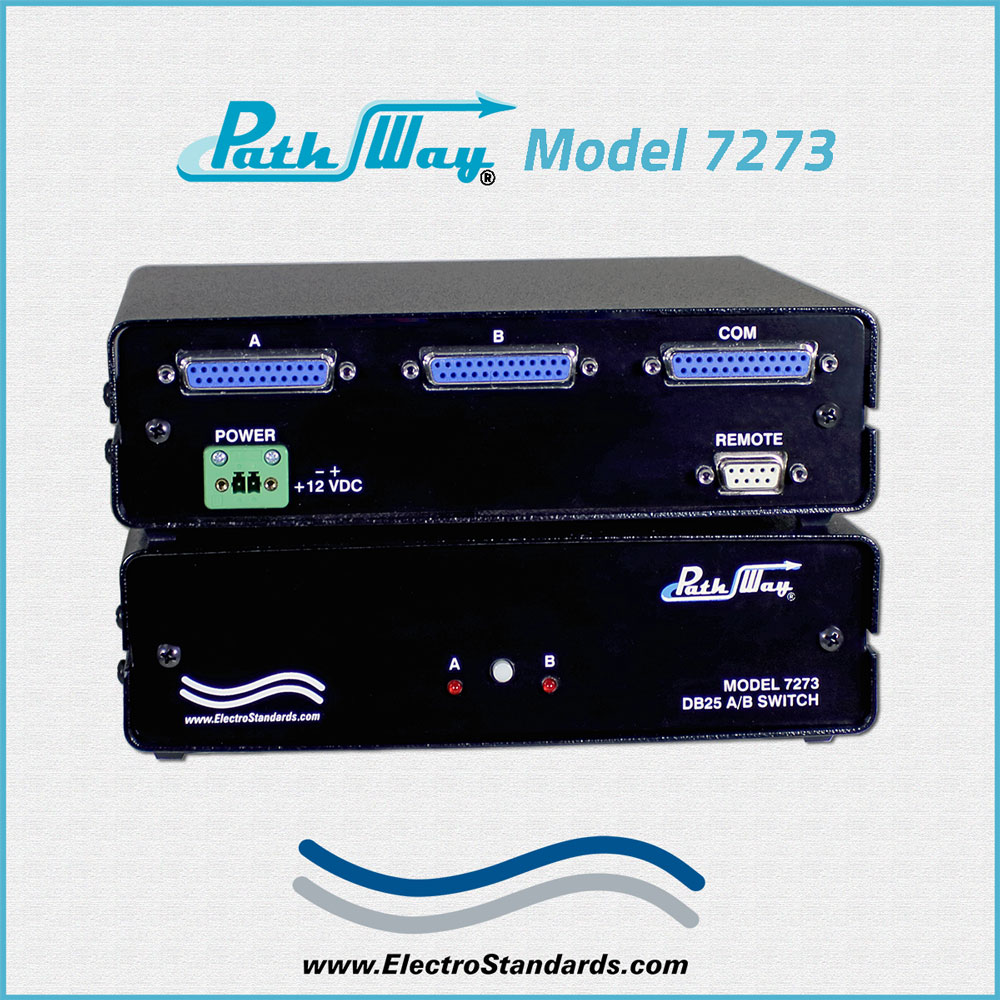

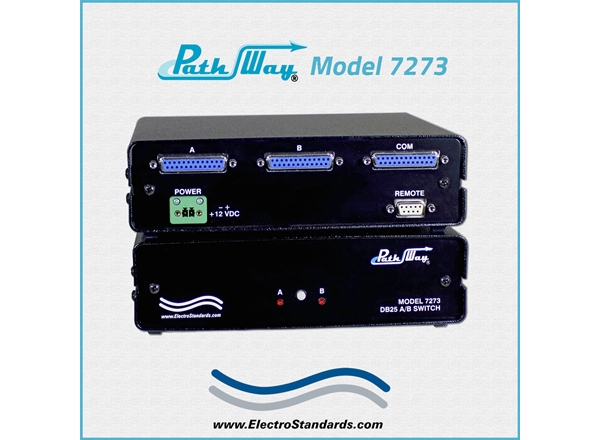

Catalog # 307273 - Model 7273 DB25 A/B Network Switch with ASCII/RS232 Remote Control

    DB25 A/B Network SwitchDB25 A/B Network SwitchDB25 A/B Network SwitchDB25 A/B Network Switch
Click image to enlarge
    • DB25 A/B Network Switch
    • DB25 A/B Network Switch
    • DB25 A/B Network Switch
    • DB25 A/B Network Switch
Base Price:
$831.00
Catalog No: 307273
Model No: 7273
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Pins Switched:25
Remote Port:DB9
Local Control:Pushbutton
Protocol:ASCII

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

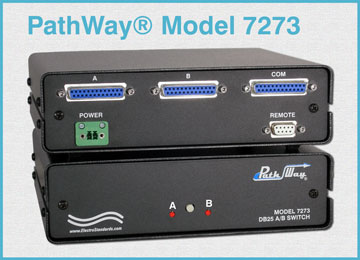

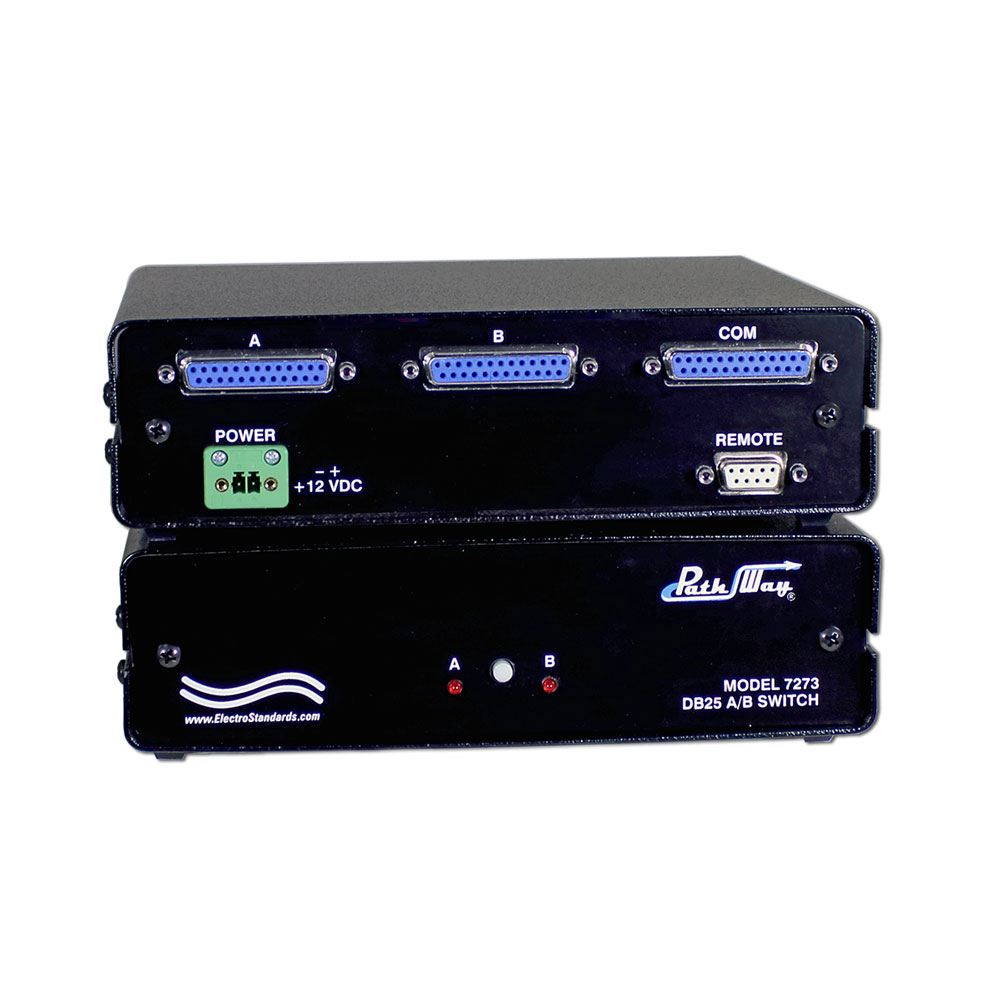

Path Way® Remotely Controllable Network Switch, DB25
Model 7273 DB25 Single Channel A/B Switch with Serial Remote Control Port

  • Remote port provides switch control based on an ASCII character command set.

  • Share any DB25 interface, all pins switched.

SPECIFICATIONS:

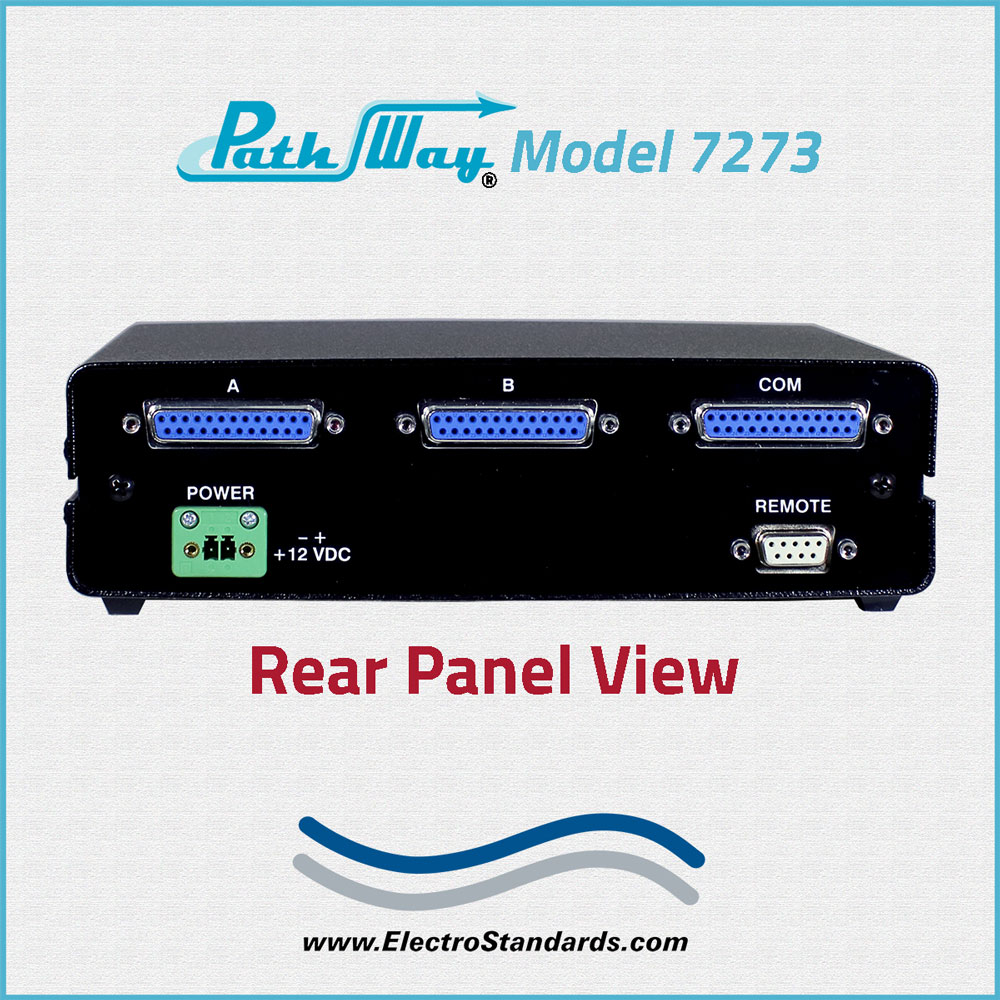

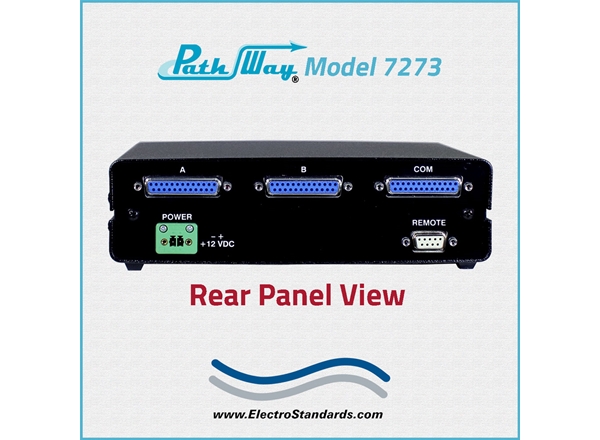

  • PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and COM.

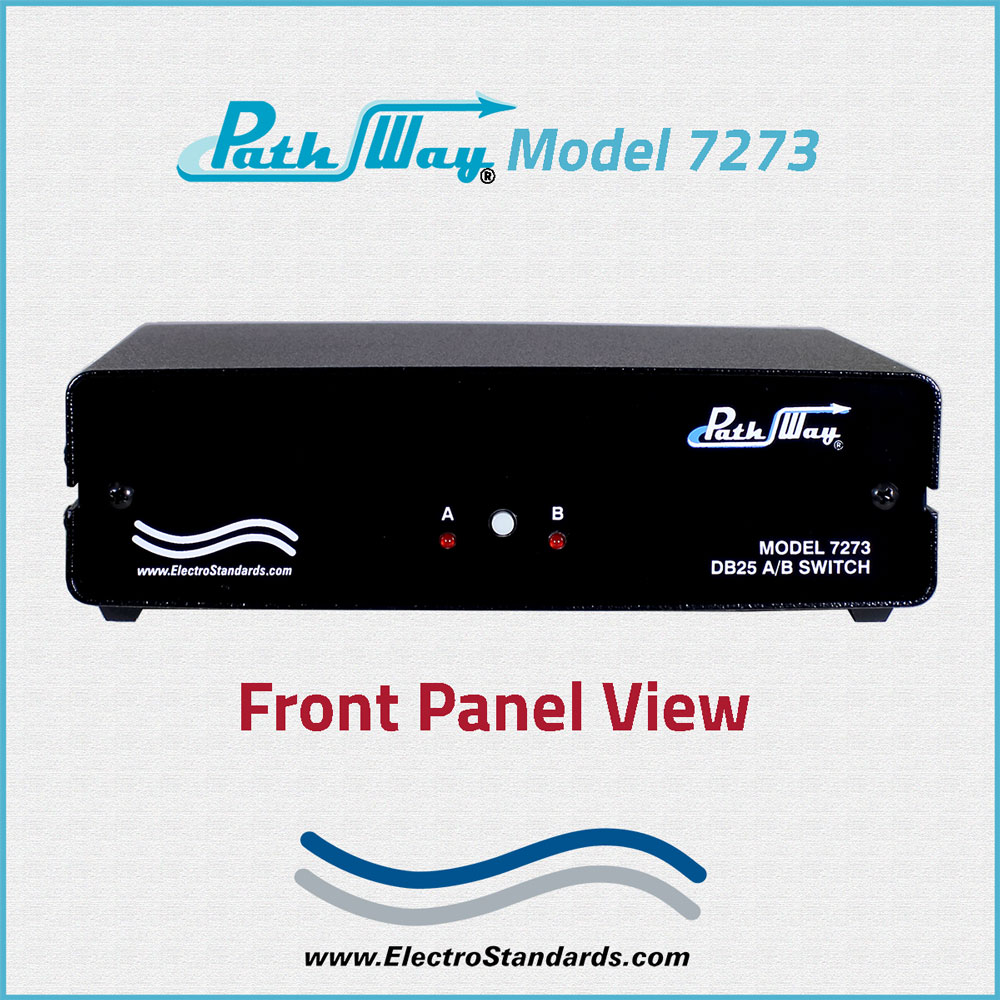

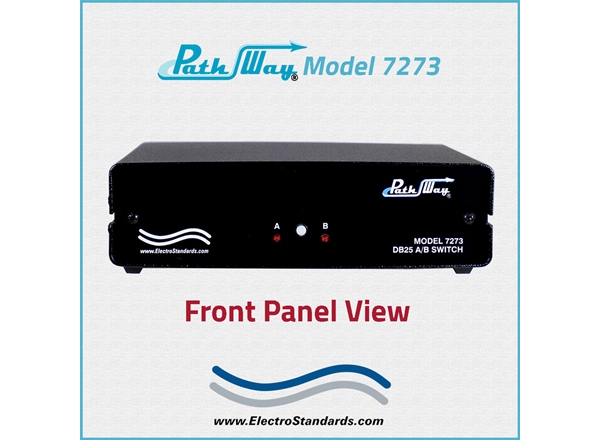

  • FRONT PANEL CONTROLS: (1) manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL:(1) DB9 female connector on rear panel accepts ASCII RS232 serial data for remote control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop: 8.15" W x 2.38" H x 7.27" D. (20.8 x 6.1 x 18.5 cm)
  • WEIGHT: Approximately 1.9 lbs. (0.9 kg)

PathWay® Model 7273 RS232 DB25 APPLICATIONS: RS232 DB25 Sharing Applications, RS232 DB25 Backup Applications with DB9 ASCII RS232 Serial Remote Control.

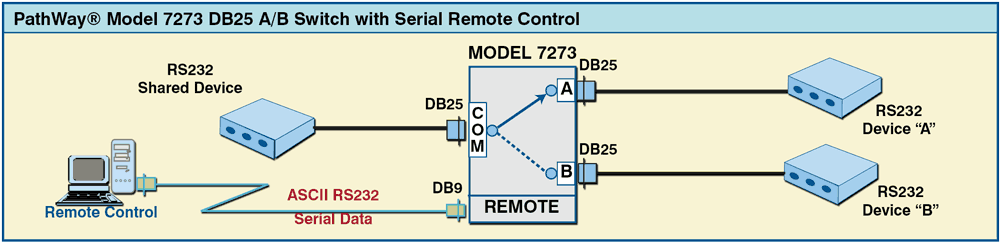

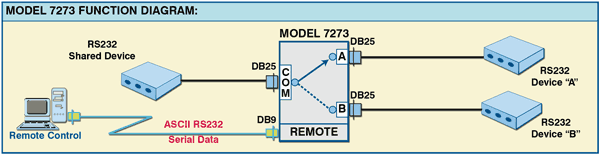

The drawing illustrates an RS232 Shared device connected to the DB25 COMMON port. The COMMON Device has access to the two RS232 devices connected to the DB25 A and B ports, respectively. The user can access the switch remotely using ASCII RS232 commands via the DB9 REMOTE port.

PathWay Model 7273 DB25 A/B Switch with Serial Remote Control Application

FEATURES:

  • Allows quick connection to any one of two devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All 25 pins of the DB25 interface are switched via break-before-make electromechanical relays.
  • Eliminates the need to plug and unplug cables.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control the switch position, lockout front panel operations, obtain switch status, as well as query Model number and firmware version number.
  • Remote commands to set pushbutton hold duration value for position changes.
  • Front panel LED's display present position and power status.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables available for your switch installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

The PathWay® Model 7273 Single-Channel DB25 A/B Switch provides A/B switching in a low profile, desktop unit.  The interface is made up of DB25 female port connectors.  The Model 7273 is packaged in a slim desktop style enclosure.

The Model 7273 allows the user the capability of sharing a DB25 device that is connected to its Common port, between two other devices connected to the "A" and "B" ports.

The switch may be controlled locally by manually operating the front-panel pushbutton or remotely from a DB9 Female Serial Interface Remote port located on the rear of the unit.  The user may set a Duration Time which will require the operator to hold down the pushbutton for a period of time, in order to change the switch position.  If the pushbutton is released prior to the Duration Time, the unit will not change position. The front panel LED display indicates the switch position and unit power status.  All connections are switched simultaneously for a total of 25 pins switched.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7273 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
