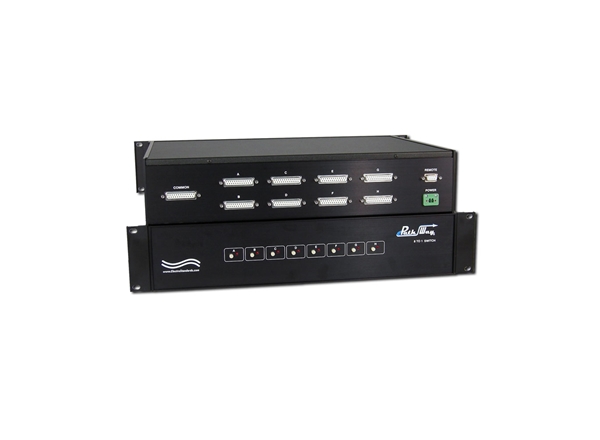

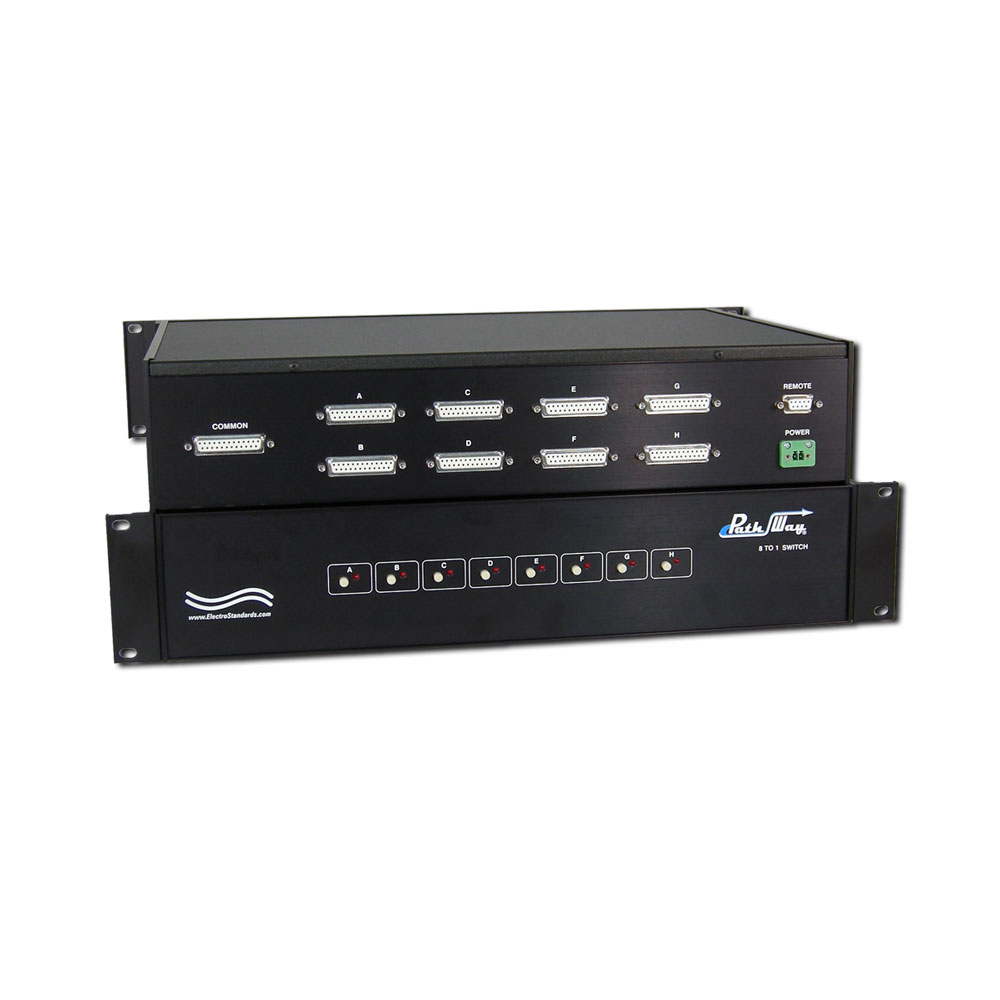

Catalog # 307297 - Model 7297 DB25 8-to-1 Network Switch

Click image to enlarge

Base Price:

$4,375.00

Catalog No:

307297

Model No:

7297

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

DB25 Switch Ports

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Configuration:

Rackmount

Pins Switched:

Pins 2 - 25

Remote Port:

DB9

Local Control:

Pushbutton

Feature:

Remote Control

Protocol:

Serial ACII Commands

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

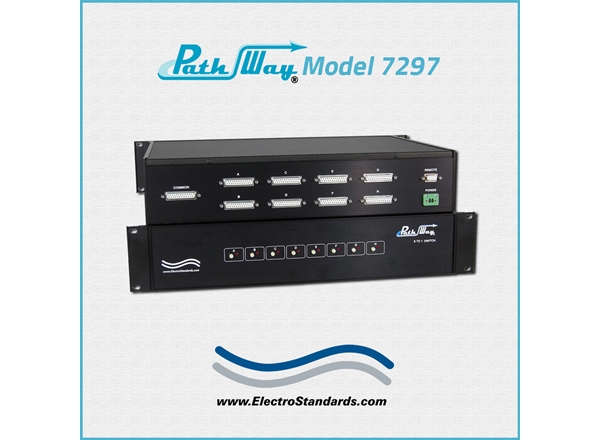

Path Way® Remotely Controllable Network Switch
Model 7297 8-to-1 DB25 Switch, with RS232 Serial Remote

Reconfigure data network device connection with this popular "user friendly" switch!

SPECIFICATIONS:

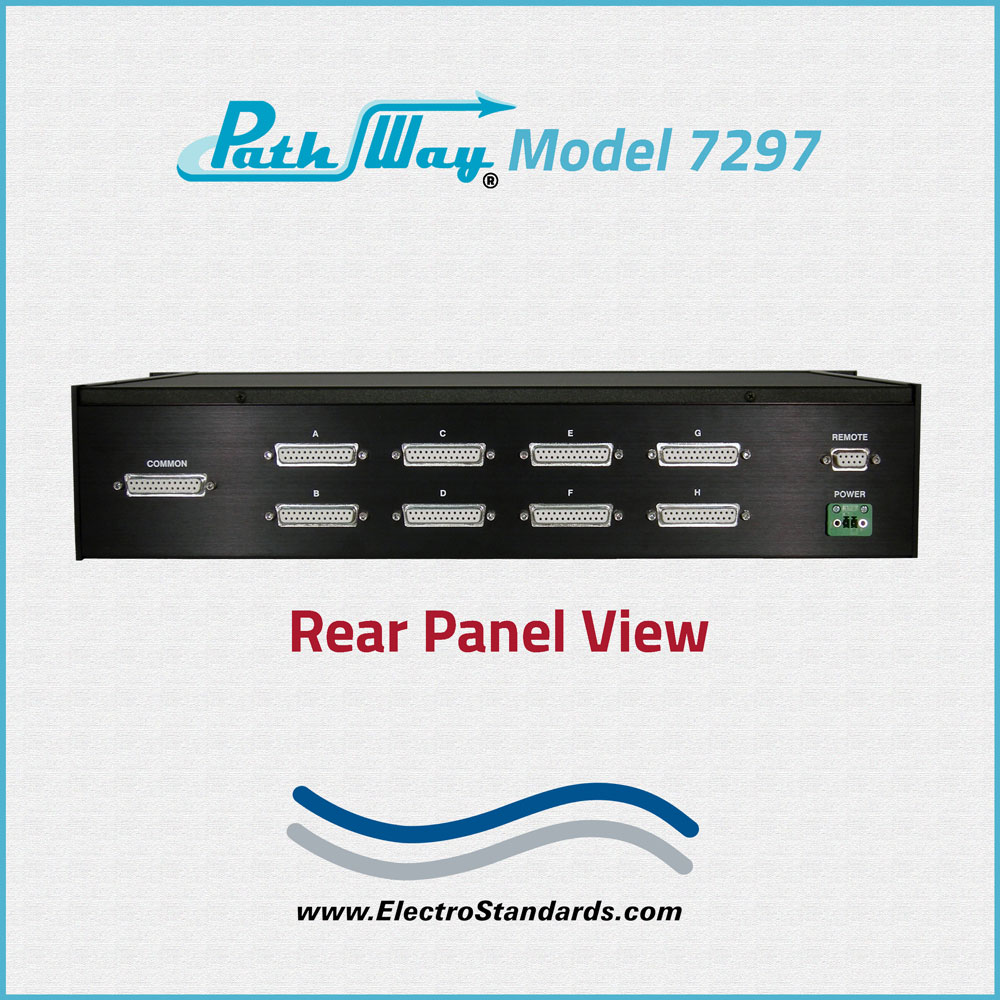

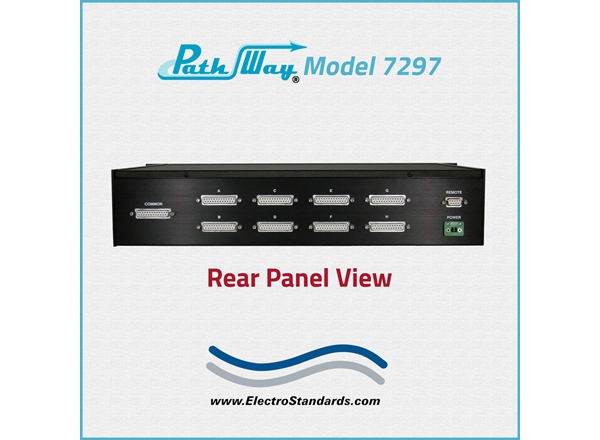

PORT CONNECTORS: (9) DB25 female connectors labeled A, B, C, D, E, F, G, H, and COMMON.

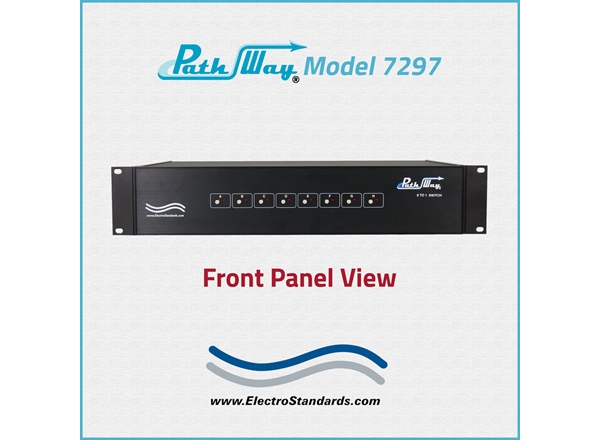

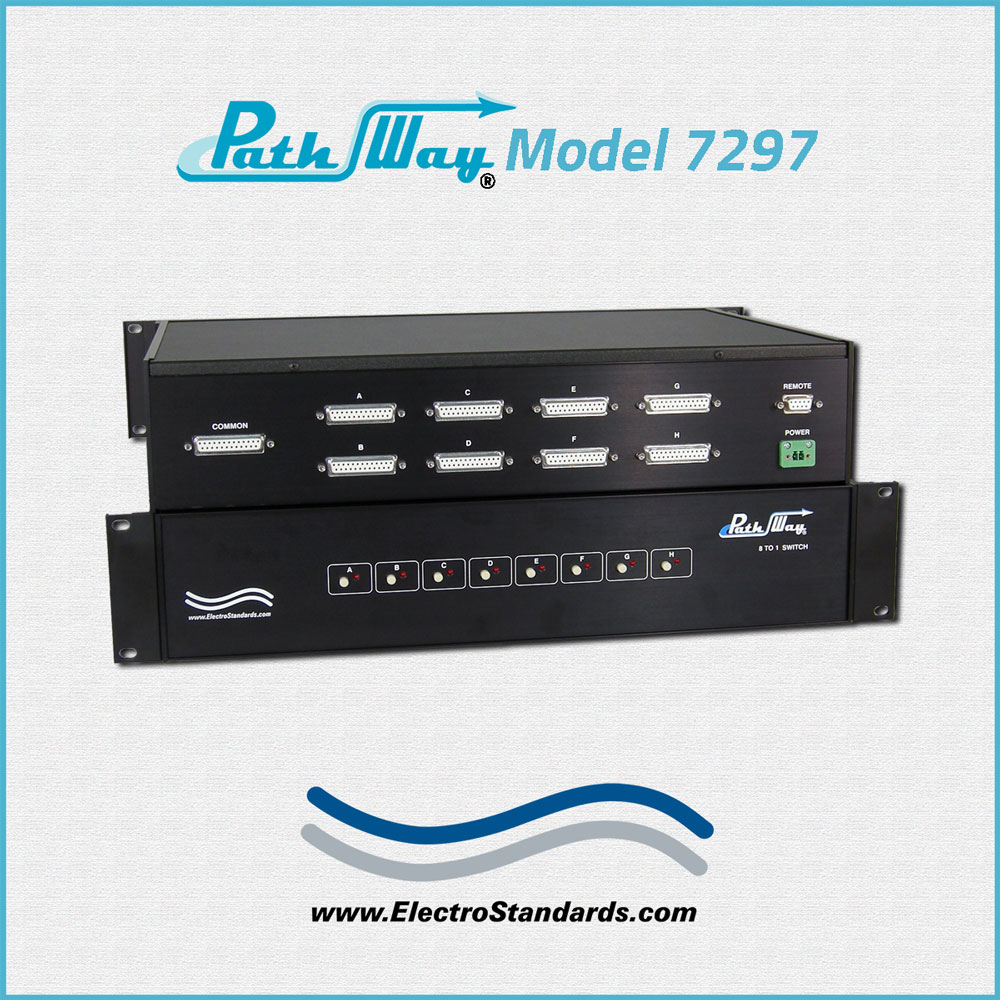

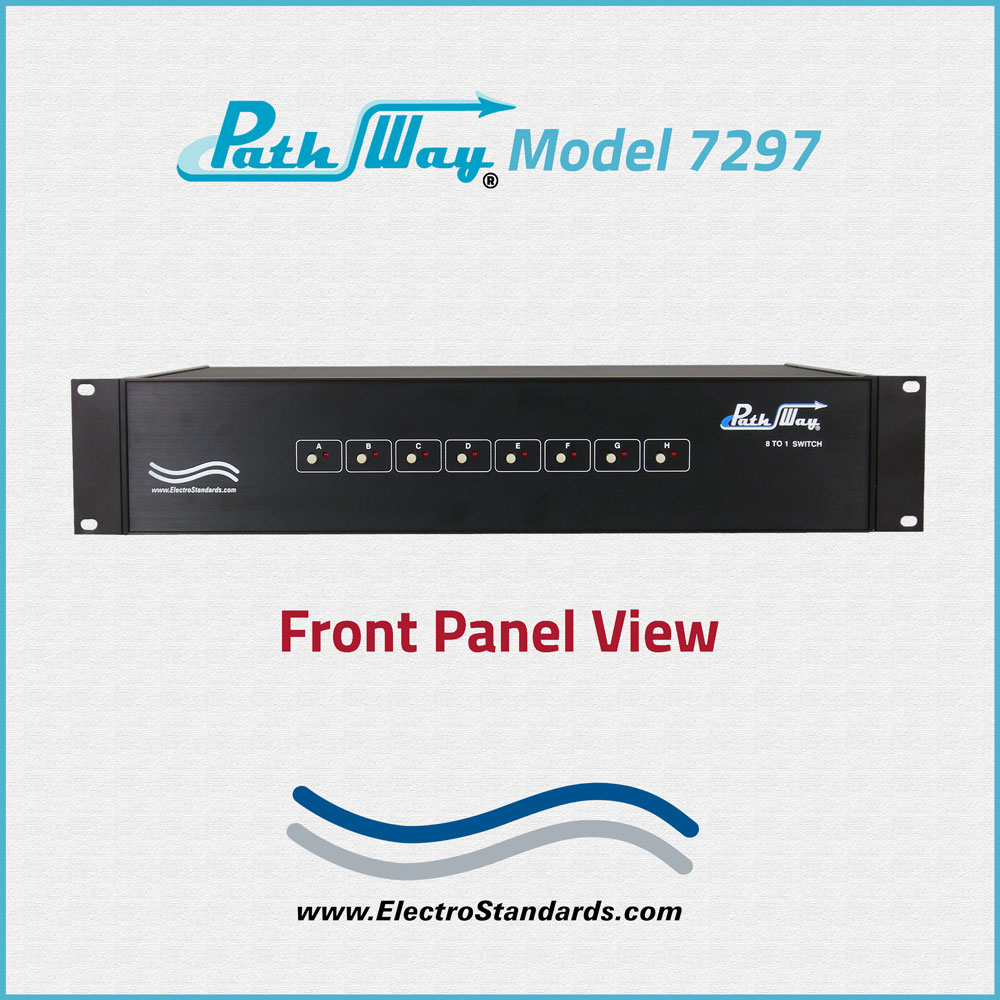

FRONT PANEL CONTROLS: (8) Manual pushbuttons allow local switching.
DISPLAY: (8) Front panel LED's display channel switch position and power status.
REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 commands for Remote control operation.
POWER: UL approved 100VAC/120VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount, 19.0" W x 3.5" H x 12.0" D. (48.3 x 8.9 x 30.5 cm)
WEIGHT: Approximately 8.5 lbs (3.9 kg)

PathWay® Model 7297 8-to1 DB25 Switch Application with RS232 Serial Remote:

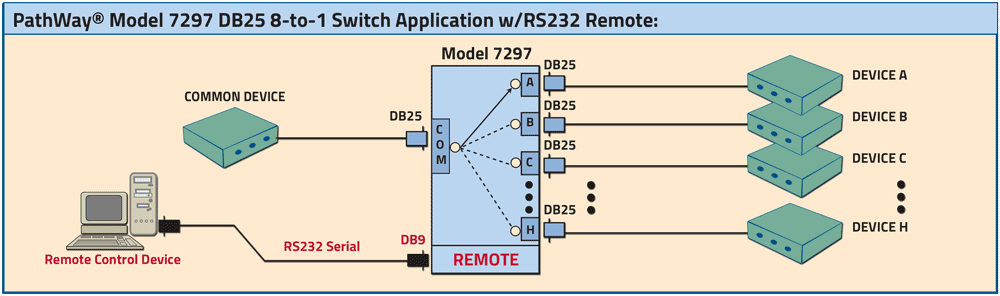

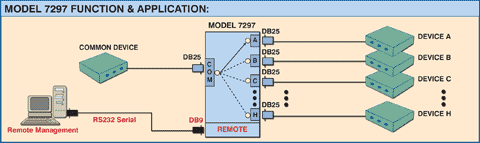

The drawing illustrates a COMMON device connected to the DB25 COMMON port. The COMMON device shares between eight devices connected to the A, B, C, D, E, F, G, and H ports. The DB9 Remote ports accepts ASCII RS232 serial data commands for remote control operation of the DB25 8 position switch.
