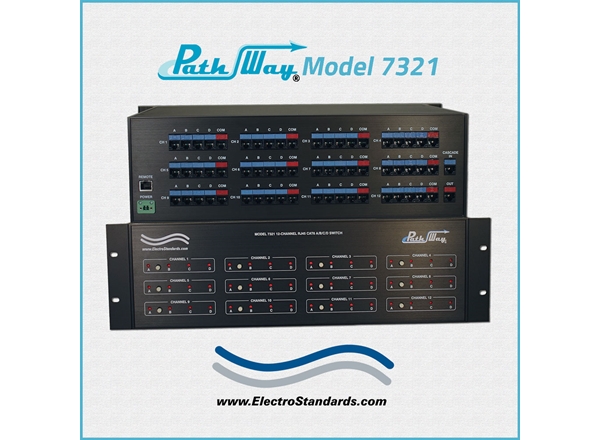

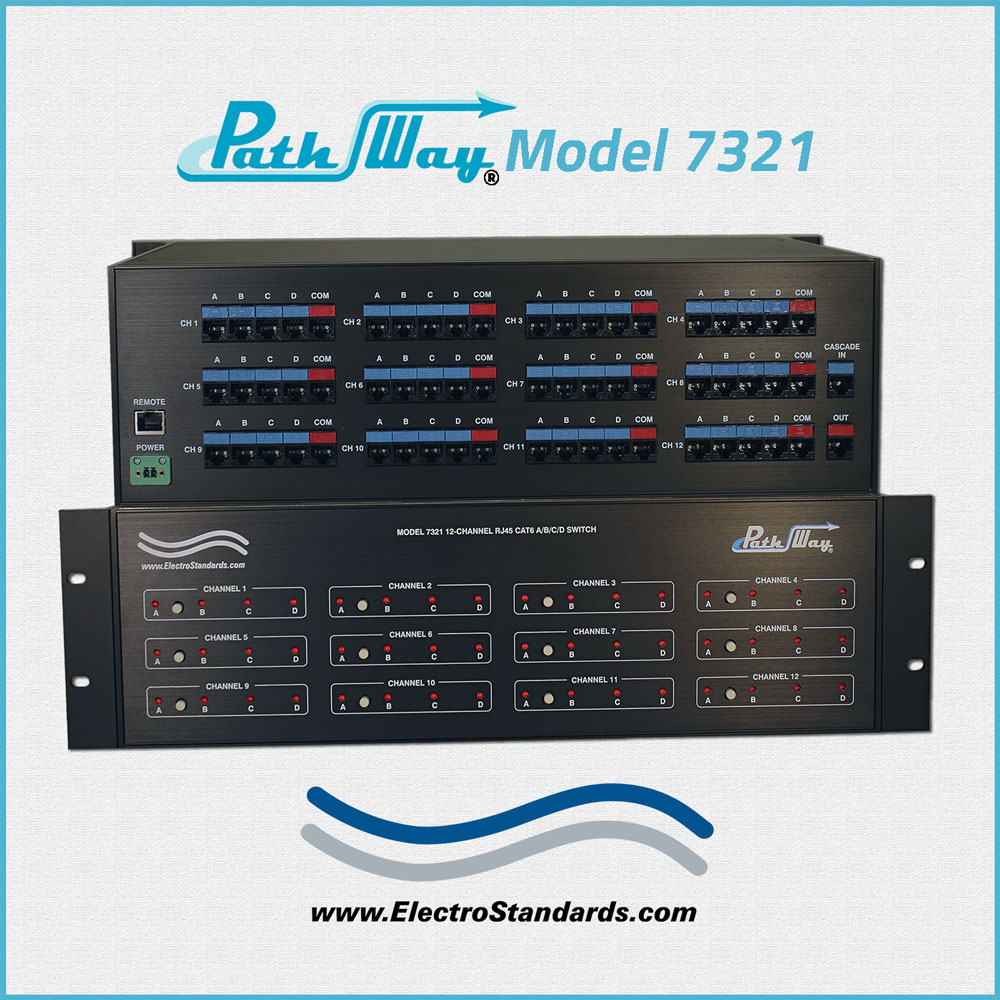

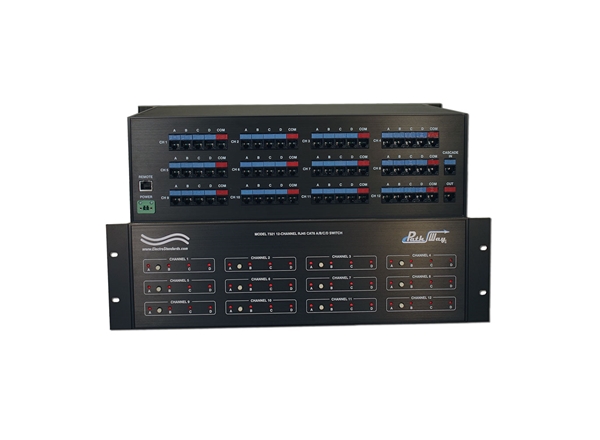

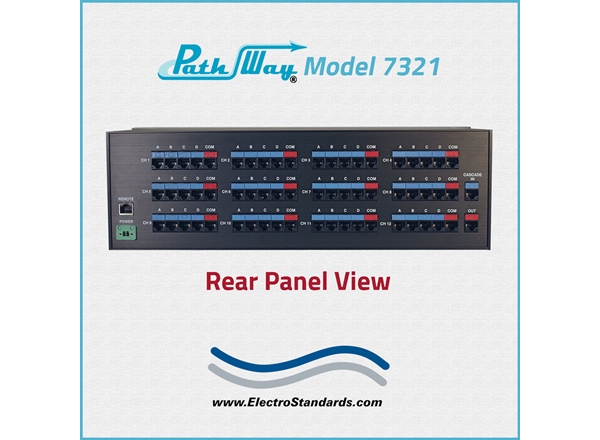

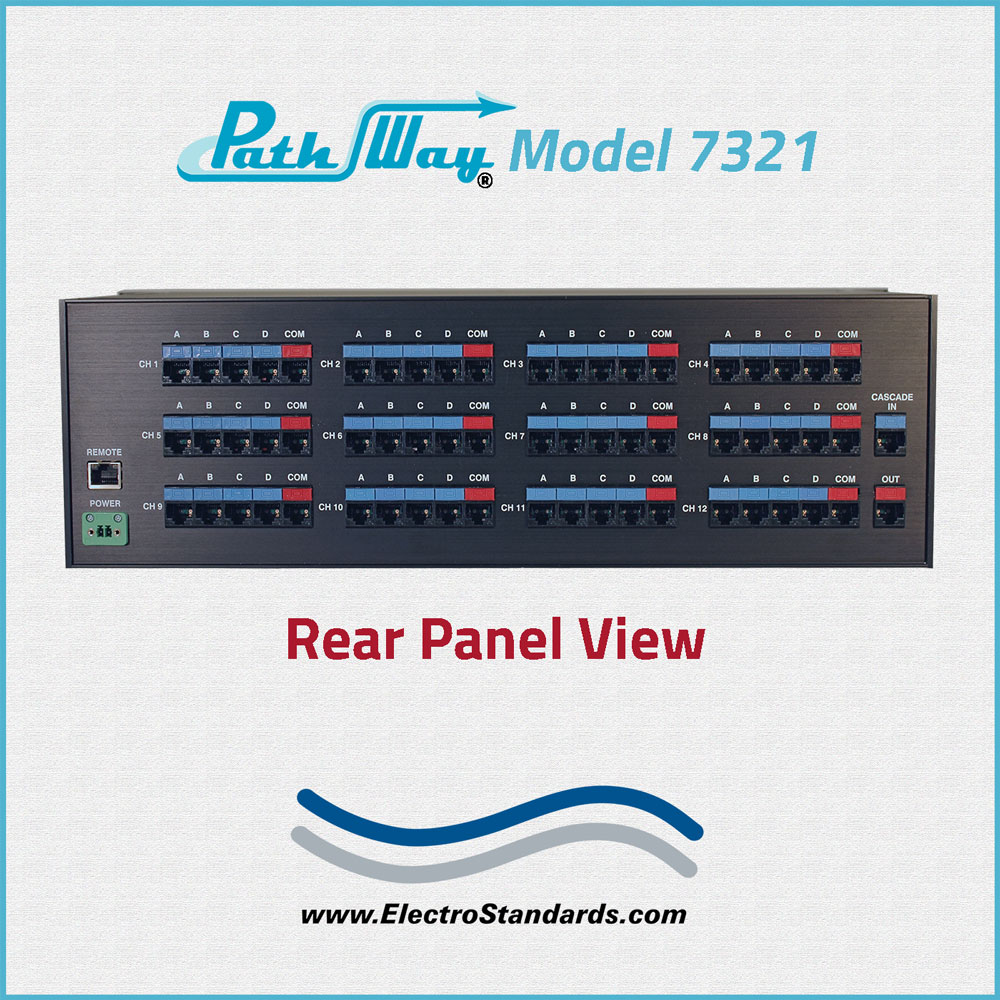

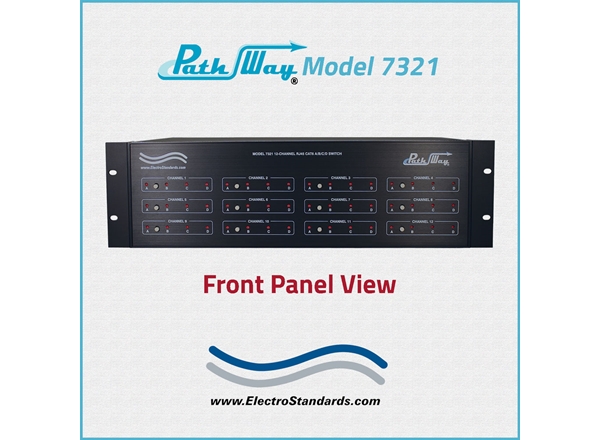

Catalog # 307321 - Model 7321 12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade

    12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade
Click image to enlarge
    • 12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade
    • 12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade
    • 12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade
    • 12-Chan'l RJ45 CAT6 A/B/C/D Switch, Telnet, GUI & Cascade
Base Price:
$15,316.00
Catalog No: 307321
Model No: 7321
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:12
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control, Gang Channel Control
Remote Control:Ethernet
Compliance/Standards:Cat6
Configuration:Rackmount
Pins Switched:8
Remote Port:RJ45
Local Control:Pushbutton
Feature:Cascade Operation

Add to Cart
  • Applicable to ANY RJ45 Transfer Switch Requirement

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, RJ45 Cat6
Model 7321 12-Channel RJ45 CAT6 A/B/C/D Switch with Telnet, GUI, and Cascade Operation

  • Applicable to ANY RJ45 Transfer Switch Requirement

SPECIFICATIONS:

  • PORT CONNECTORS: (60) RJ45 female connectors. (5) labeled A, B, C, D, and COM for each of twelve channels.
  • REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts Ethernet 10/100Base-T connection and either TELNET commands or Graphical User Interface for Remote operation.
  • CASCADE PORTS: (1) RJ45 female connector labeled IN, and (1) RJ45 female connector labeled OUT.
  • LED's: (48) indicate present position and power status.(4) LED's for each of eight channels.
  • CONTROL: (12) Pushbuttons; (1) for each of twelve channels allows local control.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 5.25" H x 10.0" D (48.3 x 13.3 x 25.4 cm).
  • WEIGHT: Approximately 10.9 lbs. (5.0 kg)

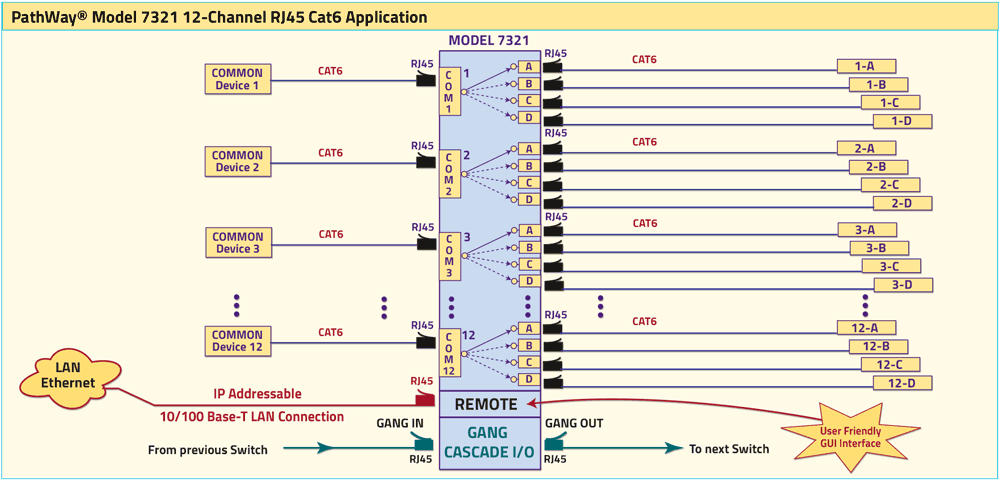

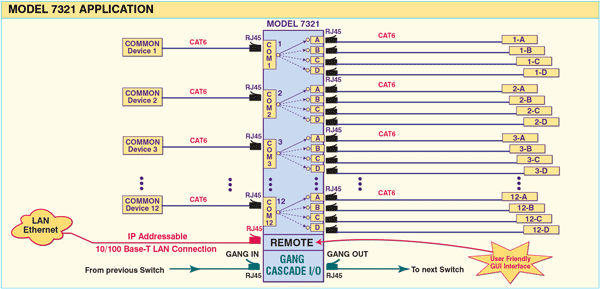

PathWay® Model 7321 Cat 6 RJ45 A/B/C/D Switch Application with TELNET, GUI, & CASCADE OPERATION.

The application drawing shows a COMMON Device connected to the RJ45 COMMON Port with access to four other devices, Device A, Device B, Device C and Device D, connected to the A/B/C/D ports, respectively for each of 12 channels. There is an RJ45 REMOTE port that is IP addressable, 10/100Base-T LAN connection for remote operation via Telnet commands or Graphical User Interface. There are two GANG ports: one for IN and one for OUT.

Model 7321 12-Channel RJ45 Cat6 A/B/C/D Switch with Telnet, GUI, and Cascade Operation

PathWay Model 7321 A/B/C/D Switch Application

FEATURES:

  • Supports (12) channels of A/B/C/D switch function.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Switch maintains last set position on power loss and continues to pass data.
  • Individual control of each channel.
  • Front panel pushbutton control
  • Remote Control of the switch from a 10/100-Base-T LAN Ethernet environment.
  • Remote Control Telnet Command interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations, control cascaded units, as well as obtain switch status and receive cascade unit status updates.
  • Cascade operation allows control of switch position and lockout as well as obtaining status of another unit connected to the cascade ports through the remote Telnet Interface or Graphical User Interface of a single unit.
  • Cascade operation is compatible with the Model 7320 (Catalog #307320), and other Model 7321 units.

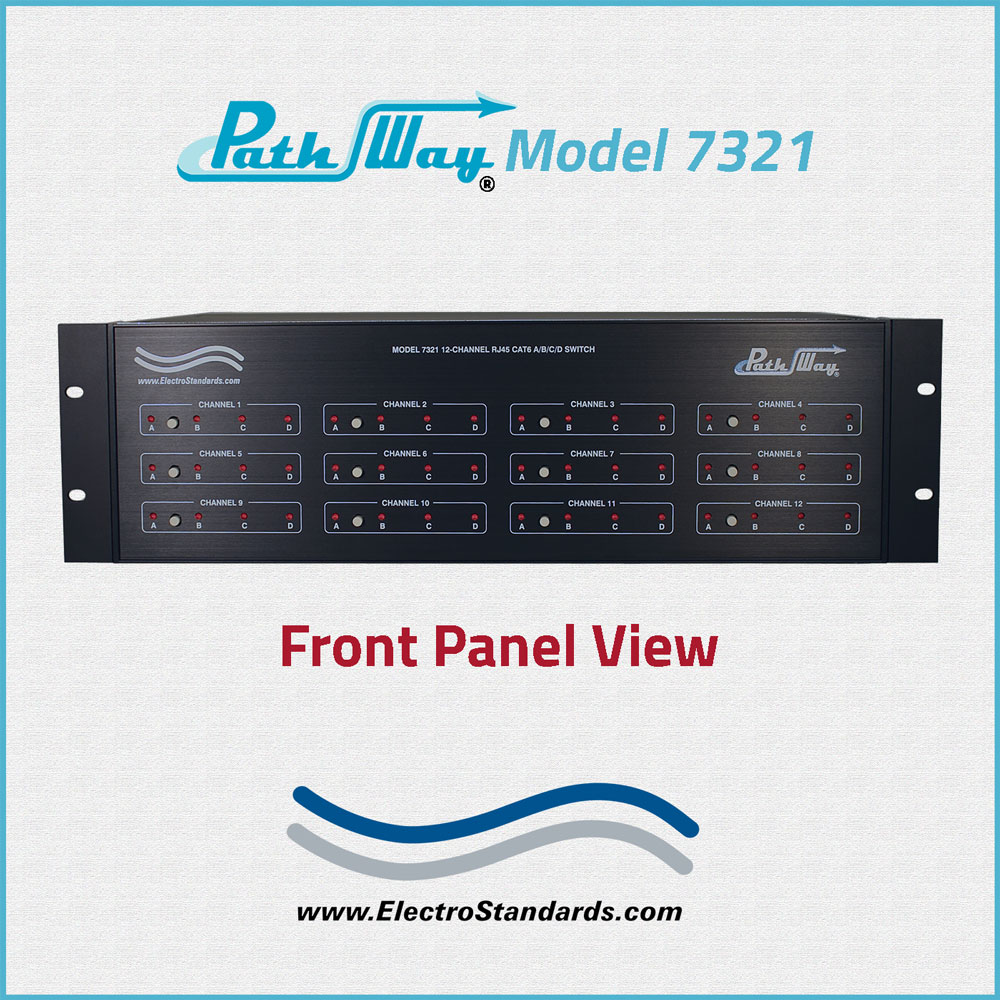

  • Front panel LED's display present position and power status.
  • Cat6 compliance.

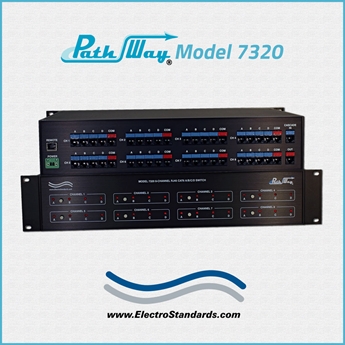

  • For an 8-Channel unit, See Model 7320, Cat No 307320

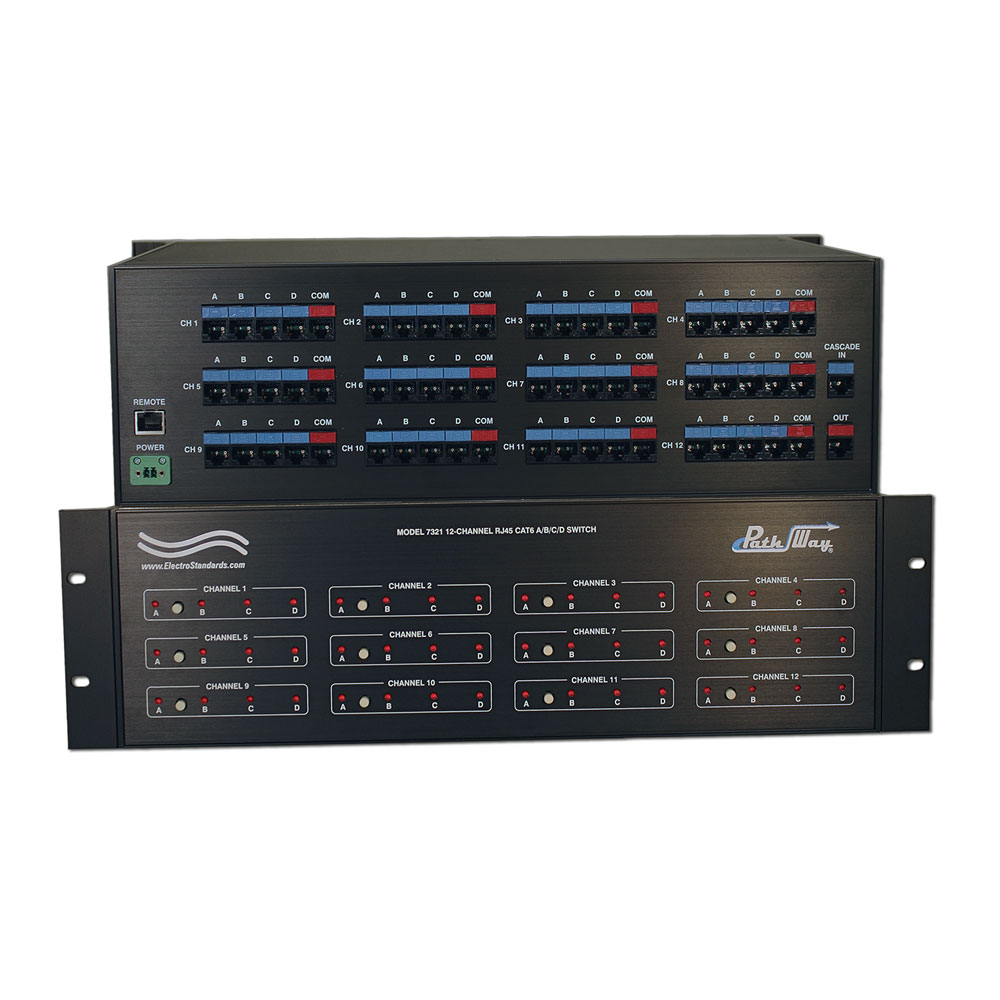

The PathWay® Model 7321 12-Channel RJ45 Cat6 A/B/C/D Switch with Telnet, GUI, and Cascade Operation allows the user the capability of sharing a single port RJ45 interface device, connected to the "COMMON" port, among four other devices, connected to the A, B, C, and D ports, for each channel.  The Model 7321 is enclosed in a 3U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The unit can be operated by either the front panel pushbuttons or the 10/100Base-T LAN Ethernet Remote.  The unit also supports cascade operation, where other supported units can be connected and operated through a single remote port interface.  The state of the unit can be obtained from the front panel LED's or through the Remote Telnet Commands or Graphical User Interface.

Ethernet Remote Port, I.P. Addressable, with GUI

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the switch's LAN port is connected to and simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

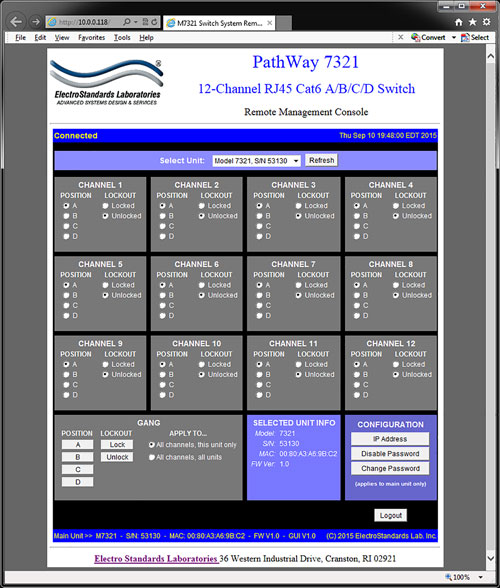

PathWay Model 7321 A/B/C/D Switch GUI Screen capture

CHANGE SWITCH POSITION & LOCK STATE

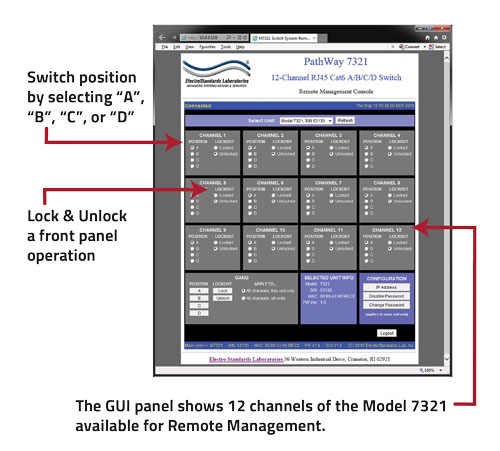

The Model 7321 is a 12-channel unit. To Change position of a channel, click on the radio button "A", "B", "C", or "D" as desired. Locking and unlocking the front panel pushbuttons can be done by clicking on the "Locked" or "Unlocked" radio buttons. (See Figure 1)

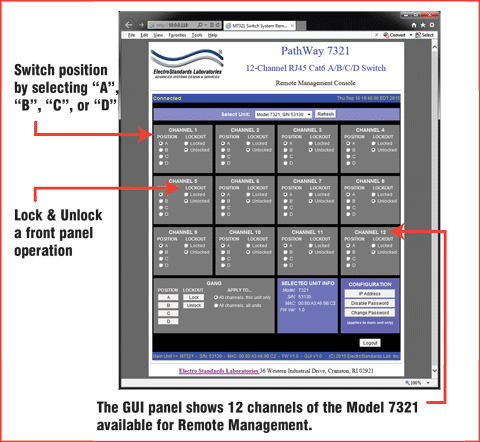

Figure 1: Shows the Model 7321 12-channels available for Remote Management using the Graphical User Interface.

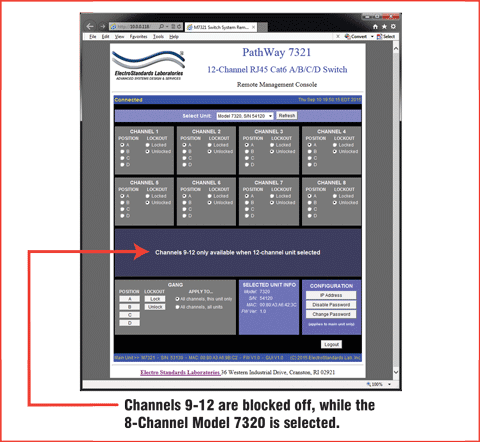

SELECTING A CASCADED MODEL 7320

When a Model 7320 is selected from the cascade, a couple of things will be different.  First, since the Model 7320 is an 8-channel unit, channels 9-12 will be blocked off.  Second, polling, and status updates, and even sometimes commands for cascaded units will be a bit slower due to latency and cascade protocol timing requirements.  All other operations can be performed as normal. (See Figure 2)

Figure 2: Channels 9-12 are blocked off, while the 8-Channel Model 7320 is selected as a unit in the Model 7321 GUI.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
