Catalog # 307329 - Model 7329 8-to1 RJ45 CAT6 Network Switch

Click image to enlarge

Base Price:

$2,622.00

Catalog No:

307329

Model No:

7329

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Compliance/Standards:

Cat6

Configuration:

Rackmount

Pins Switched:

Remote Port:

DB9

Local Control:

Pushbutton

Qty

Add to Cart

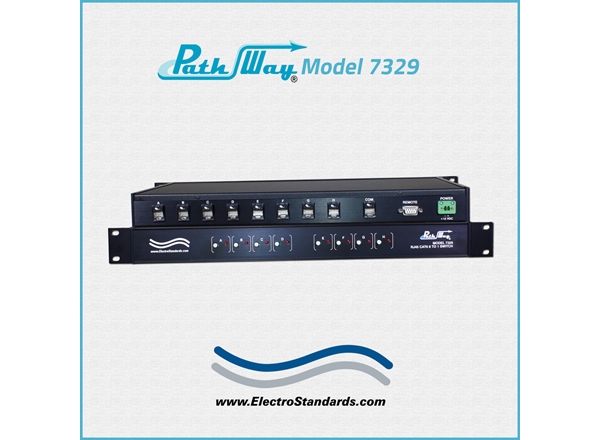

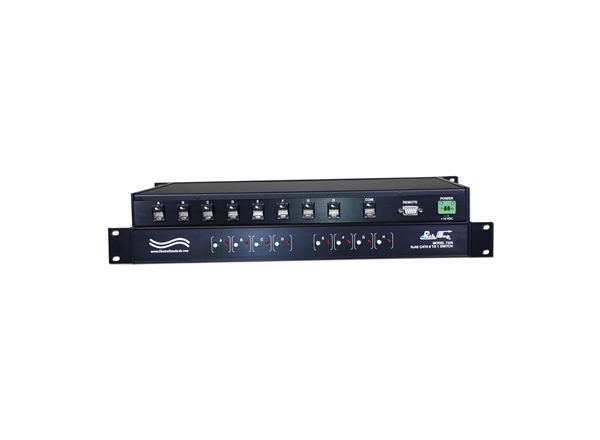

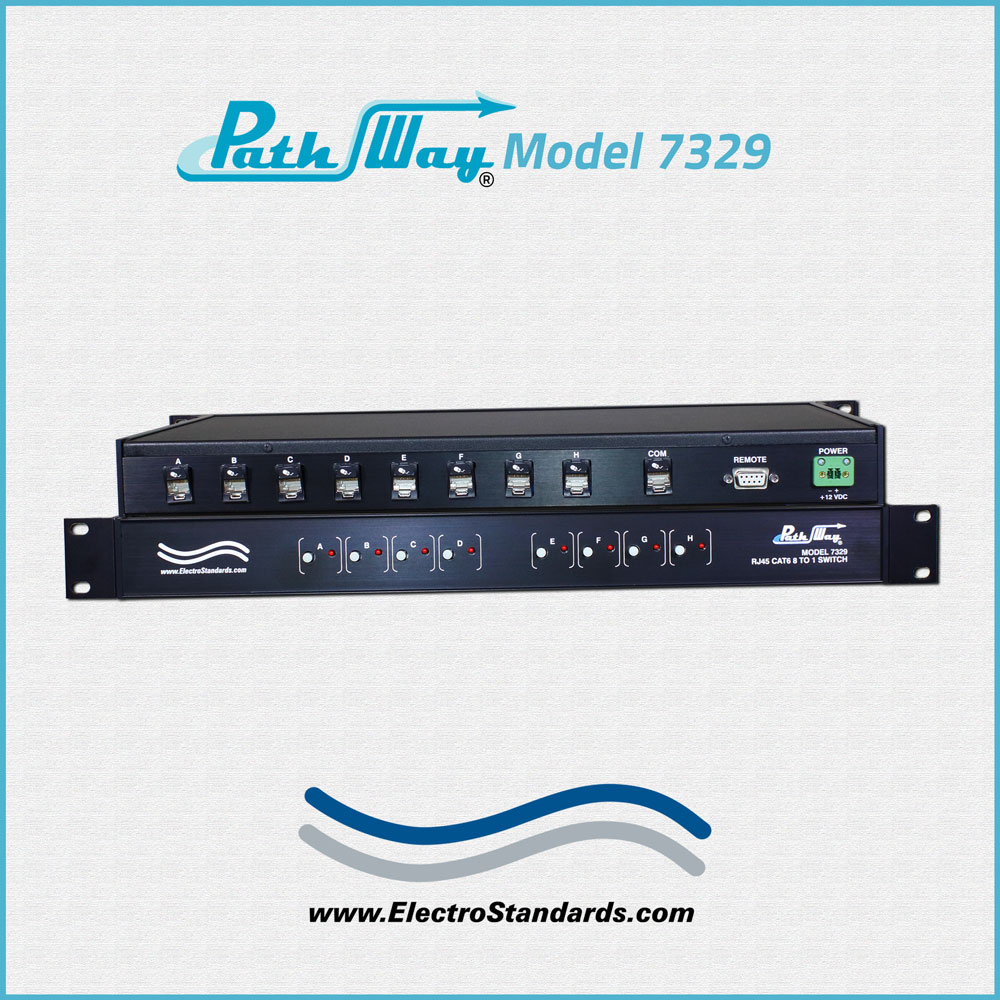

RJ45 8-to-1 Switch
Certified for Cat6 compliance
RS232 Serial Remote.

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch
Model 7329 8-to-1 RJ45 CAT6 Switch with RS232 Serial Remote

Outstanding Cat6 RJ45 Interface Switching Capability in Only 1U Height!
Applicable to switching ANY RJ45 interface quickly and reliably.

SPECIFICATIONS:

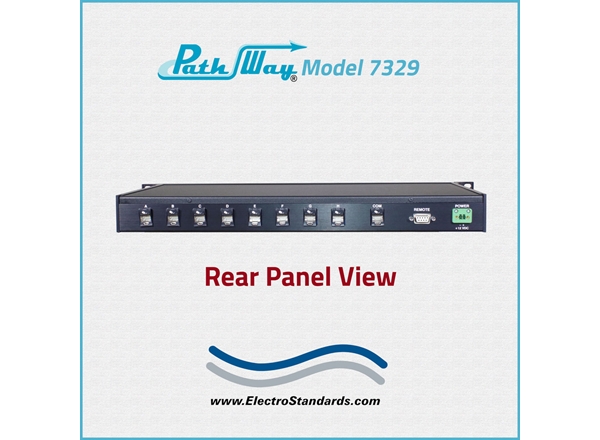

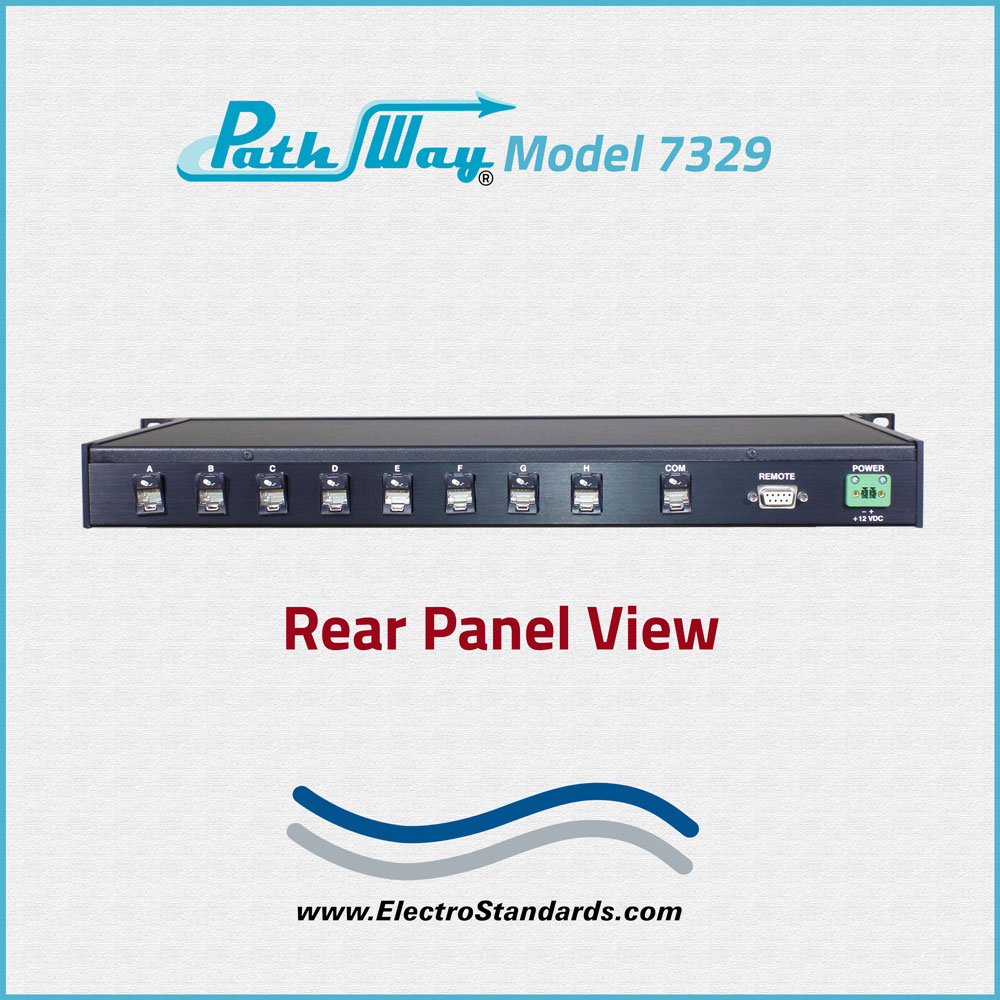

PORT CONNECTORS: (9) RJ45 female shielded connectors labeled A, B, C, D, E, F G, H and COMMON.
COMPLIANCE: Interface meets or exceeds Cat6 performance.

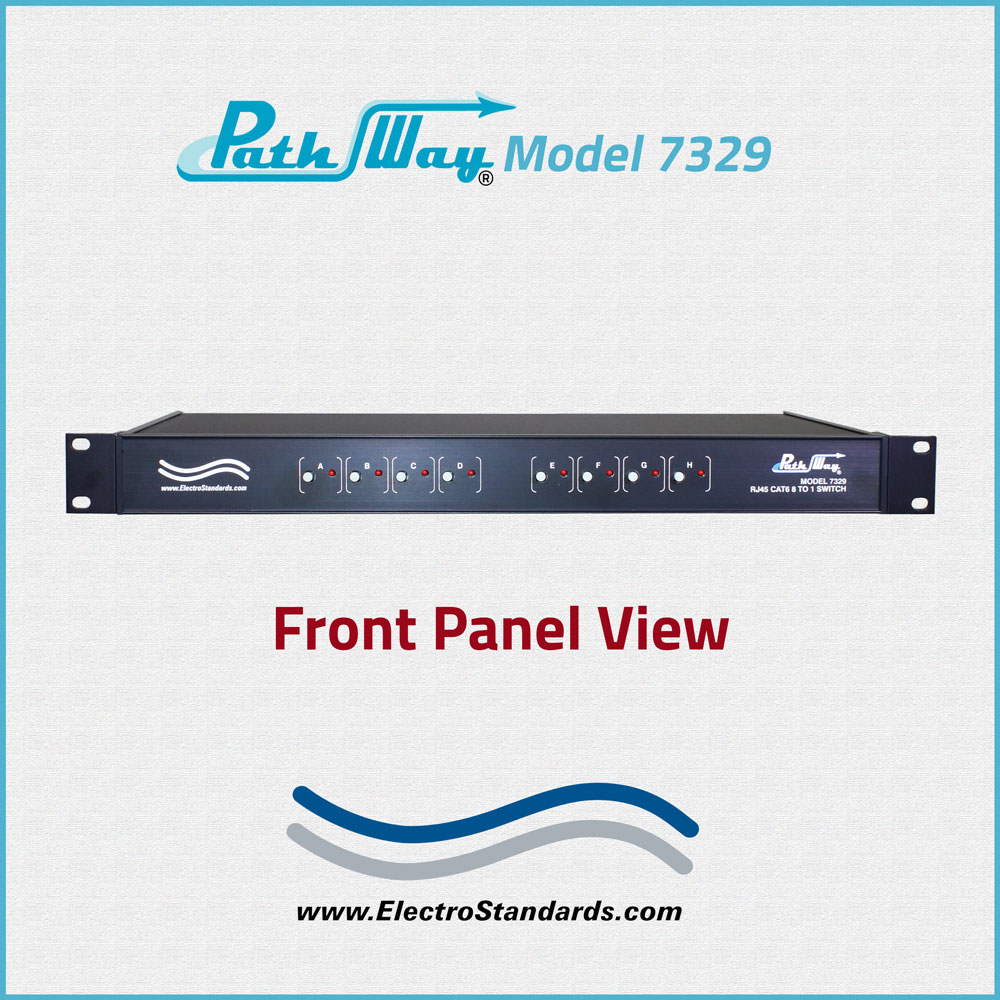

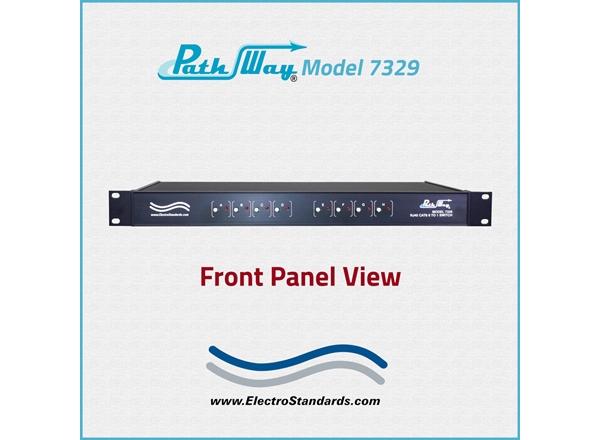

FRONT PANEL CONTROL: (8) Manual pushbuttons allow local switching.
DISPLAY: (8) Front panel LED's display switch position and power status.
REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
POWER: UL approved 100VAC-240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: 19.0" W x 1.75" H x 10.14" D. (48.2 x 4.4 x 25.8 cm)
WEIGHT: Approximately 5.8 lbs. (2.7 kg)

PathWay® Model 7329 Cat6 RJ45 8 to 1 Switch Application w/RS232 Serial Remote Control:

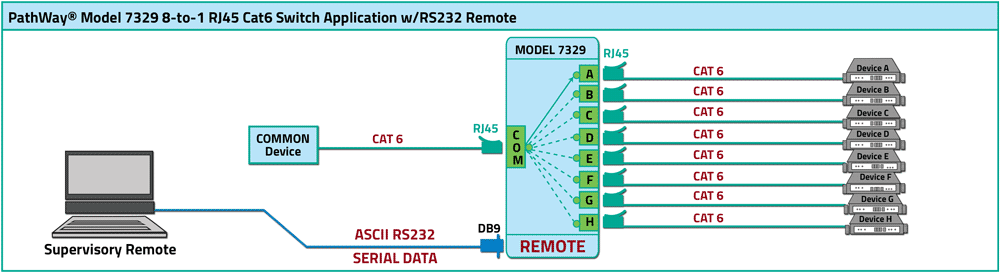

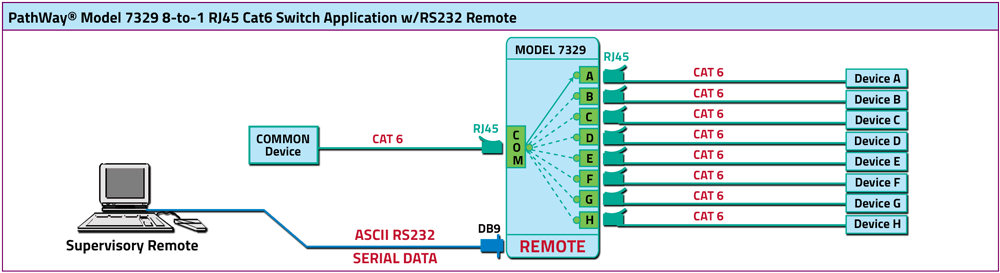

The drawing illustrates a COMMON Device connected to the RJ45 COMMON port with access to eight other devices connected to the A, B, C, D, E, F, G and H ports, respectively. The COMMON Device has access to connect to any one device at a time from Device A, Device B, Device C, Device D, Device E, Device F or Device H. A computer or workstation is connected to the DB9 Remote port for remotely controlling the switch position, lockout front panel operations, obtain switch status, query firmware version number, query serial number, enable/disable autosend of switch positions via RS232 ASCII serial data commands.

PathWay® Model 7329 8-to-1 RJ45 Cat6 Application

FEATURES:

Allows quick connection to any one of 8 RJ45 interface devices from one COMMON device.
The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
Front panel pushbutton control.
Switch maintains position on power loss and continues to pass data.
Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, query firmware version number, query serial number, and enable/disable autosend of switch positions.
Front panel LED's display present position and power status.
Certified for Cat6 compliance.
Attractive all black box packaging provides EMI/RFI shielding.

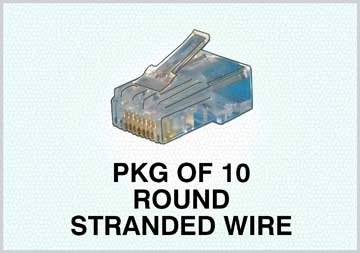

Custom length RJ45 Cat6 cables available for your switch installation

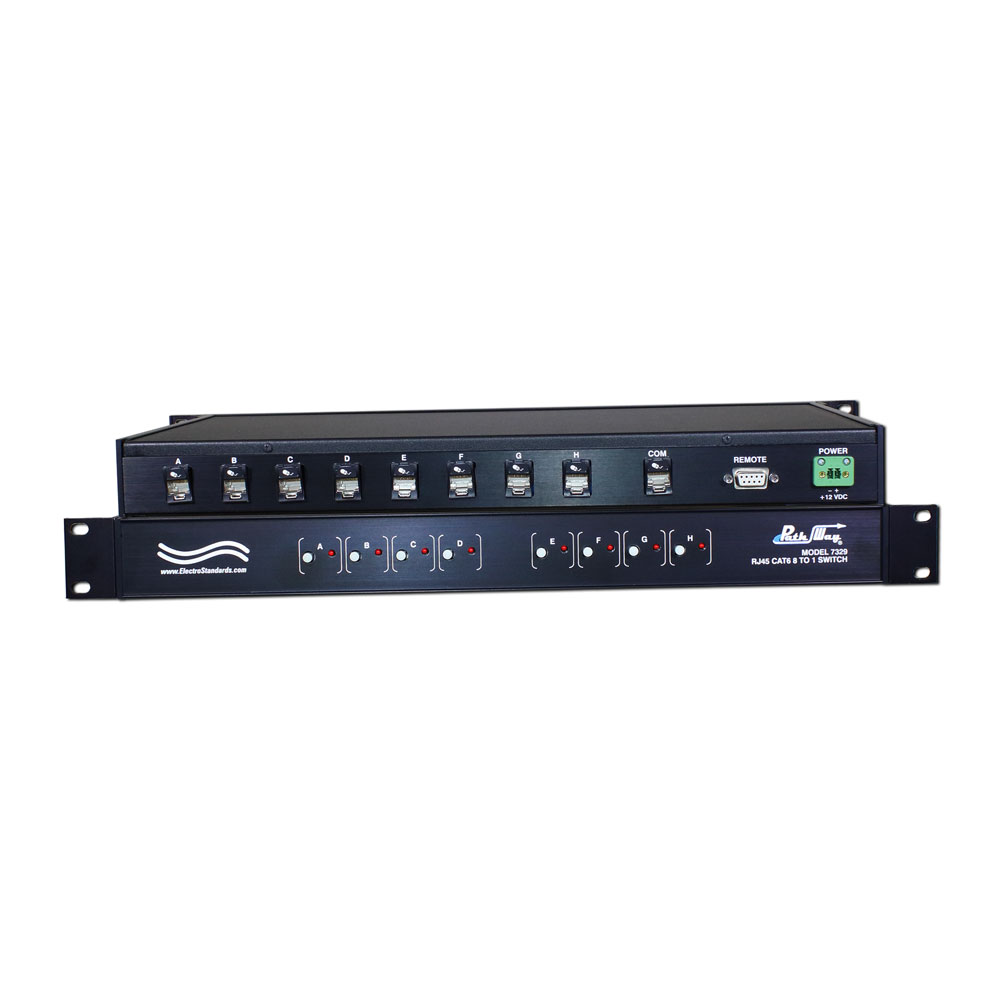

The PathWay® Model 7329 Single Channel RJ45 Cat6 8-to-1 Switch with RS232 Remote allows the user the capability of sharing a single port interface device connected to the “COMMON” port among eight other devices connected to the “A”, “B”, “C”, “D”, “E”, “F”, “G”, and “H” ports, with remote access functionality. Remote Control access can be accomplished using ASCII RS232 commands. The Model 7329 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed. This cable can be provided by ESL under part number 528693.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
