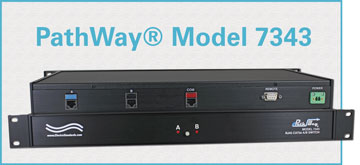

PathWay® Remotely Controllable Network Switch, Cat5e, RJ45
Model 7343 CAT5e RJ45 A/B Switch with Remote Control Via Contact Closure

  • Provides reliable network backup for mission critical systems!

 SPECIFICATIONS:

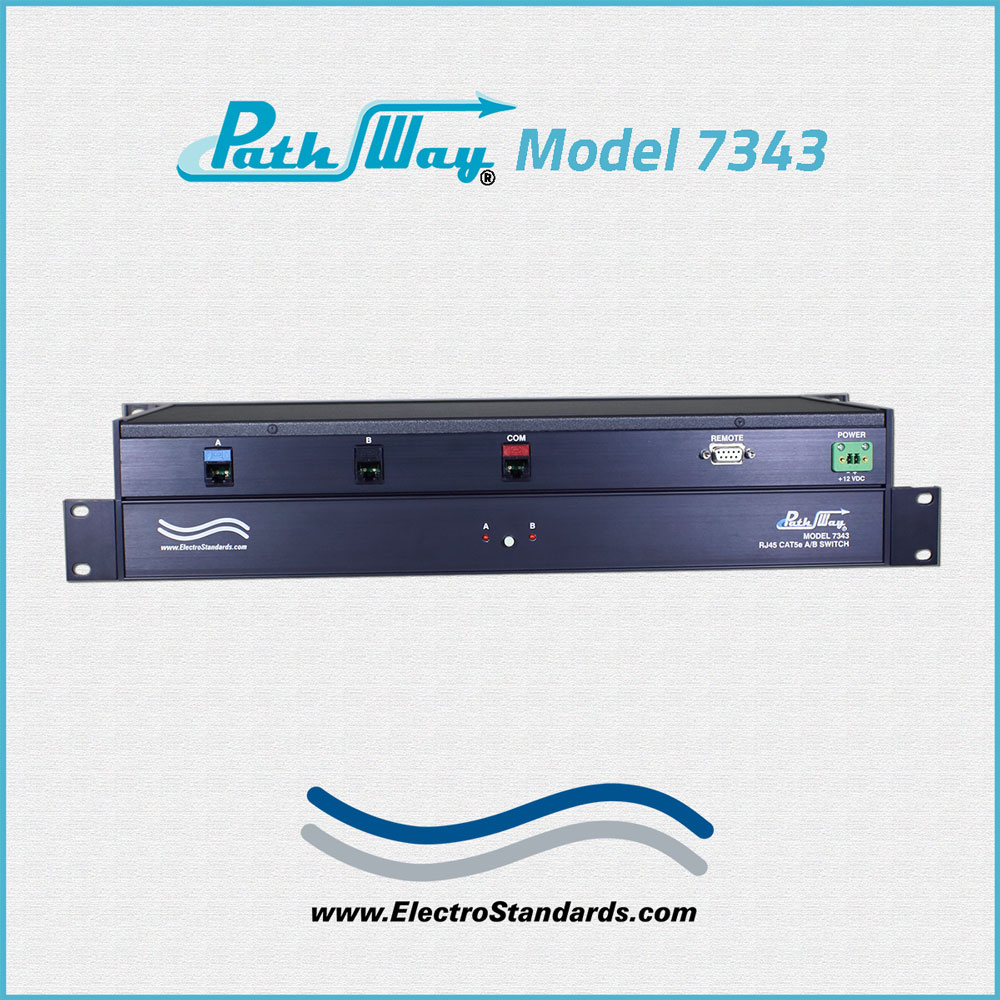

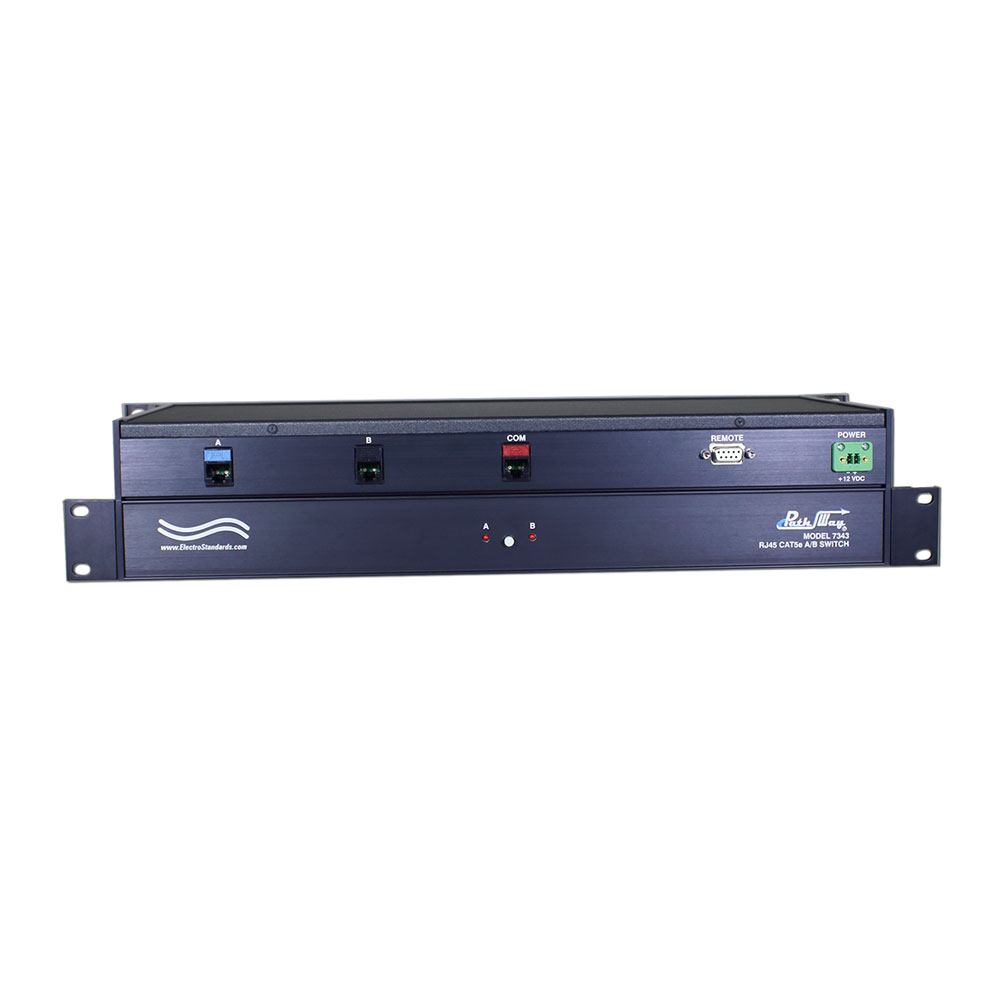

  • PORT CONNECTORS: (3) RJ45 (F) ports A, B, and COMMON.
  • COMPLIANCE: Interface meets or exceeds Category 5e performance.

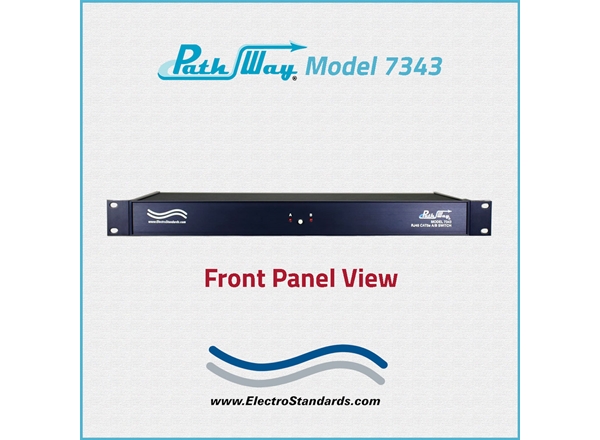

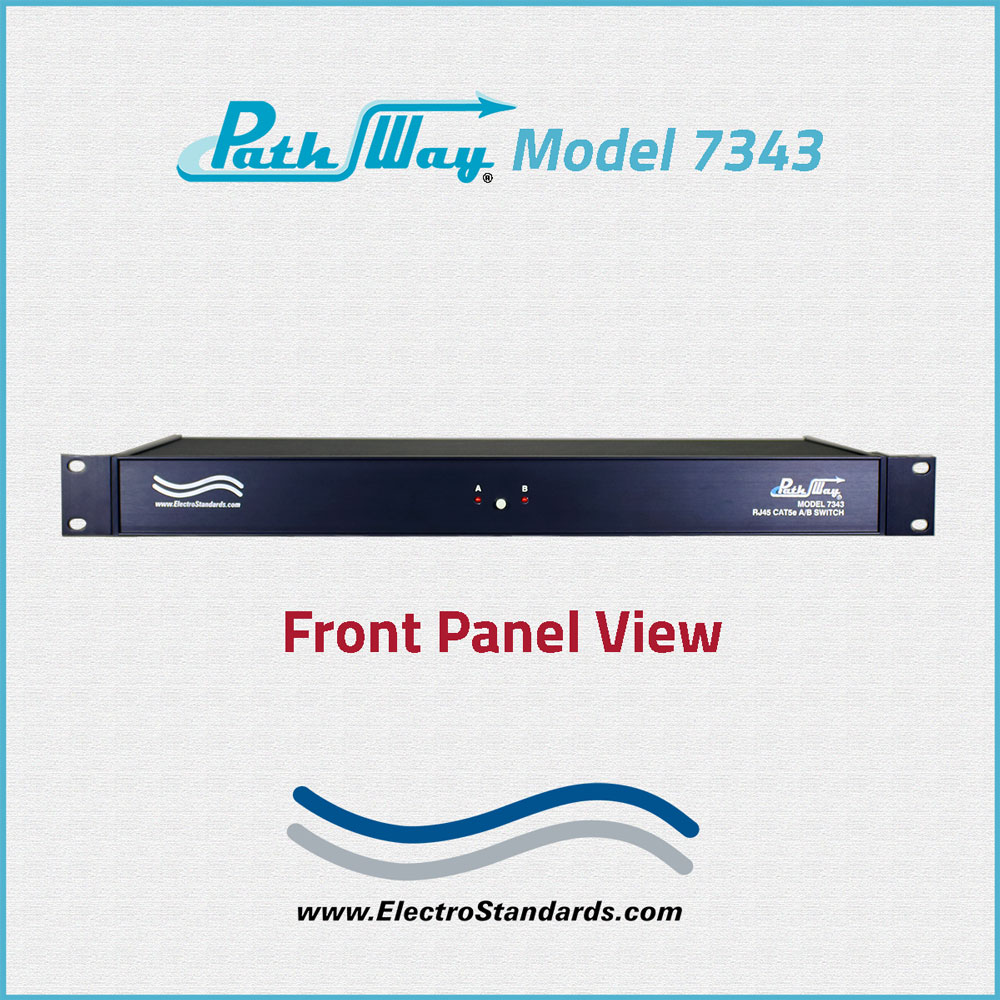

  • FRONT PANEL CONTROL: (1) Manual pushbutton to select port A or B.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

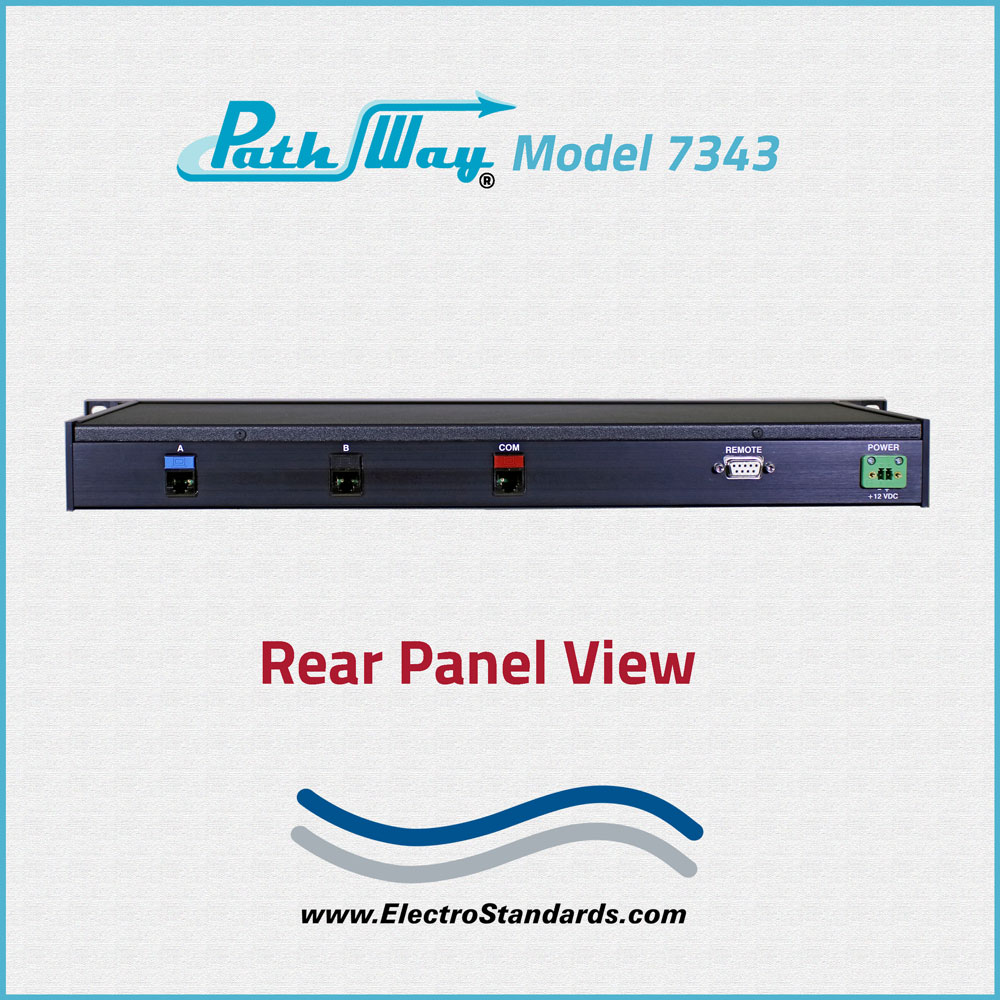

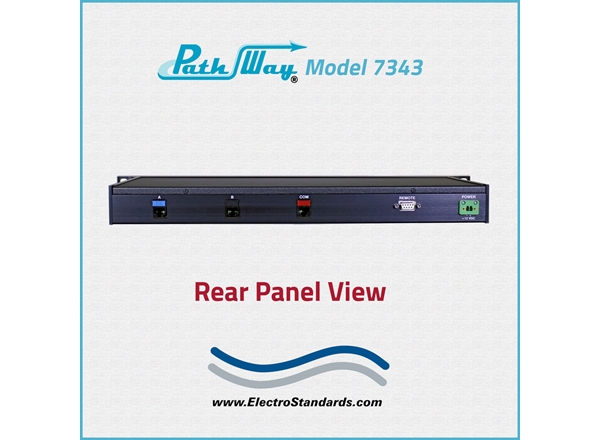

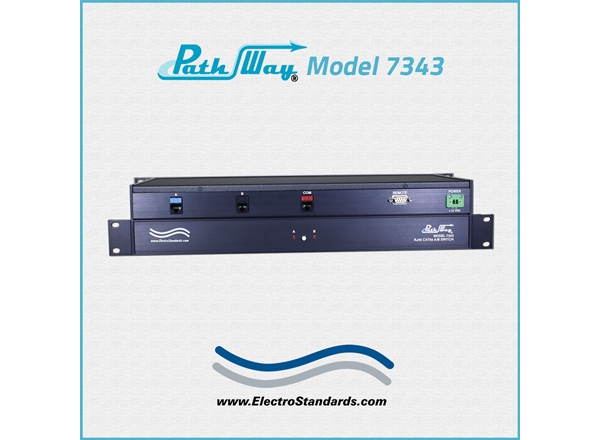

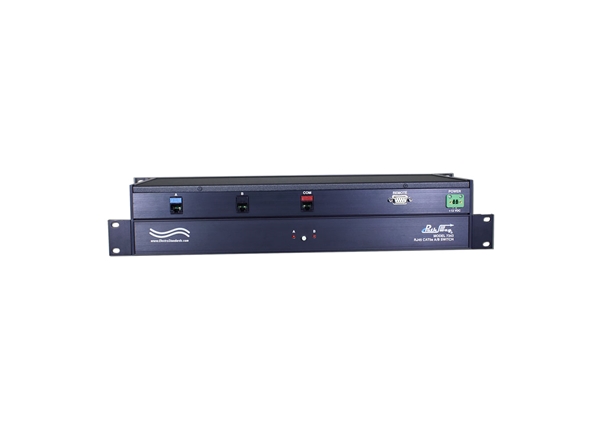

  • REMOTE CONTROL PORT: (1) DB9(F) REMOTE connector accepts dry contact closure signals from a remote device.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.14" D. (48.3 x 4.4 x 20.7 cm)
  • WEIGHT:  Approximately 4.2 lbs. (1.9 kg)

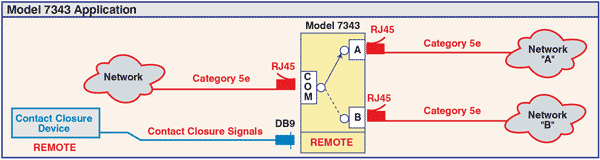

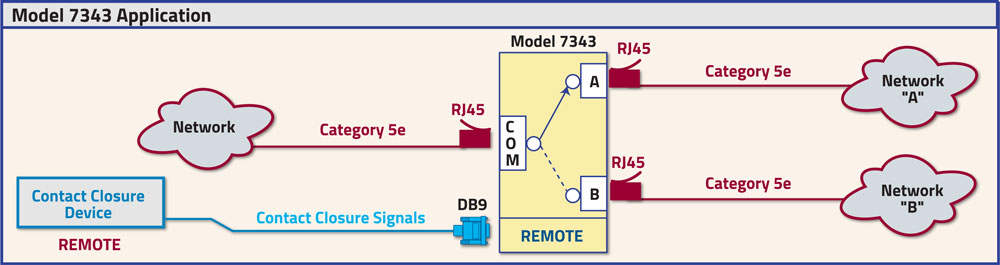

 CAT5e A/B NETWORK APPLICATION WITH CONTACT CLOSURE: The drawing illustrates a Cat5e Network connected to the COMMON port accessing two other Cat5e Networks connected to the RJ45 A and B ports. The switch may be controlled via the DB9 Remote using Dry Contact Closure signals.

Model 7343 Cat5e RJ45 A/B Switch with Contact Closure Remote Control Network Application Diagram for Model 7343

FEATURES:

  • Allows quick connection to any one of two RJ45 interface devices from one COMMON device.
  • Local control via front panel pushbutton.
  • Eliminates the need to plug and unplug cables.
  • Great solution for fallback applications.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, the unit switches based on the state of Contact Closure.
  • The Remote Control port accepts Dry Contact Closure commands for switch position control and front panel lockout.
  • Front panel LED's display present position and power status.
  • Certified for Cat 5e compliance.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Expected life, minimum operations, 108
  • Switch time approximate 3.5 msec.
  • Custom length data cables are available.
  • Electro Standards can design Cat 5e switches to meet your specific requirements.
  • Municipalities, schools, government:  This product is on GSA Schedule!

The PathWay® Model 7343 Single Channel RJ45 Cat 5e A/B Switch with Contact Closure Remote allows the user the capability of accessing two separate devices, connected to ports A and B, via connection through a device connected to the Common port.  The Model 7343 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard rack.

The switch may be controlled manually via the front panel pushbutton control or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED.

Wide Range Power Option Available: (Cat. No. 517277) CE, RoHS and UL listed table mount power module,100VAC/240VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

  • This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

PathWay® is a registered trademark of Electro Standards Laboratories.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/
