Catalog # 307346 - Model 7346 RJ45 CAT5e A/B Switch

    RJ45 CAT5e A/B SwitchRJ45 CAT5e A/B SwitchRJ45 CAT5e A/B SwitchRJ45 CAT5e A/B Switch
Click image to enlarge
    • RJ45 CAT5e A/B Switch
    • RJ45 CAT5e A/B Switch
    • RJ45 CAT5e A/B Switch
    • RJ45 CAT5e A/B Switch
Base Price:
$1,143.00
Catalog No: 307346
Model No: 7346
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

 PathWay®

Path Way® Remotely Controllable Network Switch, Cat5e, RJ45

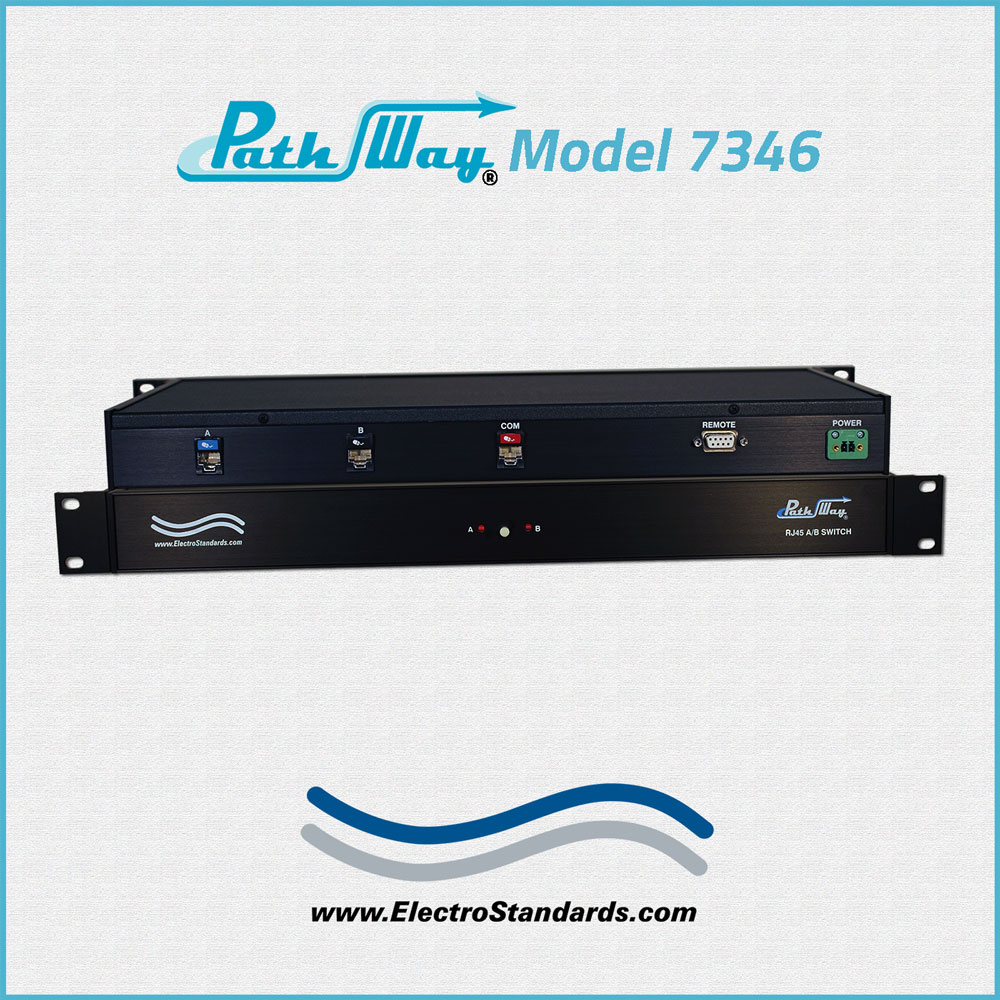

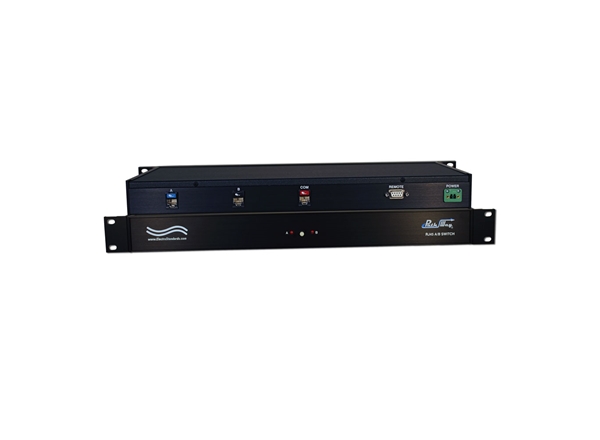

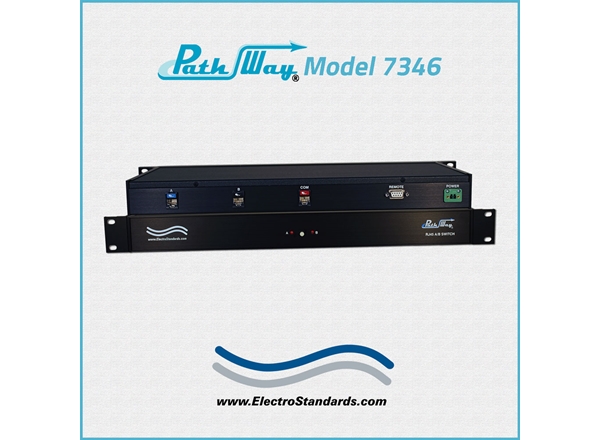

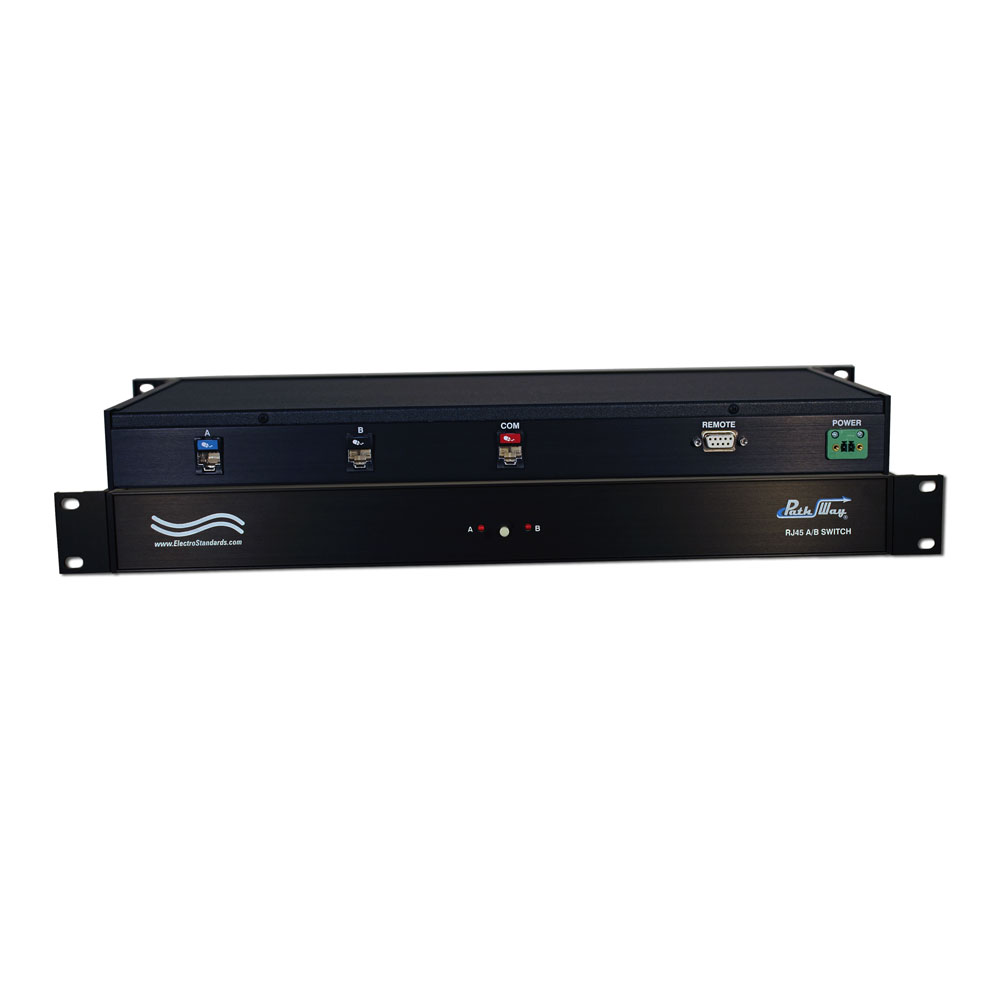

Model 7346 RJ45 CAT 5e A/B Switch with Remote Control via Contact Closure

  • Shielded RJ45 Connectors reduce Electromagnetic Interference (EMI)

  • Provides Cat5e Performance!

  • Switches all 8 pins. Allows compatibility with ALL RJ45 interfaces.

SPECIFICATIONS:

  • PORT CONNECTORS: (3) RJ45(F) shielded connectors, A, B, and COMMON.
  • COMPLIANCE: Interface meets or exceeds Cat 5e performance.

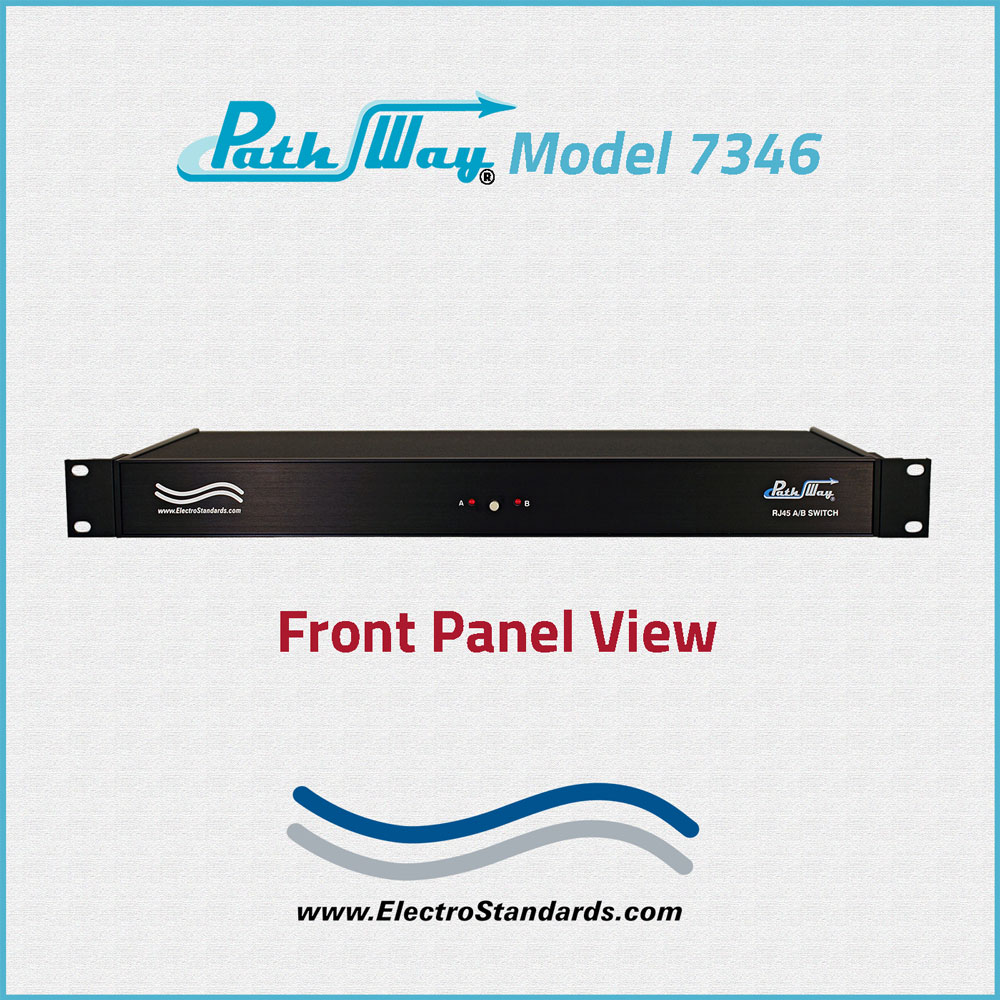

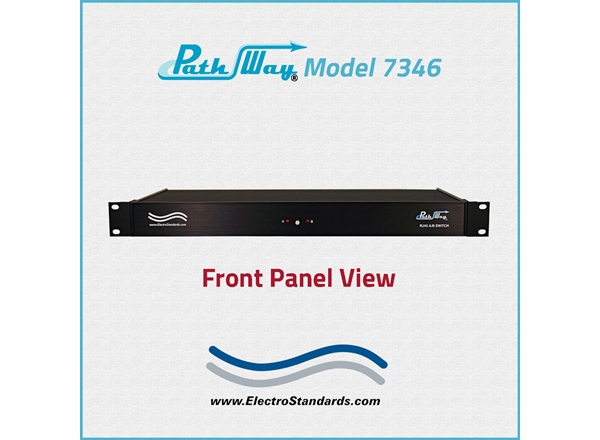

  • FRONT PANEL CONTROL: (1) Pushbutton to select port A or B.
  • DISPLAY: (2) Red LED's display switch position and power status.

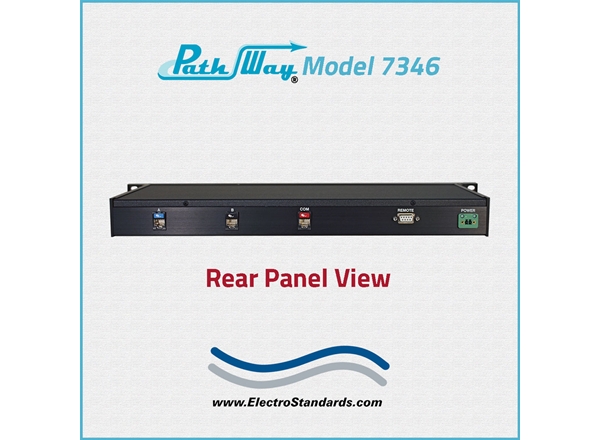

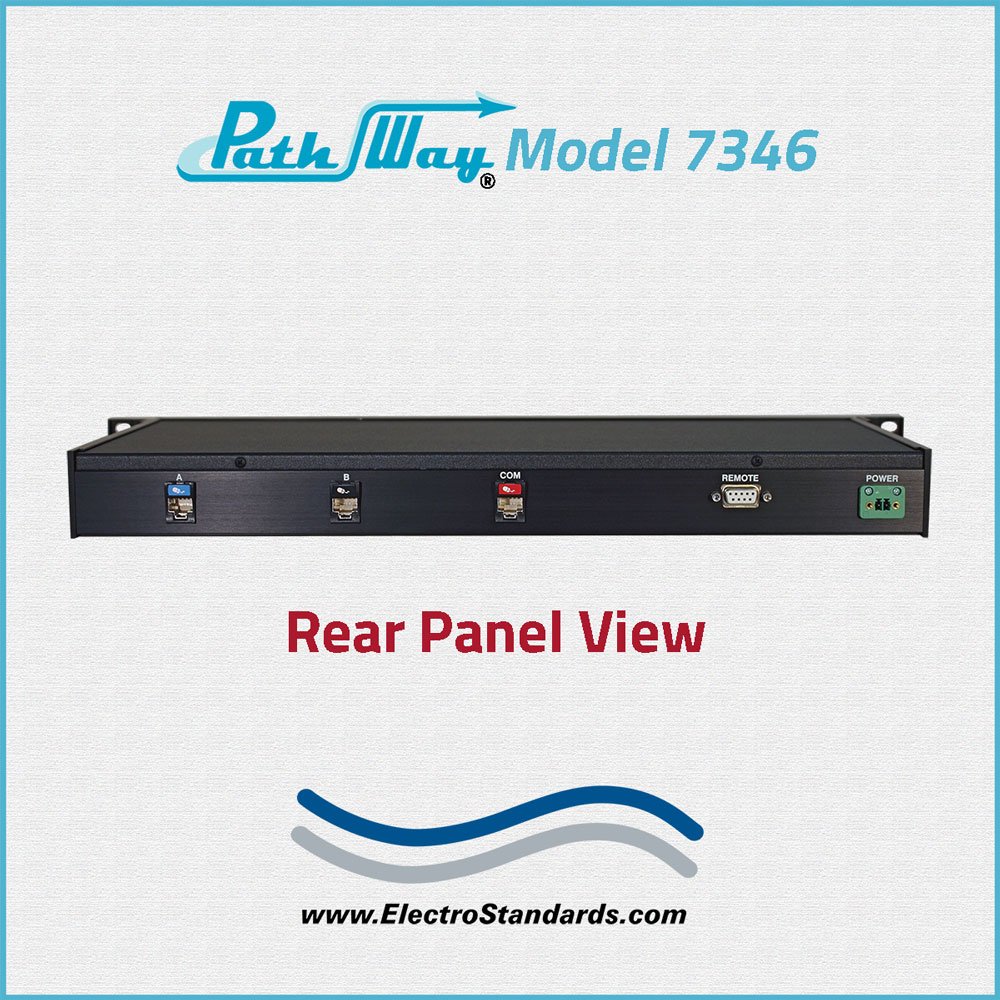

  • SUPERVISORY REMOTE PORT: (1) DB9(F) connector on rear panel accepts Dry Contact Closure for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount Configuration: 19.0" W x 1.75" H x 8.2" D. (48.3 x 4.4 x 20.9 cm)
  • WEIGHT: Approximately 4.3 lbs (2.0 kg)

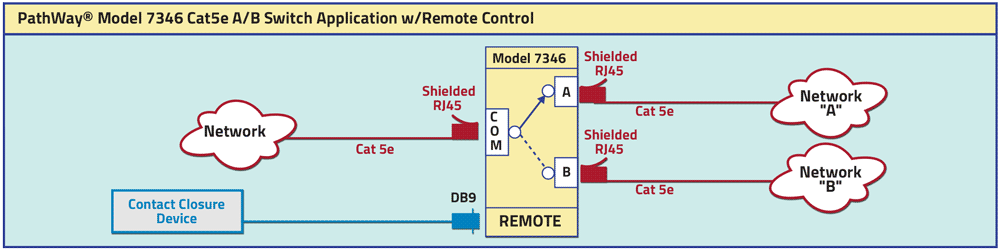

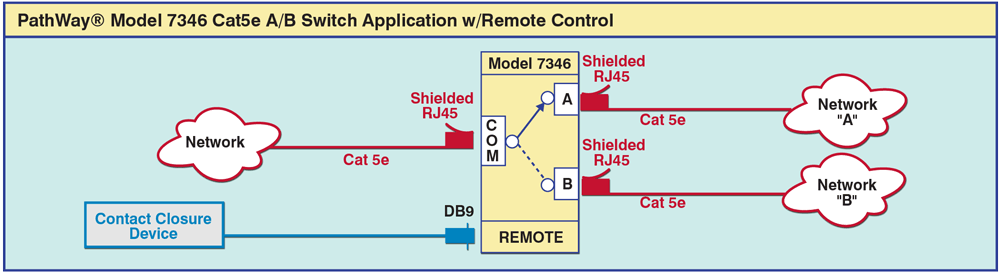

CAT5e SHIELDED RJ45 A/B SWITCH APPLICATION WITH CONTACT CLOSURE REMOTE:

The application drawing illustrates a single channel of Cat5e shielded RJ45 connectors labeled A, B and COMMON.  A Network connected to the COMMON port has access to Network A and Network B connected via the Shielded RJ45 port A and Port B.  A DB9 REMOTE port can be used to control the switch via Contact Closure commands.

PathWay® Model 7346 RJ45 Cat5e A/B Switch Application

FEATURES:

  • Allows quick connection to any one of two devices from one COMMON device.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Eliminates the need to plug and unplug cables.
  • The switch ports are transparent to all data.
  • Certified for Cat5e compliance.
  • Local control via front-panel pushbutton.
  • The Remote Control port accepts Dry Contact Closure commands for switch position control and front panel lockout.
  • Front panel LED's display switch position and power status.
  • Ideal for fallback applications.
  • Retains last switch position in the event of a power loss and continues to pass data.
  • If power is returned, the Model 7346 will check the setting of the Contact Closure Remote and move to that setting.
  • Attractive all metal black box packaging provides EMI/RFI shielding.

The PathWay® Model 7346 RJ45 Cat 5e A/B Switch with Contact Closure Remote allows the user the capability of accessing two separate devices connected to ports A and B via connection through a device connected to the Common port.  The Model 7346 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED display.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

PathWay® is a registered trademark of Electro Standards Laboratories.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All ESL products are available for export. Electro Standards welcomes business from International companies: commutateur de réseau, conmutador de red, switch di rete, przelacznik sieciowy , switch de rede, nätverksswitch.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
