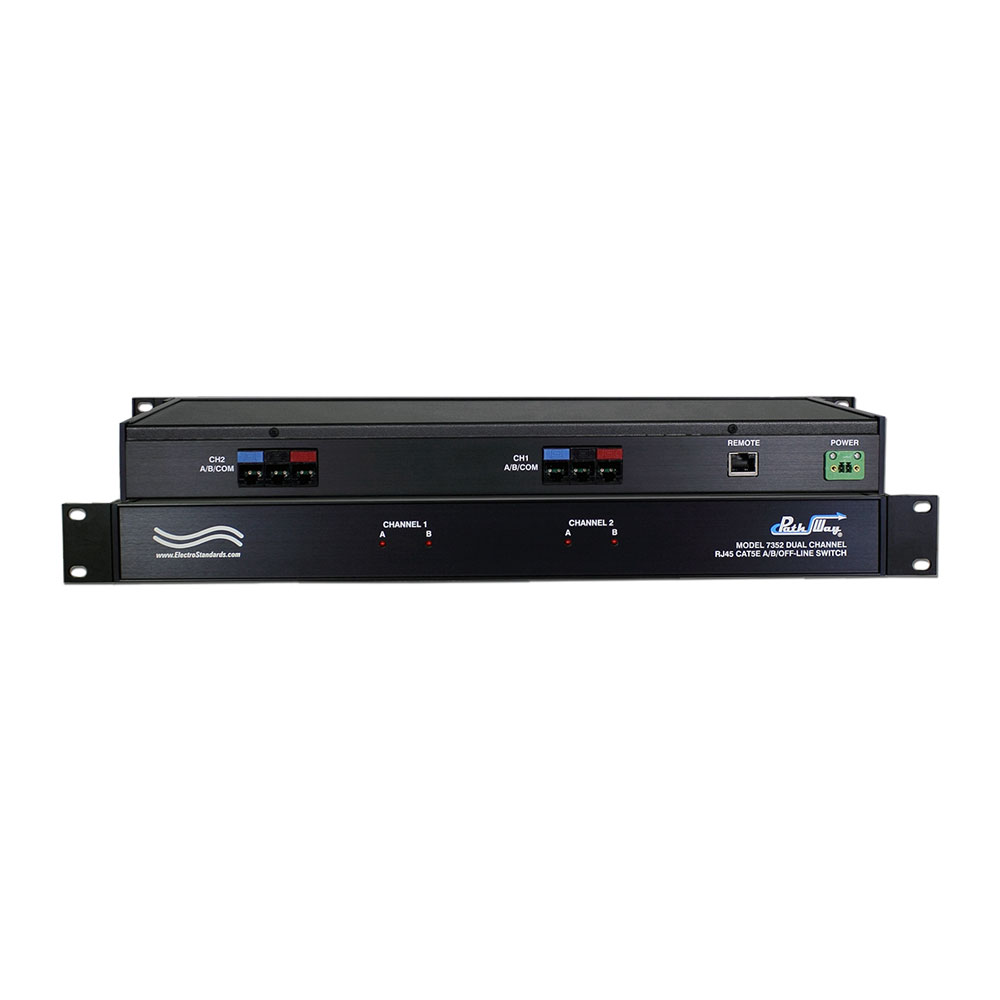

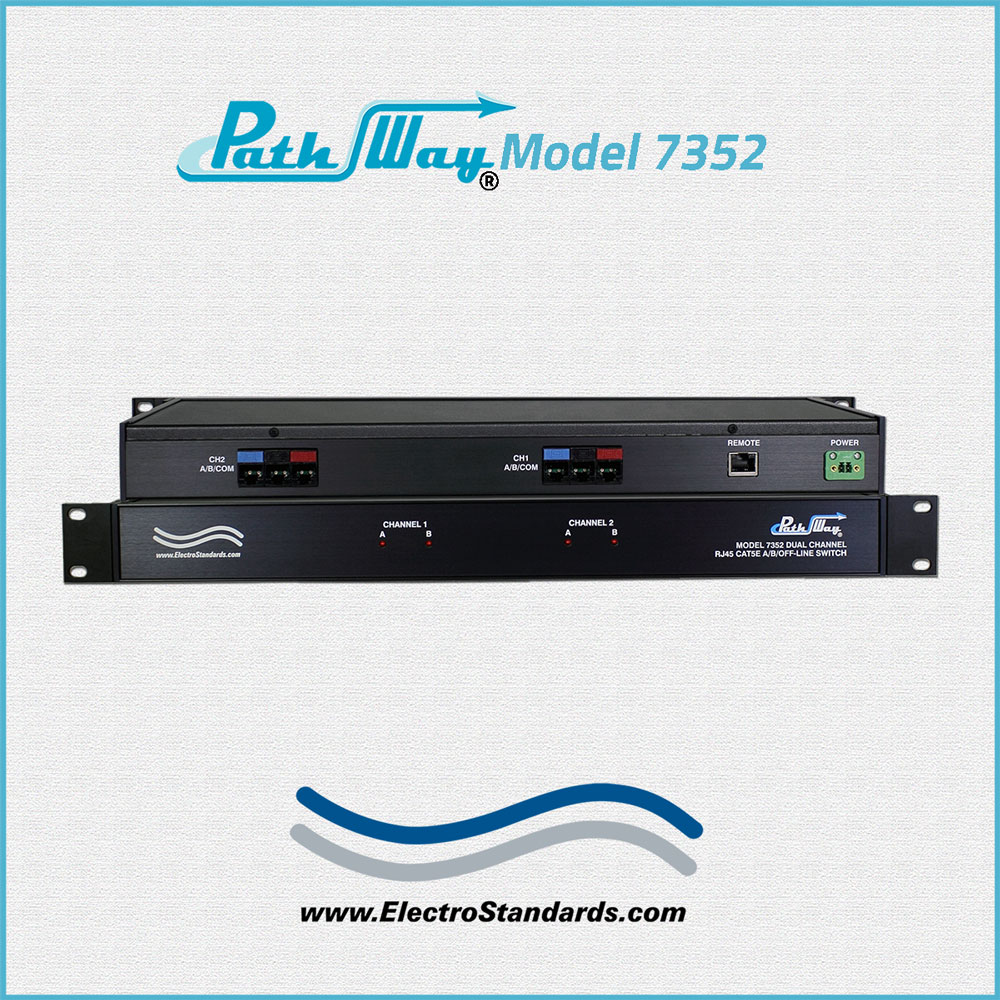

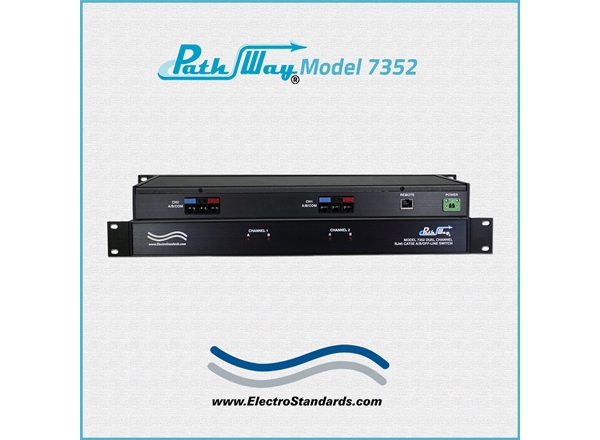

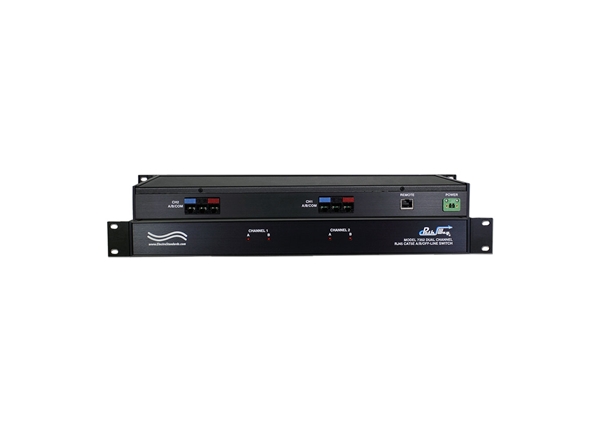

Catalog # 307352 - Model 7352 2-Channel RJ45 CAT5e A/B/Offline Switch

    Dual Channel Cat5e A/B/OFFLINE SwitchDual Channel Cat5e A/B/OFFLINE SwitchDual Channel Cat5e A/B/OFFLINE SwitchModel 7352 GUI SoftwareDual Channel Cat5e A/B/OFFLINE Switch
Click image to enlarge
    • Dual Channel Cat5e A/B/OFFLINE Switch
    • Dual Channel Cat5e A/B/OFFLINE Switch
    • Dual Channel Cat5e A/B/OFFLINE Switch
    • Model 7352 GUI Software
    • Dual Channel Cat5e A/B/OFFLINE Switch
Base Price:
$4,022.00
Catalog No: 307352
Model No: 7352
Product Type:Switches: Copper
Cable Type/Port Connector:50-Pin
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Group Channel Control
Remote Control:Ethernet
Security:Offline Position, Password Protection
Pins Switched:8
Remote Port:RJ45
Local Control:Pushbutton Footprint

Add to Cart
  • Two Independent Channels A/B/OFFLINE
  • No Local Control
  • Remote Control via Telnet & GUI
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

PathWay®

Path Way® Remotely Controllable Network Switch, Cat5e RJ45
Model 7352 Dual Channel CAT 5e RJ45 A/B/OFFLINE Switch, 10/100 BASE-T Remote Access and GUI

  • IP Addressable Data Network Switch!

  • Communicate with Switch via Internet Explorer running a PC.

SPECIFICATIONS:

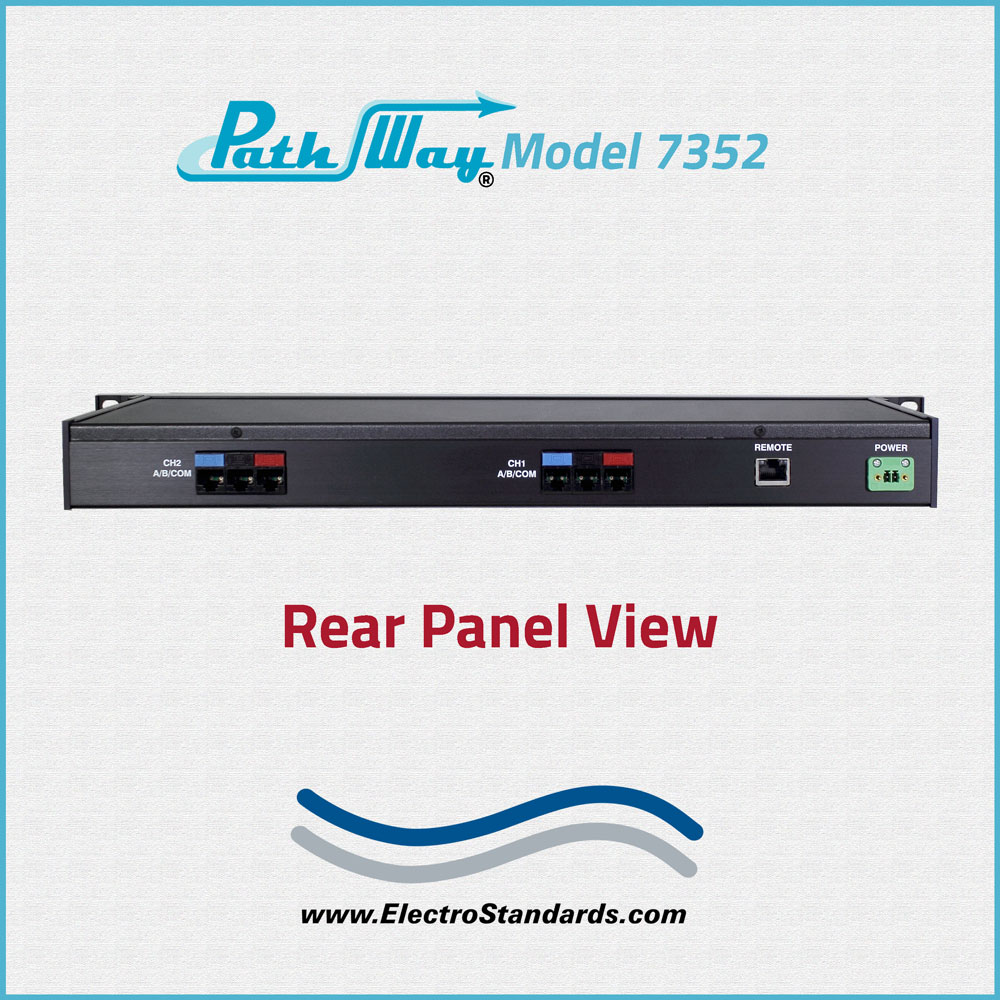

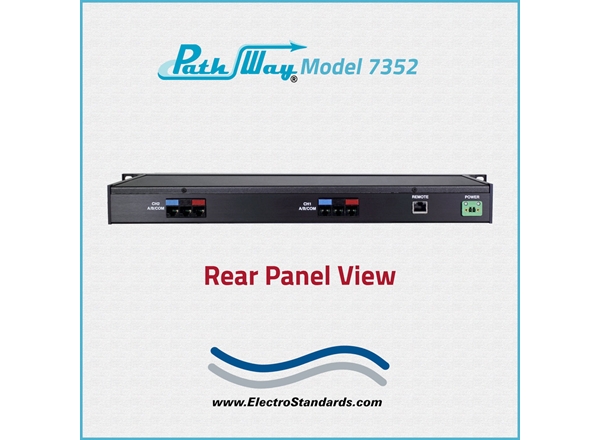

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON for each of the two channels.

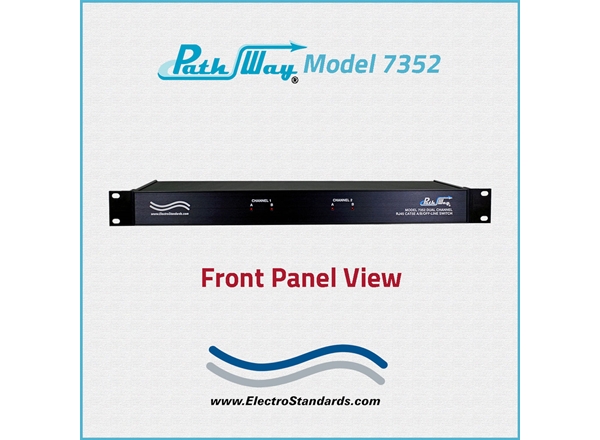

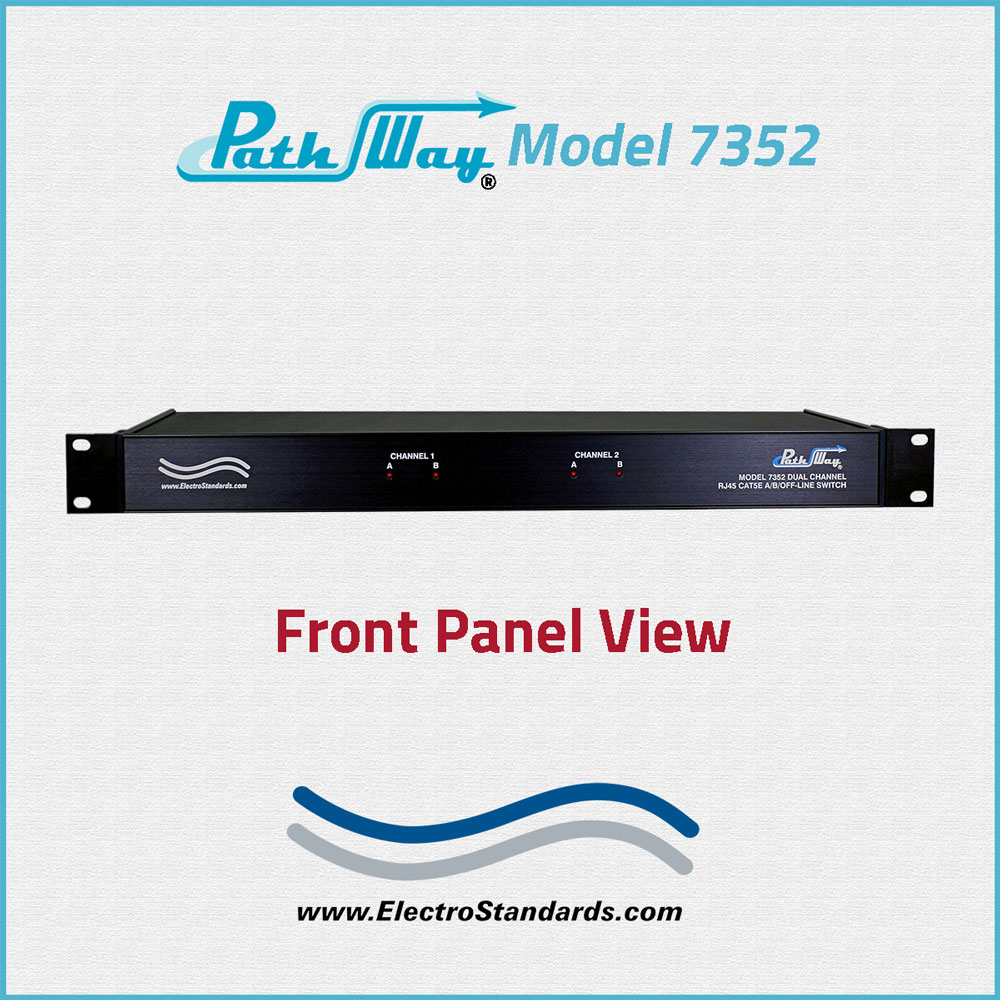

  • DISPLAY: (4) Front panel LED’s display switch position of each channel and power status.
  • EXCLUSIVE REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts Ethernet 10/100 Base-T connection and either TELNET commands or Graphical User Interface for remote operation.
  • POWER:  UL approved wall mount 100VAC-240VAC, 50Hz-60Hz power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19” W x 1.75” H x 8.05” D. (48.3 x 4.4 x 20.5 cm)
  • WEIGHT: Approximately 4.2 lbs (2.0 kg)

PathWay® Model 7352 Dual-Channel Cat5e RJ45 A/B/OFFLINE Application with Telnet and GUI: Exclusive Remote Control (No Local Control)

The drawing illustrates a COMMON device connected to the COM port for each of two channels. The COMMON device has access to two other devices connected to A, B, and OFFLINE port. The OFFLINE position offers complete isolation. The exclusive remote control offers 10/100BASE-T LAN Ethernet or Graphical User Interface to remotely control the switch position.

Model 7352 A/B/OFFLINE Switch Application w/GUI

FEATURES

  • Each channel allows access to two Cat5e RJ45 networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Independent control of each channel with Gang Controls.
  • No local control.
  • Switch reverts to the “Offline” position on power loss and isolates all ports.
  • Switch remains in the “Offline” position on power up.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment.
  • Remote Telnet Command Interface or Graphical User Interface that allows the user to control switch position, obtain switch status, as well as, query firmware version number, query serial number.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED’s display present position and power status.
  • Certified for Cat5e compliance.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • For a unit with Local and Remote Control, See Model 7355, Cat No 307355.
  • Municipalities, schools, government: On GSA Schedule!

The PathWay® Model 7352 Dual-Channel RJ45 Cat5e A/B/OFFLINE Switch with Telnet and GUI allows the user the capability of sharing a single port interface device, connected to the “COMMON” port, among two other devices, connected to the “A” and “B” ports, for each channel.  Remote Control access can be accomplished using an Ethernet 10/100BASE-T connection and either Telnet Commands or Graphical User Interface.  The Model 7352 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC - 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

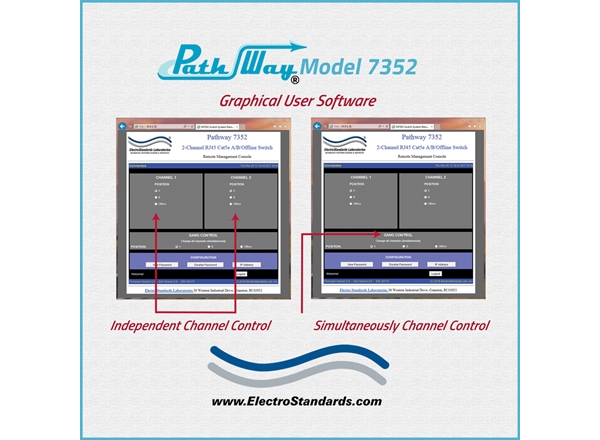

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7352 LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address. The Java Applet will be automatically uploaded from the switch upon connection. The environment requirement for the GUI is Java 1.7 and above.

SOFTWARE FEATURES:

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7352 Dual RJ45 A/B/OFF-LINE Switch System.
  • Users can change the login password and/or the switch's IP address.
  • LAN access give users across the LAN or over the Internet, access to control the unit remotely, if user network is configured accordingly.

10/100Base-T LAN SETUP Network Setup

The switch is configured from the factory to use DHCP to automatically get its IP address from a DHCP server on the local area network when connected to the network and powered up. Therefore, a DHCP server is needed on the local area network for the initial configuration. After that, the switch can be configured to use a static IP address. To find the IP address of a switch that it has gotten from the DHCP server, or to reconfigure the IP Address of the switch, use Lantronix® DeviceInstaller application.

Getting DeviceInstaller

DeviceInstaller requires Microsoft's .NET Framework version 4.0 or higher. If the .NET Framework is not already installed, it must first be installed. The .NET Framework can be downloaded from Microsoft's website, either as a web install, or as a standalone installation. The latest version of DeviceInstaller can be downloaded from the Lantronix's website.

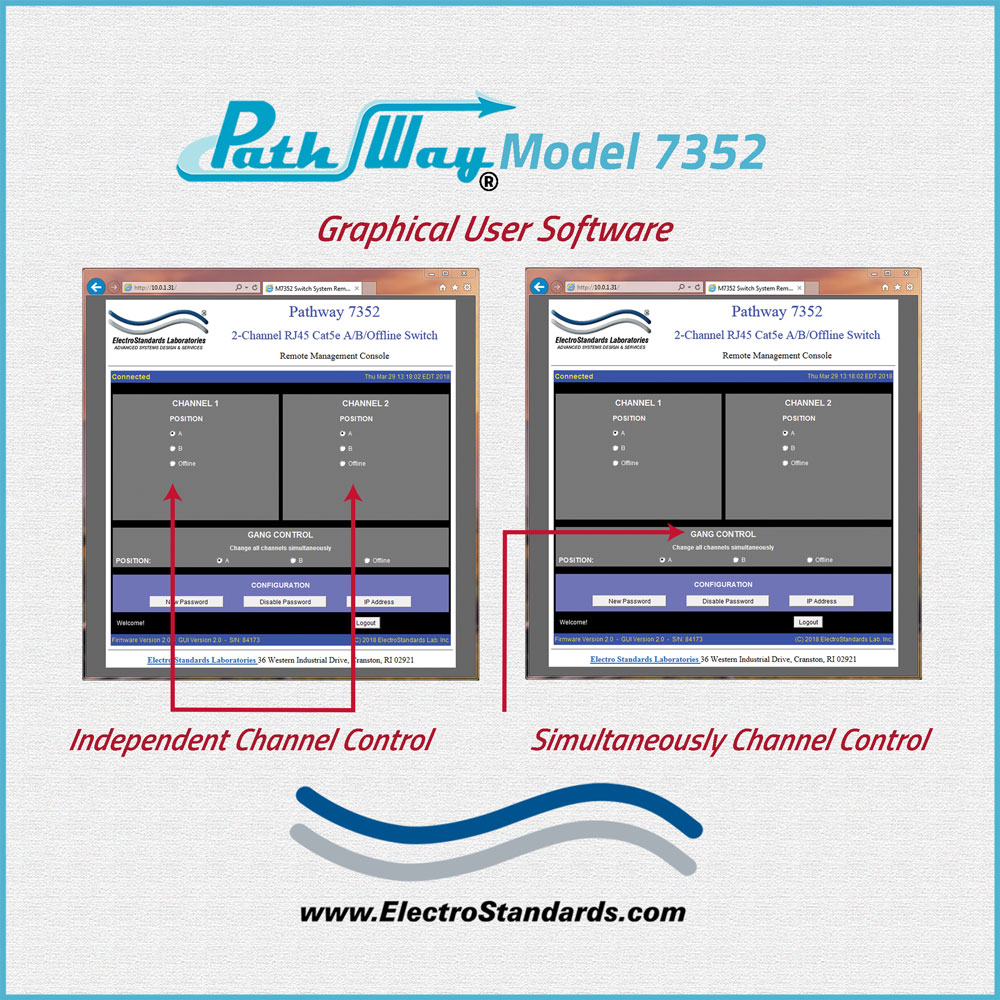

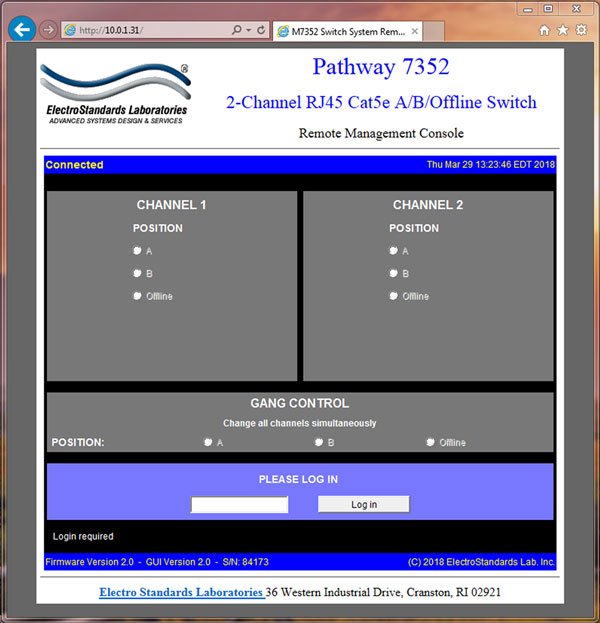

Model 7352 Main GUI for Remote Control

Figure 1: GUI in Standard Web Browser

CHANGE  POSITION AND LOCK STATUS

To change the switch position of a channel, click on the radio button "A", "B", or "Offline" as desired for each channel. See Figure 2.

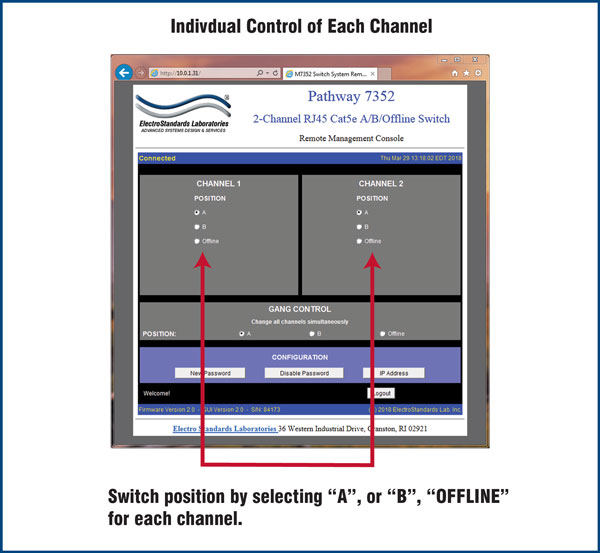

Model 7352 Main GUI for Remote Control

Figure 2: Change the position from the GUI.

USING THE GANG CONTROLS

Gang Controls can be used to change the position or state of all channels simultaneously. When all channels are in the same position or state, that position or state will be selected by the Gang Controls. If one of the channels is in a different position or state, that respective Gang Control will not have either option selected. See Figure 3.

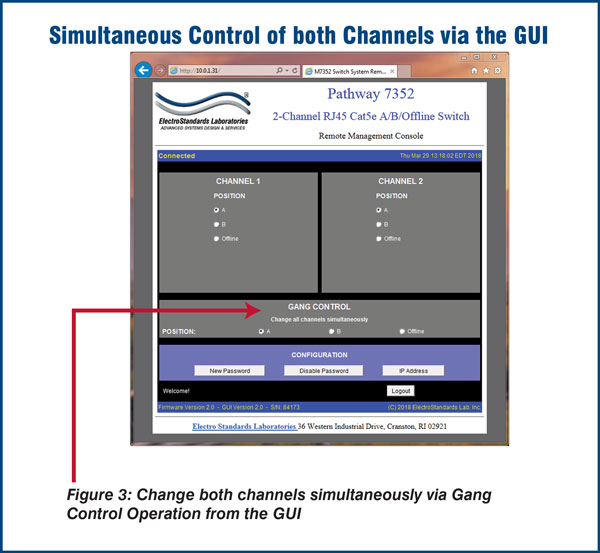

Model 7352 GANG operation
