Catalog # 307356 - Model 7356 6-Channel RJ45 A/B Switch

    6-Channel RJ45 A/B Switch6-Channel RJ45 A/B Switch6-Channel RJ45 A/B Switch6-Channel RJ45 A/B Switch
Click image to enlarge
    • 6-Channel RJ45 A/B Switch
    • 6-Channel RJ45 A/B Switch
    • 6-Channel RJ45 A/B Switch
    • 6-Channel RJ45 A/B Switch
Base Price:
$3,262.00
Catalog No: 307356
Model No: 7356
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:6
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control, Gang Channel Control
Remote Control:RS232 Serial
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Protocol:ASCII

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

PathWay®

Path Way® Remotely Controllable Network Switch, Cat5e, RJ45

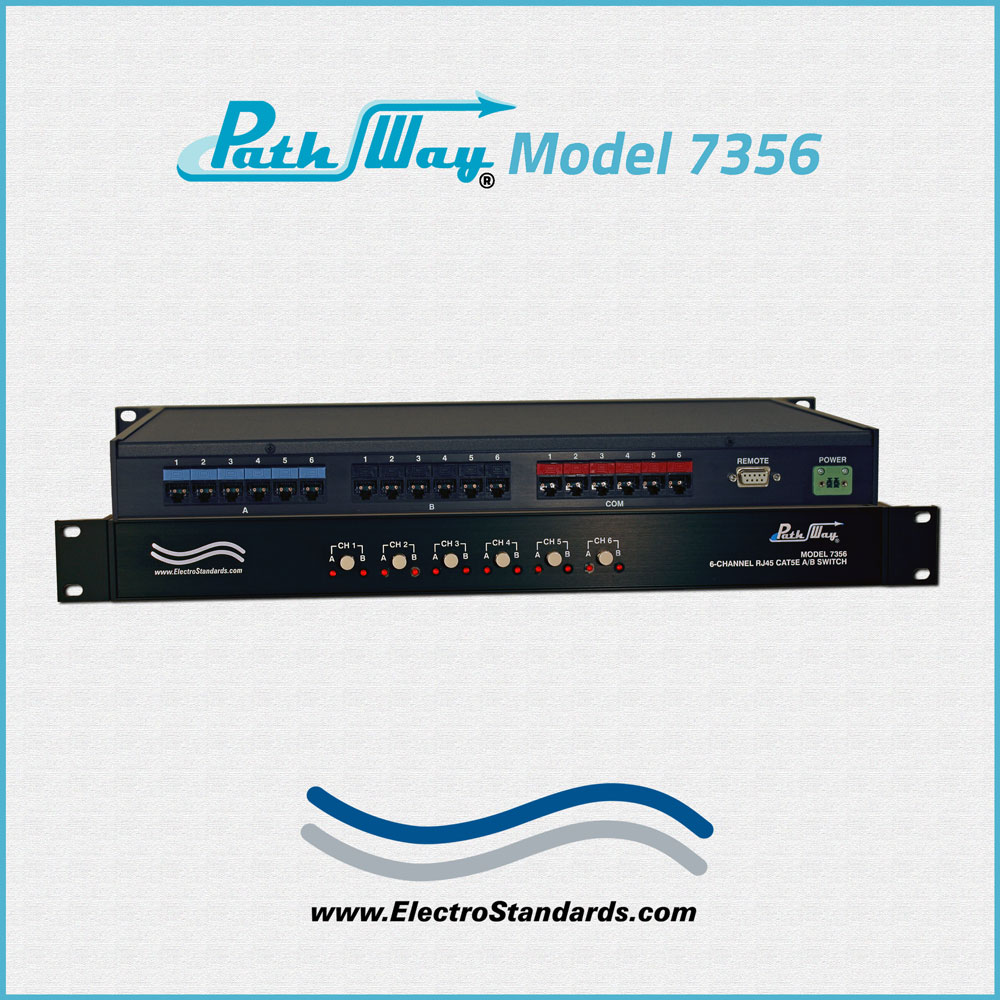

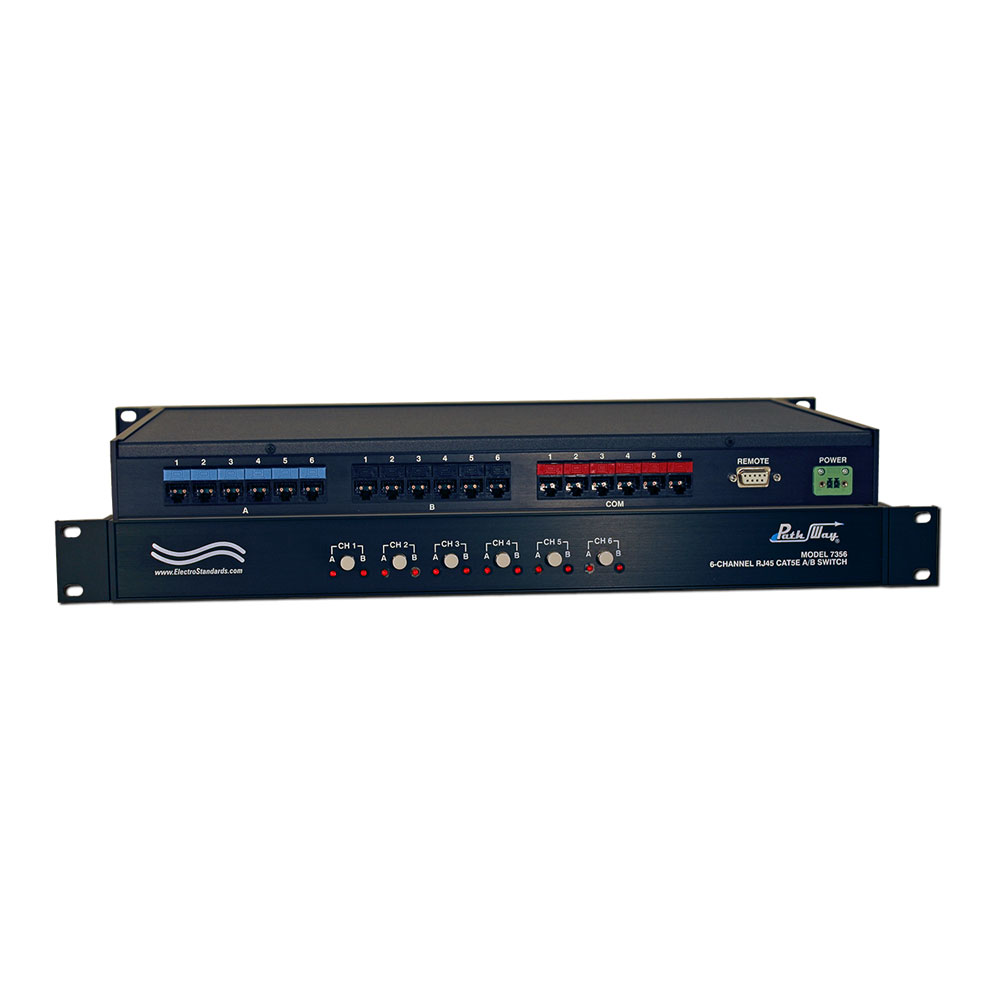

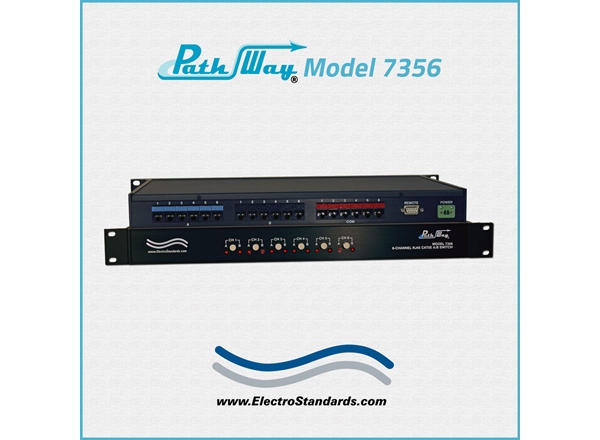

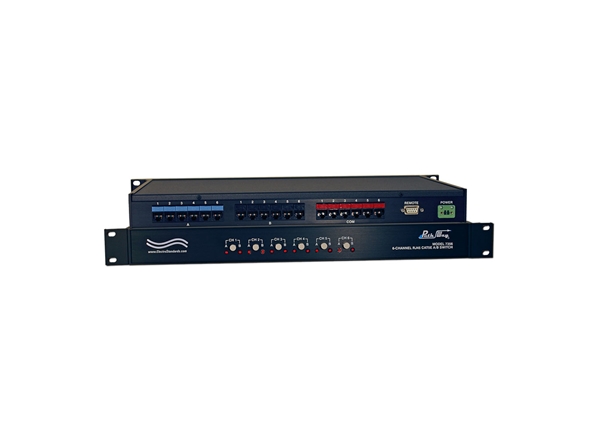

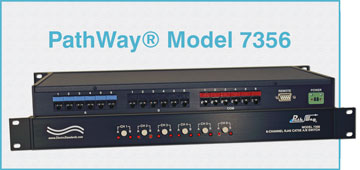

Model 7356 6-Channel RJ45 Cat 5e A/B Switch with RS232 Remote

  • Improves Efficiency by Providing Reliable Data Backup Switching.

  • Six Individual RJ45 A/B Switches Occupying Only 1U Vertical Rack Space.

SPECIFICATIONS:

  • PORT CONNECTORS: (18) RJ45(F) connectors total (A, B, and COMMON for each of six channels).

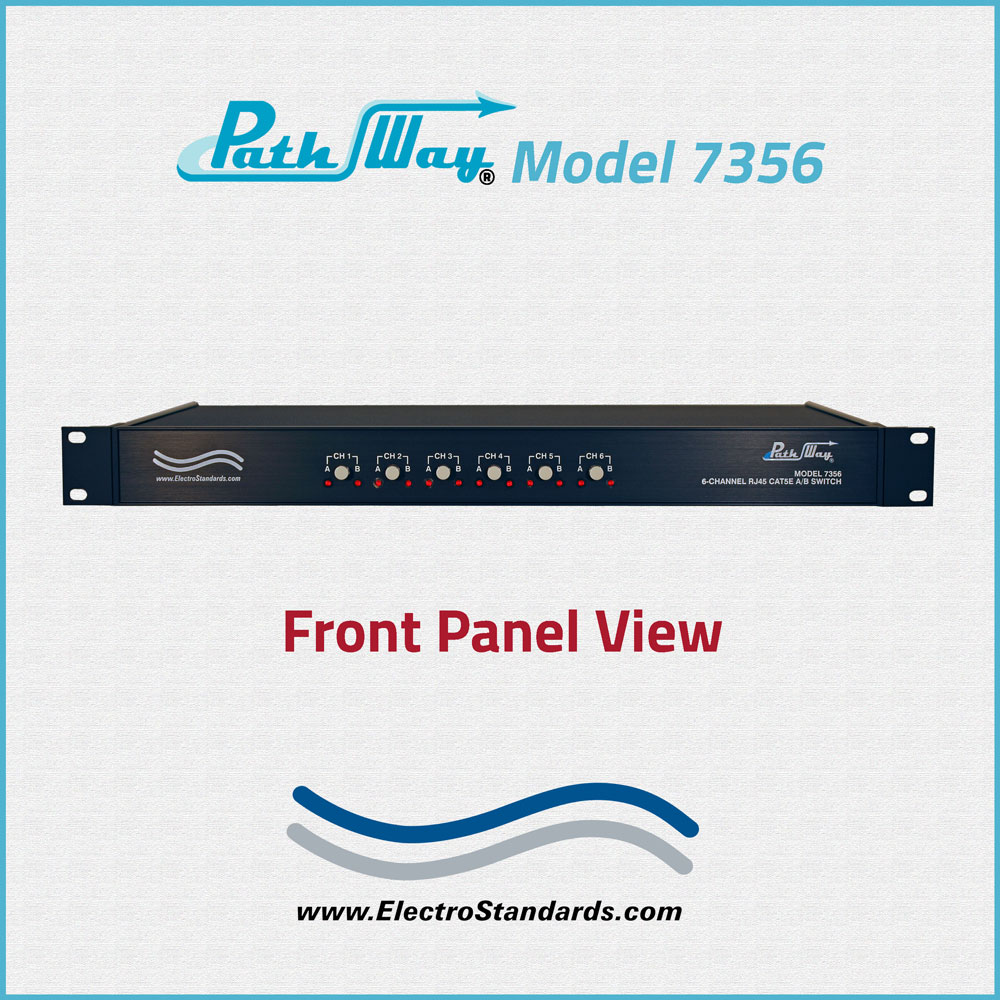

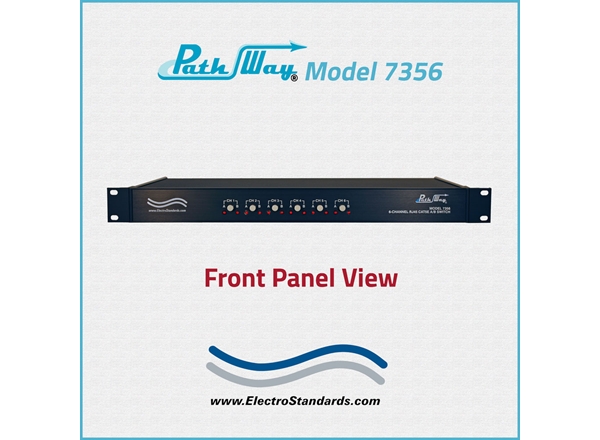

  • FRONT PANEL CONTROLS: (6) Pushbuttons labeled Channel 1 through Channel 6.
  • DISPLAY: (12) Red LED's total indicate the A or B switch positions for each of the six channels.
  • SUPERVISORY REMOTE PORT: (1) DB9(F) connector accepts RS232 serial data.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19" W x 1.75" H x 10" D. (48.3 x 4.4 x 25.4 cm)
  • WEIGHT: Approximately 5.8 lbs. (2.7 kg)

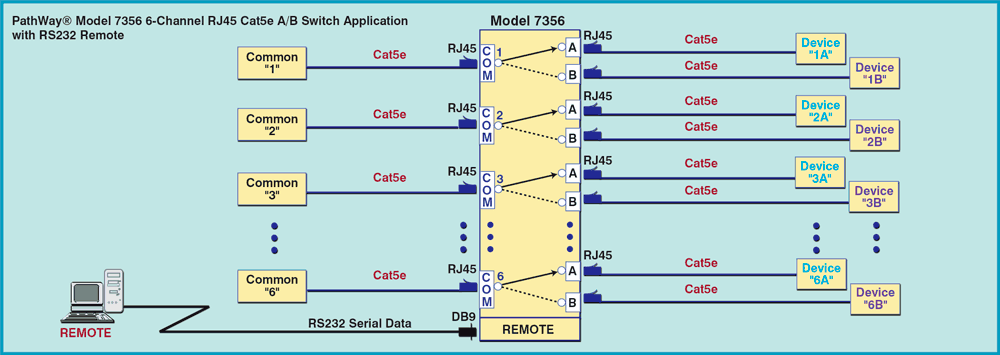

PathWay® Model 7356 Six-Channel RJ45 Cat5e A/B Switch Application w/RS232 Remote:

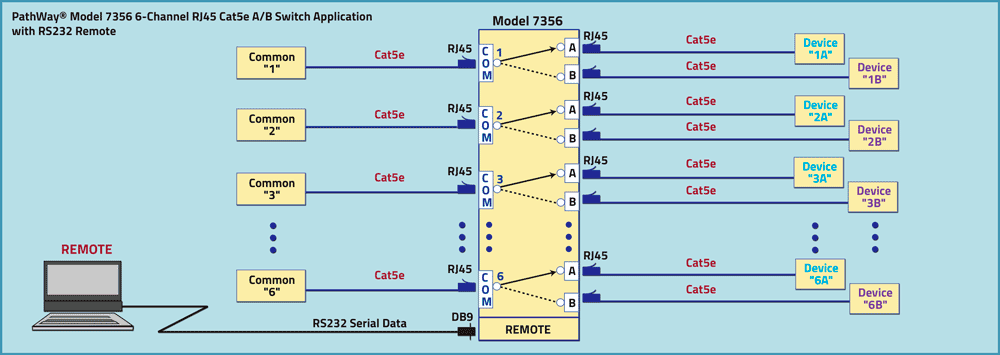

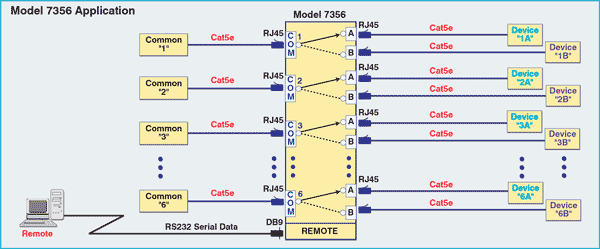

The drawing illustrates six A/B Channels of Independent Switching. Each Channel has a device connected to the CAT5e COMMON port accessing two other devices or networks connected to the CAT5e A and B ports. A DB9 REMOTE port allows the user to control the six channels individually via ASCII RS232 Commands.
