Catalog # 307363 - Model 7363 6-Channel RJ45 T1 Interface 2-Position Switch, with RS232 Remote

    6-Channel RJ45 T1 SVCN/GPCN Switch6-Channel RJ45 T1 SVCN/GPCN Switch
Click image to enlarge
    • 6-Channel RJ45 T1 SVCN/GPCN Switch
    • 6-Channel RJ45 T1 SVCN/GPCN Switch
Base Price:
$2,836.00
Catalog No: 307363
Model No: 7363
Product Type:Switches: Copper
Interface:T1
Positions:2
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:6
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure, RS232 Serial
Configuration:Rackmount
Pins Switched:1,2,4 and 5
Remote Port:DB9
Local Control:Pushbutton
Feature:Switching inhibited for 15 seconds after a position change.

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview


Path Way® Remotely Controllable Network Switch

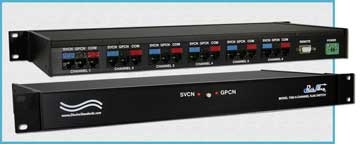

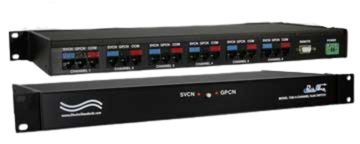

Model 7363 6-Channel RJ45 T1 Interface SVCN/GPCN Switch, with RS232 Remote

Model 7363 6-Channel RJ45 T1 Interface SVCN/GPCN Switch, with RS232 Remote

SPECIFICATIONS:

  • PORT CONNECTORS:  (3) RJ45 female connectors labeled SVGN, GPCN and COM for each of six channels.
  • FRONT PANEL CONTROLS:  (1) Front panel pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control Operation.
  • POWER:  UL approved 1100VAC/240VAC, 60Hz/50Hz wall mount power module supplies
    12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19.0" W x 1.75" H x 8.0" D.
    (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.8 lbs. (2.2 kg)

7363 and Model 5527A SVCN/GPCN RJ45 T1 6-Channel Switch Application Diagram

FEATURES:

  • Each channel allows access to the SVCN or GPCN port from one COMMON T1 network or port.
  • Switches pins 1, 2, 4 and 5 of the RJ45 interface.
  • Switching inhibited for 15 seconds after a position change.
  • All six channels switch simultaneously.
  • Local control via front-panel pushbutton.
  • The REMOTE port accepts RS232 Serial Data ASCII commands for switch position control, monitoring, and lockout of front panel operations.
  • Front panel LED's display switch position and power status.
  • Retains last switch position in the event of a power loss and continues to pass data.
  • Compatible with the Model 5527A SVCN/GPCN/OFFLINE Display Indicator Unit (Catalog #305527A).
  • Rugged aluminum case provides EMI/RFI shielding.

The PathWay® Model 7363 6-Channel RJ45 T1 Interface SVGCN/GPCN Switch allows a device connected to the COM port access to the SVCN or GPCN port for each channel.

The DB9 Remote port allows the user to both control and monitor the switch position remotely.  The remote port also allows the user to connect the Model 5527A SVCN/GPCN/OFFLINE Display Indicator Unit (Catalog# 305527A).

OPTION: WIDE RANGE POWER MODULE, Cat No. 517277

CE, RoHS, and UL listed table mount power module, 100 VAC/240 VAC, 50Hz-60Hz for use in place of the standard power module. Has IEC 60320 C14 inlet.  Ideal for international applications.  Click Accessories tab to view.

A Y-Cable that allows connection to both a Remote Computer and the Model 5527A Display Indicator Unit is available as an option.  (Cat. No. 988799)

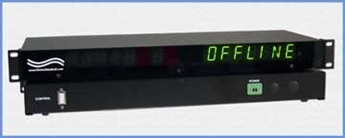

Model 7363 pictured below connected to the Model 5527A Display Unit.
