Catalog # 307365 - Model 7365 2-Channel RJ45/RJ48 T1 A/B Switch

    2-Channel RJ45/RJ48 T1 A/B Switch2-Channel RJ45/RJ48 T1 A/B Switch2-Channel RJ45/RJ48 T1 A/B Switch2-Channel RJ45/RJ48 T1 A/B Switch
Click image to enlarge

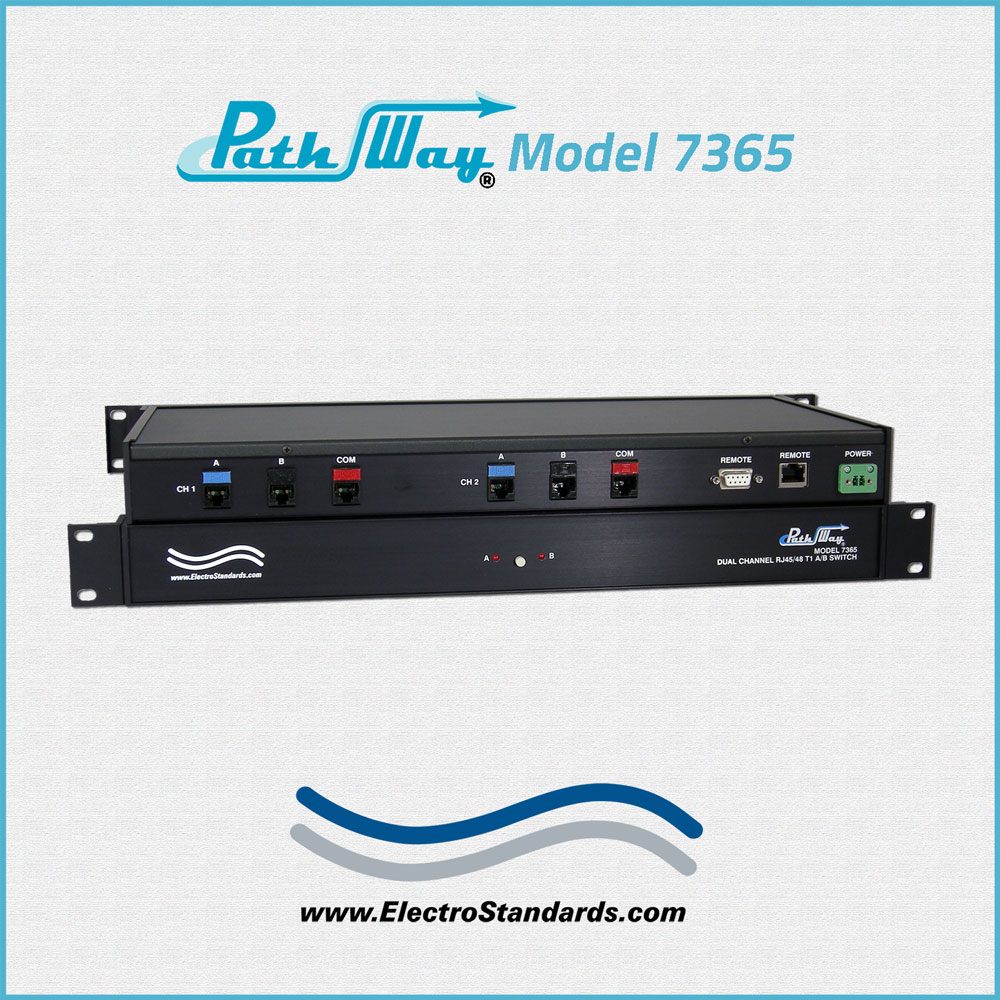

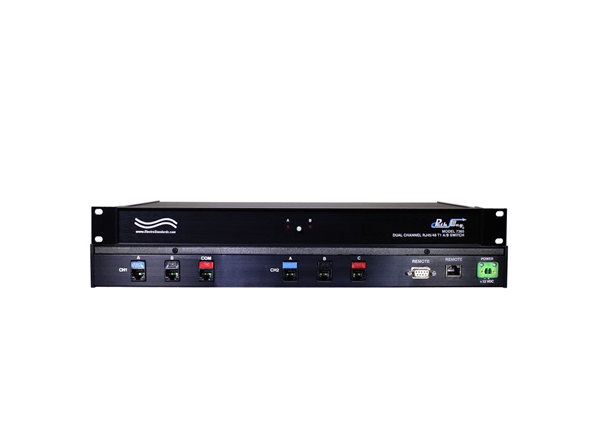

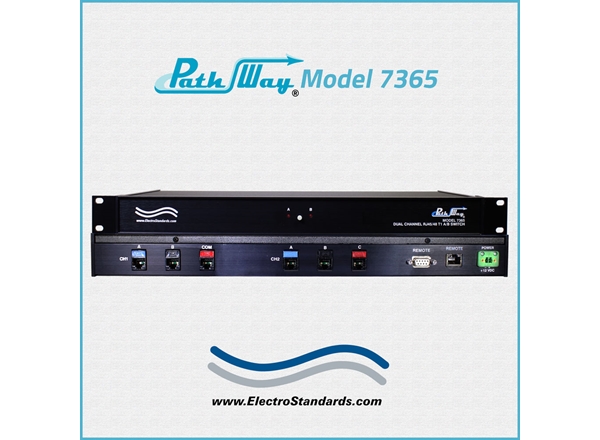

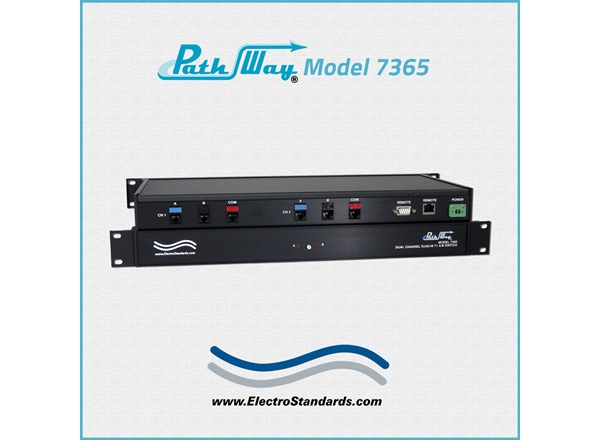

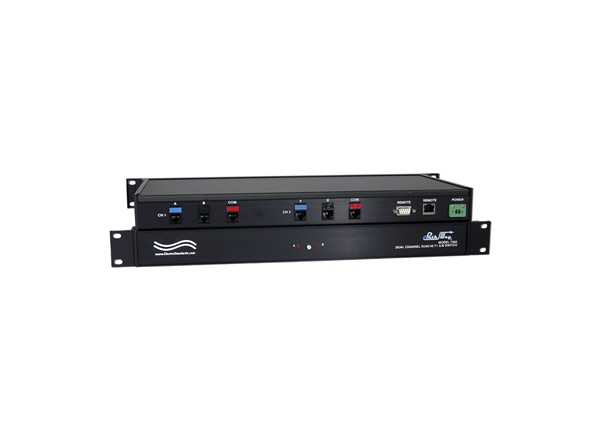

    • 2-Channel RJ45/RJ48 T1 A/B Switch
    • 2-Channel RJ45/RJ48 T1 A/B Switch
    • 2-Channel RJ45/RJ48 T1 A/B Switch
    • 2-Channel RJ45/RJ48 T1 A/B Switch
Base Price:
$2,381.00
Catalog No: 307365
Model No: 7365
Product Type:Switches: Copper
Interface:T1
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure, Ethernet
Configuration:Rackmount
Pins Switched:8
Remote Port:RJ45, DB9
Local Control:Pushbutton

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remotely Controllable Network Switch, RJ45/48 T1
Model 7365 Dual Channel RJ45/48 Cat5e T1 Interface A/B Switch with iPhone App Remote, Contact Closure Control, Telnet and GUI

  • Certified for Cat5e Compliance! Certified compatible with software for managing fallover of phone systems.

SPECIFICATIONS:

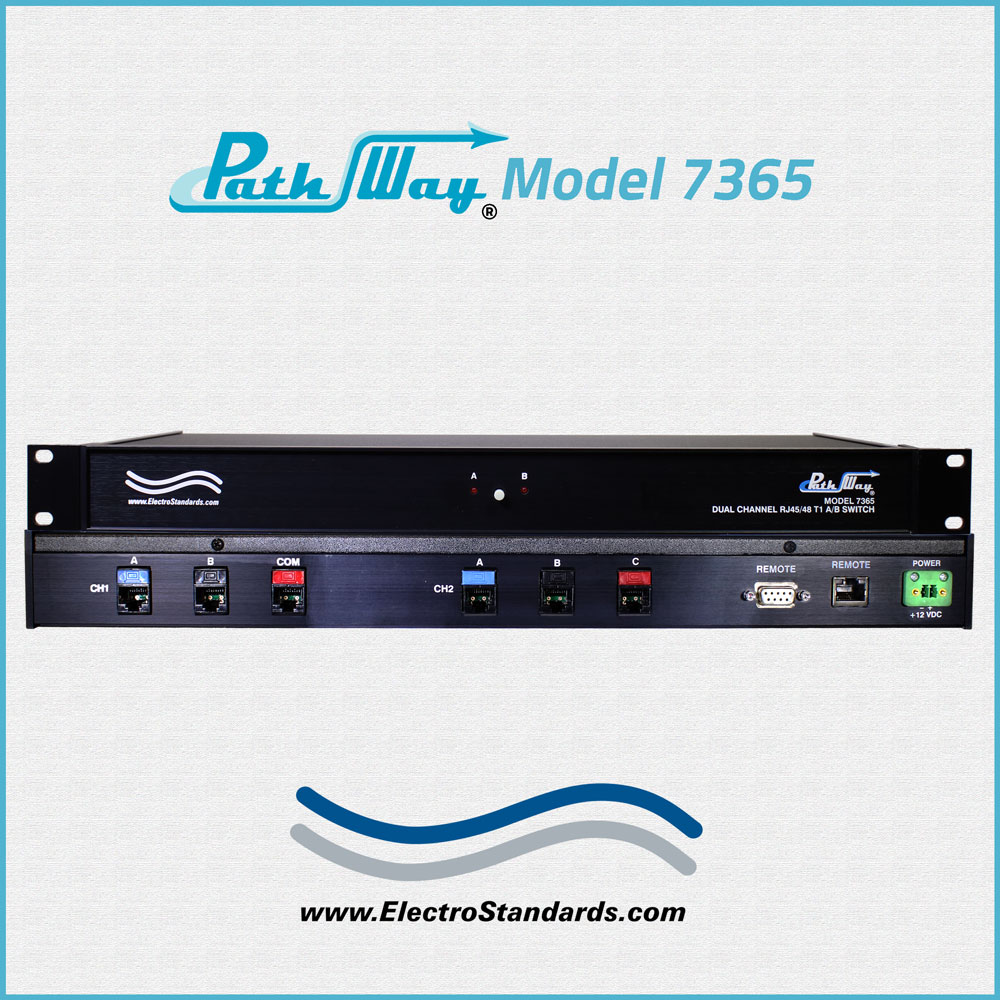

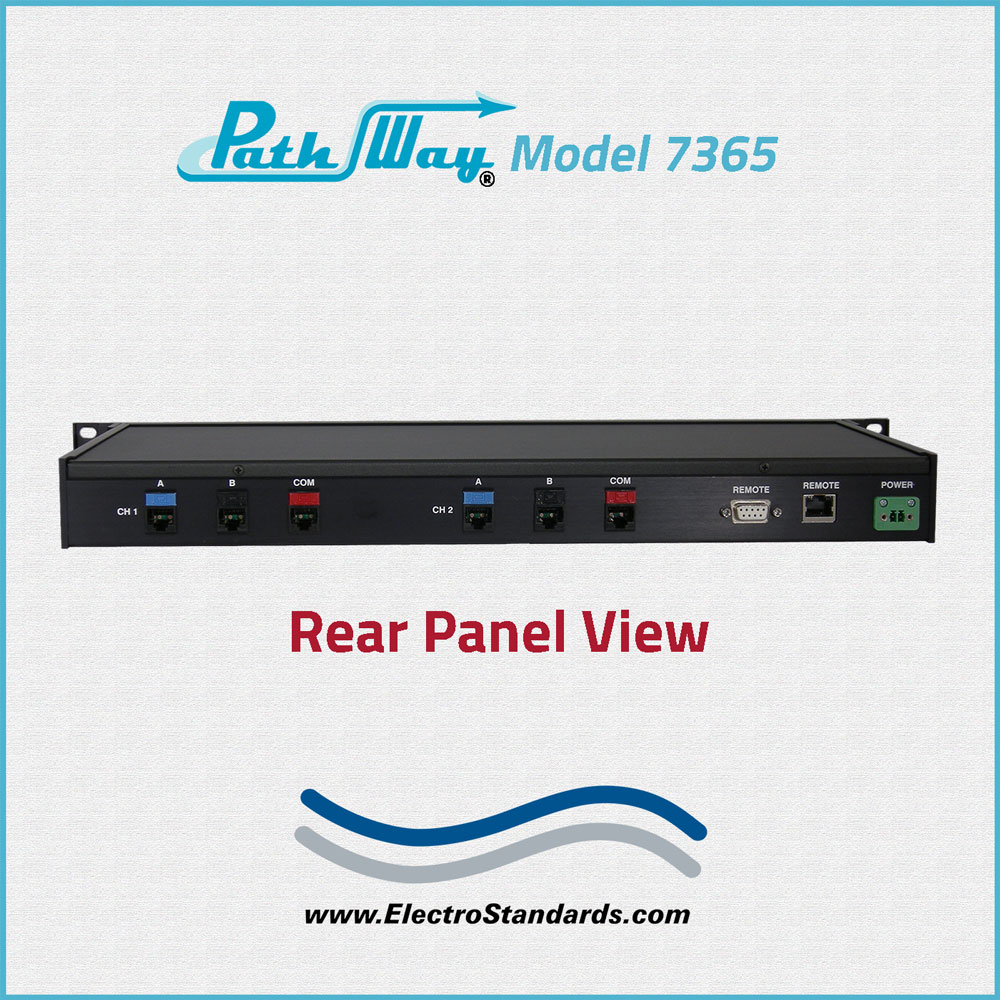

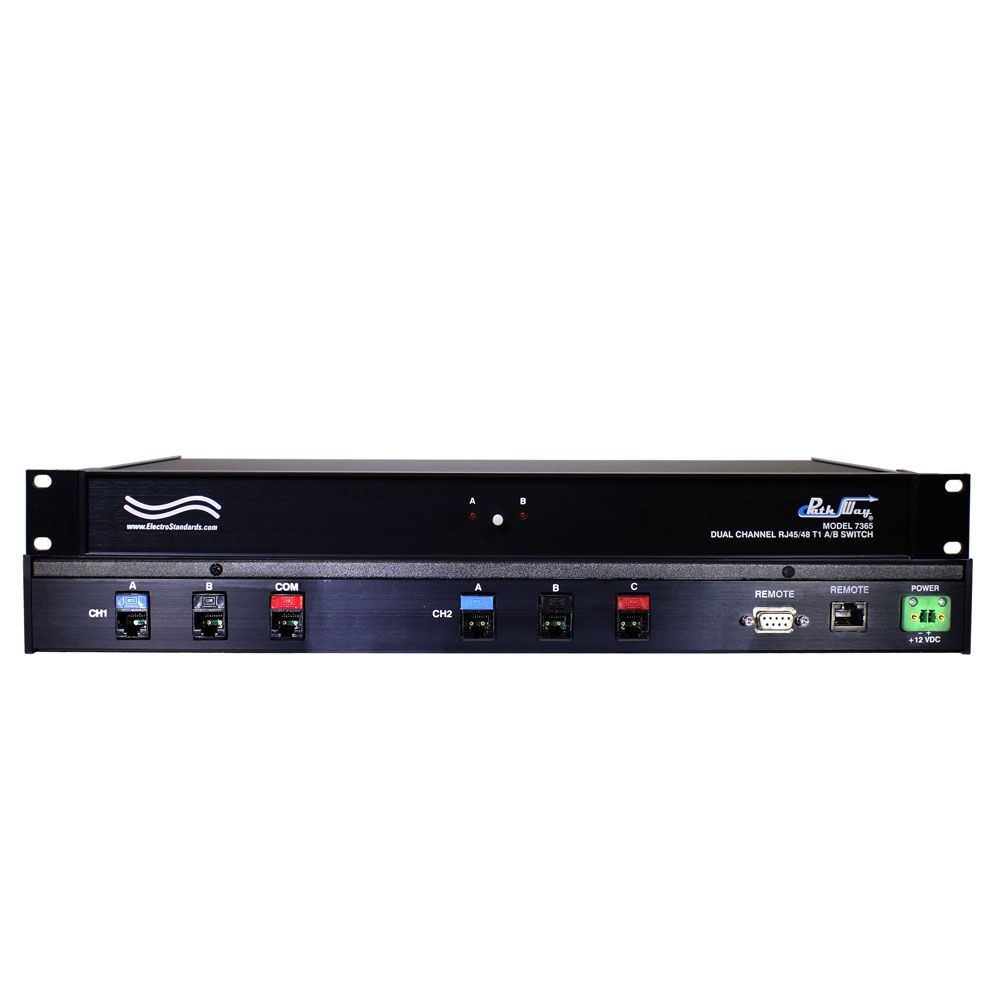

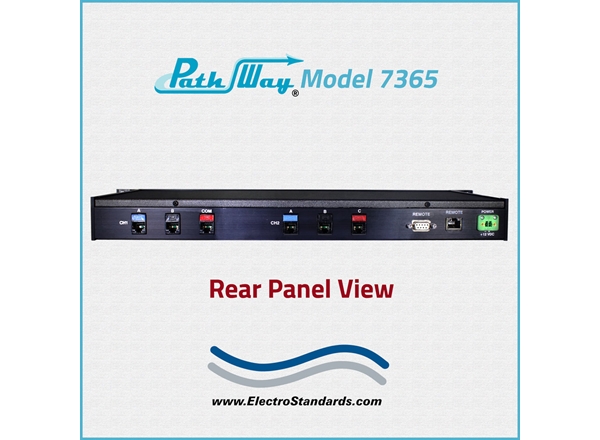

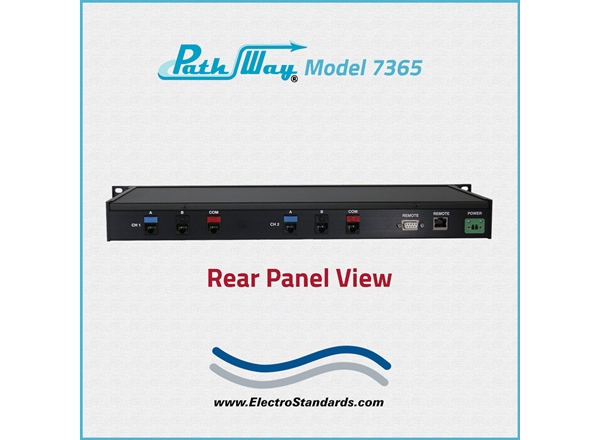

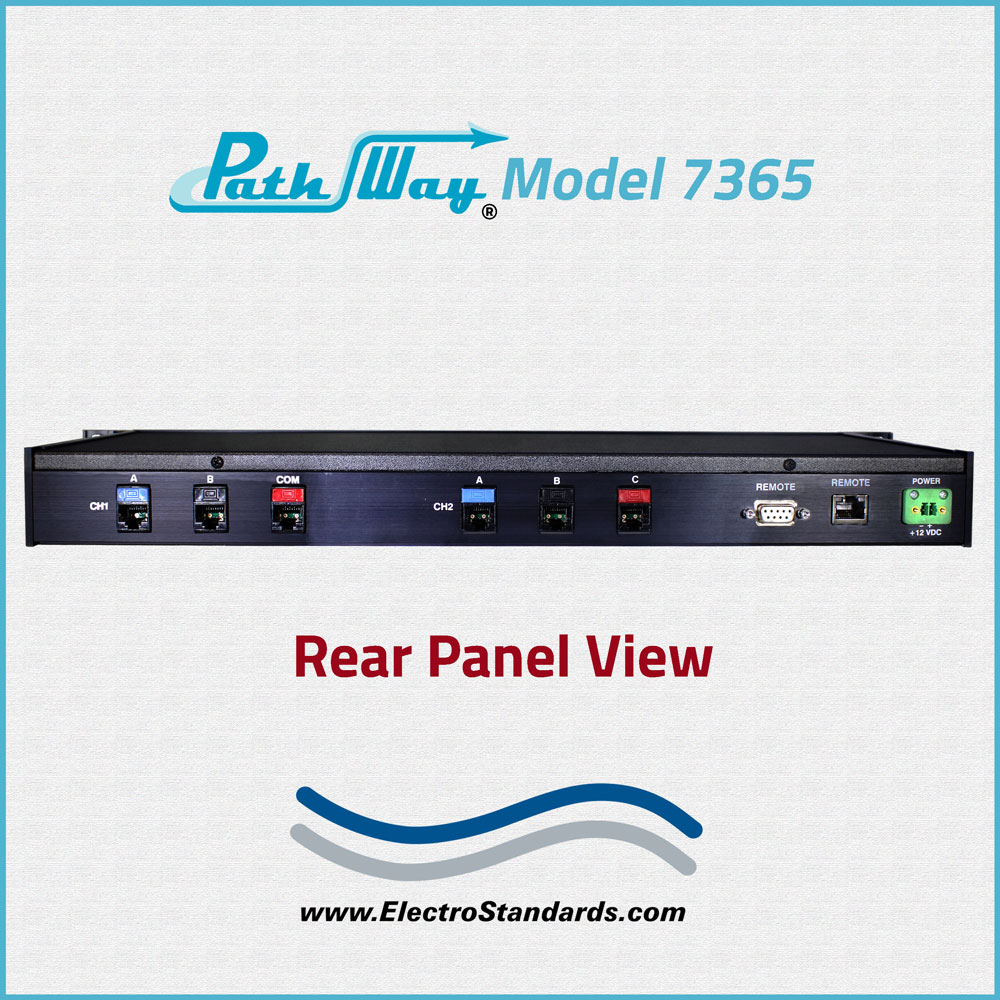

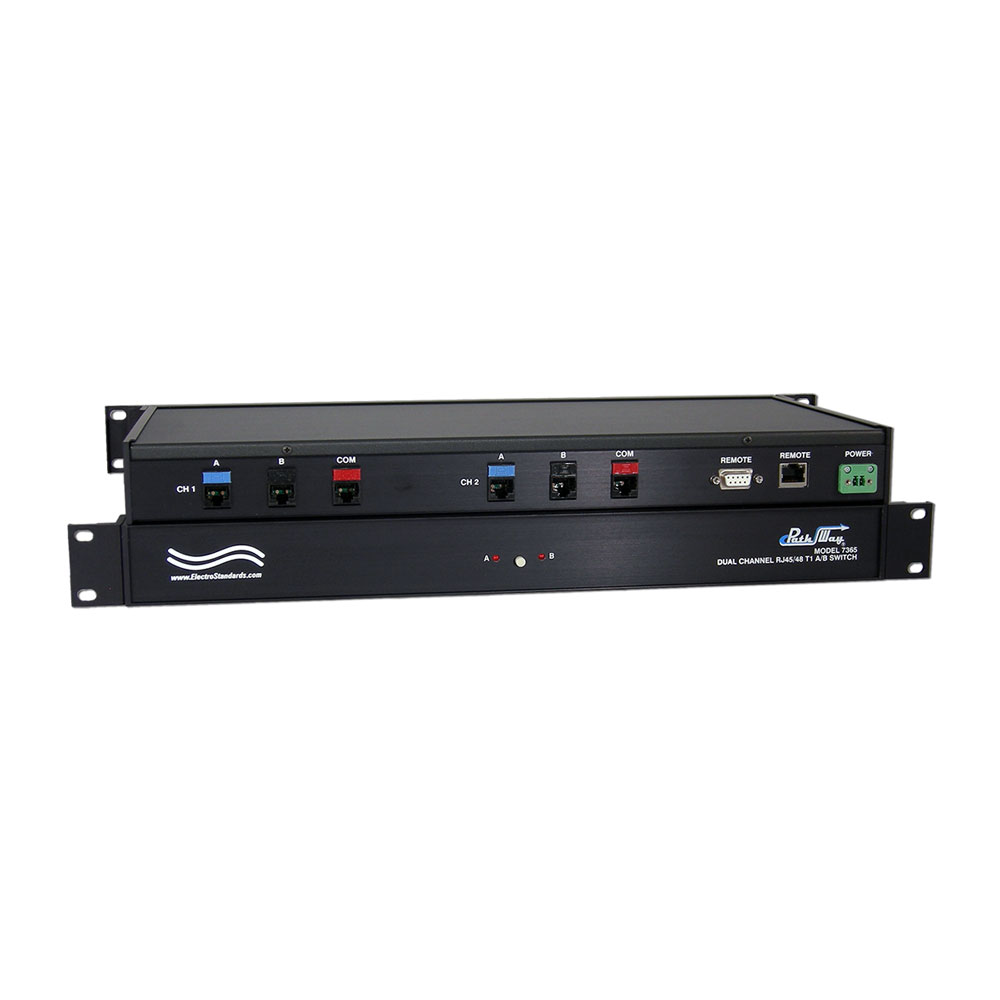

  • PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and COMMON for each of two channels.

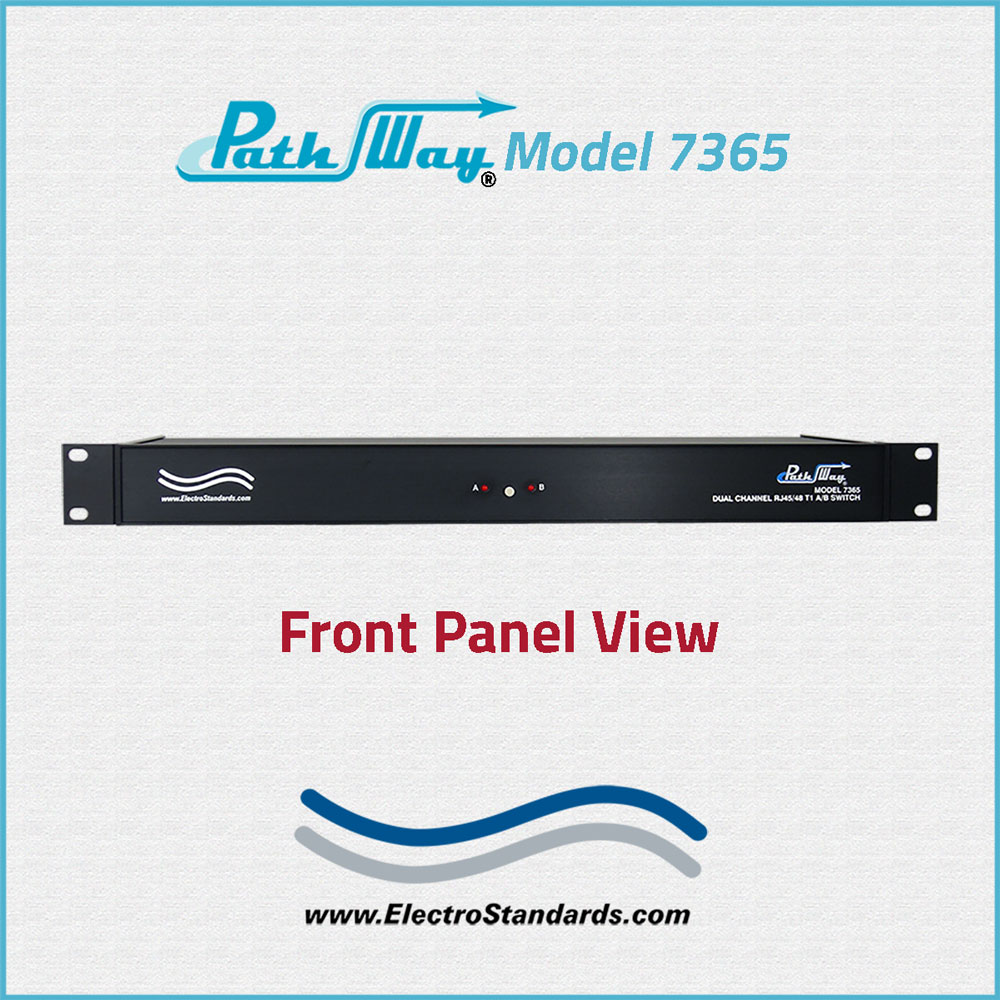

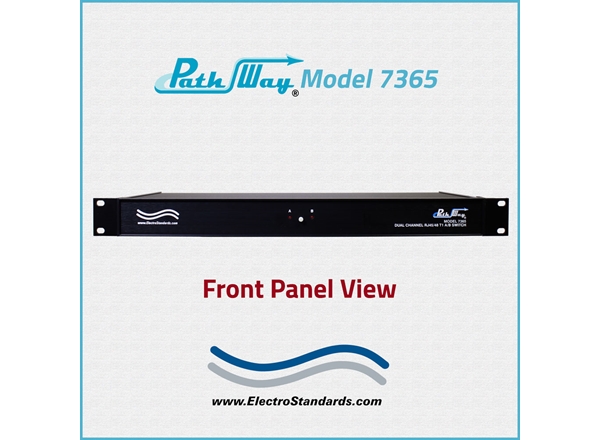

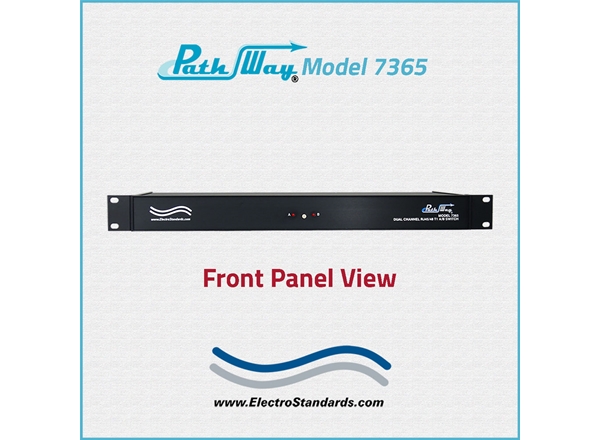

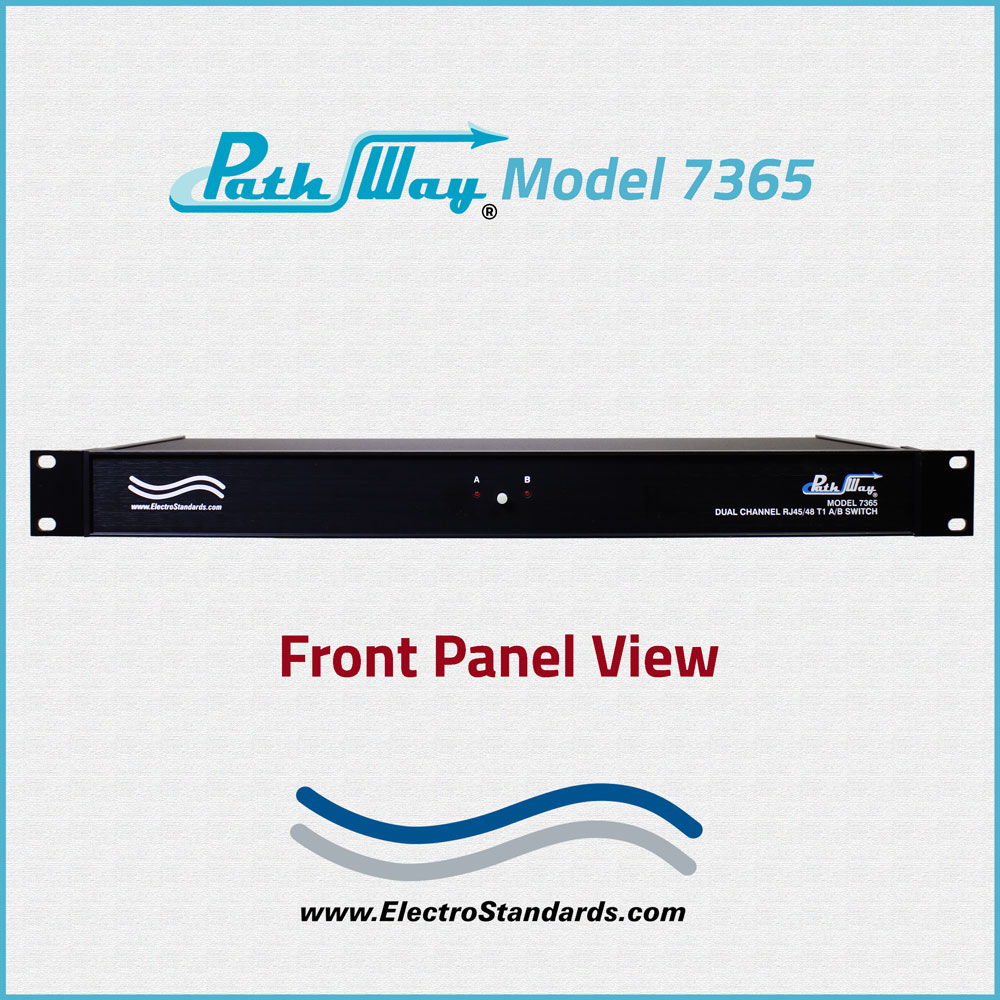

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL PORTS:
  • (1) DB9 (F) on rear panel accepts Contact Closure transition signals for Remote Operation. (Also see iPhone App)
  • (1) RJ45 (F) connector on rear panel accepts 10/100Base-T LAN Ethernet that uses both TELNET commands and a GUI Interface for Remote Control Operation.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US non-polarized plug.
  • DIMENSIONS: Rackmount configuration,
  • 19.0" W x 1.75" H x 8.32" D. (48.3 x 4.4 x 21.2 cm)
  • WEIGHT: Approximately, 4.5 lbs. (2.0 kg)

PathWay® Model 7365 Dual Channel T1 Simultaneous Switching Application with iPhone Remote App:

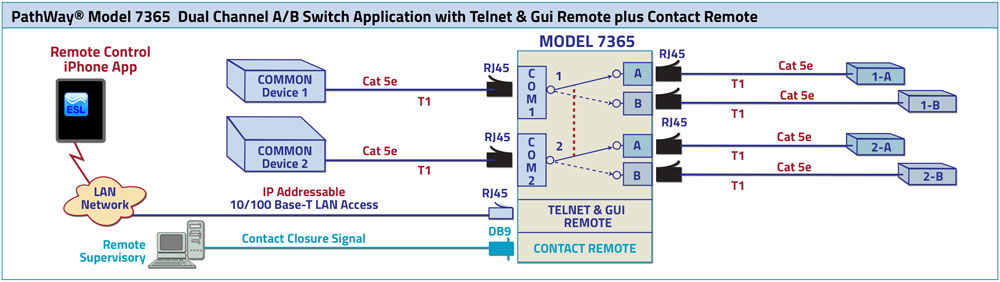

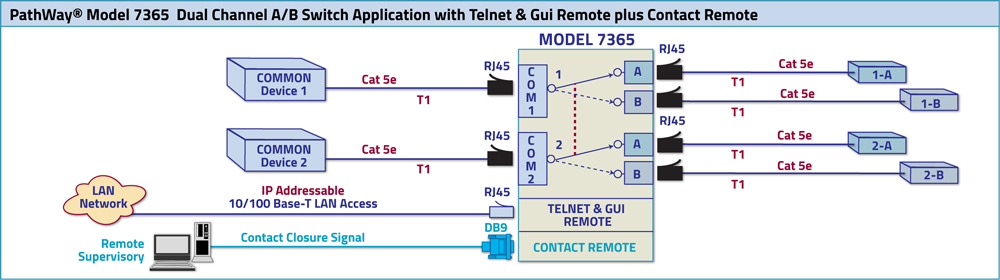

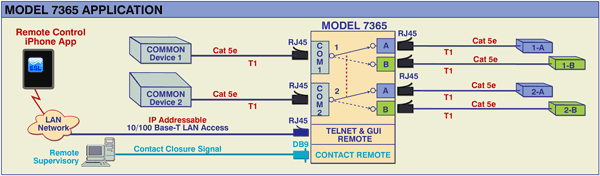

The drawing illustrates two channels of simultaneous switching. Each channel shows a COMMON device connected to an RJ45 COMMON port accessing among two other RJ45/48 T1 interface devices connected to ports A and B.  The switch has two remote ports, an RJ45 10/100 Base-T Lan Ethernet access or the use of a DB9 port that accepts contact closure signaling. The switch can be controlled using the ESL Switch Remote App from an iPhone or the Graphical User Interface.

PathWay Model 7365 Dual Channel A/B Switch Application w/Telnet & GUI, & Contact Closure

FEATURES:

  • Each channel allows access to two RJ45/48 T1 networks from one COMMON network or device.
  • Front panel pushbutton control.
  • Remote Control via iPhone App.
  • Remote Control via Telnet command interface and Graphical User Interface.
  • Remote Control via Contact Closure.
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45/RJ48 interface are switched via break-before-make electromechanical relays.
  • Simultaneous control of both channels.
  • Switch maintains position on power loss and continues to pass data.
  • Upon power up, unit switches based on state of contact closure.

The PathWay® Model 7365 allows the user the capability of sharing a single device connected to the COMMON port among two other devices connected to the A and B ports, for each channel, with remote access functionality.

Remote Control access can be accomplished using an Ethernet 10/100 BASE-T connection and either Telnet commands or graphical user interface (GUI).  The unit can also be controlled via dry contact closure signaling to the rear panel DB9 REMOTE port.  Additionally, the Model 7365 switch may be controlled via iPhone App.  Yes, there is an App for that!

The ESL Switch Remote App allows remote access to any number of ESL Switches from anywhere the units can be reached on a network.  With ESL Switch Remote App, units can be controlled and queried with the ease and simplicity of a touchscreen.  The ESL switch will allow a single connection at once.  Additional simultaneous connection attempts will be actively refused immediately.

OPTION: WIDE RANGE POWER MODULE, Cat No. 517277

CE, RoHS, and UL listed table mount power module, 100 VAC/240 VAC, 50Hz-60Hz can be ordered for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.  Click Accessories tab to view.

RJ45 vs RJ48:  RJ45 and RJ48 use the same eight-pin modular connector, differing only in the way they are wired (the pin selection/pairing).  The Model 7365 switches all eight pins of the RJ45 connector, thereby accommodating any wiring scheme.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE (GUI) SOFTWARE

CHANGING POSITION AND LOCK STATUS

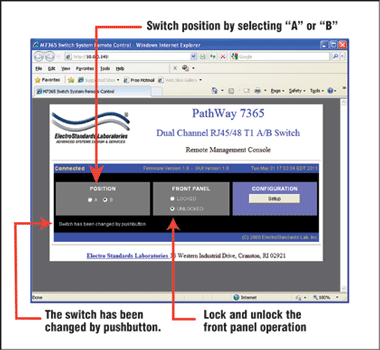

To change the switch position, click on the radio button "A",or "B" as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 1.

 QUERYING THE STATUS OF THE UNIT

Once connected, the GUI will stay “up-to-date” on the current position and status of the unit.  Any changes that are made outside of the GUI, such as by pushbutton, will be reflected in the GUI.  These changes will cause the radio buttons of the GUI to automatically change to show the new status. The GUI will report the source of the most recent change in the bottom left of the panel.  See Figure1.

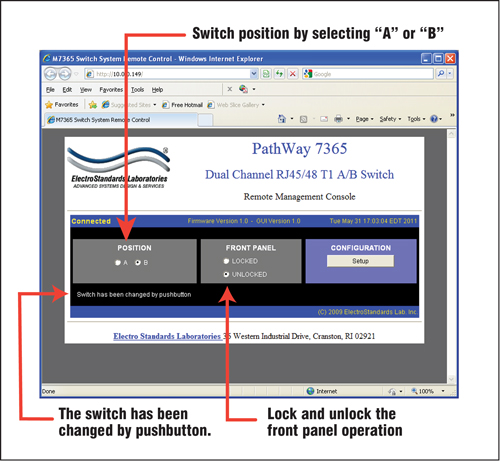

PathWay Model 7365 Software GUI allows the user to switch positions.

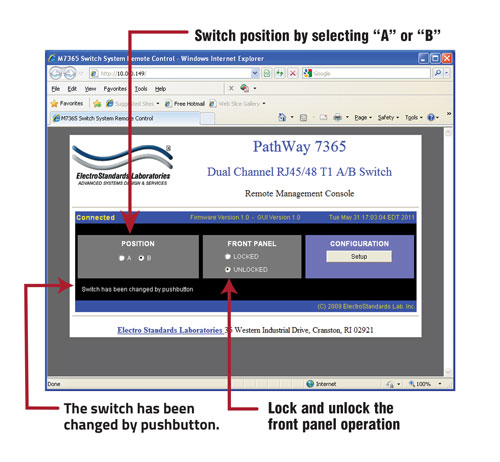

Figure 1: Change the position and lockout from the GUI. The GUI is alerted to changes in the unit status.

GUI SOFTWARE FEATURES

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7365 Dual Channel RJ45/48 T1 A/B Switch System.
  • Users can change the login password and/or switch's IP address.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.
  • Catalog No. 524347 iPhone App LICENSE for Model 7365 A/B Switch

Catalog No. 524347 iPhone App LICENSE for Model 7365 A/B Switch

REMOTE CONTROL APP FOR THE MODEL 7365 FOR USE WITH iPHONE, iPAD, iPOD TOUCH

DESCRIPTION

The ESL Switch Remote App allows remote access to any number of ESL Switches from anywhere the units can be reached on a network.  With the ESL Switch Remote App, units can be controlled and queried with the ease and simplicity of a touchscreen.

A license is required for each unit to be connected.

CATEGORY: Utilities

RELEASED: Oct 28, 2011

VERSION: 1.0

SIZE: 1.7 MB

LANGUAGE: English

SELLER: Electro Standards Laboratories

© 2011 Electro Standards Laboratories

Scan Code with Smart Phone!

iPHONE APP FEATURES FOR REMOTE OPERATION

  • Create a unit profile to save settings for each unit.
  •  List all saved unit profiles for fast checking of all units at once.
  • Send remote commands to a connected unit.
  • Remotely switch between positions.
  • Lock and unlock the front panel operation, if applicable.
  • Query the current position.
  • Stay up to date with any changes made by other means, including the front panel Pushbuttons and the remote port where applicable.
  • Configure connection profiles for each unit for quick switching between IP addresses.
  • Keep a list of all purchased license keys for easy access.
  • Requirements: Compatible with iPhone, iPod Touch, and iPad Requires iOS 4.0 or later.

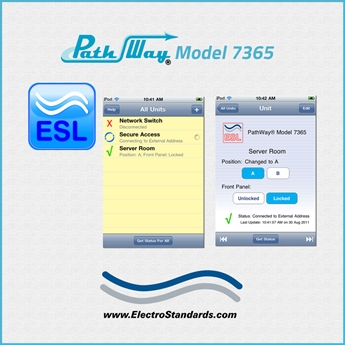

  • iPhone Screen Shots shown below.

ESL Switch Remote App

App Store: ESL Switch Remote

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

This is the switch you need. It has been field-proven! Reliable! It comes complete with Tech Support.
