Catalog # 307366 - Model 7366 3-Channel RJ45 CAT5e A/B Switch

    3-Channel RJ45 CAT5e A/B Switch3-Channel RJ45 CAT5e A/B Switch3-Channel RJ45 CAT5e A/B Switch3-Channel RJ45 CAT5e A/B Switch
Click image to enlarge
    • 3-Channel RJ45 CAT5e A/B Switch
    • 3-Channel RJ45 CAT5e A/B Switch
    • 3-Channel RJ45 CAT5e A/B Switch
    • 3-Channel RJ45 CAT5e A/B Switch
Base Price:
$1,529.00
Catalog No: 307366
Model No: 7366
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:3
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control, Gang Channel Control
Remote Control:RS232 Serial
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview


Path Way® Remotely Controllable Network Switch, Cat5e, RJ45

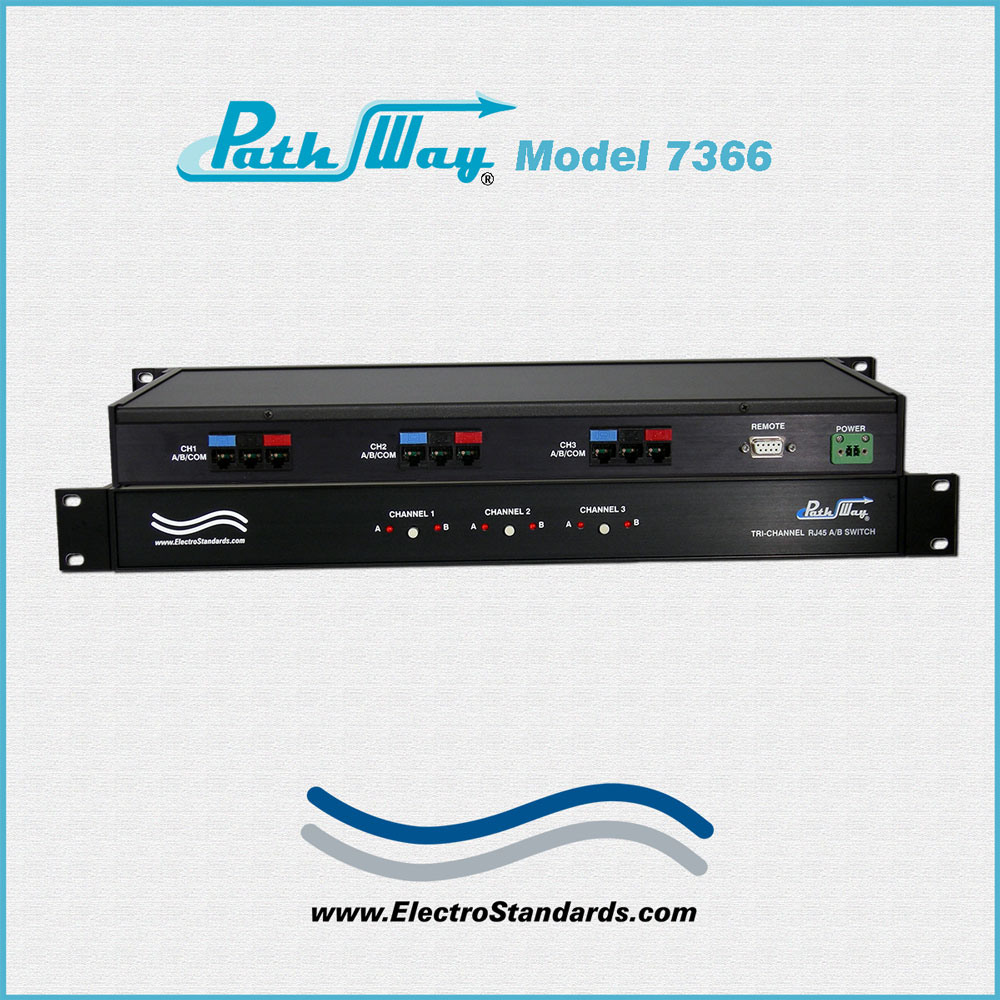

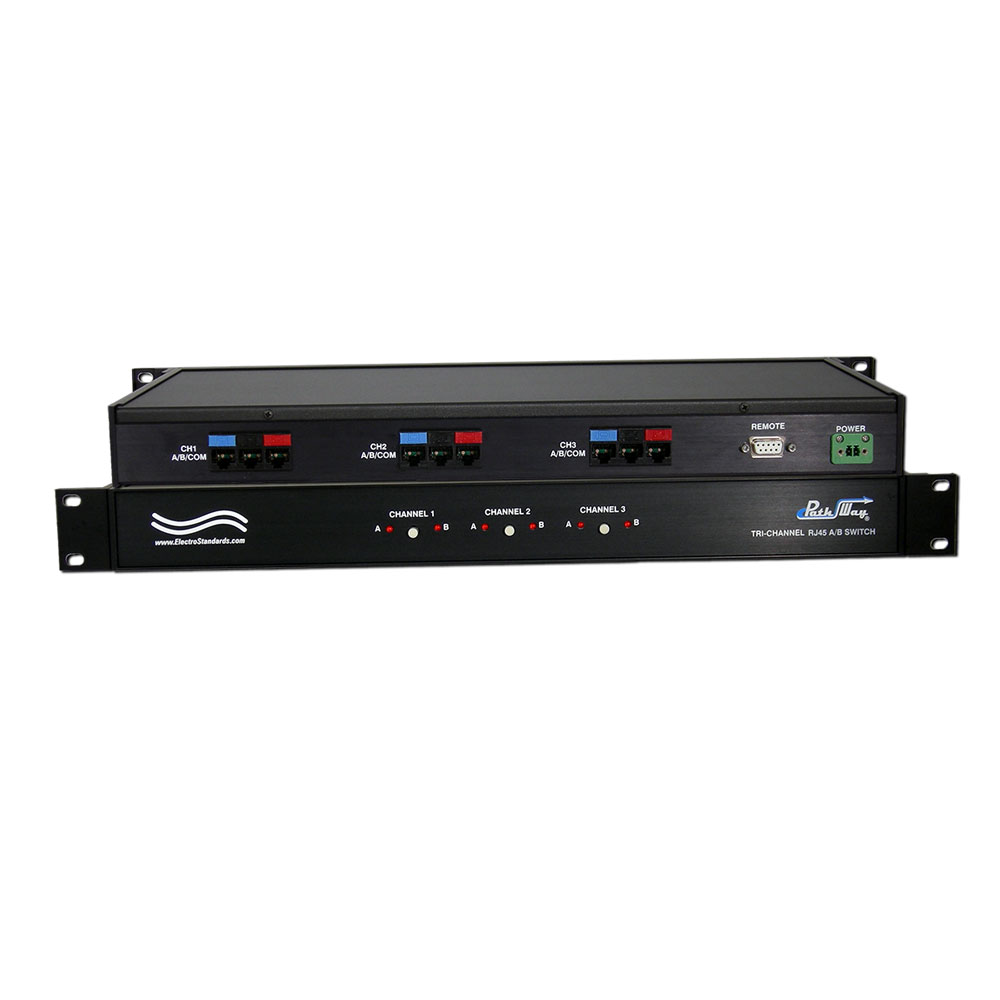

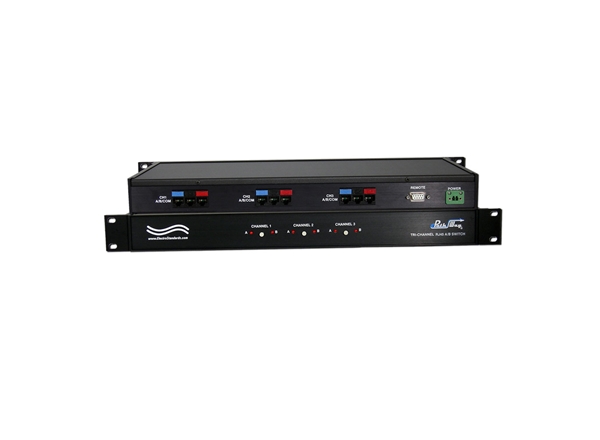

Model 7366 Tri-Channel RJ45 CAT5e A/B Switch with RS232 Serial Remote Control

SPECIFICATIONS:

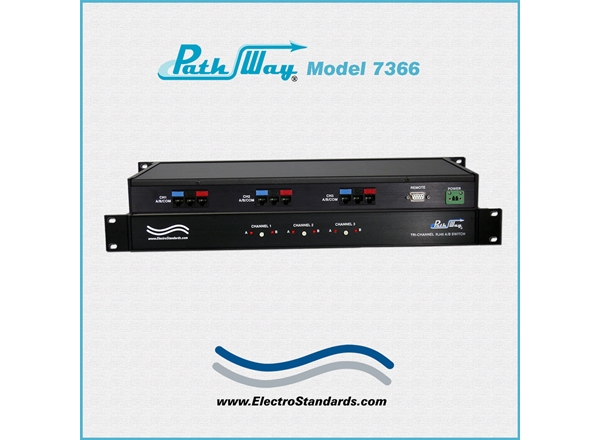

  • PORT CONNECTORS: (9) RJ45 female connectors total (A, B, and COMMON for each of three channels).

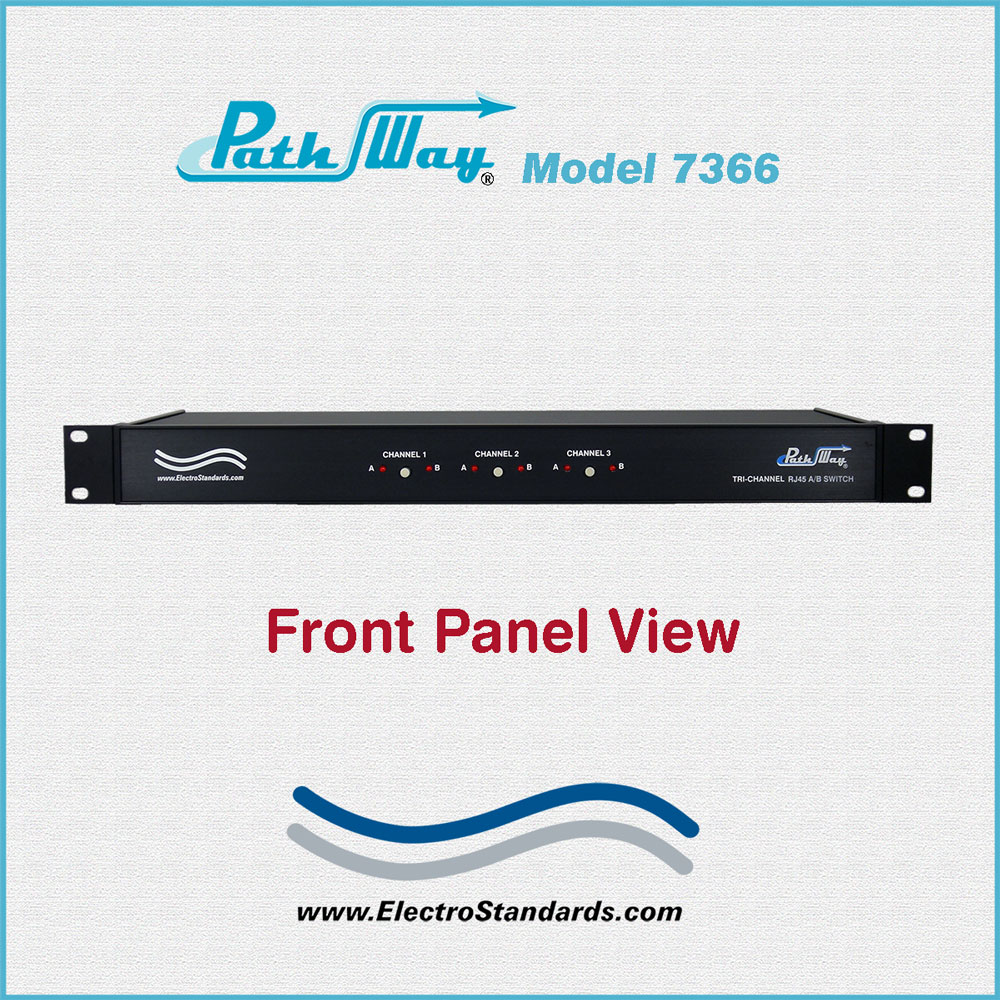

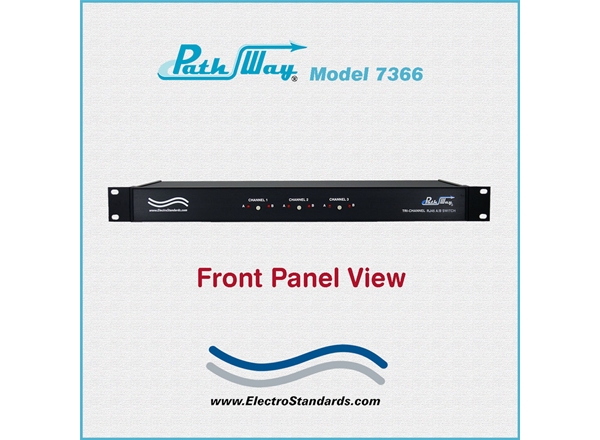

  • FRONT PANEL CONTROLS: (3) Pushbuttons labeled Channel 1 through Channel 3.
  • DISPLAY: (6) Red LED's total indicate the A or B switch positions for each of the three channels.

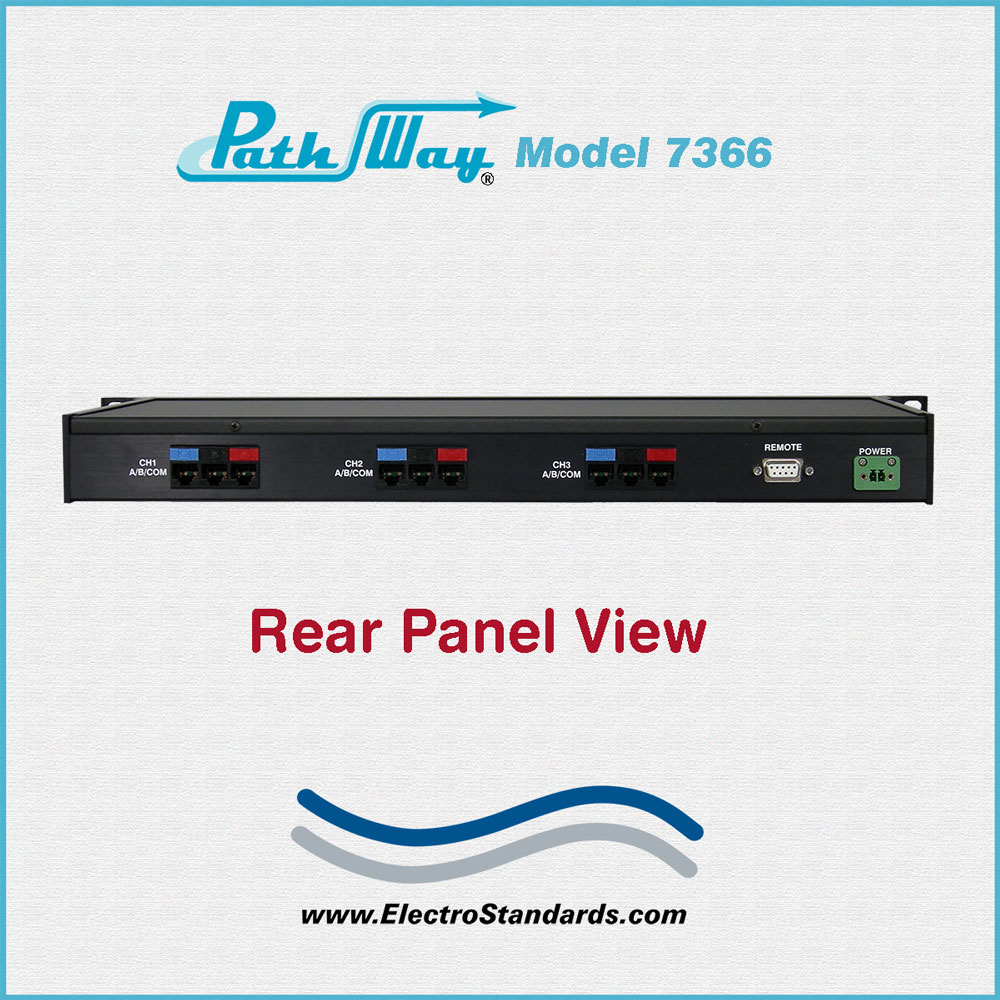

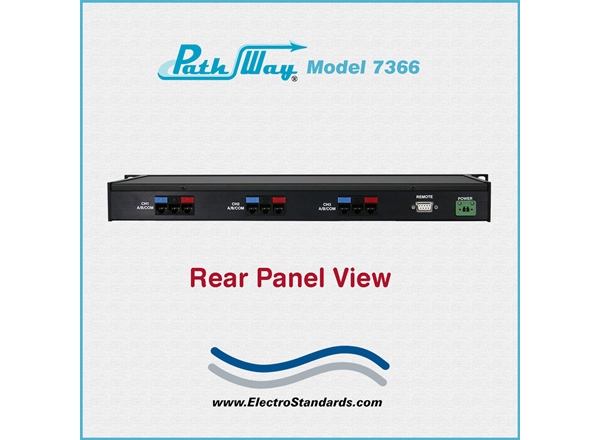

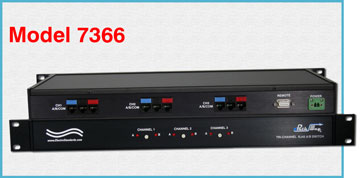

  • SUPERVISORY REMOTE PORT: (1) DB9 female connector on rear panel accepts RS232 Serial Data for Remote control operation.
  • POWER: UL approved wall mount 100VAC/240VAC, 50Hz/60Hz power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS:  Rackmount configuration, 19.0" W x 1.75" H x 8.16" D (48.3 x 4.4 x 20.8 cm)
  • WEIGHT: Approximately 4.6 lbs (2.1 kg)

PathWay® Model 7366 Cat5e Tri-Channel RJ45 A/B APPLICATION w/RSS232 REMOTE:

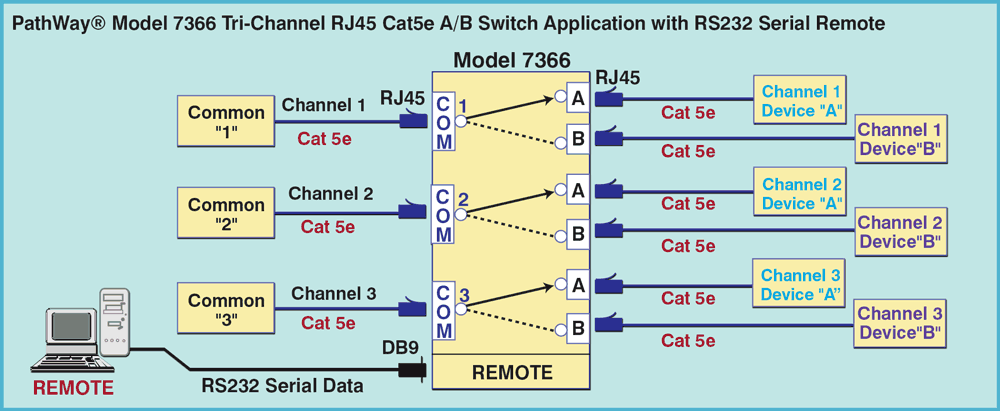

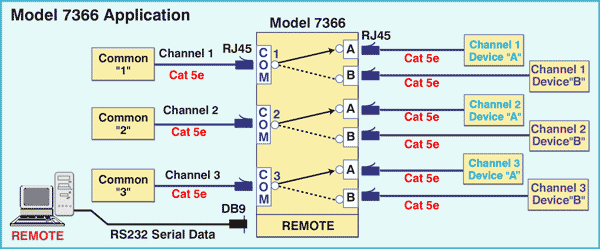

The drawing illustrates three independent switching channels, Cat5e compliant. Each channel has a device connected to the RJ45 COMMON port accessing two other devices connected to the RJ45 A and B ports.  A DB9 Remote port supports ASCII RS232 Serial Commands for Remote Control operation of the tri channel unit.
