Catalog # 307375 - Model 7375 RJ45 A/B/C Switch, Dual Remote Ports

    RJ45 A/B/C Switch, Dual Remote PortsRJ45 A/B/C Switch, Dual Remote PortsRJ45 A/B/C Switch, Dual Remote PortsRJ45 A/B/C Switch, Dual Remote Ports
Click image to enlarge

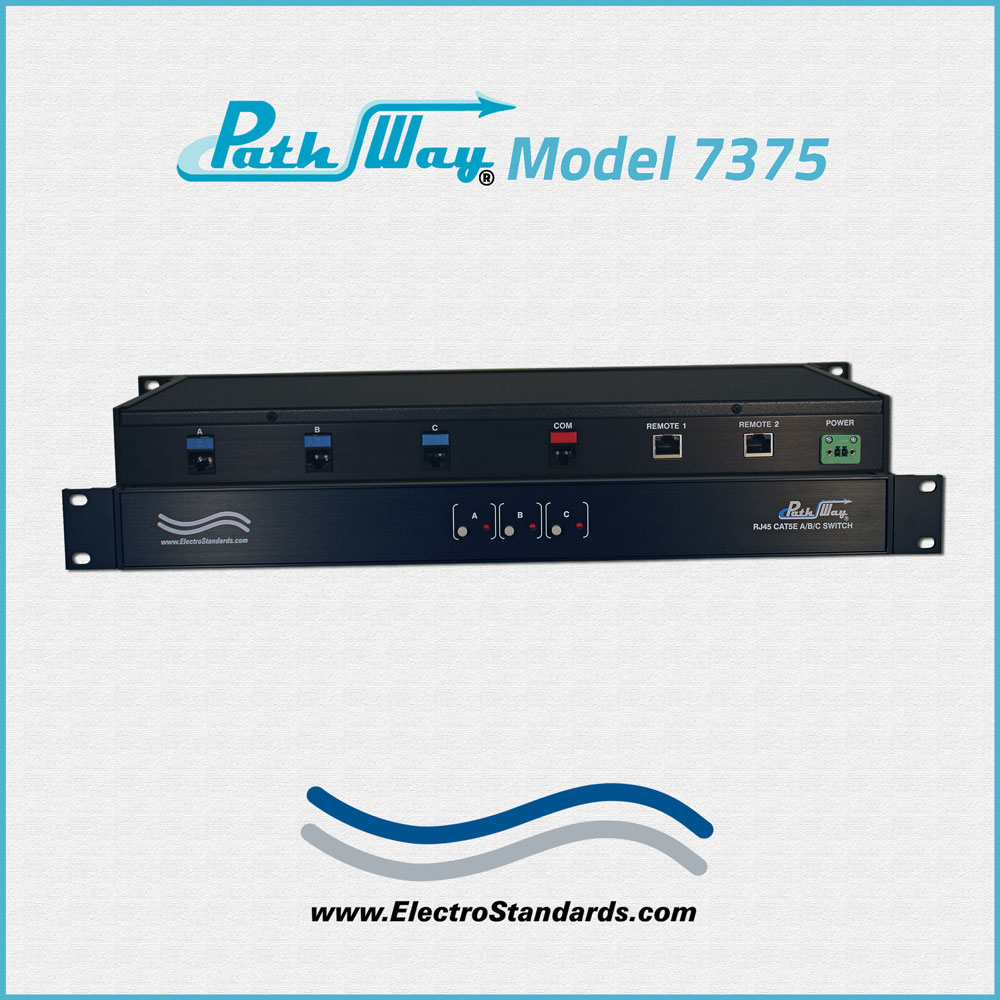

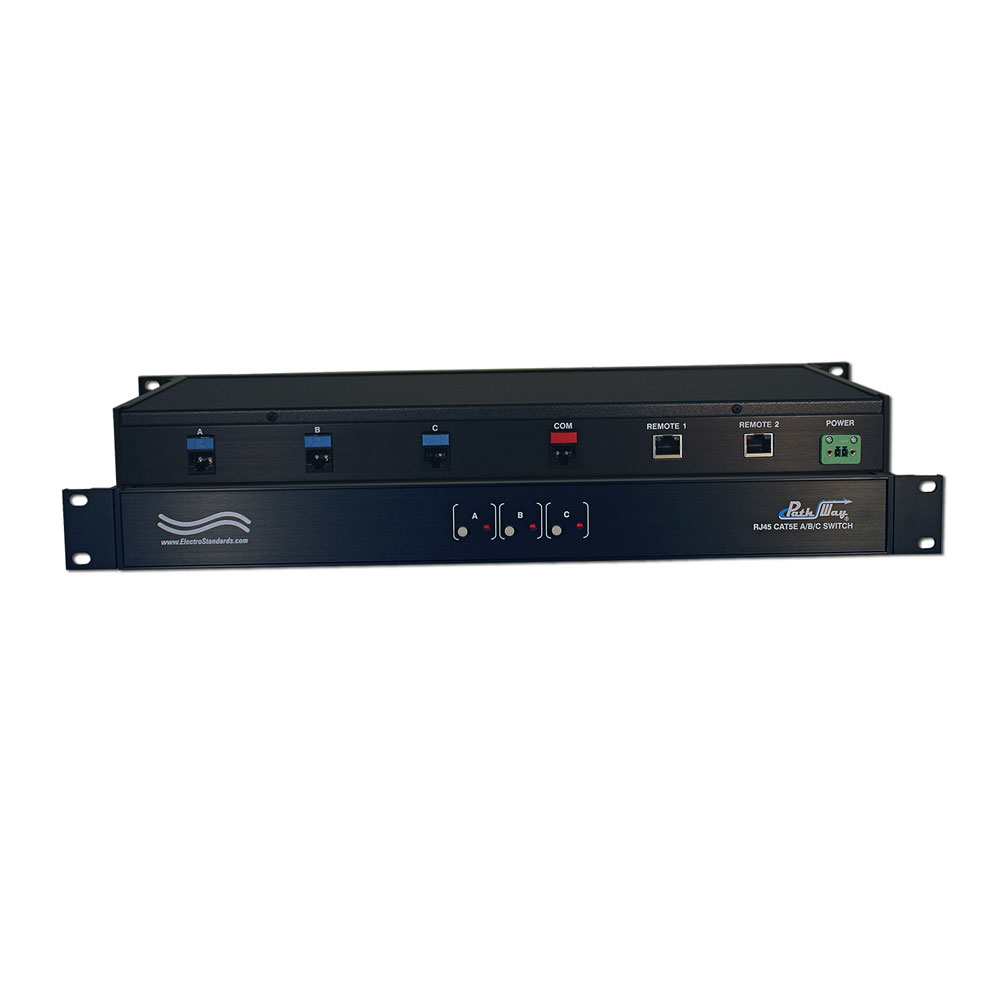

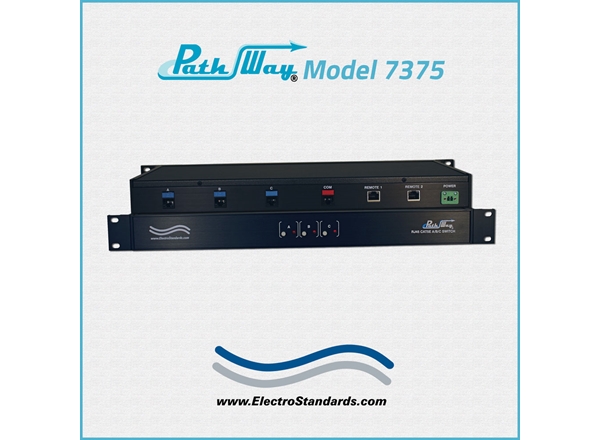

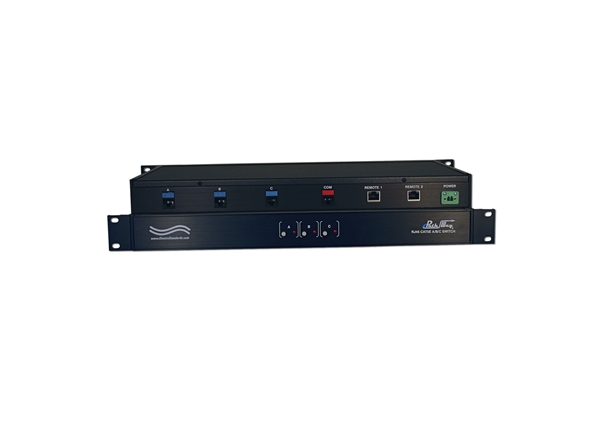

    • RJ45 A/B/C Switch, Dual Remote Ports
    • RJ45 A/B/C Switch, Dual Remote Ports
    • RJ45 A/B/C Switch, Dual Remote Ports
    • RJ45 A/B/C Switch, Dual Remote Ports
Base Price:
$1,841.00
Catalog No: 307375
Model No: 7375
Product Type:Switches: Copper
Positions:3
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Remote Port:Dual, RJ45
Local Control:Pushbutton
Feature:Dual Remote Control

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

PathWay®

Path Way® Remotely Controllable Network Switches, RJ45
Model 7375 Cat5e RJ45 A/B/C Switch, Dual Remote Ports w/ Telnet and GUI

  • Extensive user manual covers Remote Ethernet Connection 10/100Base-T LAN Setup, Remote Telnet Session, and Remote-Control GUI Operation

SPECIFICATIONS:

  • PORT CONNECTORS: (4) RJ45 Cat5e female connectors labeled A, B, C and COMMON.

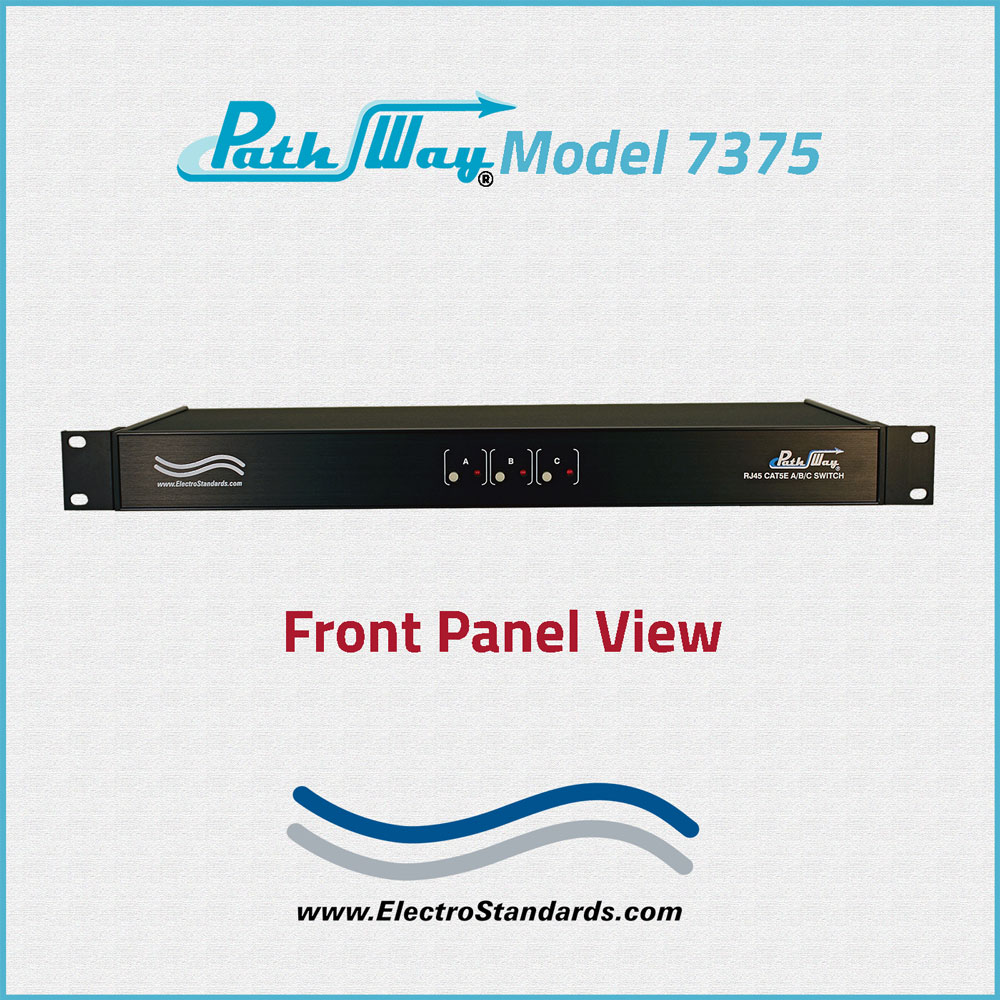

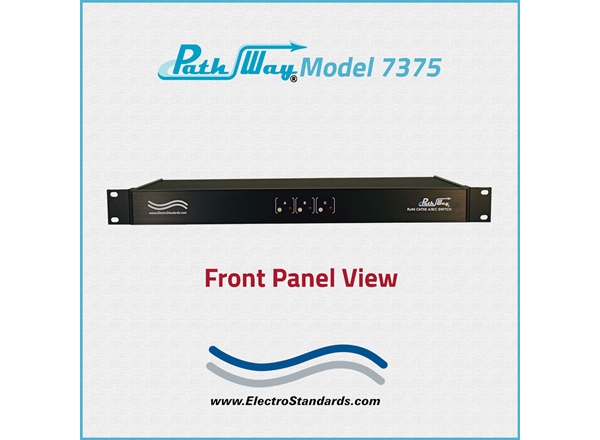

  • FRONT PANEL CONTROL: (3) manual pushbuttons allow local switching.
  • DISPLAY: (3) Front panel LED's display switch position and power status.

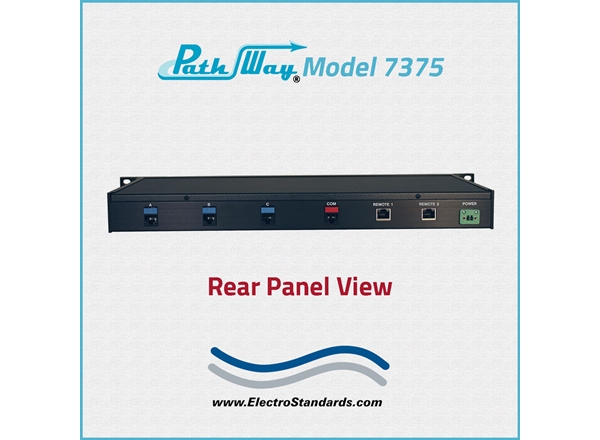

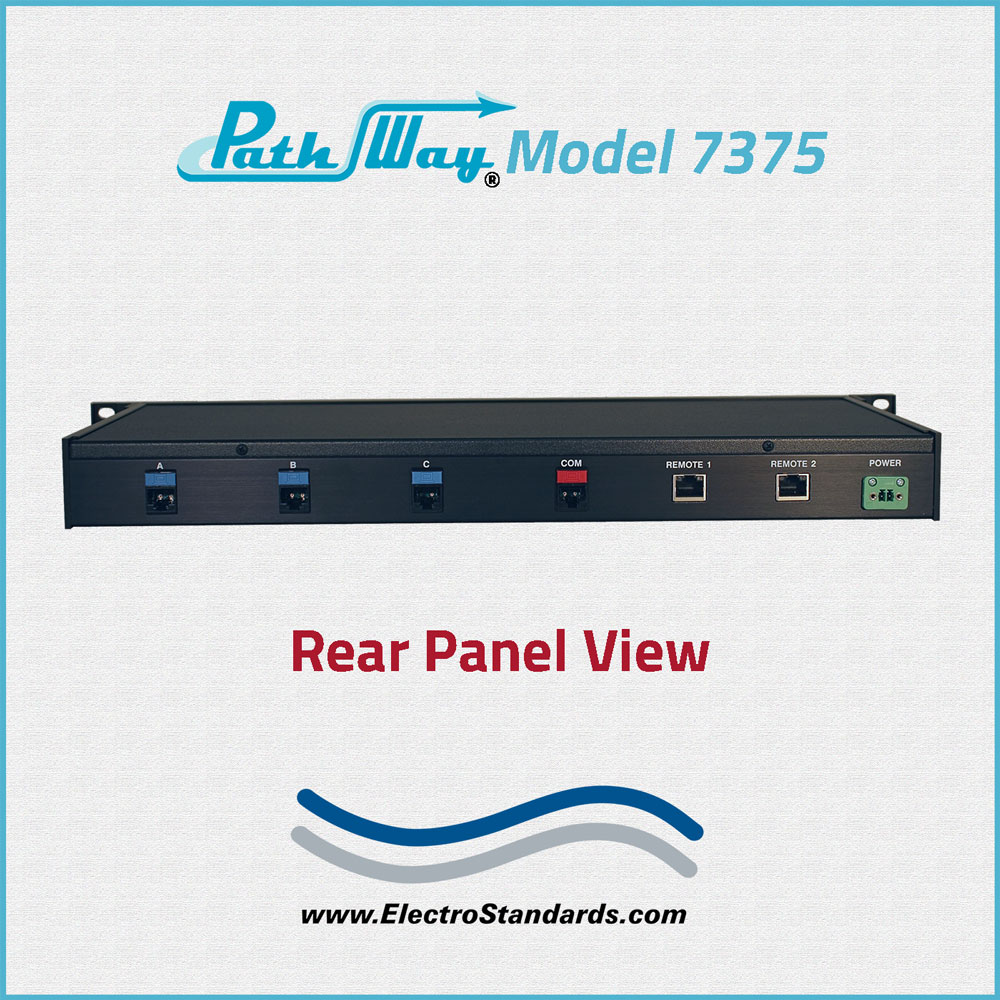

  • DUAL REMOTE CONTROL: (2) RJ45 female connectors on rear panel accept 10/100Base-T access Ethernet for remote control operation labeled Remote 1 and Remote 2.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US non-polarized plug.
  • DIMENSIONS: Rackmount: 19.0" W x 1.75" H x 8.21" D. (48.3 x 4.4 x 20.9 cm)
  • WEIGHT: Approximately 4.4 lbs. (2.0 kg)

PathWay® Model 7375 Cat5e RJ45 A/B/C Switch, Dual Remote Ports with Telnet and GUI Application:

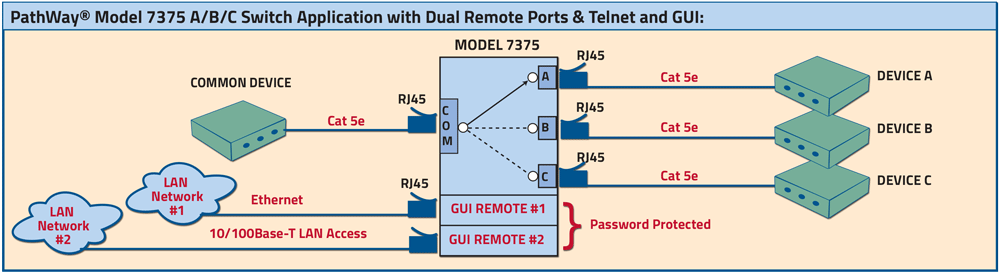

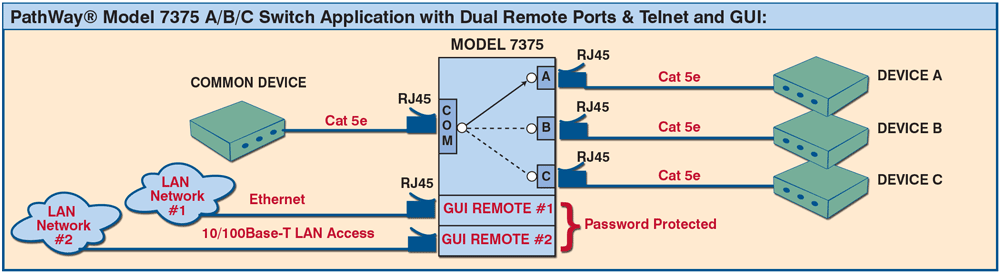

The drawing illustrates a COMMON device connected to the RJ45 COMMON port with access to three other devices, Device A, Device B, and Device C, connected to the RJ45 ports A, B, and C respectively. Dual Remote RJ45 ports are 10/100Base-T LAN Ethernet Environment allow connection to LAN Network 1 and LAN Network 2 for Remote Control Operation via Telnet Command or Graphical User Interface. Password Protected Remote-Control and can be disabled.

PathWay® Model 7375 RJ45 Cat5e A/B/C Switch with Dual Remote ports & GUI Application

 FEATURES:

  • Allows quick connection of any one of three devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All 8 pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • Switch maintains position on power loss and continues to pass data.
  • Front-panel pushbutton control.
  • Dual Remote-Control Ports.
  • Control of the switch position from two 10/100Base-T LAN Ethernet environments.  IP Addressable!
  • Remote Control Telnet command interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations and obtain switch status.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED's display switch position and power status.
  • Certified for Cat5e compliance.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length Cat5e RJ45 cables available for your switch installation.

The PathWay® Model 7375 Cat5e RJ45 A/B/C Switch with Telnet and GUI and Dual Remote Ports allows the user the capability of sharing a single port interface device connected to the COMMON port among three other devices connected to the A, B, and C ports.

 Remote Control access can be accomplished using an Ethernet 10/100Base-T connection via Remote1 and Remote 2. The Graphical User Interface allows for Remote switch position control and monitoring as well as front panel lockout features.  The Model 7375 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the Model 7375 LAN port is connected to, simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

10/100BASE-T LAN SETUP

Network Setup

The switch is configured from the factory to use DHCP to automatically get its IP address from a DHCP server on the local area network when connected to the network and powered up. Therefore, a DHCP server is needed on the local area network for the initial configuration. After that, the switch can be configured to use a static IP address.  To find the IP address of a switch that it has gotten from the DHCP server, or to reconfigure the IP Address of the switch, use the Lantronix® DeviceInstaller application.

Getting DeviceInstaller

DeviceInstaller requires Microsoft’s .NET Framework version 4.0 or higher. If the .NET Framework is not already installed, it must first be installed. The .NET Framework can be downloaded from Microsoft’s website, either as a web install, or as a standalone installation.  The latest version of DeviceInstaller can be downloaded from Lantronix’s website.

PathWay Model 7375 Cat5e A/B/C Switch w/Dual Remote Telnet GUI Software

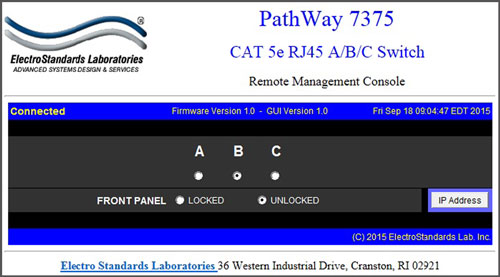

  Figure 1: Model 7375 GUI in a standard Web Browser

SOFTWARE FEATURES

* Graphical User Interface

  • Select a position:
    • Select Position A, B or C via the GUI.
  • Lock and unlock front panel pushbutton control via the GUI
  • GUI is alerted to changes made by front panel pushbutton
  • Users can change the login password and/or the switch's IP address.
  • Login: Password authentication can enable or disabled.
  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7375 Single Channel Cat5e RJ45 A/B/C Switch System.
  • LAN access gives users across the LAN or over the Internet access to control the unit via the GUI, if user network is configured accordingly.

CHANGING POSITION AND LOCK STATUS

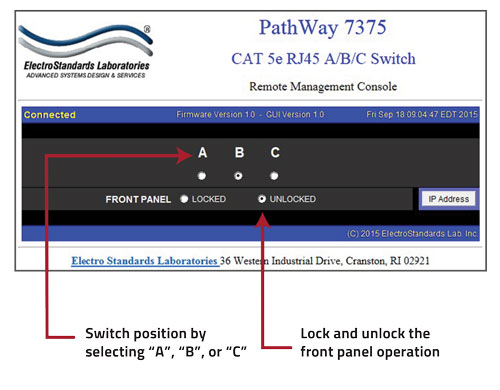

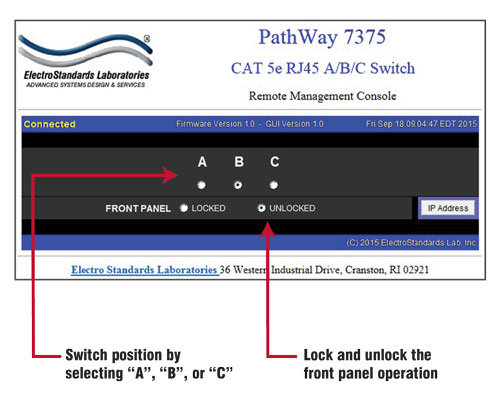

To change the switch position, click on the radio button "A", "B", or "C" as desired.  Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 2.

PathWay® Model 7375 A/B/C GUI capture

Figure 2: Change the switch position and lockout front-panel operation using the Main Panel of the Graphical User Interface.

QUERYING THE STATUS OF THE UNIT

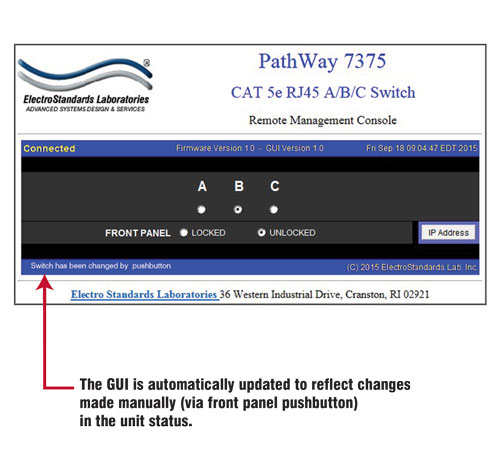

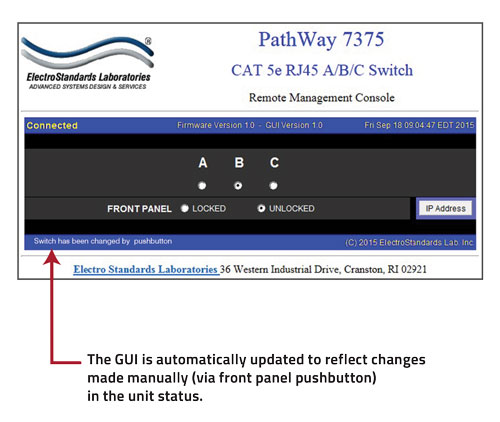

Once connected, the GUI will stay “up-to-date” on the current position and status of the unit.  Any changes that are made outside of the GUI, such as by pushbutton, will be reflected in the GUI.  These changes will cause the radio buttons of the GUI to automatically change to show the new status.  See Figure 3.
