Catalog # 307383 - Model 7383 8-to-1 COAX/RJ45 Cat6 Switch

Click image to enlarge

Base Price:

$3,049.00

Catalog No:

307383

Model No:

7383

Product Type:

Switches: Copper

Interface:

Cat6/COAX

Positions:

Cable Type/Port Connector:

RJ45, Coax Switch Ports

Channels per Switch Chassis:

Electronic Switches/Power Required:

PathWay® Copper

Remote Control:

RS232 Serial

Compliance/Standards:

Cat6

Configuration:

Rackmount

Pins Switched:

Remote Port:

DB9

Local Control:

Pushbutton

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Multi Interface Copper Network Switches
Cat6 RJ45, BNC Remotely Controlled

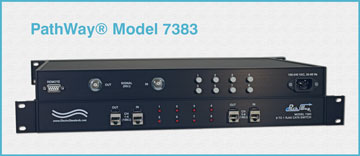

Model 7383 8-to-1 COAX/RJ45 Cat6 Switch, 2 Leads Switched, with RS232 Serial Remote

Model 7383 8 to 1 COAX/RJ45 Cat6 Switch, 2 Leads Switched, with RS232 Serial Remote

SPECIFICATIONS:

RJ45 PORT CONNECTORS: (4) RJ45 ports on front panel.
OUT - RJ45 (F) shielded, the "OUT" device port for Channels 1-4.
IN - RJ45 (F) shielded, the "IN" device port for Channels 1-4.
OUT - RJ45 (F) shielded, the "OUT" device port to Channels 5-8.
IN - RJ45 (F) shielded, the "IN" device port for Channels 5-8.
BNC PORT CONNECTORS: (2) BNC ports on rear panel.
OUT - BNC (F) connector, selected channel.
IN - BNC (F) connector, selected channel.
REAR PANEL CONTROLS: (8) Manual pushbuttons allow local switching.
DISPLAY: (8) LED's display switch position and power status.
REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control Operation.
INTERNAL POWER SUPPLY: 100VAC/240VAC; AC inlet module on rear panel includes power rocker switch / IEC AC cord connector / fuse; AC external power cord
DIMENSIONS: 19.0" W x 1.75" H x 12.46" D. (48.3 x 4.4 x 31.7 cm)
WEIGHT: Approximately 7.0 lbs. (3.2 kg)

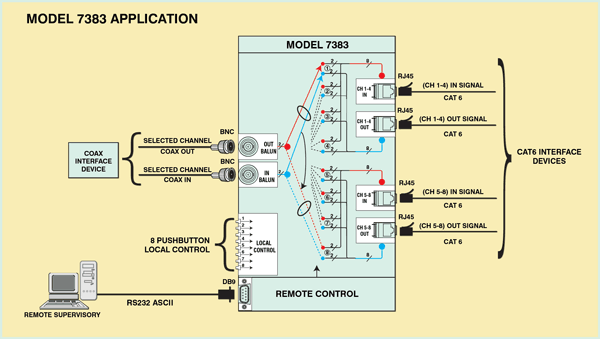

8-TO-1 COAX/RJ45 CAT6 SWITCH APPLICATION w/RS232 REMOTE: The drawing illustrates a custom application connecting a COAX Interface device with eight CAT6 Interface devices. A COAX Interface device is connected to an "OUT" Balun and "IN" Balun. The eight CAT6 Interface devices are connected to the CAT6 RJ45 ports labeled "IN" and "OUT". The COAX device has access to the CAT 6 interface devices allowing conversion and connection of the signals. A Remote DB9 port accepts RS232 commands for Remote Control Operation.

Network Application Diagram for Model 7383 8 to 1 COAX/RJ45 Cat6 Switch, 2 Leads Switched with RS232 Serial Remote

FEATURES:

Allows quick conversion and connection to any one of 8 RJ45 Cat6 interface devices from one COMMON COAX interface device.
Two pins, of the RJ45 interface are switched via break-before-make electromechanical relays.
Eliminates the need to plug and unplug cables.
The switch ports are transparent to all data.
Switch maintains position on power loss and continues to pass data.
Remote RS232 ASCII commands allow the user to control switch position, lockout rear panel operations and obtain switch status.
Front panel LED's display present position and power status.
Rear panel pushbutton control. No front panel control.
Certified for Cat6 compliance.

The PathWay® Model 7383 Single Channel COAX/RJ45 Cat6 8-to-1 Switch with RS232 Remote allows the user the capability of connecting two seperate devices, ports OUT and IN, via a direct connection for each channel, with remote access functionality. Remote Control access can be accomplished using ASCII RS232 commands. The Model 7383 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL Manual Data Network Switches are available for export.
