Catalog # 307465 - Model 7465 8-Channel RJ45 A/B Switch

    8-Channel RJ45 A/B Switch8-Channel RJ45 A/B Switch8-Channel RJ45 A/B Switch8-Channel RJ45 A/B Switch
Click image to enlarge
    • 8-Channel RJ45 A/B Switch
    • 8-Channel RJ45 A/B Switch
    • 8-Channel RJ45 A/B Switch
    • 8-Channel RJ45 A/B Switch
Base Price:
$4,435.00
Catalog No: 307465
Model No: 7465
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:8
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Remote Control:Ethernet
Configuration:Rackmount
Pins Switched:4
Remote Port:RJ45
Local Control:Pushbutton
Feature:IP Addressable
Protocol:Telnet Commands

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview



Path Way® Remotely Controllable Network Switch, RJ45
Model 7465 8-Channel RJ45 A/B Switch with 10/100Base-T LAN Telnet Access.

  • IP Addressable. Remotely control the switch via Telnet command interface.

  • Ideal for Commercial-Off-The-Shelf (COTS) purchase applications.

SPECIFICATIONS:

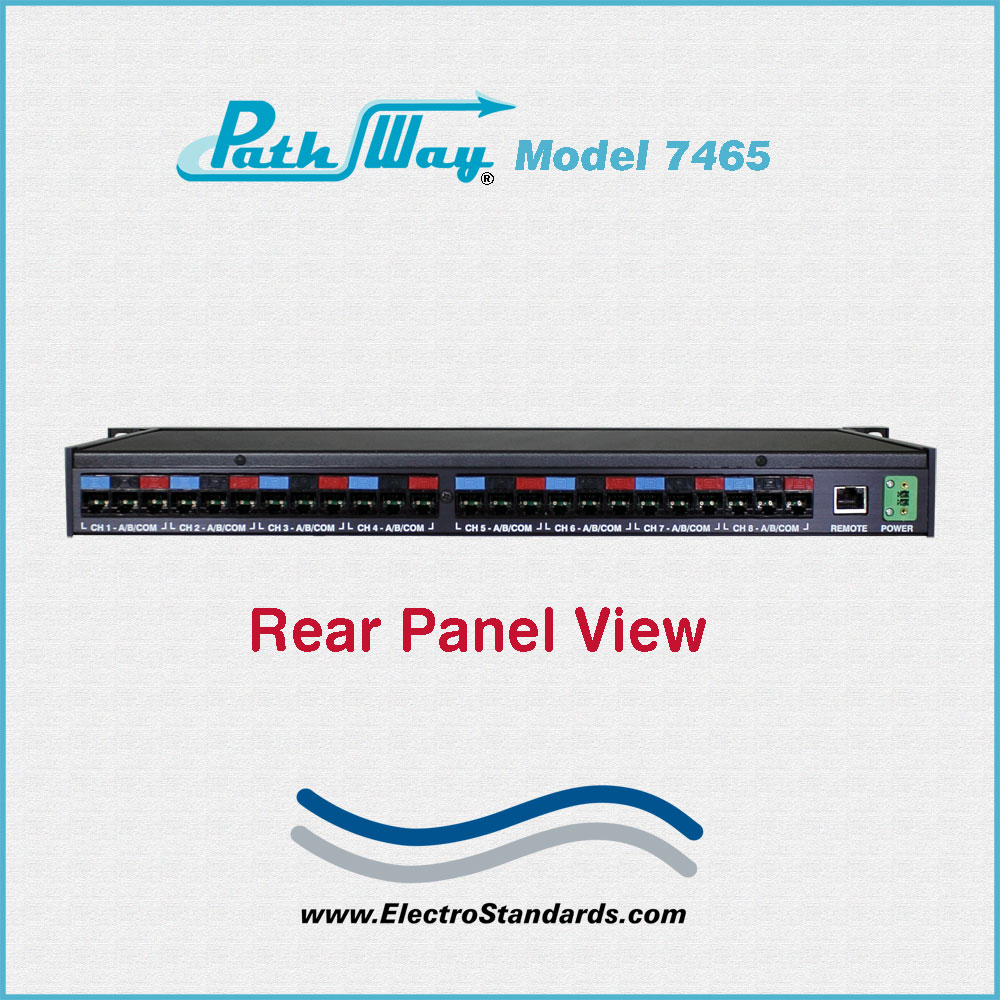

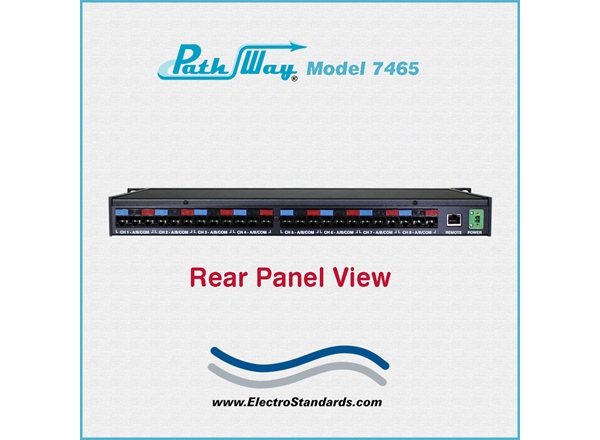

  • PORT CONNECTORS: All (24) RJ45(F) ports are located on the rear panel.
    • (8) "A" ports
    • (8) "B" ports
    • (8) Common ports.

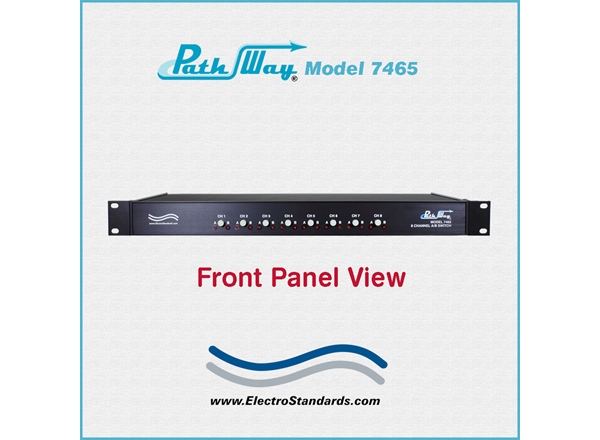

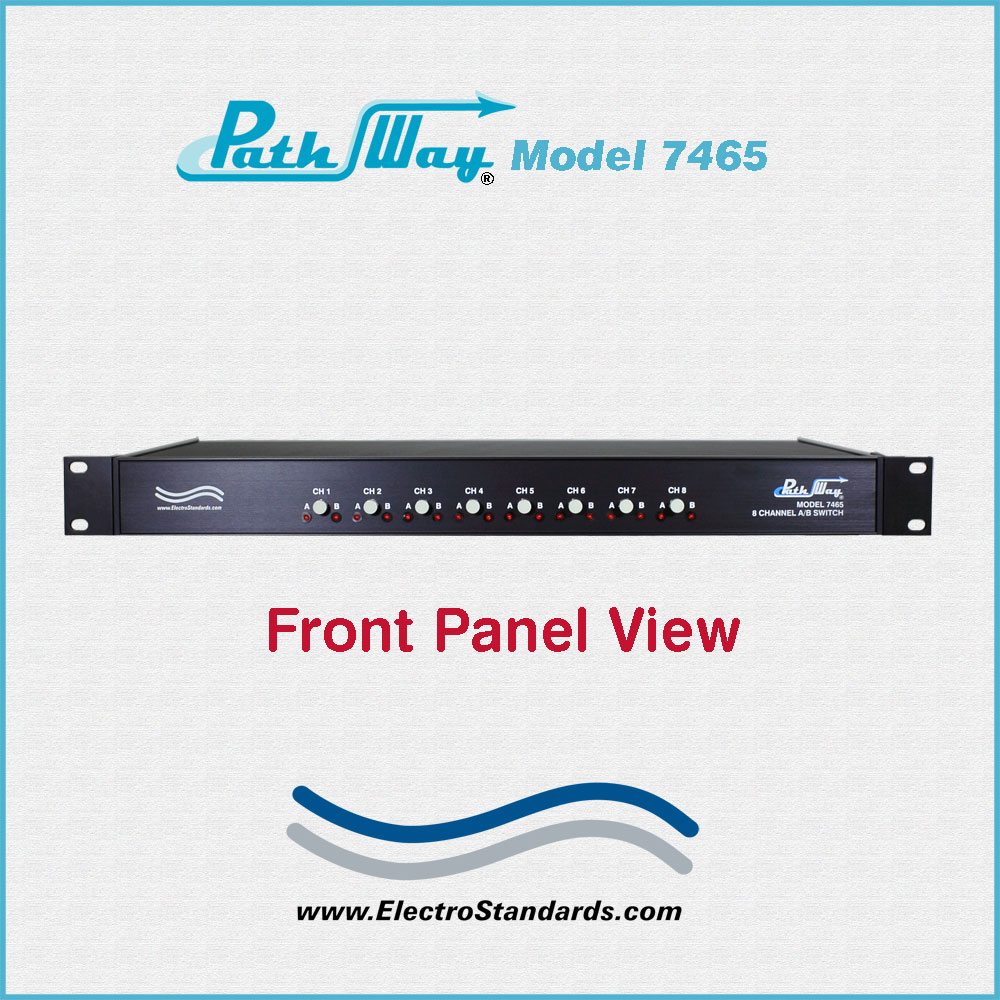

  • FRONT PANEL CONTROLS: (8) Manual pushbuttons allow local switching.
  • DISPLAY: (16) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) RJ45(F) Connector on rear panel accepts 10/100-Base-T LAN Access Ethernet for Remote Control operation.
  • POWER: (Cat No. 522916) CE and UL listed wide voltage range and expanded storage temperature range, table mount power module and power cord is supplied as standard with the Model 7465.
    • INPUT: 100VAC/240VAC, 50Hz/60Hz.
    • OUTPUT: 12VDC, 2.5A
  • DIMENSIONS: 19" W x 1.75" H x 10.3" D. (48.3 x 4.4 x 26.2 cm)
  • WEIGHT: 5.9 lbs. (2.7 kg)

RJ45 8-CHANNEL A/B SWITCH APPLICATION w/10/100Base-T REMOTE:

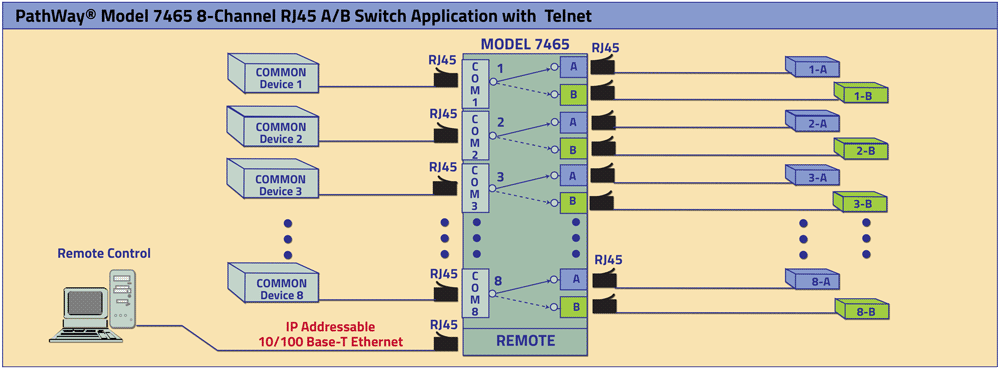

The drawing illustrates a COMMON device connected to the COM port for each of the eight channels. Each COMMON device has access to select Device 1 or Device 2. Independently switch eight RJ45 A/B channels. The RJ45 Remote port is 10/100Base-T and accepts Telnet commands for Remote operation. Locally, control the unit via eight front-panel pushbuttons: one pushbutton for each channel.

PathWay® Model 7465 8-Channel RJ45 A/B Switch application

FEATURES:

  • Independently control each channel either locally via front panel pushbuttons or remotely via the REMOTE port.
  • The switch ports are transparent to all data.
  • Pins 2, 4, 5, and 7 of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment. IP Addressable!
  • Remote Control Telnet Command Interface that allows the user to control switch position, lockout front panel operations, and obtain switch status, as well as query firmware version number, query serial number, and enable/disable autosend of switch positions.
  • Front panel LED's display present position and power status.
  • Expanded storage temperature, -28° to 60° C (based on component spec analysis)

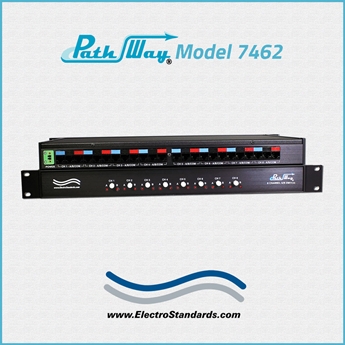

  • For a similar switch, with no Remote Control, see Model 7462, Cat. No. 307462.
  • Custom length RJ45 cables available. See Cat. No.'s 990328 thru 990336.
  • Municipalities, schools, government: On GSA Schedule!

The PathWay® Model 7465 8-Channel RJ45 A/B Switch with Telnet allows the user the capability of sharing a single device, connected to the COMMON port among two other devices connected to the A and B ports for each channel.  The Model 7465 has both local and remote access functionality.  Remote access functionality is achieved through the use of an Ethernet 10/100 Base-T connection and Telnet commands.

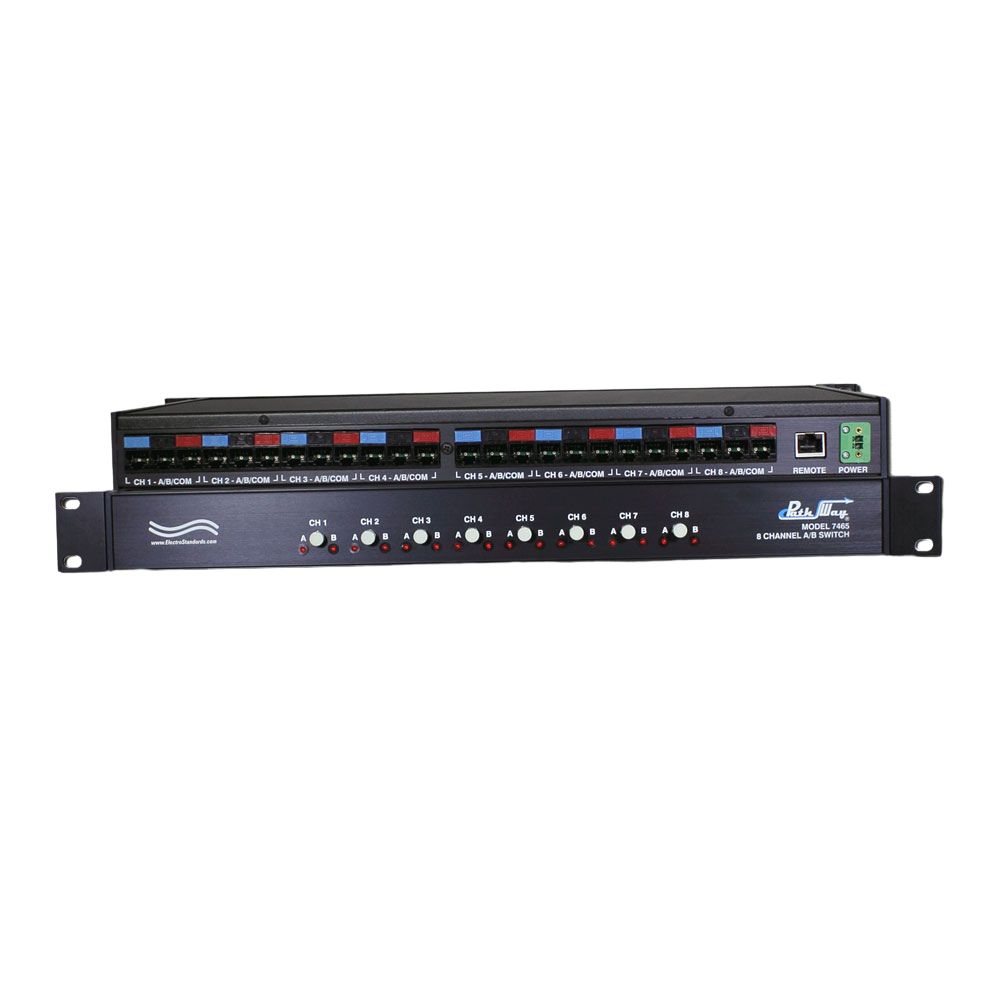

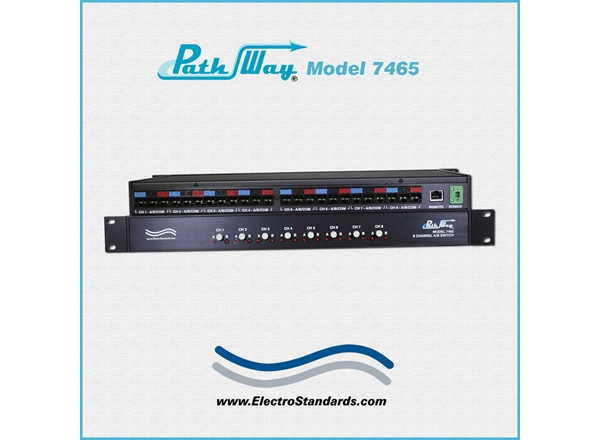

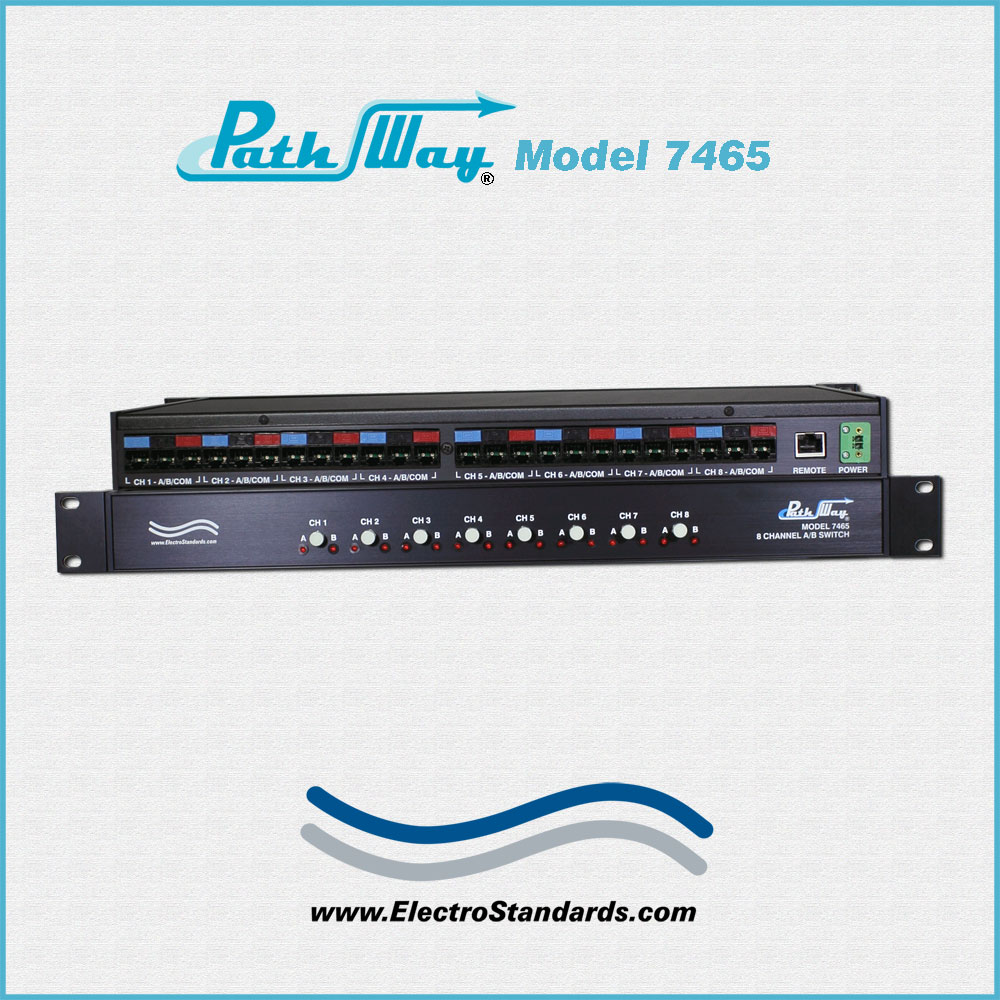

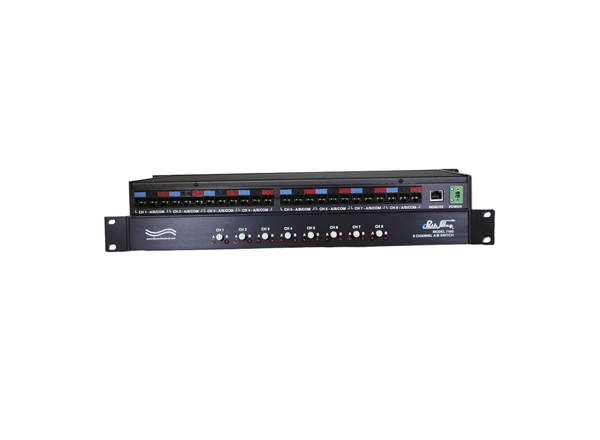

The Model 7465 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 7465 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
