Catalog # 307466 - Model 7466 DB9, HD15, USB A/B KVM Switch

    DB9, HD15, USB A/B KVM SwitchDB9, HD15, USB A/B KVM Switch
Click image to enlarge
    • DB9, HD15, USB A/B KVM Switch
    • DB9, HD15, USB A/B KVM Switch
Base Price:
$1,571.00
Catalog No: 307466
Model No: 7466
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:USB, DB9 Switch Ports, HD15 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Configuration:Desktop
Remote Port:DB9
Feature:Remotely Controllable

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview


Path Way® Remotely Controllable Network Switch, KVM

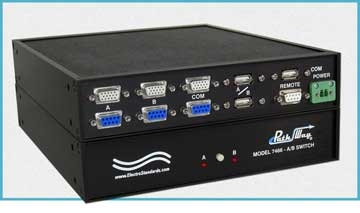

Model 7466 DB9, HD15, USB A/B KVM Switch, with Contact Closure Remote

Model 7466 DB9, HD15, USB A/B KVM Switch, with Remote Contat Closure Remote

FEATURES:

  • Allows quick connection to any one of two KVM devices from one
    COMMON KVM devices from one COMMON KVM device.
  • The switch ports are transparent to all data.
  • All pins of the DB9, HD15, and USB interfaces are switched.
  • Local control via front-panel pushbutton.
  • Contact Closure remote control allows position changes.
  • Front panel LED's display switch position and power status.
  • DB9 and USB Ports revert to A position on power loss and continue to pass data.
  • HD15 signal integrity is maintained by active circuitry and does not pass on power loss.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length KVM cables available for your switch installation.

APPLICATION: The illustration shows a shared KVM, (Video, Keyboard, and mouse connection) to the COMMON port  for sharing to two other KVM devices connected to the A and B ports. For remote control operation, the RJ45 remote accepts contact closure signaling.

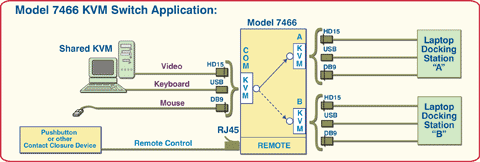

Diagram of Model 7466 KVM Switch Application with Contact Closure Remote Control

SPECIFICATIONS:

  • PORT CONNECTORS:
    • (3) DB9 female connectors labeled A, B, and COMMON.
    • (3) HD15 female connectors labeled A, B, and COMMON.
    • (3) USB Type A female connectors labeled A, B, and COMMON.
  • FRONT PANEL CONTROLS:  (1) Front panel pushbutton allows selection of switch position.
  • DISPLAY:  (2) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB9(F) connector on rear panel accepts Contact Closure signaling for remote control operation.
  • POWER: The Model 7466 requires 12VDC, 1 Amp, to operate.  A power module is not supplied with the Model 7466.  A Phoenix connector kit (Cat. No. 518221) is provided to facilitate connecting a customer supplied 12 VDC power module to the Model 7466.
  • DIMENSIONS: Desktop, 8.5" W x 10.0" D x 1.75" H (21.6 x 25.4 x 4.4 cm)
  • WEIGHT:  Approximately 3.0 lbs. (1.4 Kg)

The PathWay® Model 7466 DB9, HD15, USB A/B KVM Switch with Contact Closure Remote allows the user the capability of sharing a set of three port (KVM) interface devices connected to the COMMON port among two other sets of devices (KVM) connected to the A and B ports.  Remote Control access can be accomplished by contact closure through the remote DB9 port.

An ESL Power Supply for this unit is available as an option: WIDE RANGE POWER MODULE(Cat No 517277) CE and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz.

 This product is offered at a discount to city, state, and municipal government purchasers via GSA Schedule GS-35F-0286V.

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/
